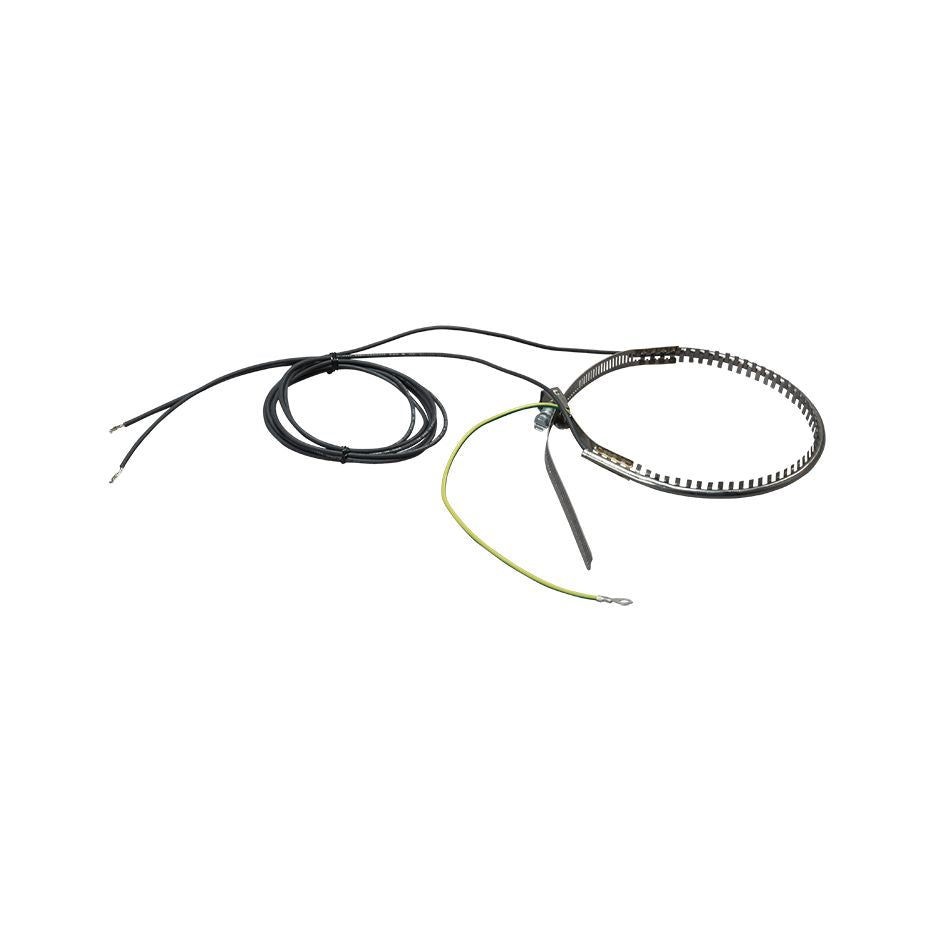

Rheem 44-17402-44 - Belly Band Crankcase Heater for Scroll Compressors
The Belly Band crankcase heater helps protect the compressor from refrigerant migration by optimizing the temperature of the crankcase oil. Acting as a heat sink, the crankcase can then absorb and transmit heat directly to the oil. Heat loss to ambient air is greatly reduced along with major cause of refrigerant migration.
Features
- For use with scroll compressors
- Easy to install and adjustable by screw
- Uses high temperature silicone rubber element
- For optimum heat transfer, mount in lowest position on compressor housing
- Completely moisture proof
- Corrosion resistant
- UL recognized
Technical Data
- Application: Scroll
- Type: Belly Band
- Watts (W): 40
- Voltage (V): 230
- Lead Wire Lengths (in.): 48
- Lead Wire Size (AWG): 18
- Lead Wire Terminations: Stripped
- Ground Wire Length (in.): 22
- Ground Wire Type (AWG): 18
- Ground Terminal: #10 Ring Eyelet
- Minimum Diameter (in.): 4-7/8
- Maximum Diameter (in.): 6-3/16
- Temperature Limit Switch Included: No
Where Used
- EA14
- RA13NZ
- RA14AZ
- RA17
- RP13
- RP14AZ
- RP15AZ
Replaces
- 442033
- PD442054
