Specification Sheet

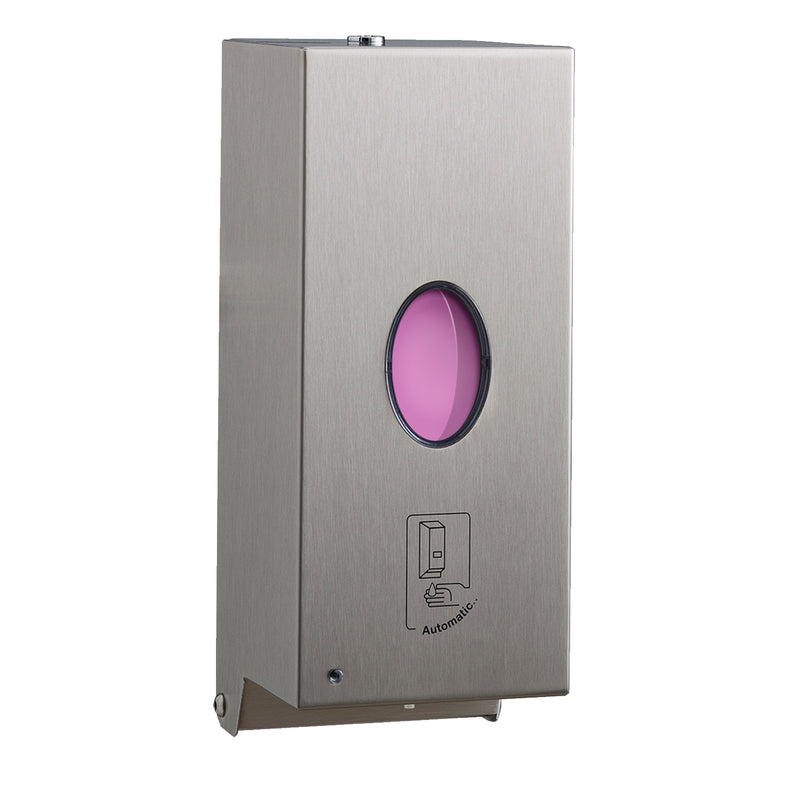

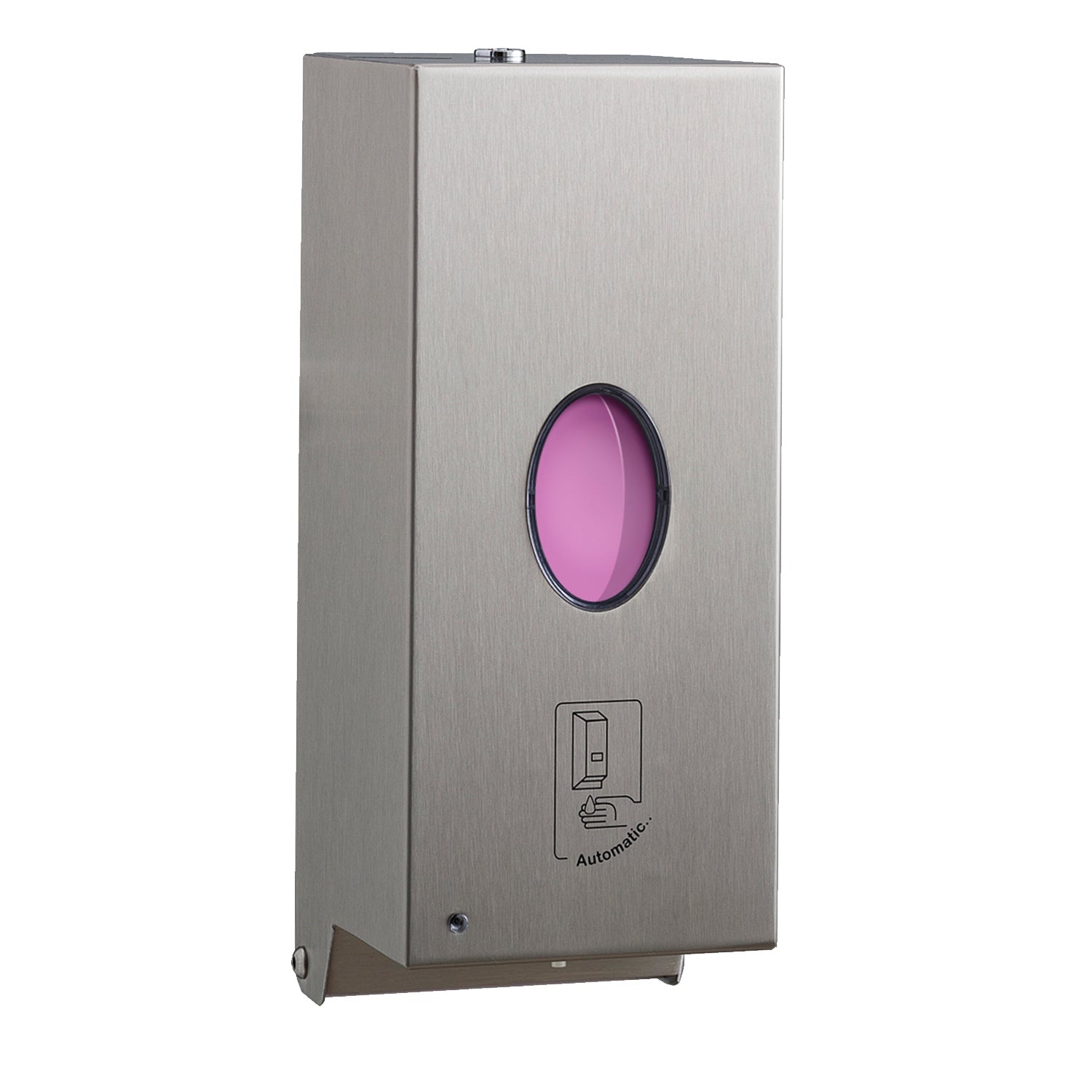

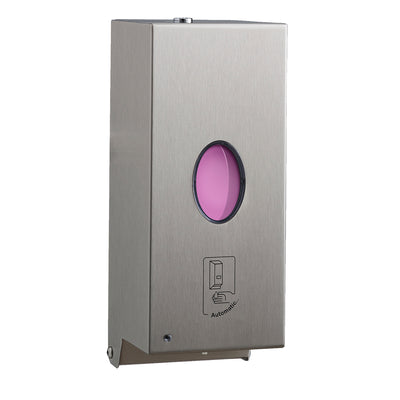

Automatic Wall-Mounted Soap Dispenser

Features:

• Automatic wall-mounted soap dispenser shall be Type-304 stainless steel with satin-finish
• Corrosion-resistant valve shall dispense a variety of liquid soaps, iodine based soaps, and alcohol based liquid or gel hand sanitizers
• Valve shall be sensor-activated and not require contact with the dispenser to function
• Lockable housing shall be equipped with a clear acrylic refill-indicator window and be hinged for refilling and maintenance
• Container shall have a capacity of 850 ml (30-fl oz). Unit shall have CE Certification.

MATERIALS:

• Housing — Welded 18-8, Type-304, 18-gauge (1.0 mm) stainless steel with satin-finish. Plastic back plate incorporates mounting screw
  holes and mounting tape. Equipped with concealed mounting, clear acrylic refill-indicator window and key lock. Refillable, plastic
  container. Capacity: 850 ml (30-fl oz).
• Valve — No-touch, sensor-activated valve suitable for liquid soap, alcohol gel, liquid alcohol, hand sanitizers and iodine.
• Spare Part — Replace 2012-18-S silicone tube pump every three to six months, depending on usage, if using the dispenser with
  alcohol-based solutions
