Automatic Soap Dispenser Starter Kit Counter-Mounted,  Foam

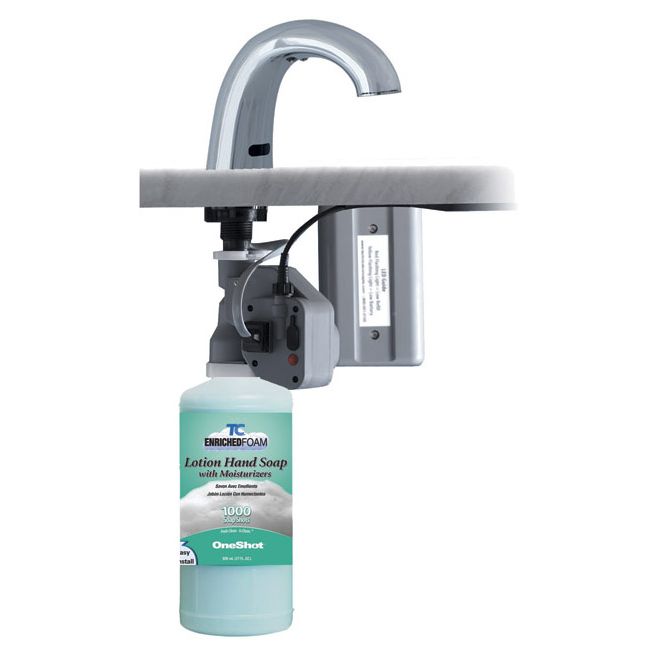

Includes B-8263 Automatic Counter-Mounted Foam Soap Dispenser, 800ml foam soap refill, and 4 Alkaline "D" Cell batteries.

Specification Sheet

Installation Instructions

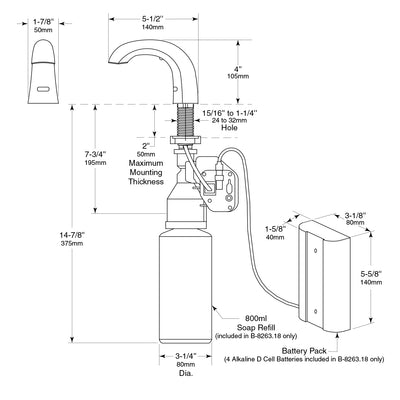

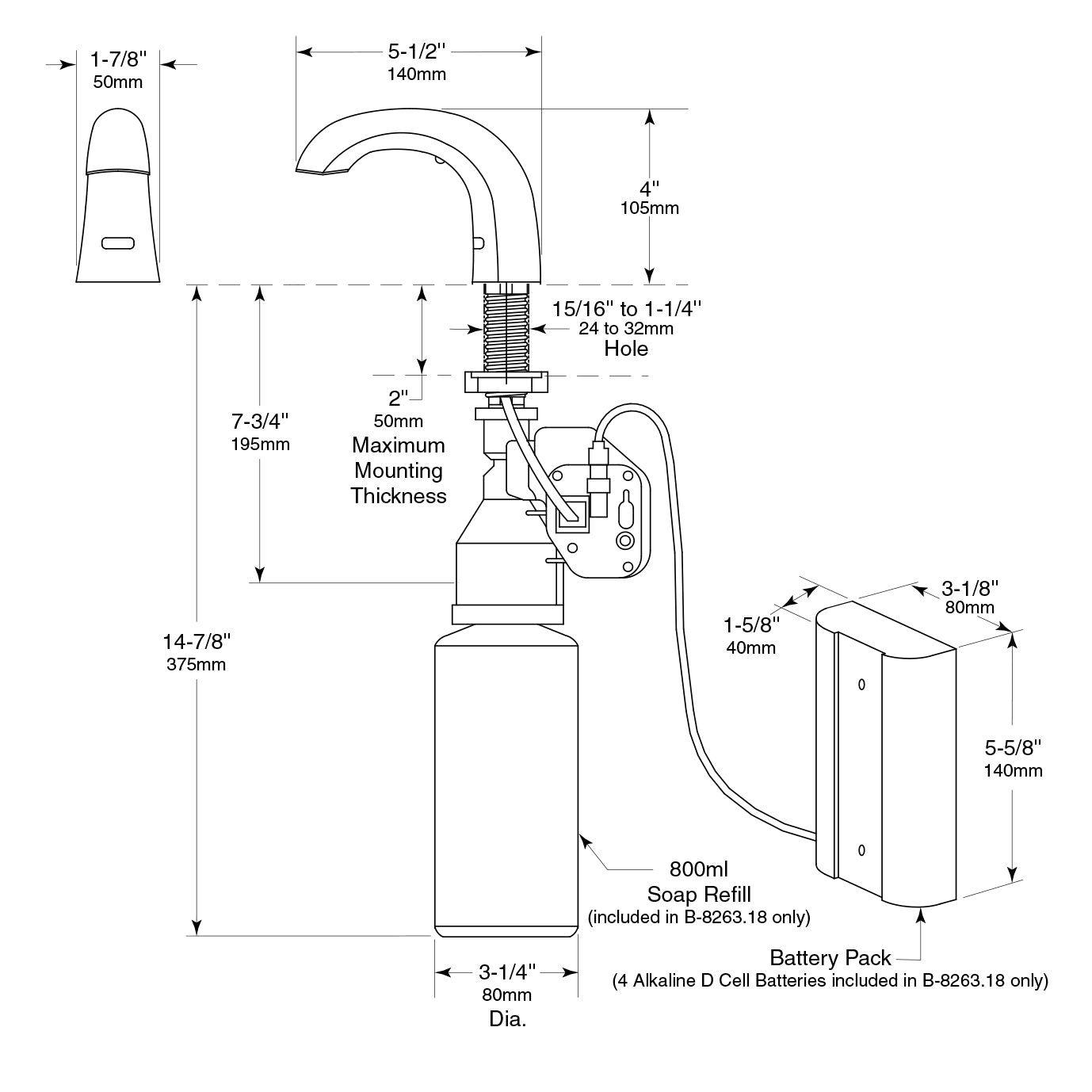

Materials:

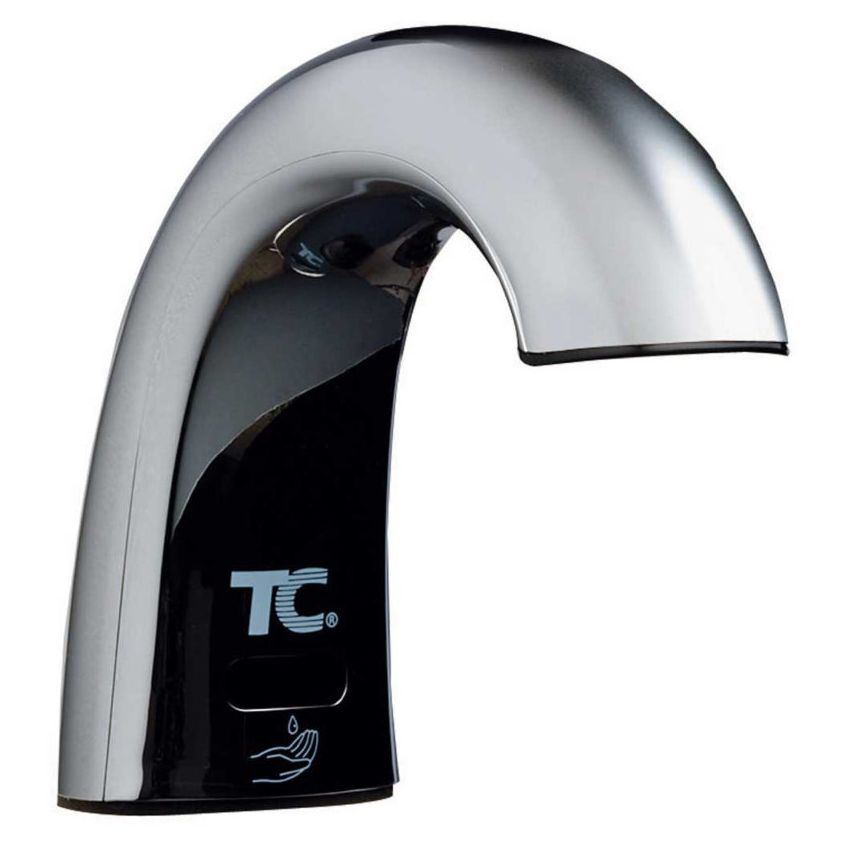

• Spout Cover Assembly — Bright Polished chrome plated plastic with LED light indicators. Red blinking LED indicates soap level is low, Yellow blinking LED indicates battery life is low. Equipped with integral plastic shank.
• Motor Assembly — Water resistant, plastic construction, fits onto bottom of shank and top of soap refill.
• Battery Pack — Water resistant, plastic material, holds 4 Alkaline "D" Cell Batteries. Batteries are included in Model B-8263.18 Starter Kit only. Average battery life is 90,000 cycles or 2 years.
• Soap Refill — OneShot® Soap Refill. Translucent, shatter-resistant polyethylene bottle. Includes new supply tube and pump mechanism in each refill. Soap refill available in 27-fl oz (800ml) and 54-fl oz (1600ml) capacities. One 27-fl oz (800ml) bottle of Hand Soap with Moisturizers is included in Model B-8263.18 only. OneShot® is a registered trademark of Rubbermaid Commercial Products.
• Optional Spacer — Plastic spacer is included for mounting dispenser when sink rim is 3/4" (19mm) high or greater.

Operation:

• Place hand under soap spout for approximately 2 seconds. Spout will dispense controlled amount (0.8ml) of Hand Soap with Moisturizers or Free 'n Clean Soap. 27-fl oz (800ml) soap refill provides 1000 hand washes, the 54 fl oz (1600ml) soap refill provides 2000 hand washes. Motor assembly is preset for 27-fl oz (800ml) soap refill (if 54-fl oz (1600ml) is used, a switch under the rubber plug next to red reset button must be moved to 2K). Once a new soap refill is connected, pressing the red reset button automatically resets the low soap indicator LED and primes the new soap refill.
