Specification Sheet

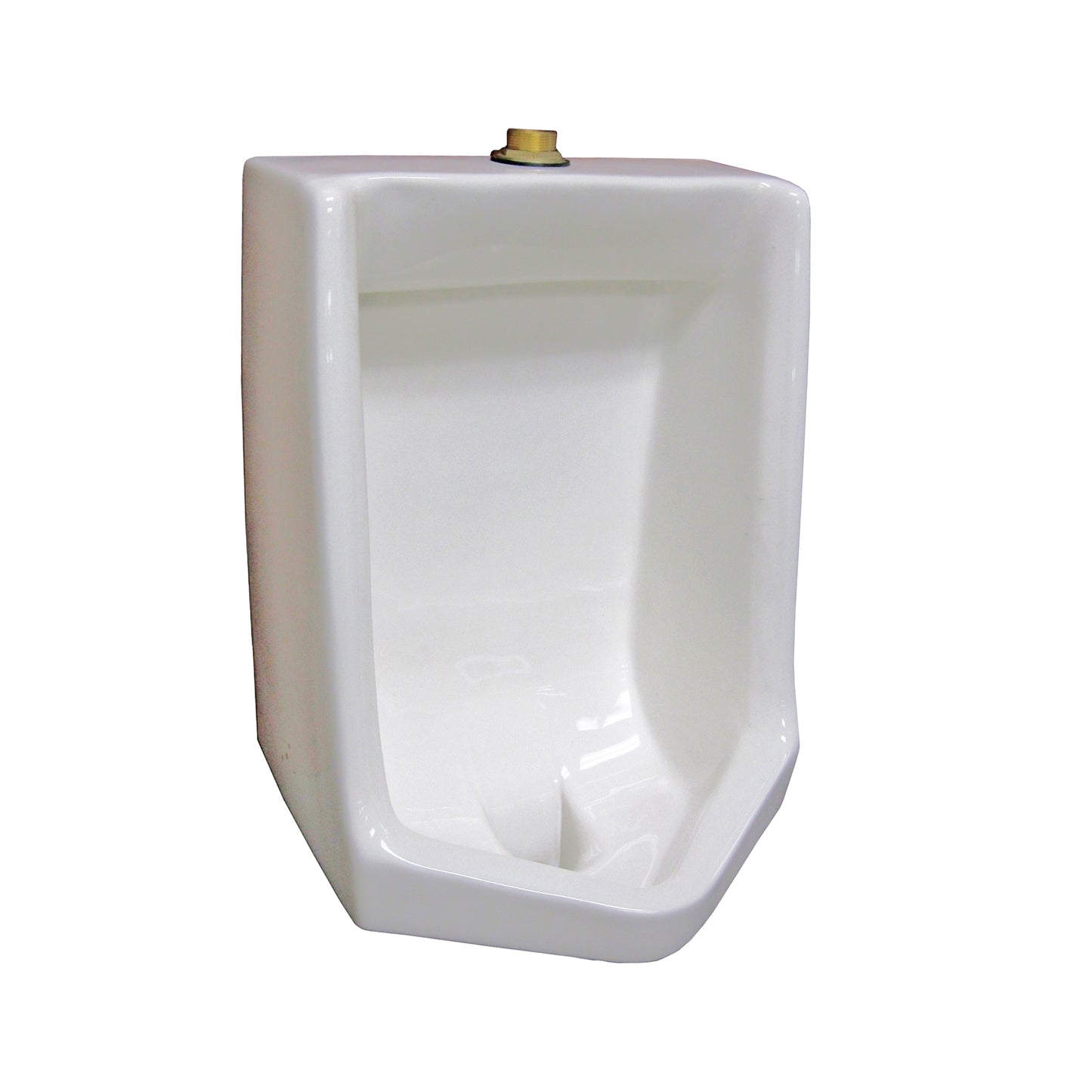

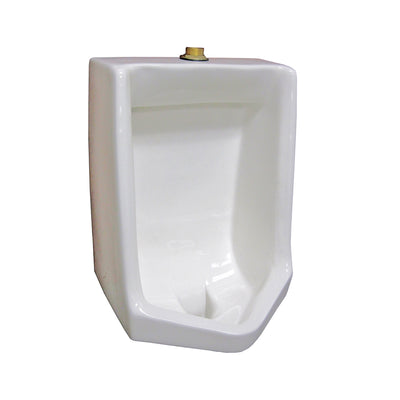

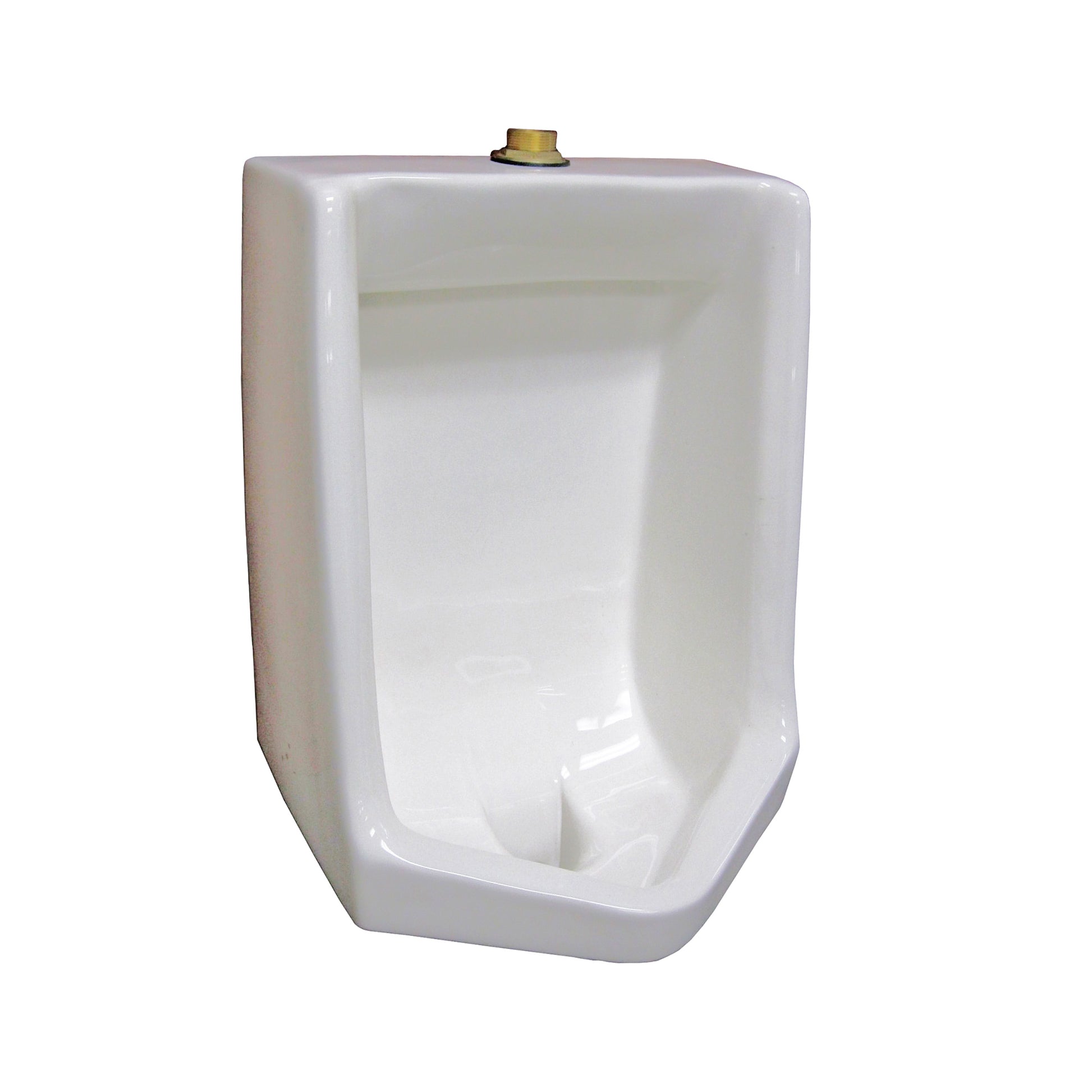

This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and a blowout flush action for effectiveness, plus integral privacy shields. Its practical design makes it ideal for commercial applications that don’t have privacy walls between urinals. Low water usage (1.0 gpf/3.8 Lpf) Flushing rim Blowout flush action Privacy shields 1-1/4" inlet spud Outlet connection threaded 2" inside (NPTF) 2 wall hangers Fixture only Meets ANSI flush requirements at0.7 to 1.0 GPF

Features

• Low water usage (1.0 gpf/3.8 Lpf)
• Flushing rim
• Blowout flush action
• Privacy shields
• 1-1/4" inlet spud
• Outlet connection threaded 2" inside (NPTF)
• 2 wall hangers
• Fixture only
• Meets ANSI flush requirements at 0.7 to 1.0 GPF

PGZ1160750
