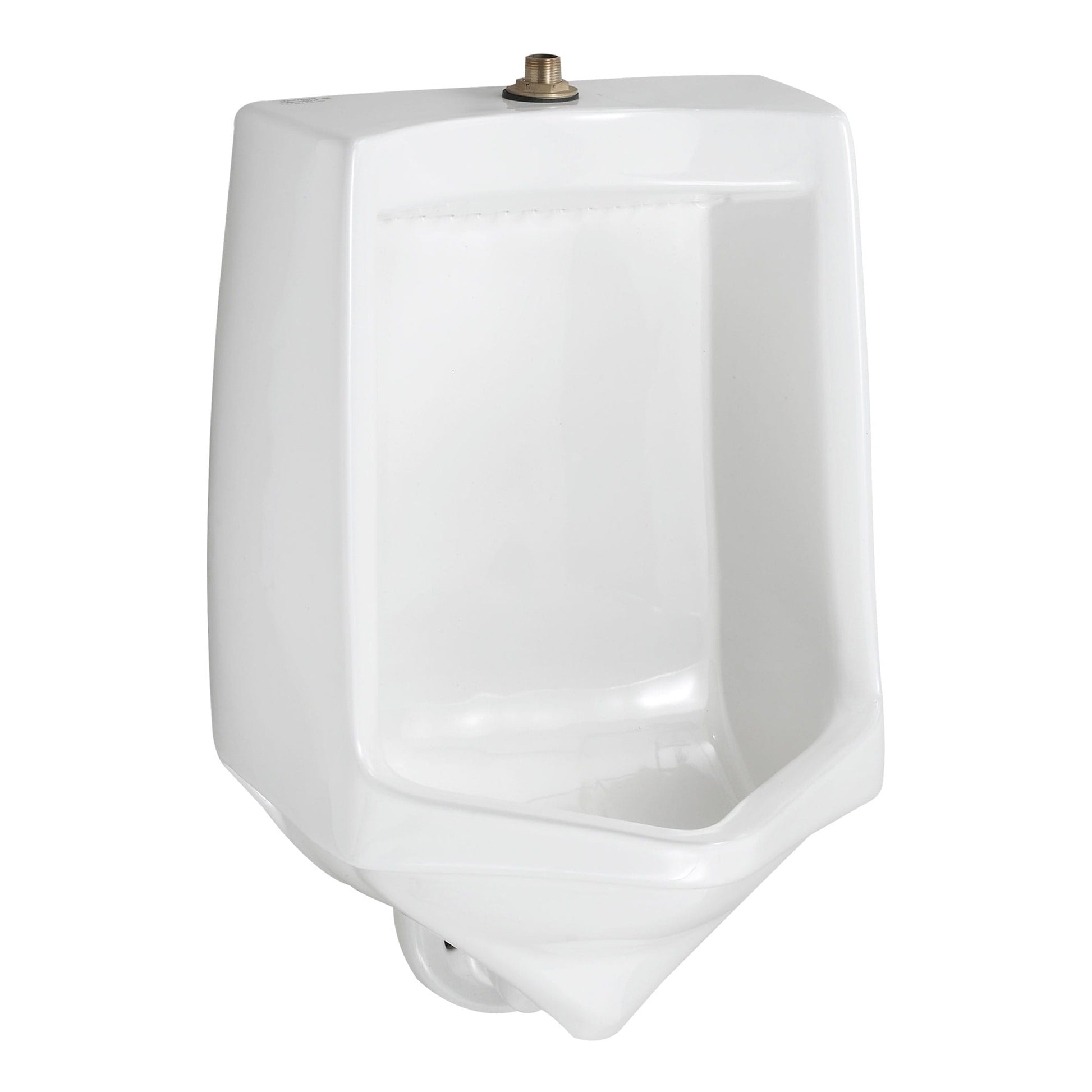

6561017.020 - Trimbrook 1.0 GPF Top Spud Siphon Jet Urinal
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

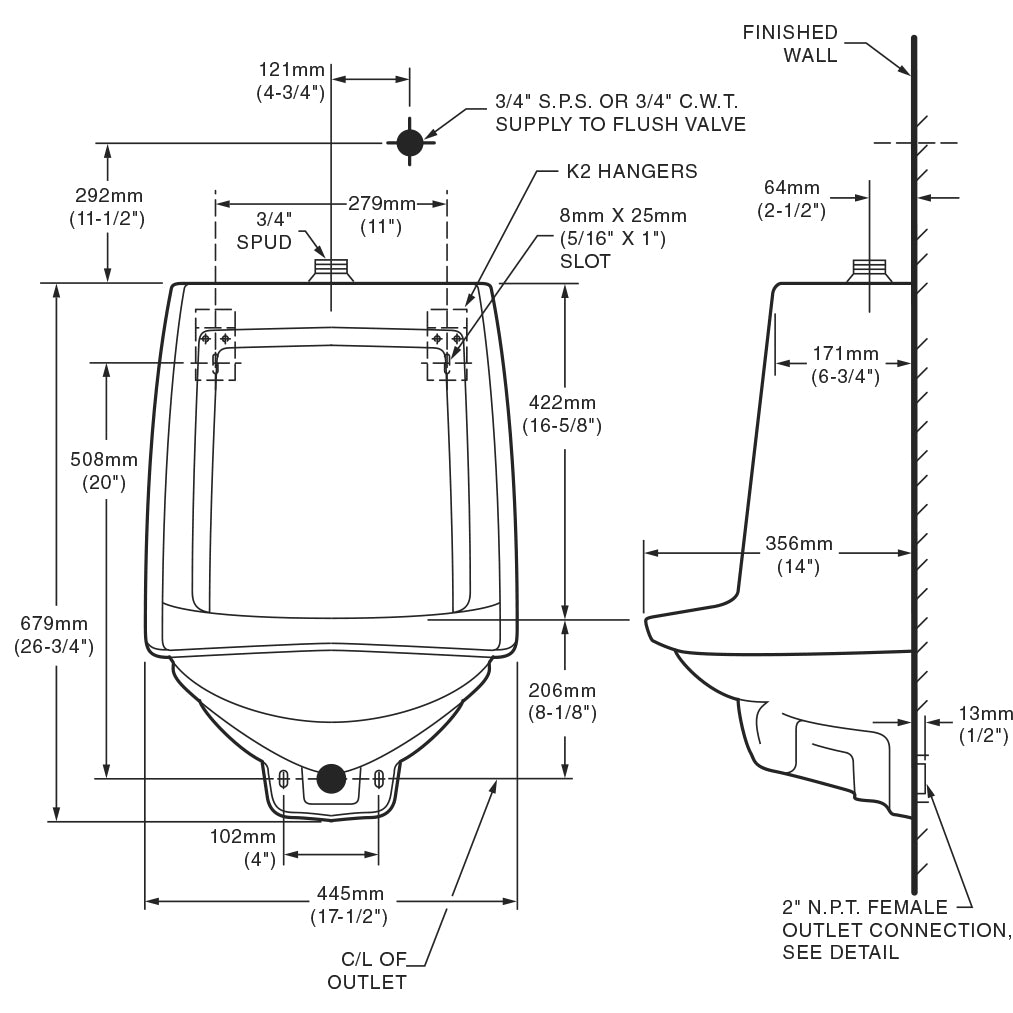

Specification SheetAmerican Standard 6561017.020 - Trimbrook 1.0 GPF Top Spud Siphon Jet Urinal
This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and siphon-jet flush action for effectiveness, and extended sides for privacy. Its versatile design could work well in traditional and casual commercial environments. Vitreous china Low-consumption (3.8 Lpf/1.0 gpf) Flushing rim Siphon jet flush action Extended sides for privacy 3/4" inlet spud Outlet connection threaded 2" inside (NPTF) 2 wall hangers Fixture only Meets ANSI flush requirements at 1.0 GPF
Features
- Vitreous china
- Low-consumption (3.8 Lpf/1.0 gpf)
- Flushing rim
- Siphon jet flush action
- Extended sides for privacy
- 3/4" inlet spud
- Outlet connection threaded 2" inside (NPTF)
- 2 wall hangers
- Fixture only
- Flush valve sold separately
- Meets ANSI flush requirements at 1.0 GPF
PGZ1160600
