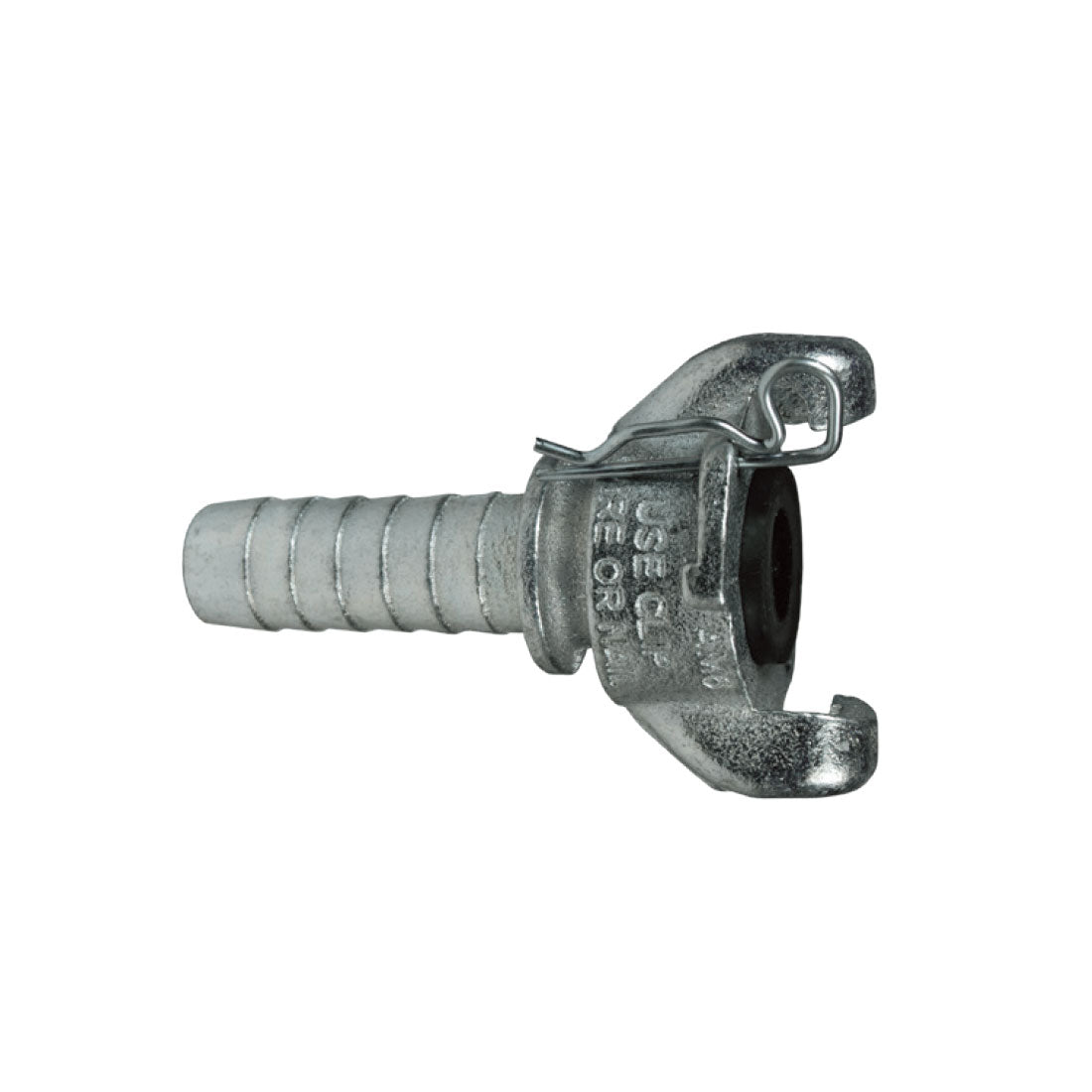

AM1 - 1/2" Iron 2-Lug Hose End Pneumatic Fitting

In stock
SKU: AM1
Regular price $8.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected. This guarantees the fittings are properly connected because the safety pin will not go through the holes in mating flanges until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.

Features

  • Safety clip included
  • Supplied with rubber washer, part # AWR4
  • Air King is for air and water service only
  • Never use any Air King coupling for steam service!
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Pressure rating given at ambient temperature 70 degrees F
  • Air King meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D.
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
  • Air King is for air and water service only
  • Material: Iron
  • Pressure Rating Metric: 1 MPa
  • Seal: Rubber
  • Pressure Rating: 150 PSI
  • Weight: 0.48 lb

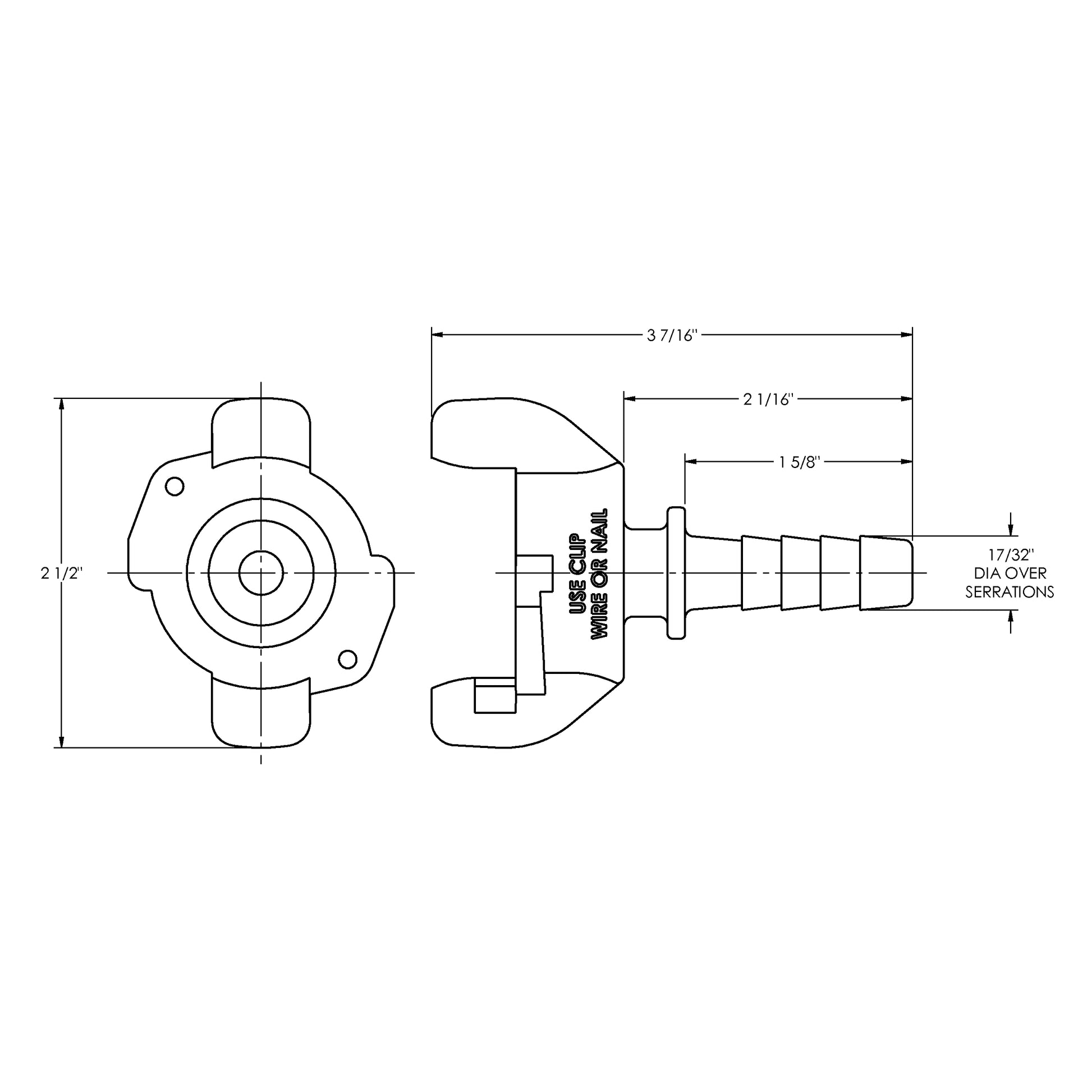

  • Size: 1/2"
