Specification Sheet

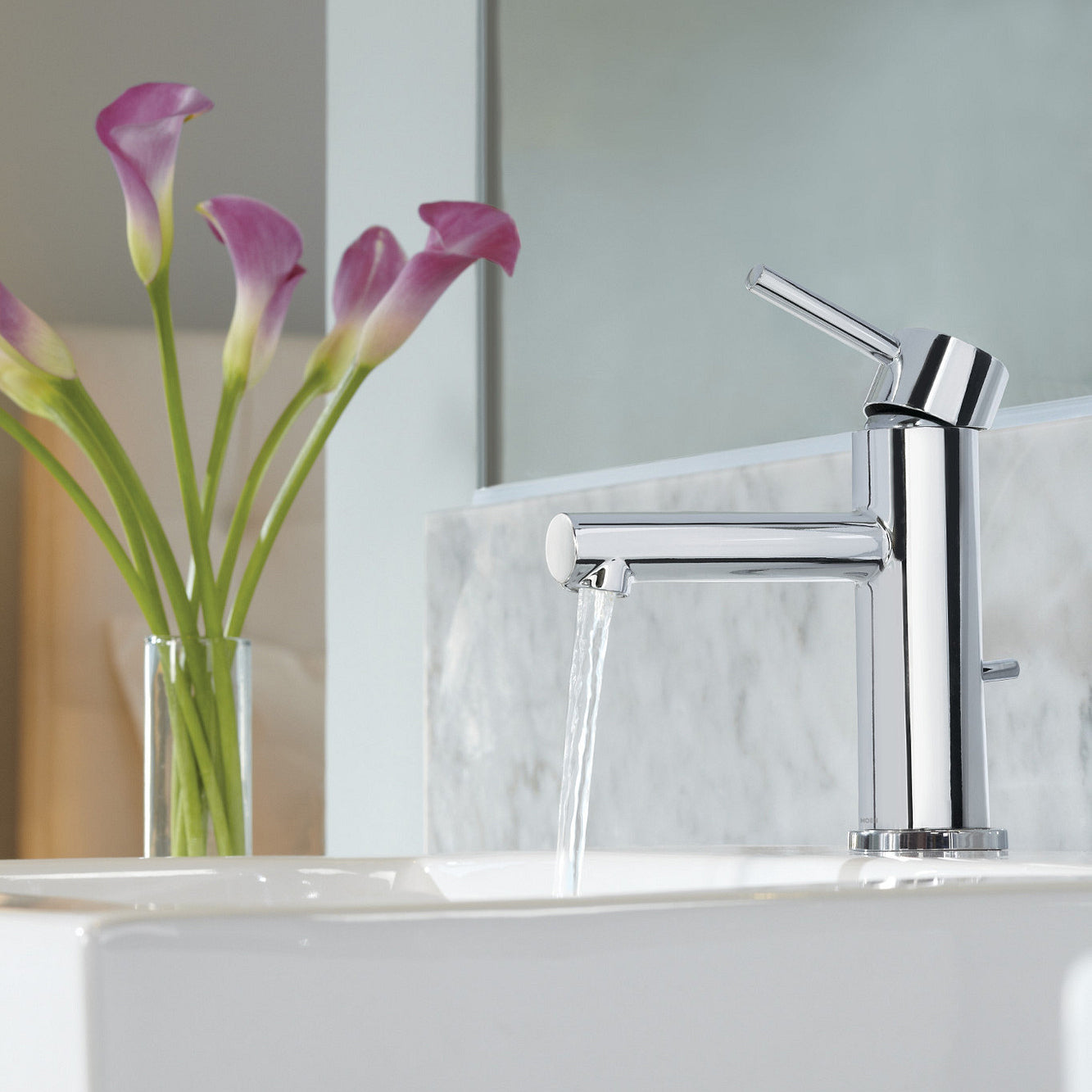

Moen Align One-Handle High Arc Bathroom Faucet with Valve

Align faucets and accessories bring a refreshed Modern look to your home. Use them in large master baths or small powder rooms. The simple lines and contemporary style are beautiful. A full line of coordinating products is available to complete the look of your bath. The clear laminar stream produces a beautiful water presentation.

Features

• One-handle lever handle makes it easy to adjust the water
• LifeShine finish assures the ultimate in durability and is guaranteed not to tarnish, corrode or flake off
• Single hole mount creates a cleaner look against custom countertops
• Complies with Americans with Disabilities Act (ADA) specifications
• Aerated flow is ideal for everyday bathroom tasks, like brushing teeth and washing hands
• Meets EPA WaterSense criteria to conserve water without sacrificing performance
• Limited lifetime warranty
• Meets current legislation, including ab1953 (California) and s152 (Vermont)
• Includes red and blue markings
• Deckplate included

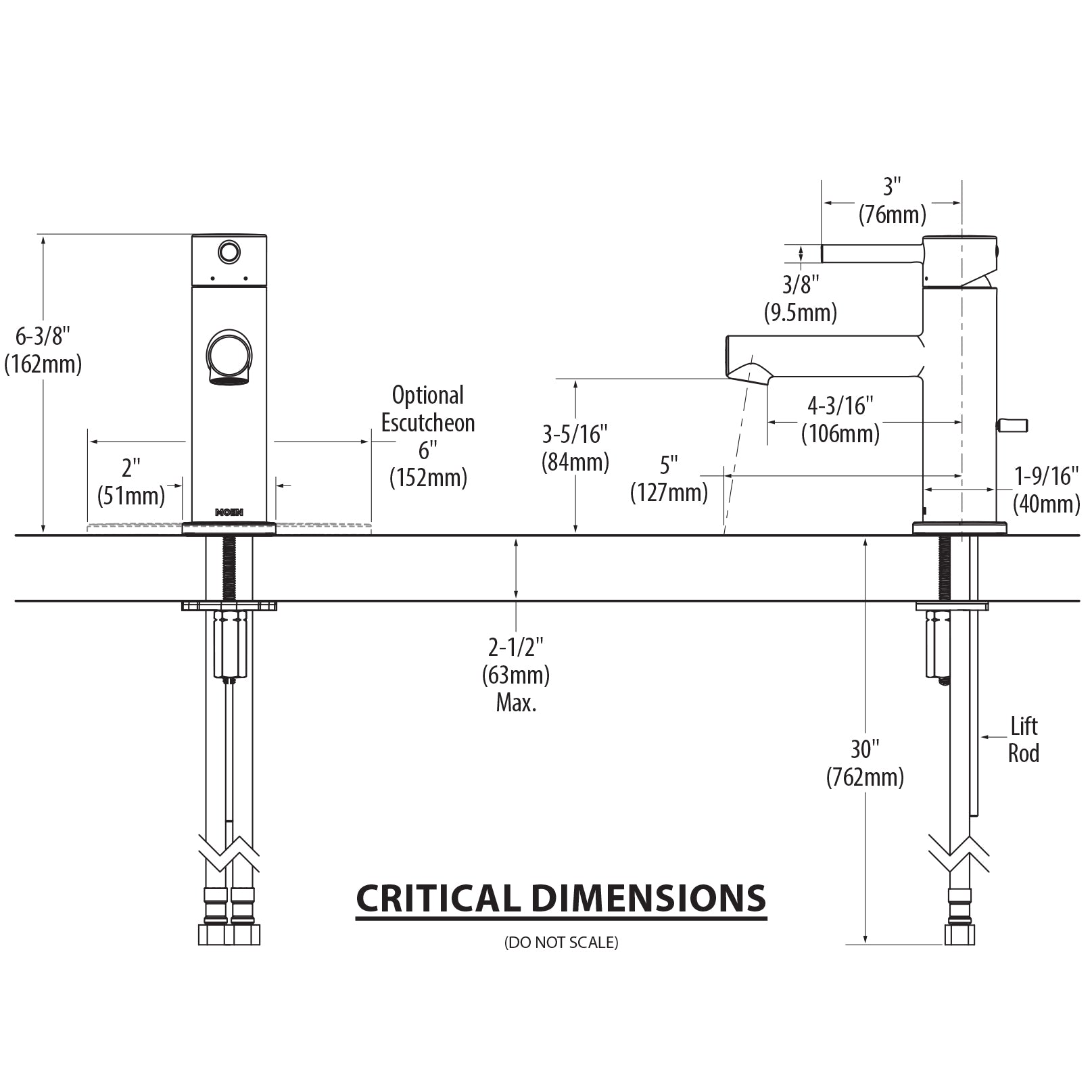

Specifications

• Application: One or Three Hole
• Drain Assembly: Metal
• Drain Assembly Type: Lift Rod
• Connection Size: 3/8"
• Includes: Duralast common valve system
• Connection Type: Compression
• Spout Reach: 5.06"
• Supply Line Length: Flexible

Moen Model Numbers:

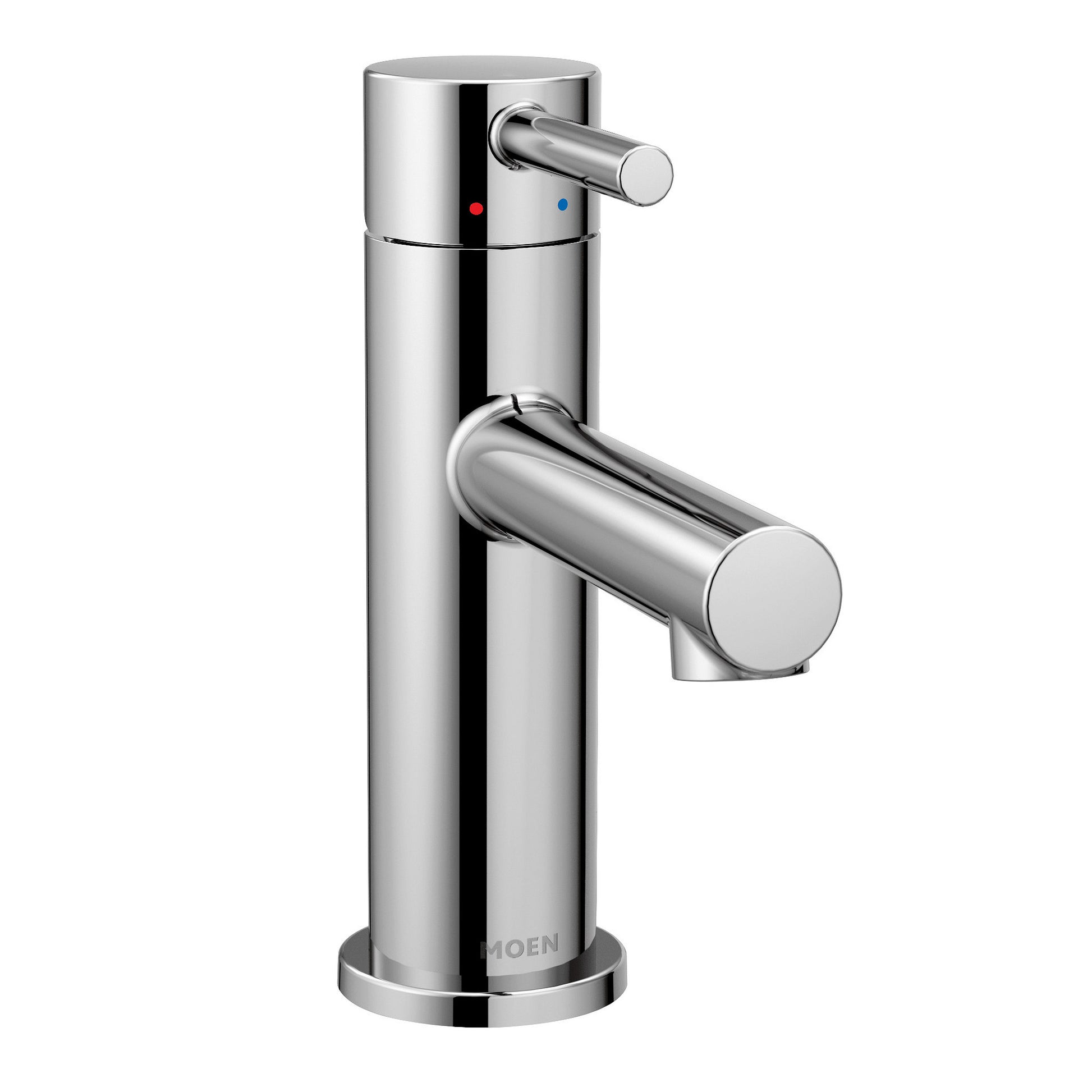

• 6190 - Chrome

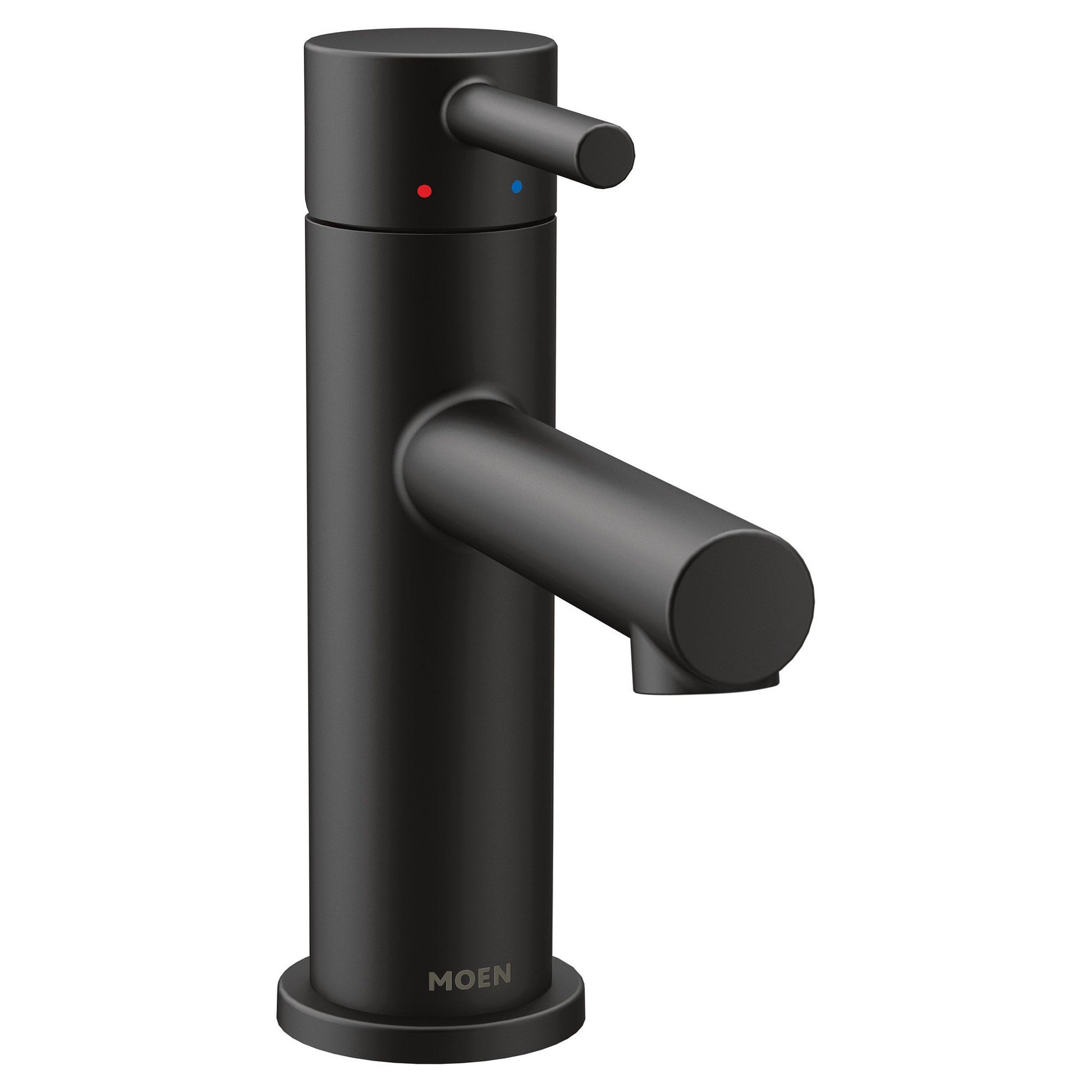

• 6190BL - Matte Black

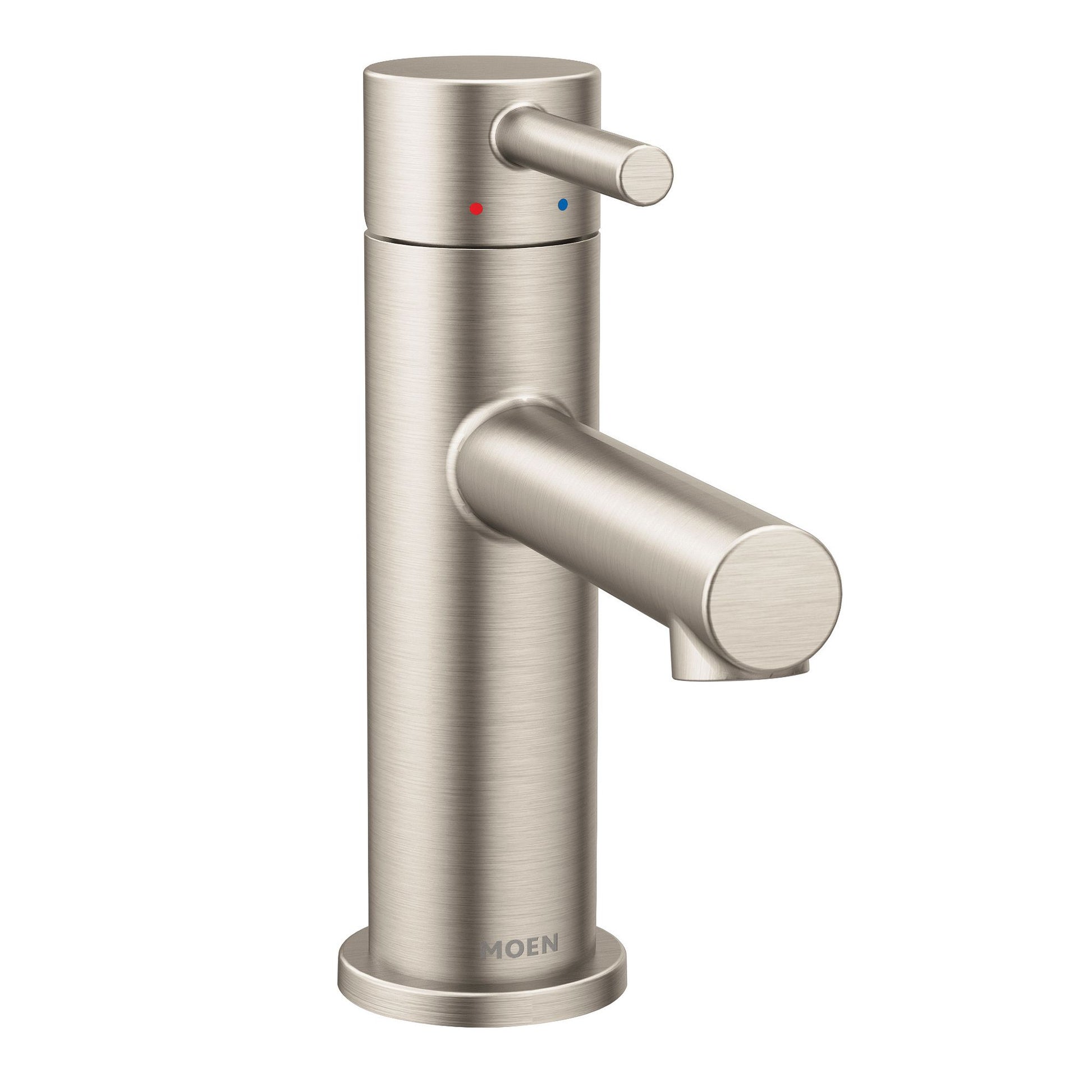

• 6190BN - Brushed Nickel

PTBCA00800 PTBCA00806 PTBCA00805
