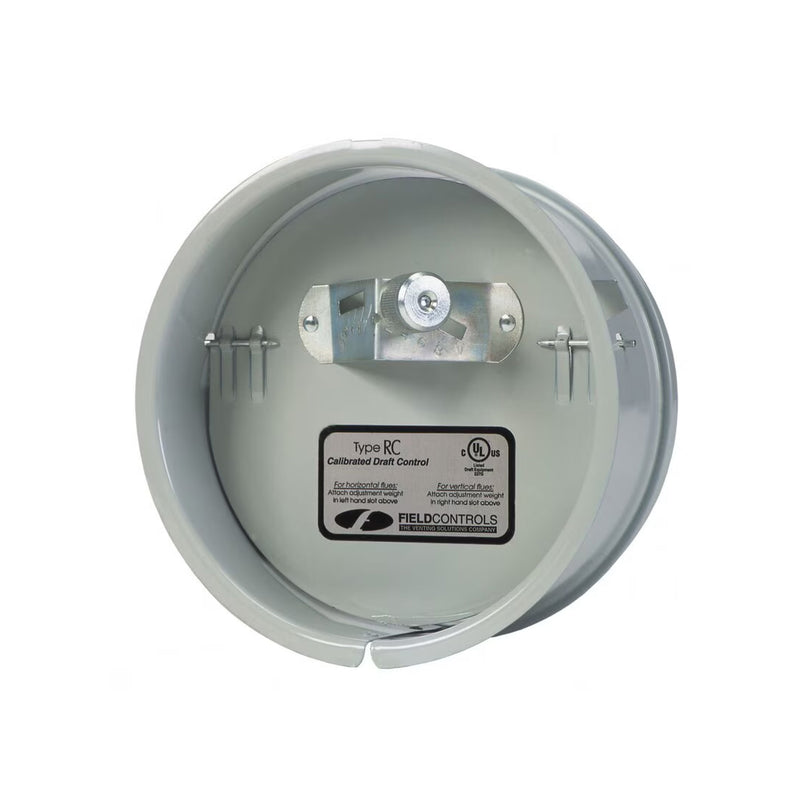

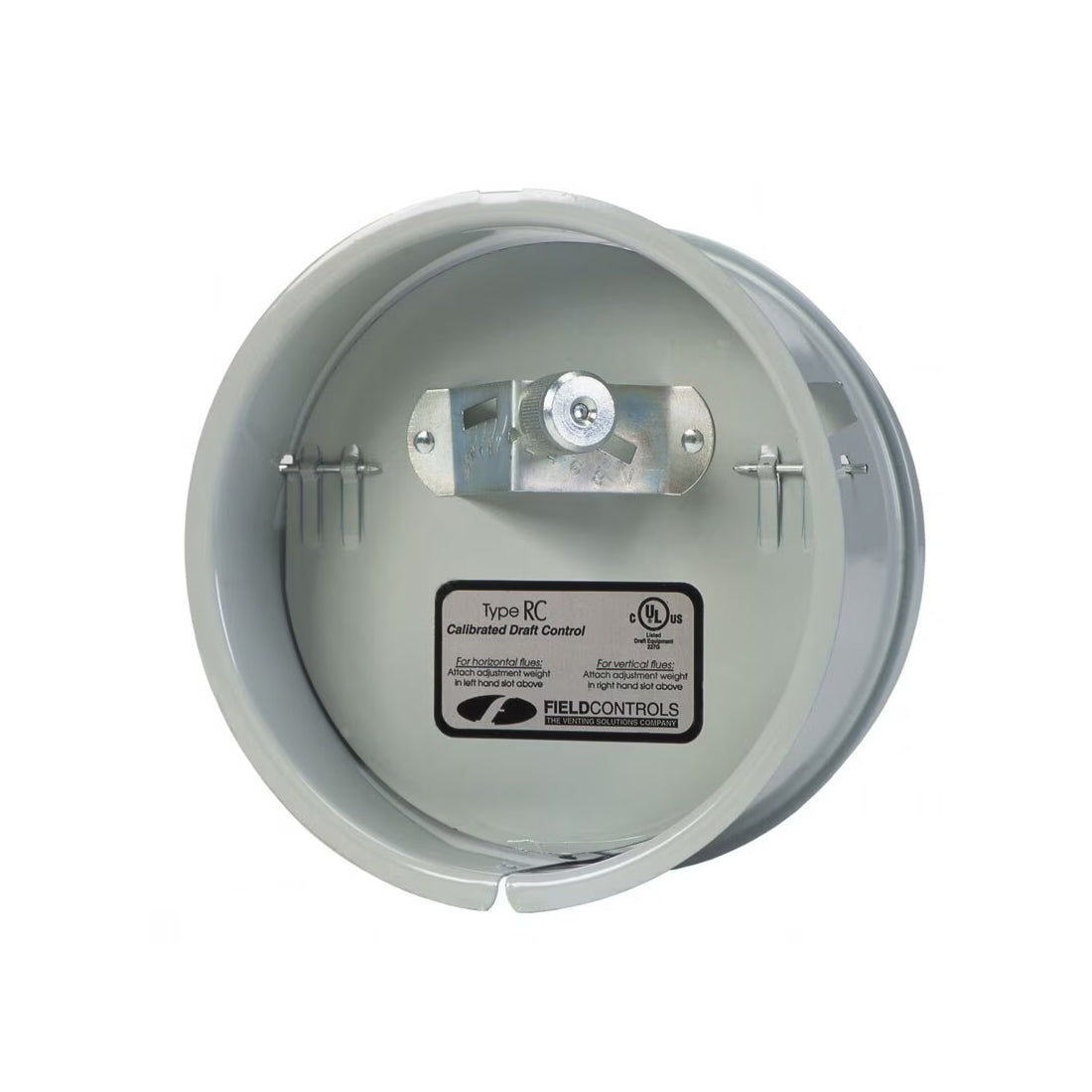

Rheem 84-6-RC - Draft Control w/Collar Field Controls

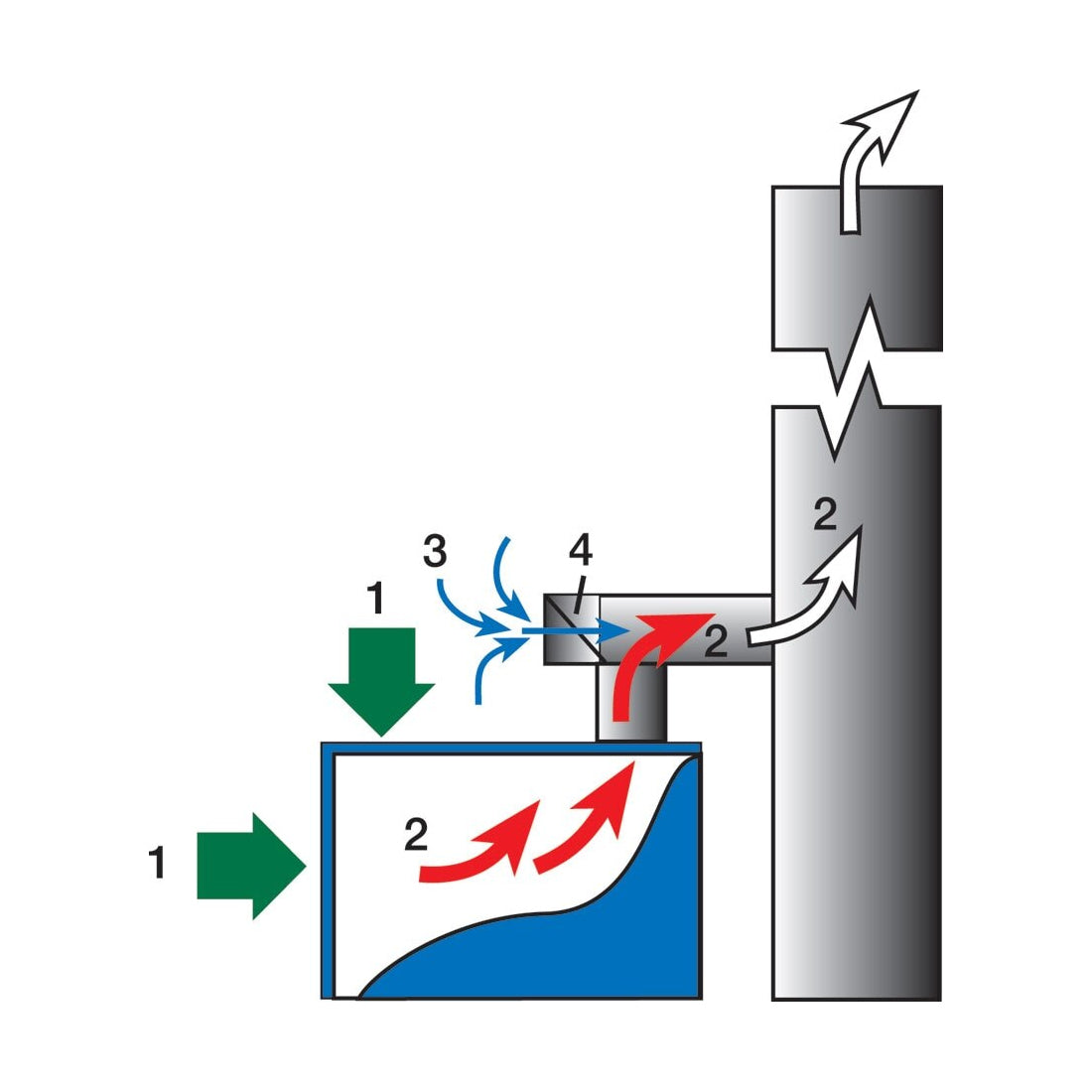

The Rheem 84-6-RC Draft Control with Collar by Field Controls is designed to regulate and stabilize chimney draft in oil- and coal-fired heating systems. Commonly used on residential and commercial furnaces and boilers, this barometric draft control helps improve combustion efficiency, maintain consistent draft levels, and reduce excessive heat loss through the flue. The included collar allows for easier installation into round vent pipe systems, while the adjustable design lets technicians fine-tune draft settings to match manufacturer specifications for optimal system performance.

Features

• Brand: Rheem / Field Controls
• Part Number: 84-6-RC
• Product Type: Barometric Draft Control with Collar
• Size: 6"
• Designed for oil- and coal-fired furnaces and boilers
• Helps maintain a consistent chimney draft for improved combustion efficiency
• Adjustable draft settings from approximately .02" to .08" W.C.
• Reduces excessive draft caused by wind, temperature, and pressure fluctuations
• Included mounting collar allows for easier installation
• Helps improve fuel efficiency and heat transfer
• Supports safer operation by reducing the risk of backdrafting and unstable combustion
• Suitable for residential and commercial heating applications
• Commonly furnished as standard equipment on many oil-fired heating systems

Where Used

• ROBD
• ROBF
• ROPD
• ROPF

Replaces

• 58‑17352‑01
• 7004‑5629
• 8405‑5529
• 8405‑5614


^HAZ1410000
