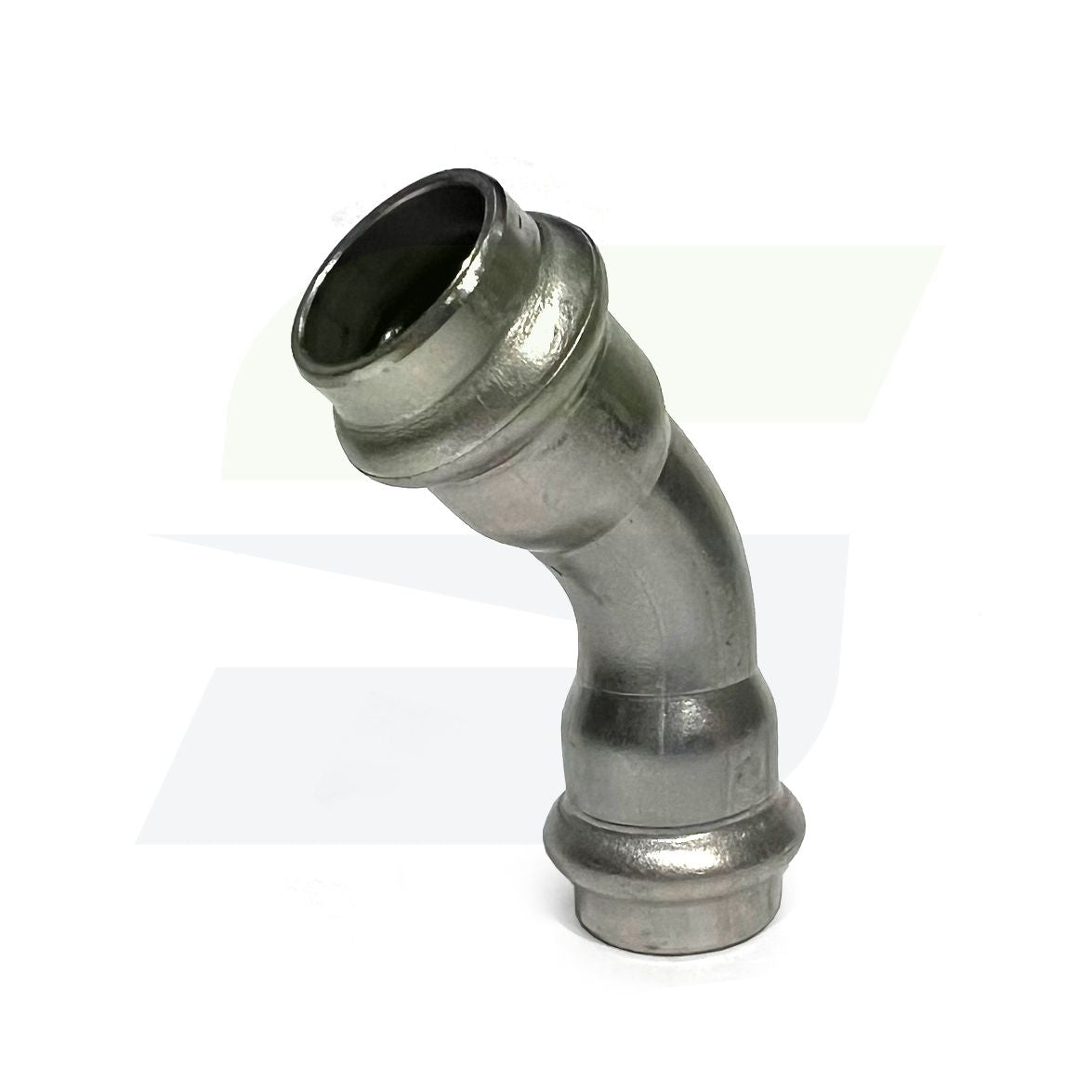

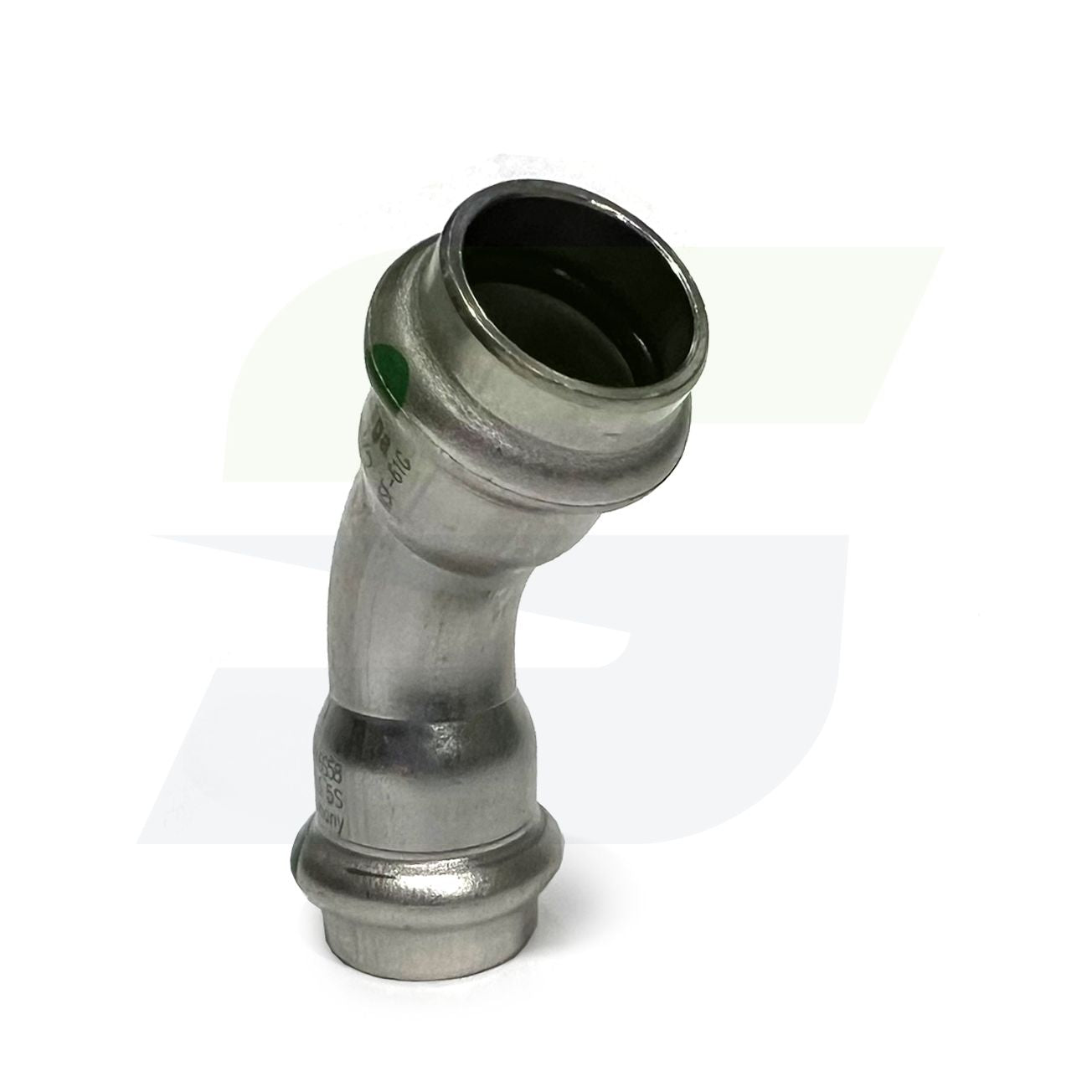

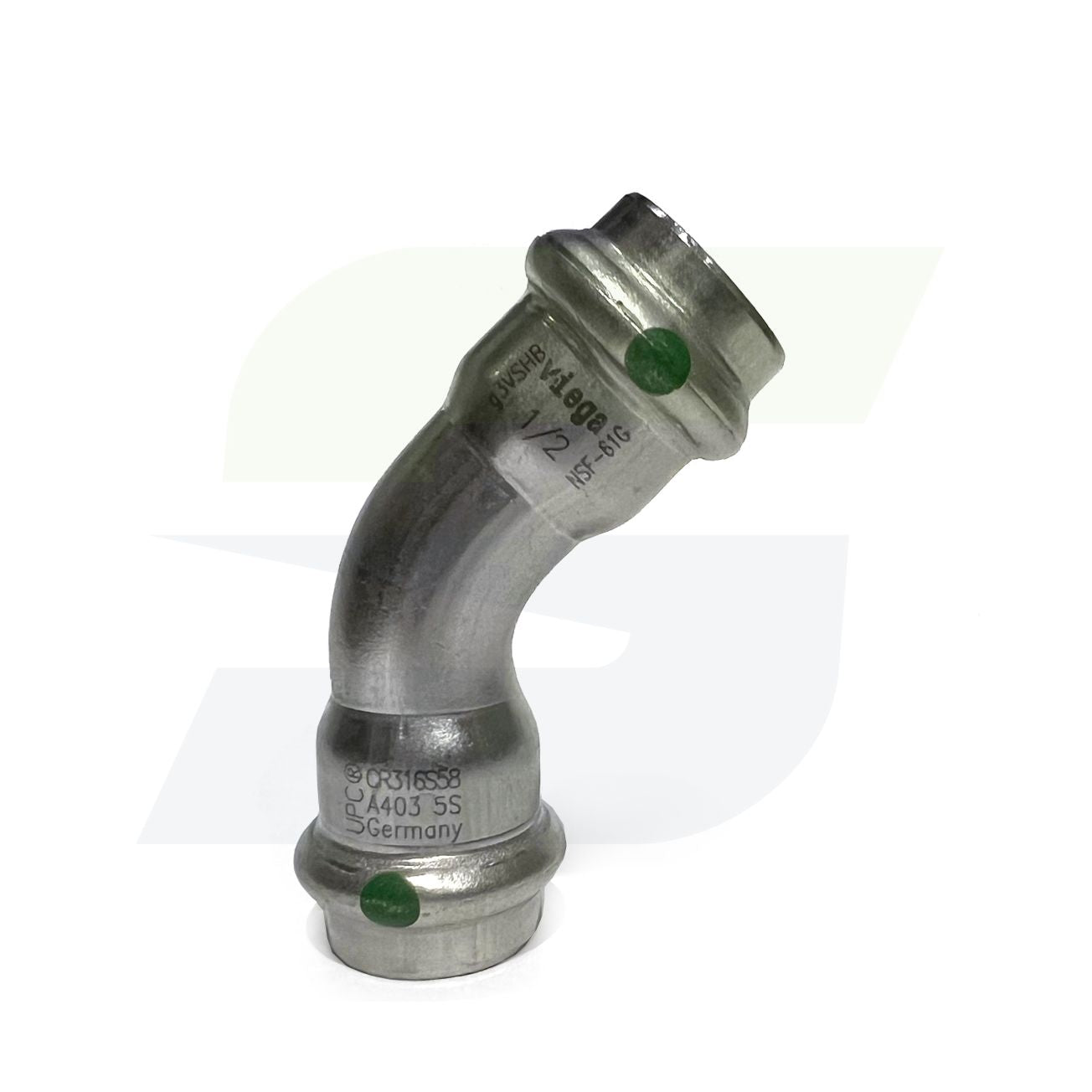

Viega 80445 - 1/2" ProPress Stainless Steel 45 Degree Elbow w/ EPDM Seal

The Viega 80445 is a 1/2" 45-degree elbow fitting made from 316 stainless steel, designed for use with Viega’s ProPress system. Featuring press connections on both ends and an EPDM sealing element, this elbow offers fast, secure, and flame-free installation. The Smart Connect® technology helps identify unpressed fittings during pressure testing, making it ideal for both new installations and maintenance in potable water, hydronic, or industrial applications.

Features

• Manufacturer: Viega
• Part Number: 80445 (Model 4017.1)
• Material: 316 Stainless Steel
• Connection Type: ProPress (Press x Press)
• Size: 1/2"
• Angle: 45 Degrees
• Sealing Element: EPDM with Smart Connect feature for leak detection
• Pressure Rating: Up to 200 PSI
• Temperature Range: 0°F to 250°F
• Certifications: NSF/ANSI 61, NSF 372, CSA, UL, FM, ICC-ES, IAPMO
• Application: Suitable for potable water, hydronic heating/cooling, and industrial fluid systems
• Installation: Flame-free press connection – suitable for wet or dry lines
