7K10801 - 2" - Two-Piece Standard Ball Valve - FNPT - Bronze Body - Full Port

In stock
SKU: 7K10801
$434.50

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

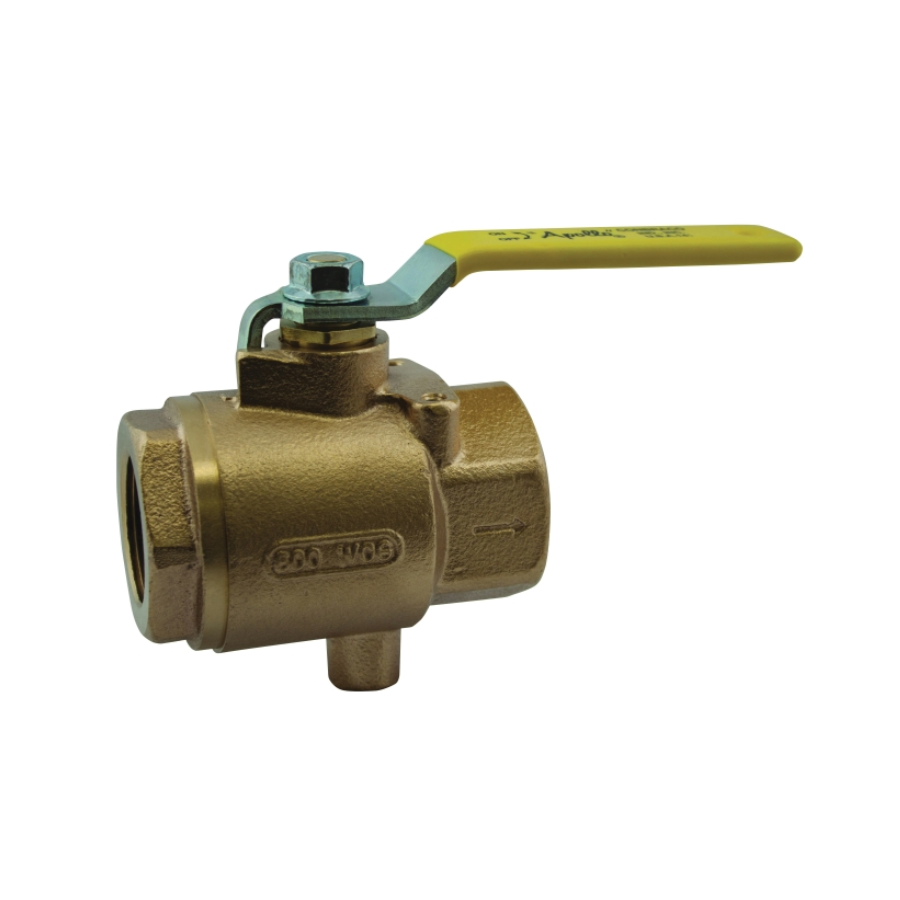

Apollo 7K10801 - 2" - Two-Piece Standard Ball Valve - FNPT - Bronze Body - Full Port

Apollo Ball Valve, 2-Piece Standard, Series: 7K-100, 2 in, FNPT, 125 psi CWP Pressure, 50 to 200 deg F, Full Port, Lever Handle Actuator, Chrome Plated Brass Ball, 5.37 in Inlet to Outlet Length, 3.71 in Top to Inlet Center, Bronze Body, Brass/RPTFE Trim, RPTFE Softgoods, Domestic.

Features

  • Actuator type- Lever handle
  • Ball material- Chrome plated brass
  • Body material- Bronze
  • End style- FNPT
  • Inlet to outlet length- 5.37"
  • Nominal size- 2"
  • Port type- Full
  • Pressure rating- 125 psi CWP
  • Temperature rating- 50-200 deg F
  • Top to inlet center- 3.71"
  • Trim material- Brass/RPTFE
  • Type- 2-piece standard
  • Adjustable packing gland
  • Blow-out proof stem design
  • RPTFE seats/stuffing box ring
  • Mounting pad for easy actuator mounting
  • Zinc plated steel lever handle with vinyl grip
  • Brass stem/RPTFE seat
  • RPTFE stem packing
  • Standard configuration
