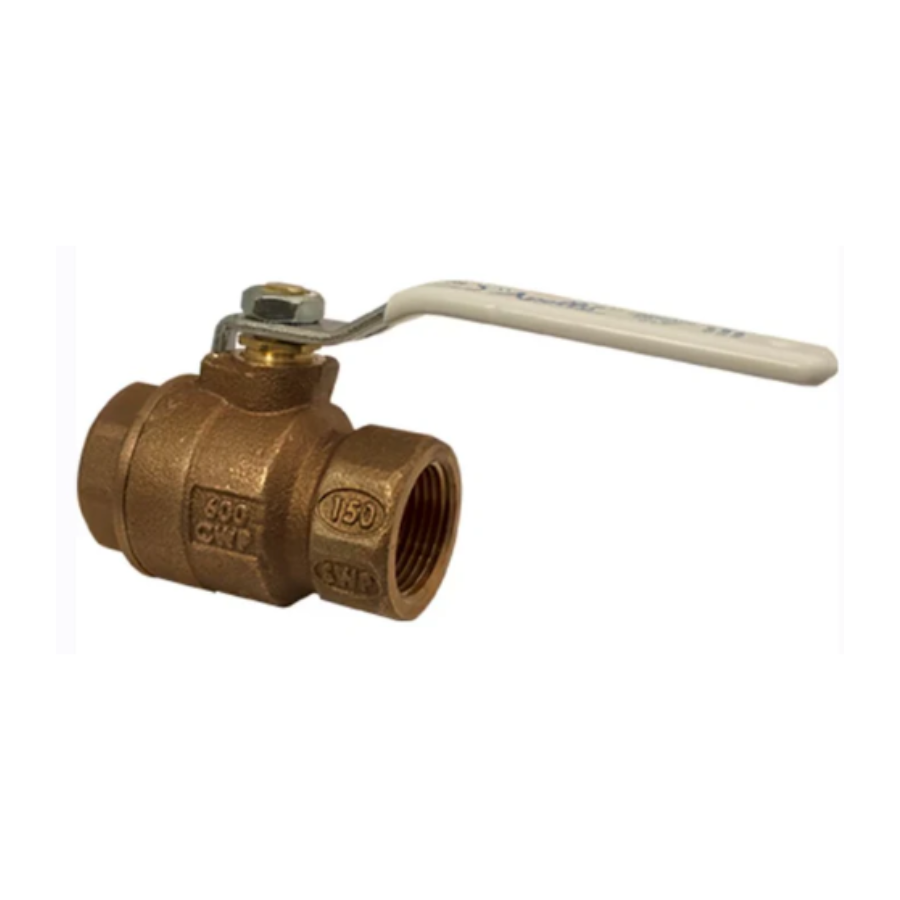

Apollo 77CLF20501A - Manual Two-Way Ball Valve - 1" Brass/Bronze - Straight - Sweat x Sweat - Two-Piece - Lever
Manual Two-Way Ball Valve, Body Material Brass, Bronze, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam 150 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever.
Features
- Pipe size- 1"
- Overall length- 3.81"
- Connection size- Side 1- 1"
- Connection size- Side 2- 1"
- Handle length- 4.72"
- Handle height- 2.24"
- Nominal valve size- 1"
- Ball material- Lead free chrome plate brass
- Body style- Inline
- Ball port style- Full port
- Valve ways- 2-way
- Valve structure- Two-piece
- For media- Water
- Connection type- Sweat X sweat
Approvals
- ANSI 3rd Party Approval to 0.25 Percent Lead Max
- ASTM B584-C89836 Lead-Free Retainer
- City of Los Angeles DBS
- CRN OC10908.5C
- MSS SP-110
- NSF/ANSI 61 Water Quality
- NSF/ANSI 372 Lead-Free
- IAPMO R and T/UPC IGC Z1157
- UNS C27451 Lead-Free Stem
Performance Rating
- Maximum Pressure- Steam 150 PSI WSP
- Maximum Temperature- 450 Degrees F
