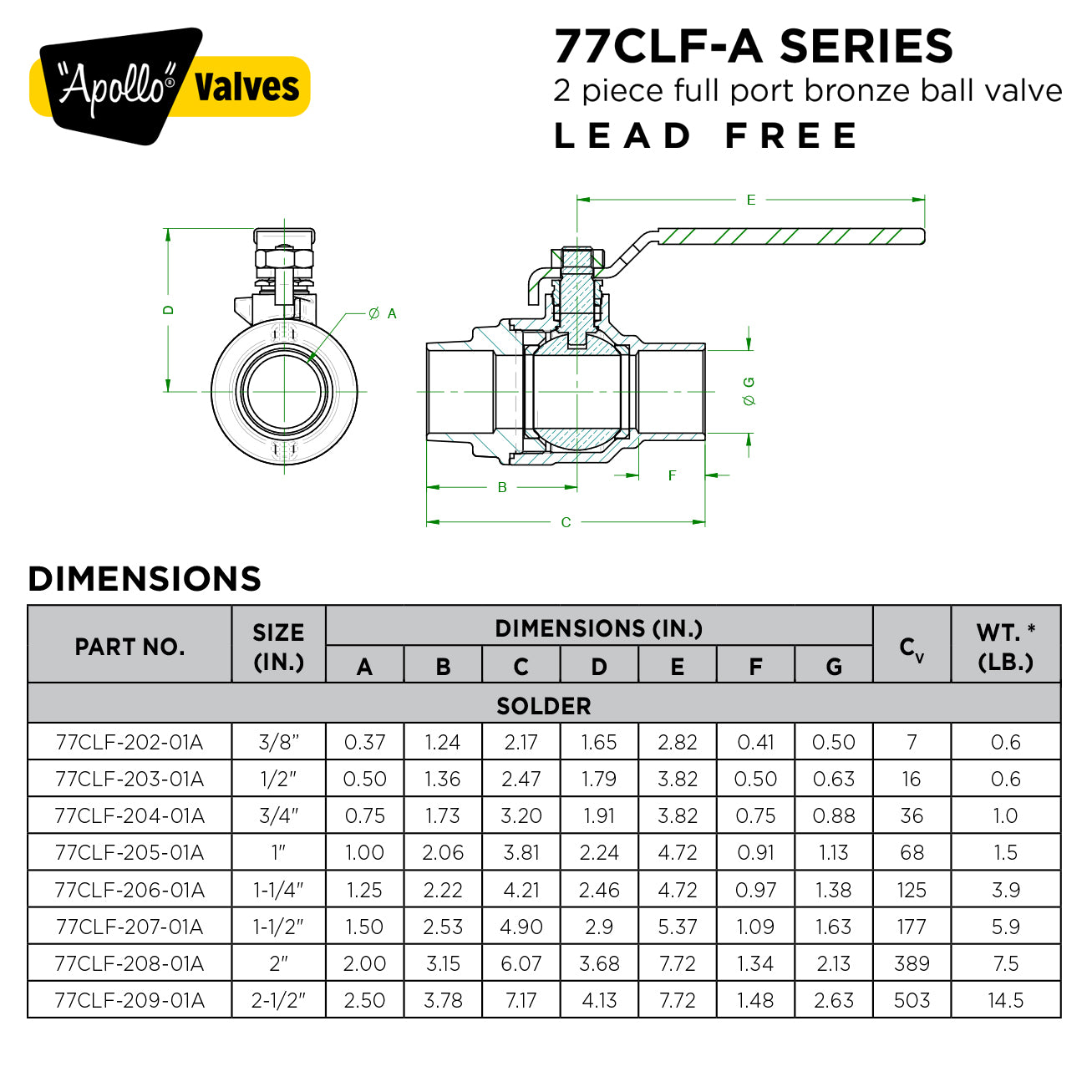

77CLF-A Submittal Sheet

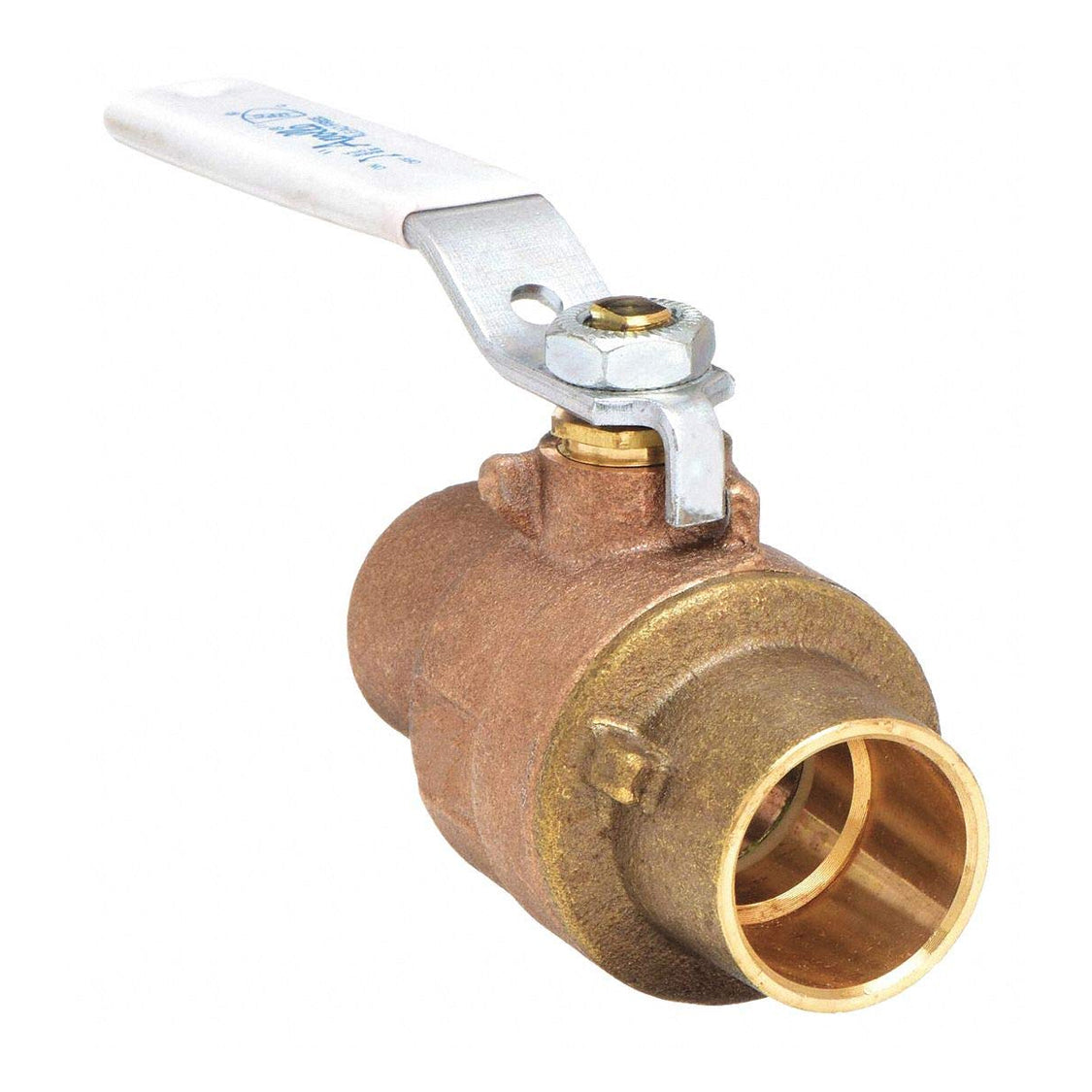

Apollo Valves 77CLF-203-01A - 1/2" 2 Piece Full Port Bronze Ball Valve, Lead-Free, Sweat x Sweat

The Apollo 77CLF-A “Contractor Series” Lead Free Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a “Solid Ball” design that delivers true full-port flow performance. Cast and machined in Apollo’s South Carolina manufacturing plants using proven EZ-Solder lead free materials.

Features

• (-01) Standard Lever and Trim
• Easily Identifiable White Handle and Blue “Lead Free” Hang Tag
• EZ-Solder Lead Free Bronze
• Lead Free Brass & Bronze Materials
• Blowout-Proof Stem Design
• RPTFE Seats & Seals
• Manufactured and 100% Factory Tested in USA

Approvals

• MSS SP-110 Ball Valves
• IAPMO/ANSI Z1157 Ball Valves
• NSF/ANSI/CAN 61 Water Quality
• NSF/ANSI/CAN 372 Lead Free
• City of Los Angeles DBS
• CRN: 0C10908.5C
• EU Directive 2015/863 (RoHS 3) Compliant
• EU Regulation (EC) 1907/2006 (REACH) Compliant

Performance Rating

• Maximum Pressure: 600 psi CWP | 150 psi SWP
• Maximum Temperature: 450 Degress F
• Vacuum Service to 29 in. Hg

Models

• 77CLF-203-01A: 1/2"
• 77CLF-204-01A: 3/4"
• 77CLF-205-01A: 1"
• 77CLF-206-01A: 1-1/4"
• 77CLF-207-01A: 1-1/2"
• 77CLF-208-01A: 2"
