77C-A Submittal Sheet

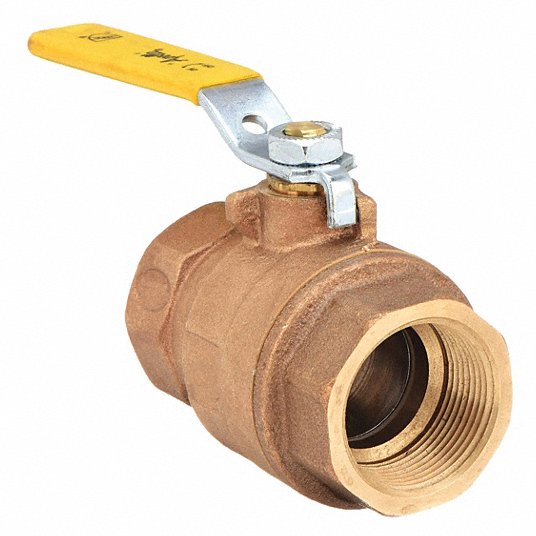

Apollo Valves 77C-101-01A - 1/4" 2 Piece Full Port Bronze Ball Valve, NPT x NPT

The Apollo 77C-A “Contractor Series” Ball Valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a “Solid Ball” design that delivers true full-port flow performance. Cast and machined in Apollo’s South Carolina manufacturing plants using proven ASTM materials. Not for use with potable water systems in USA.

Features

• RPTFE Seats & Seals
• Blowout-Proof Stem Design
• Adjustable Stem Packing
• Full-Port “Solid Ball” Design
• 100% Factory Tested
• MADE IN THE USA
• Standard Lever and Trim

Approvals

• MSS SP-110 Ball Valves
• IAPMO/ANSI Z1157 Ball Valves
• CRN: 0C10908.5C

Performance Rating

• Max Pressure: 600 psi CWP | 150 psi SWP
• Max Temperature: 450°F
• Vacuum service to 29 in. Hg

Models

• 77C-101-01A: 1/4 Inch
• 77C-102-01A: 3/8 Inch
• 77C-103-01A: 1/2 Inch
• 77C-104-01A: 3/4 Inch
• 77C-105-01A: 1 Inch
• 77C-106-01A: 1-1/4 Inch
• 77C-107-01A: 1-1/2 Inch
• 77C-108-01A: 2 Inch

Related Video: Apollo Commercial Products Training, 77C-A - Features and Benefits
