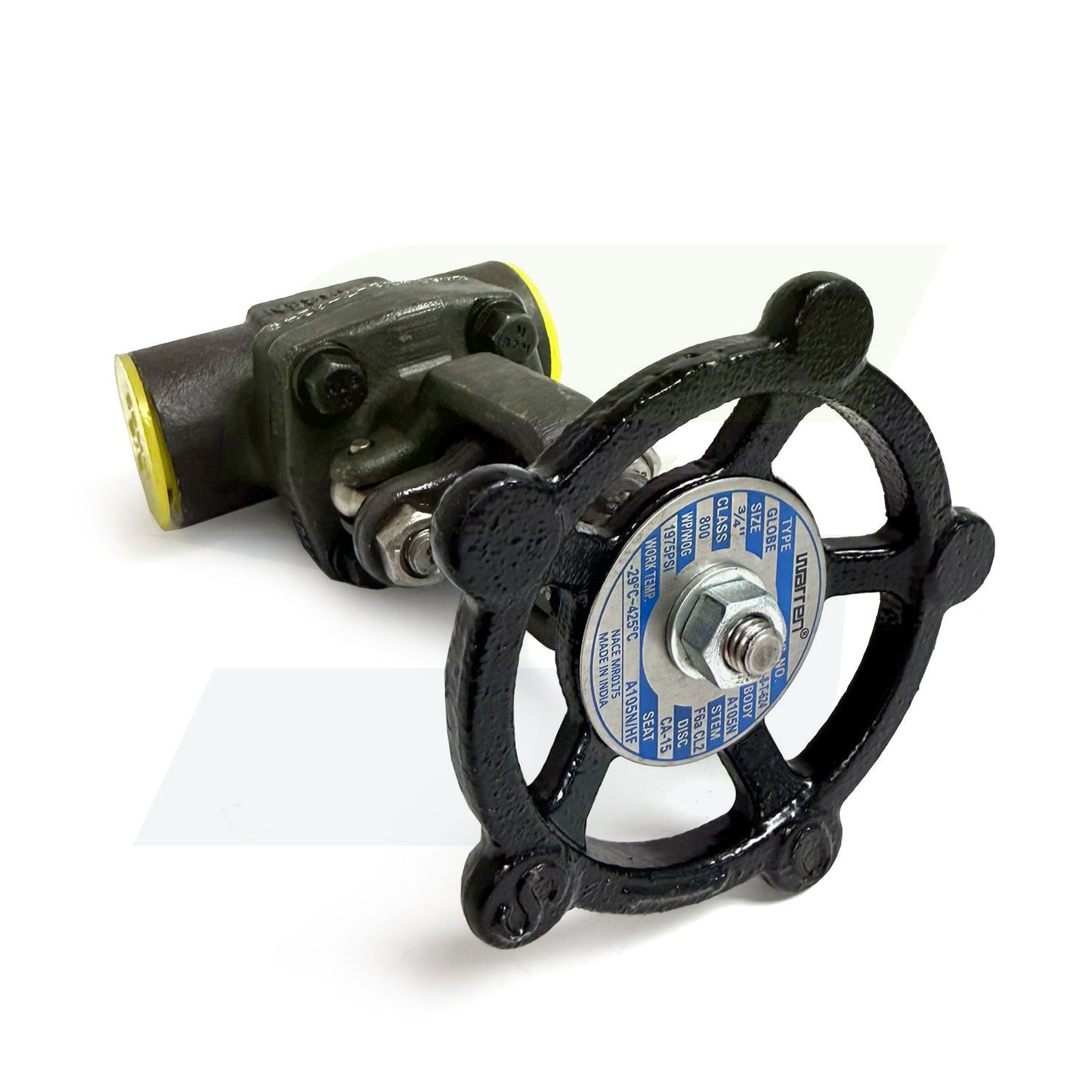

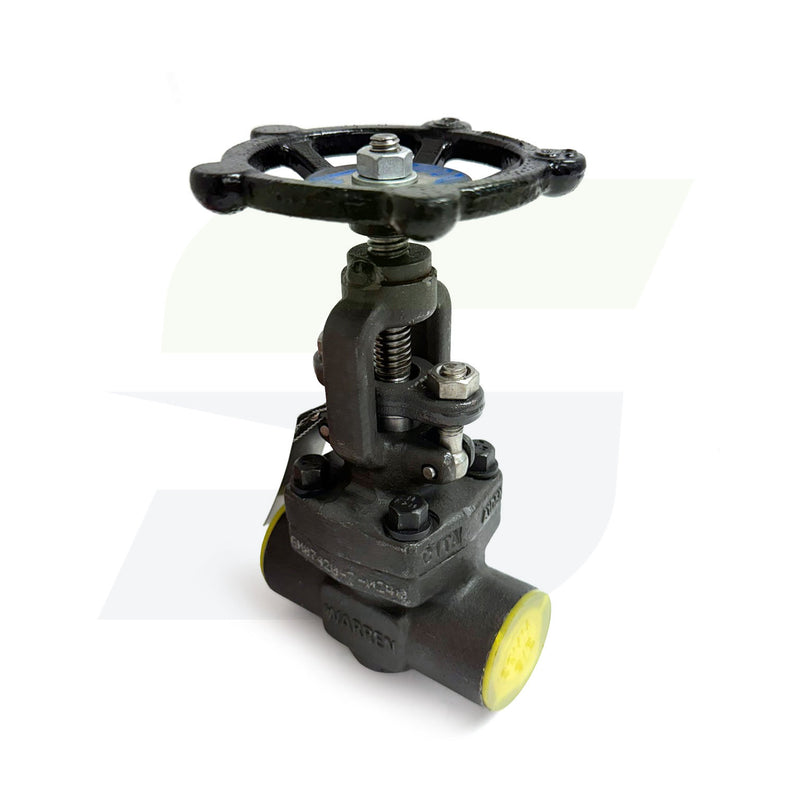

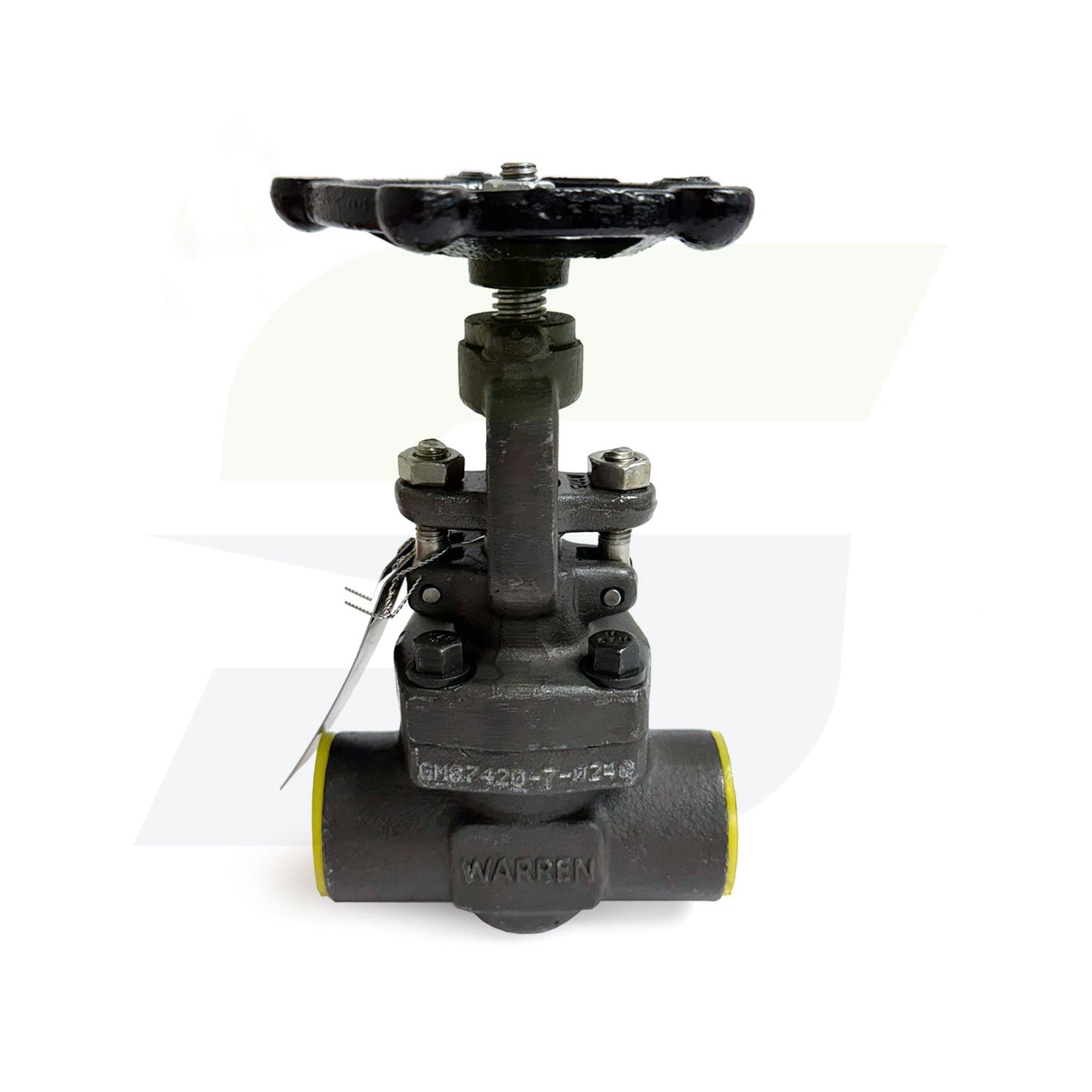

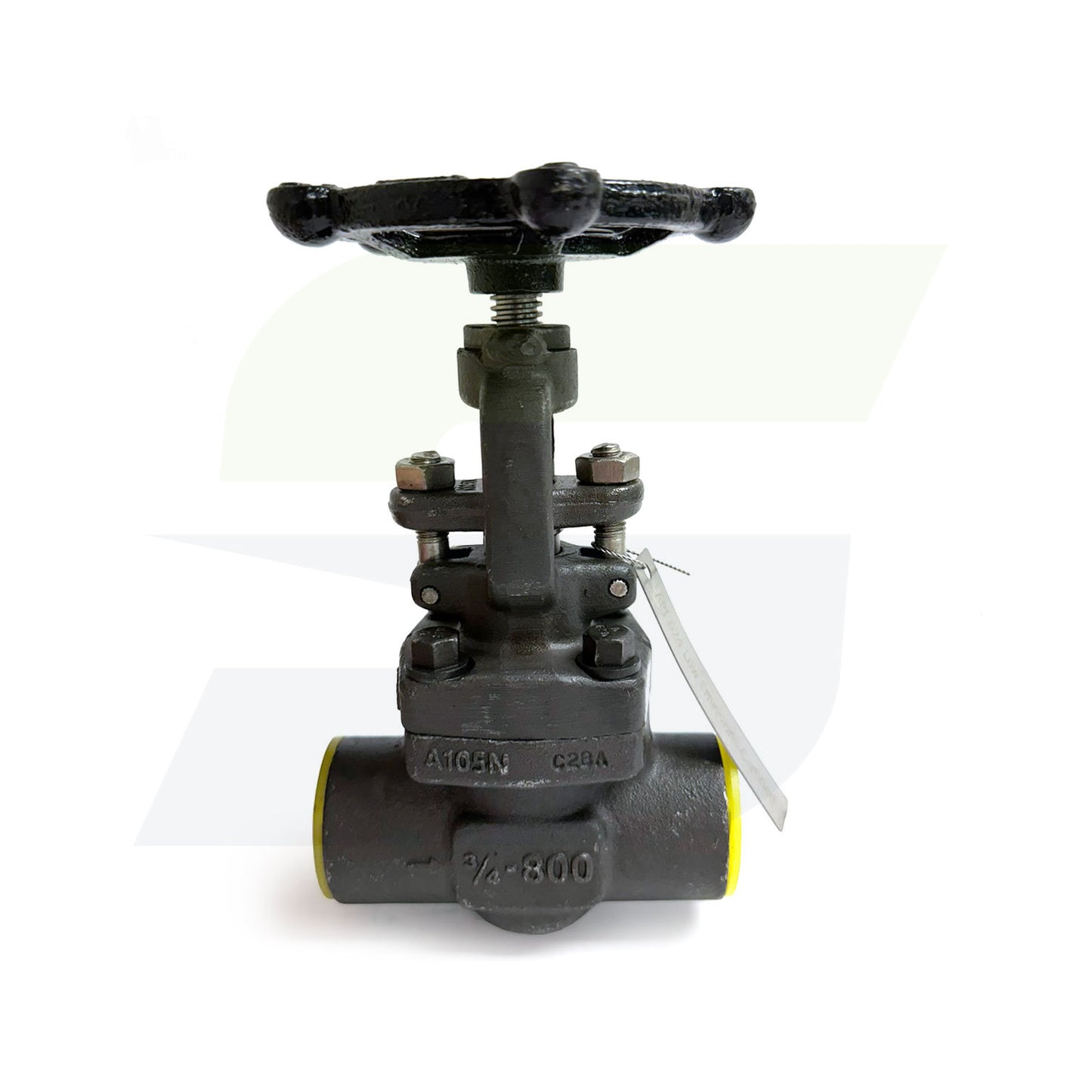

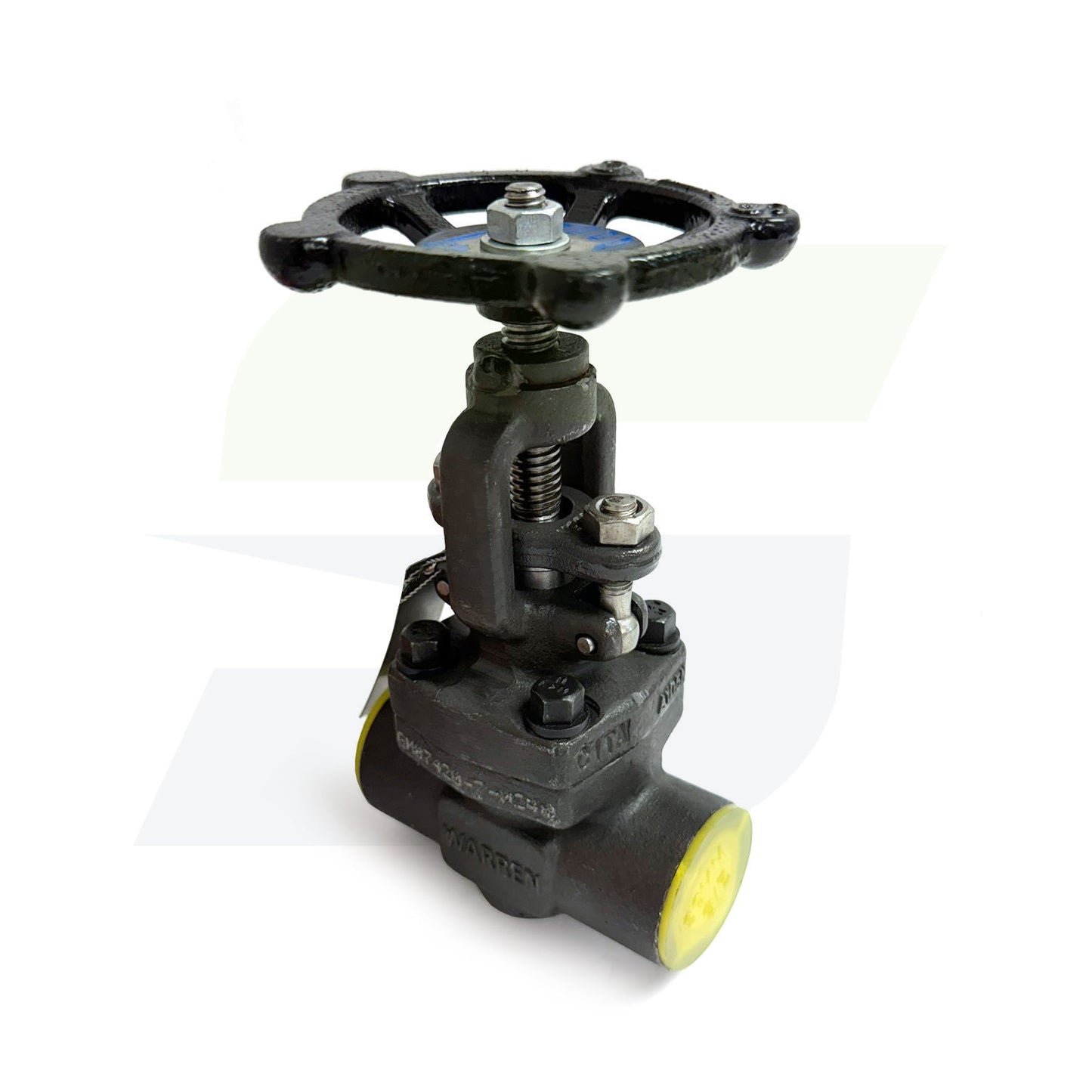

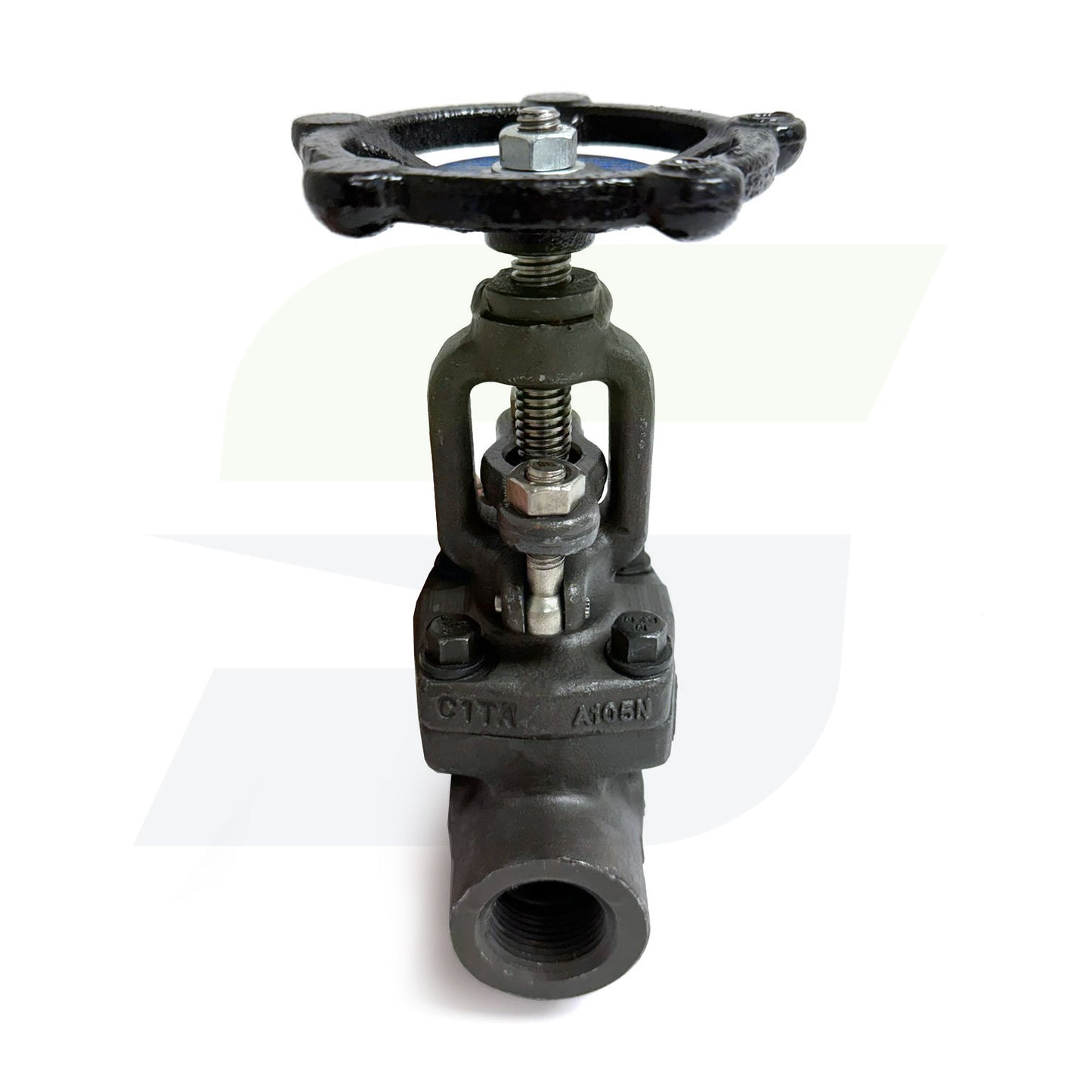

Warren Valve .75V852B-8THG - 3/4" Class 800 Forged Steel Globe Valve

The Warren Valve .75V852B-8THG 3/4" Class 800 Globe Valve is a forged carbon steel flow control valve designed for high-pressure industrial piping systems. Built as part of Warren’s 852 Series forged globe valve platform, this valve uses a bolted bonnet and OS&Y (outside screw and yoke) stem design to deliver dependable sealing, visible valve position, and long service life in demanding service conditions. Threaded NPT connections allow straightforward installation into compatible piping, while graphite sealing components and NACE-capable construction support use in corrosive or emissions-controlled environments. The 852 Series is commonly used across oil & gas, industrial process, and mechanical systems requiring precise throttling and reliable shutoff.

Features

• Manufacturer: Warren Valve
• Part Number: .75V852B-8THG
• Series: 852 Series Forged Globe Valve
• Valve Type: Forged Steel Globe Valve
• Size: 3/4" nominal
• Pressure Rating: Class 800
• Body Material: Typically ASTM A105N forged carbon steel
• Trim Material: Commonly 410 stainless steel trim (series standard)
• Connection Type: Threaded NPT ends
• Bonnet Design: Bolted bonnet for serviceability and sealing reliability
• Stem Design: OS&Y rising stem for durability and visual position indication
• Sealing Materials: Graphite packing and gasket for low fugitive emissions
• Compliance: Often specified for NACE service compatibility
• Standards: Typically designed around API 602 / ASME B16.11 / ASME B1.20.1 family requirements
• Applications: Industrial process piping, oil & gas, steam, water service, and high-pressure mechanical systems
