70-100 Submittal Sheet

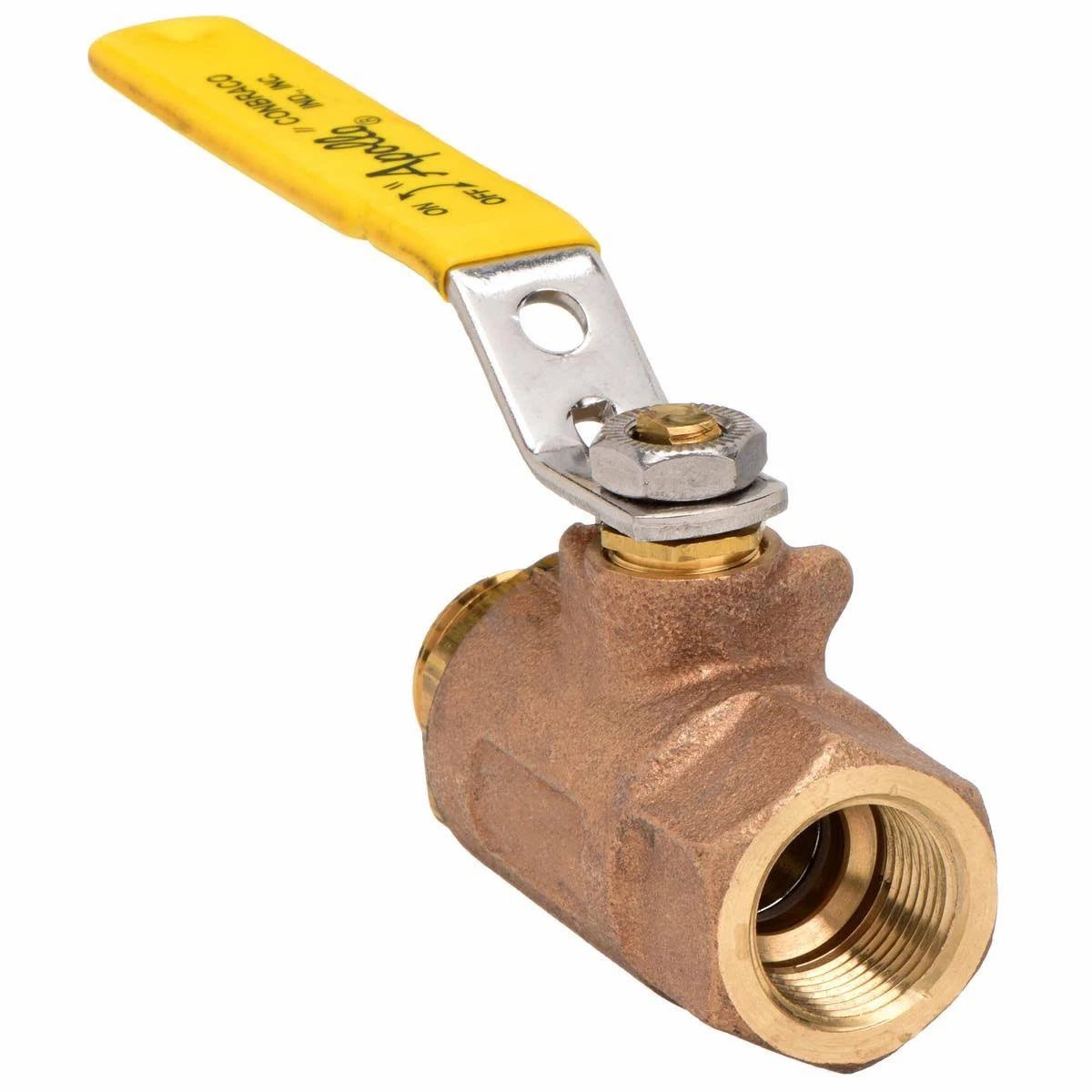

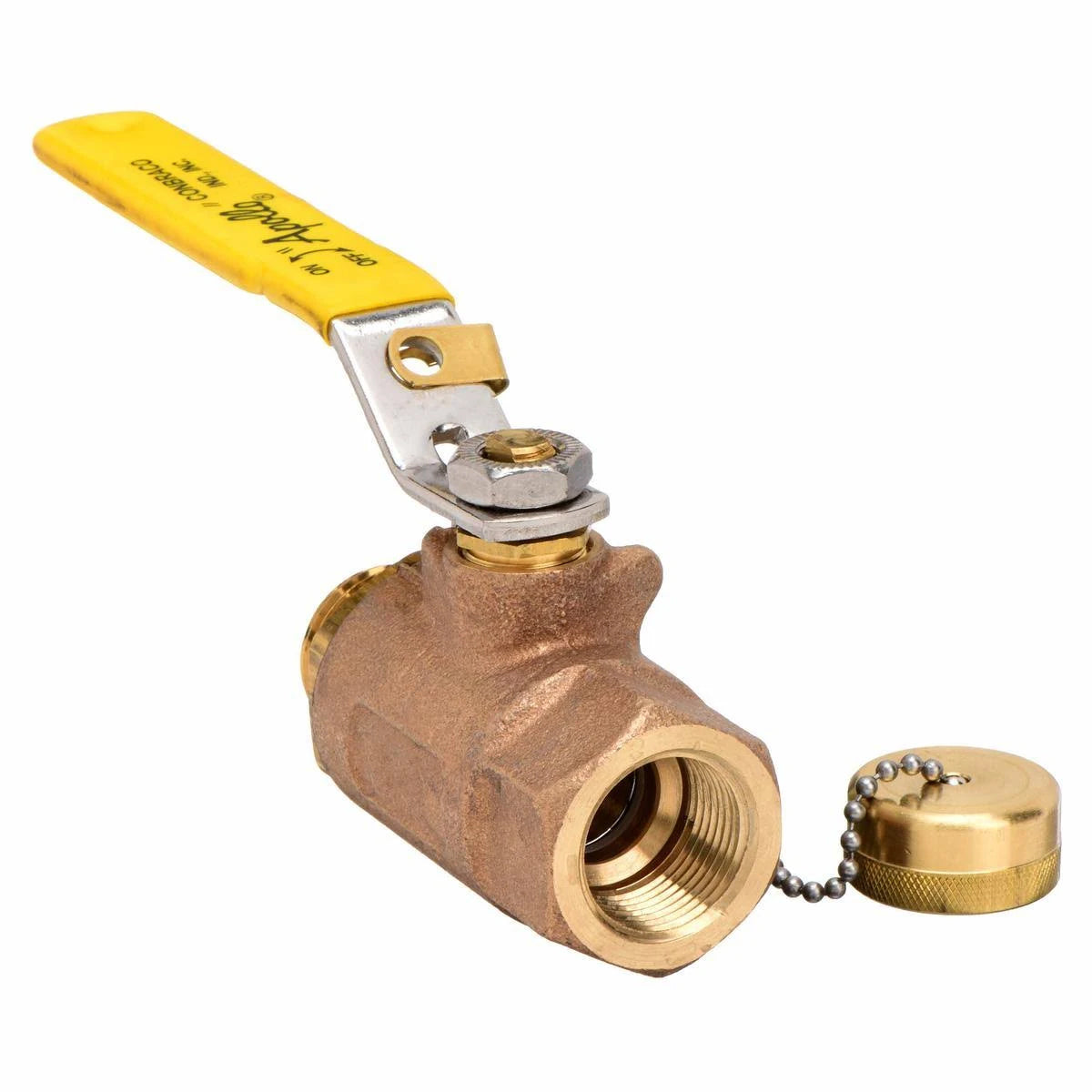

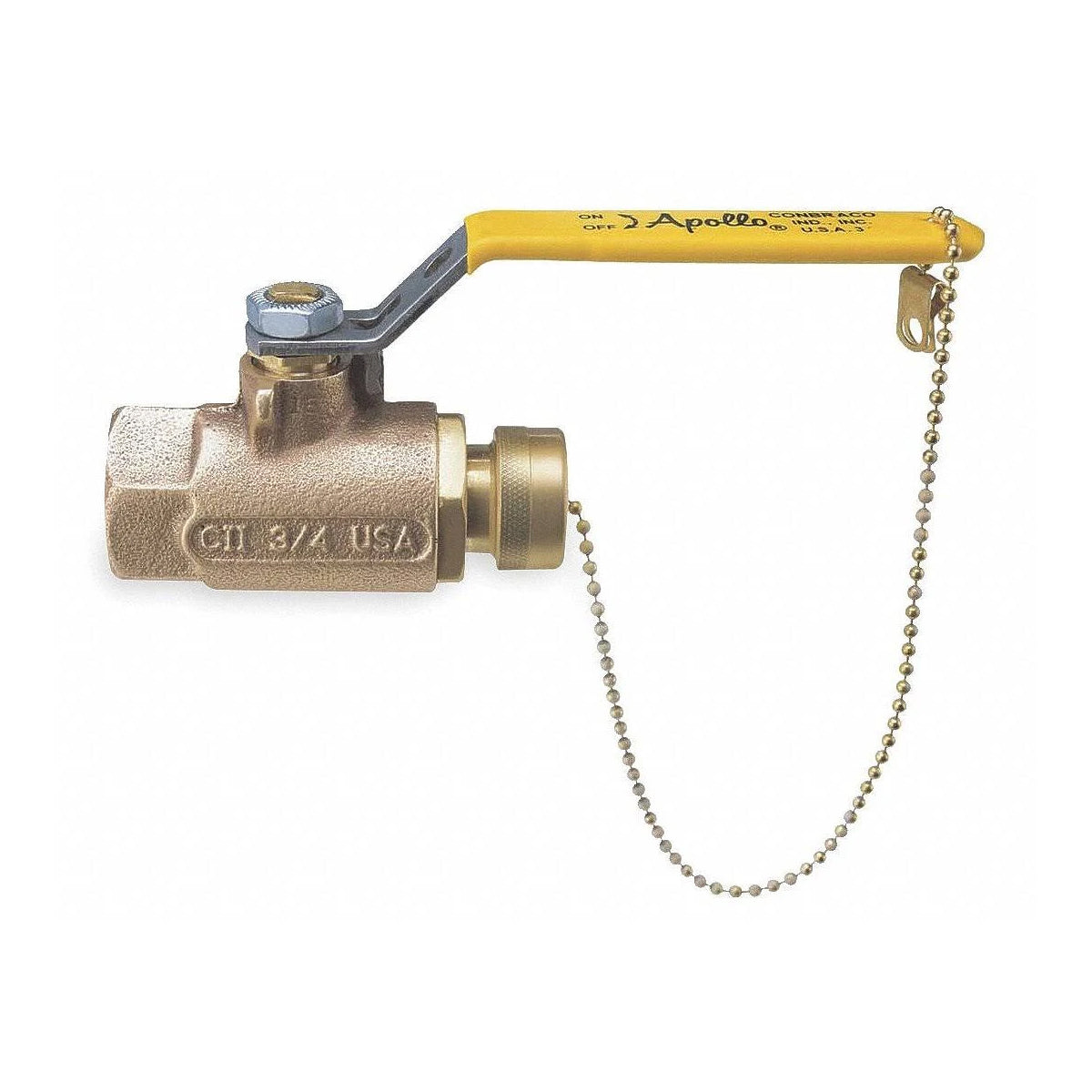

Apollo Valves 70-104-HC - 3/4" NPT Bronze Ball Valve, Hose Thread w/ Cap & Chain

The Apollo 70 Series is the most widely used general purpose bronze ball valve on the market today. The 70-100 model is a 2-piece standard port ball valve featuring female NPT connections. Cast and machined in Apollo’s South Carolina manufacturing plants, these valves provide trusted performance and a wide range of options.

Features

• (-HC) Hose Thread w/ Cap & Chain
• Premium Materials and Heavy Duty Construction
• Adjustable Stem Packing Gland
• Blowout Proof Stem Design
• RPTFE Seats and MPTFE Stem Packing Rings
• Chromium Plated Ball
• 100% Factory Tested
• Wide Range of Options (see page 2)
• Manufactured in the USA – ARRA Compliant

Performance Rating

• CWP: 600 psi (41.37 Bar)
• SWP: 150 psi (10.34 Bar)
• Maximum Temperature: 500 Degrees F
• Vacuum Service to 29 in. Hg

Approvals

• MSS SP-110 - Ball Valves Threaded, SocketWelding, Solder Joint, Grooved and Flared Ends
• CRN: OC10908.5C
