Caleffi 600084A - 1-1/2" Male NPT LEGIOMIX Electronic Mixing Valve

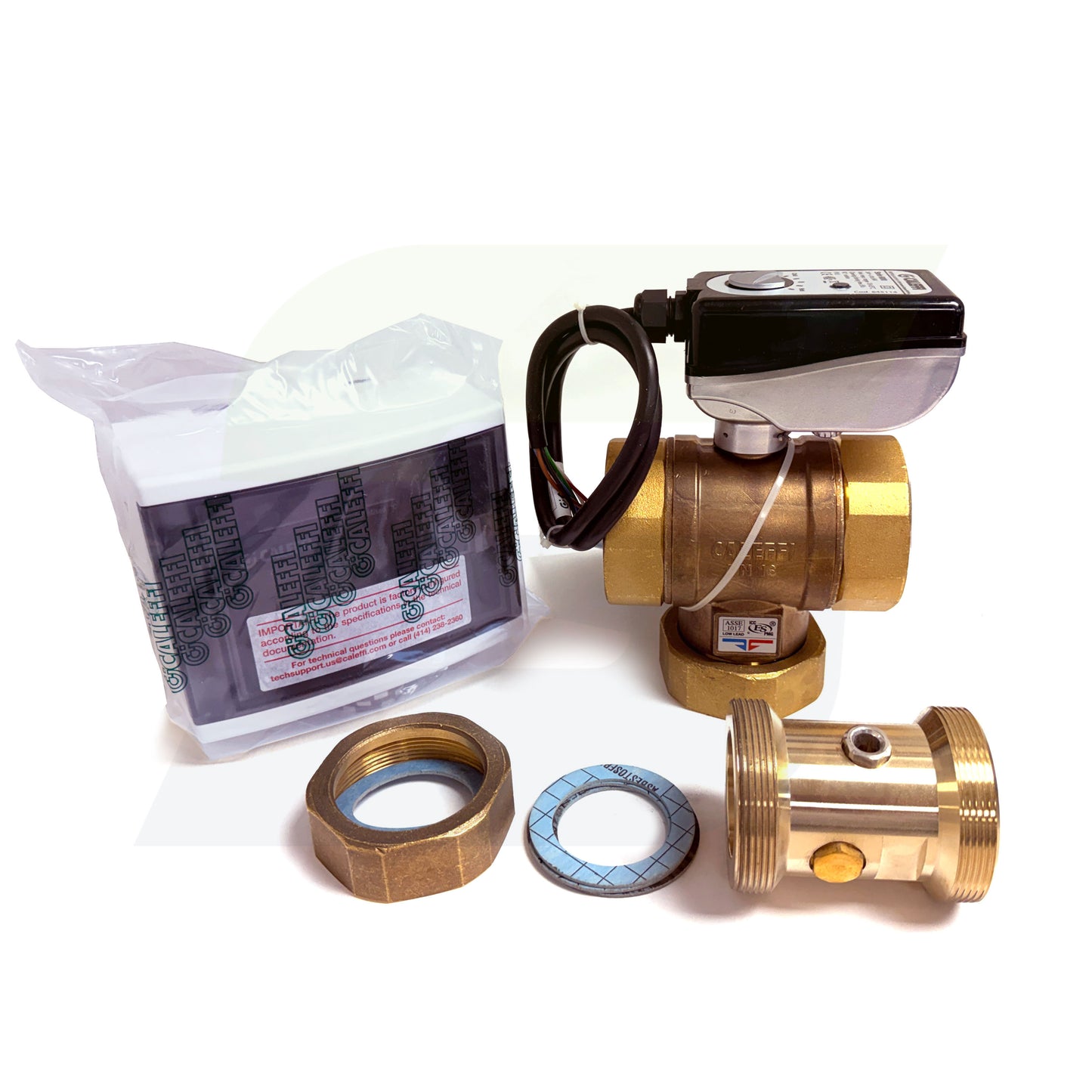

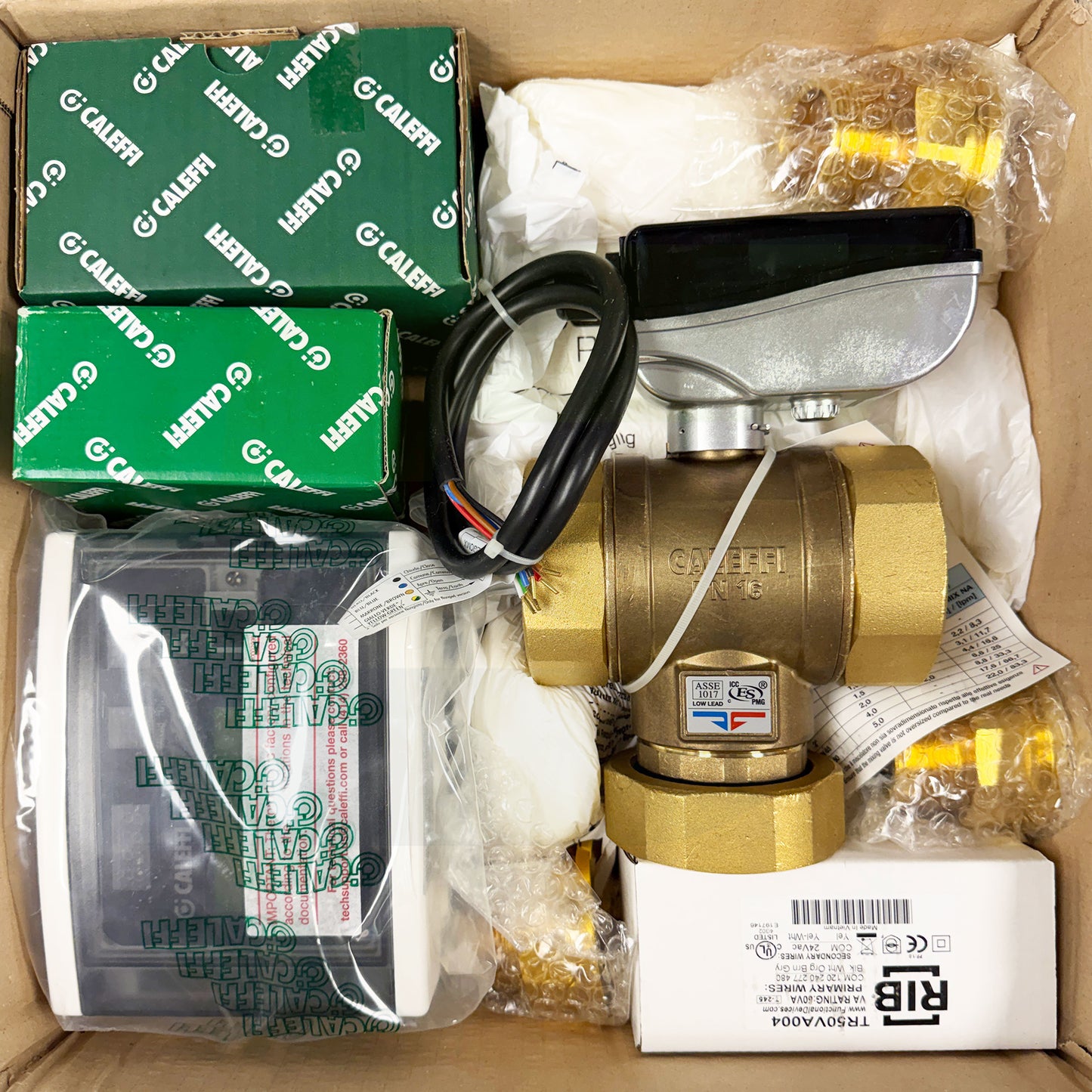

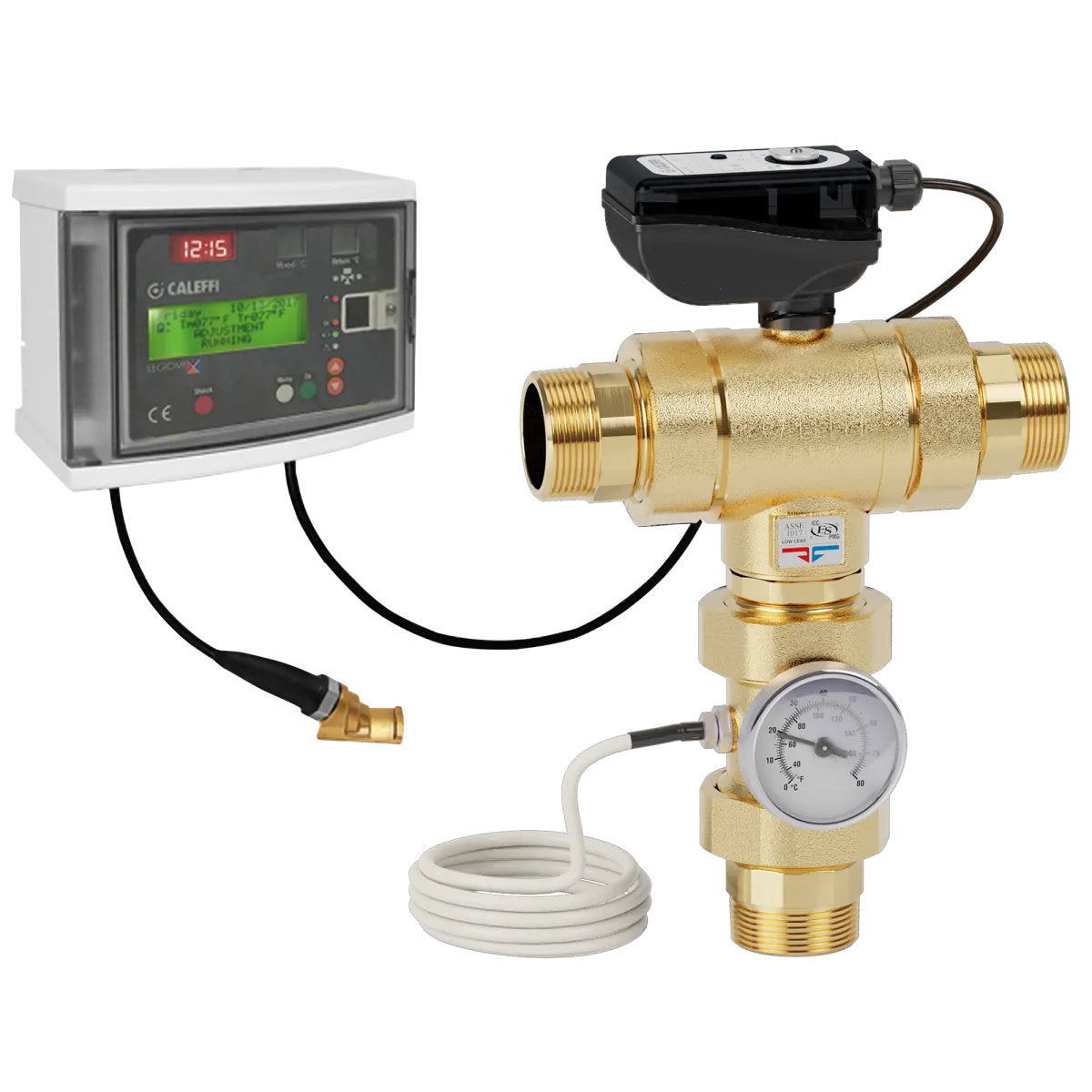

The Caleffi 600084A LEGIOMIX Electronic Mixing Valve provides precise temperature control in centralized commercial domestic hot water systems. Its programmable controller supports thermal disinfection cycles for Legionella control, while the ball-style mixing element delivers minimal pressure drop and reliable performance across a wide range of flow demands. The valve includes 1-1/2" male NPT union connections, a floating fail-in-place actuator and a 115/24 VAC transformer.

Features

• Designed for centralized commercial domestic hot water systems
• Programmable thermal disinfection cycles for Legionella control
• Maintains consistent outlet temperature during inlet pressure, temperature and flow fluctuations
• Digital controller with LCD interface, data logging, alarms and status indication
• Automatic self-cleaning function helps reduce scale buildup
• Ball-style control element provides minimal pressure drop
• Floating fail-in-place actuator
• 1-1/2" male NPT union connections
• Temperature adjustment range: 70°F to 185°F
• Thermal disinfection range: 100°F to 185°F
• Maximum inlet temperature: 212°F
• Maximum operating pressure: 150 PSI
• Maximum static pressure: 230 PSI
• Flow coefficient: 31 Cv
• 24 VAC operation with 115/24 VAC transformer included
• IP54-rated actuator enclosure
• ASSE 1017 and CSA B125.3 certified
• Low-lead construction compliant with NSF/ANSI/CAN 372
• Manufacturer: Caleffi
• Part number: 600084A
