Kichler 16193AZT - 6" Length 12V LED Accent Light - Adjustable Color Temp in Textured Architectural Bronze

Kichler's 12V Adjustable Drop-In LED Accent Kit in Textured Architectural Bronze lets you adjust beam angles or color temperatures right on location. Flexibility is key with this kit. You can change the lamp from 3000k with a color lens filter to achieve a warm, white light, comparable to 2700K. Plus, you can customize the beam angle from 35 degree flood to 60 degree wide flood with the beam expander optic.

The included adjustable drop-in accent light offers a modern, sleek design, is built to professional-grade standards, and is constructed with durable cast aluminum housings. Our adjustable lens system simplifies the selection process by bundling everything together in one kit.

Features

• 4-in-1 customization professional series adjustable drop-in LED accent kit
• Beam expander optics can be used with an amber lens or without lens
• Kit includes a 3000K 330 lumen 35 degree LED MR16 bi-pin lamp, ground stake, and wire connectors
• Allows you to change the lamp from 3000K with a color lens filter to achieve a warm, white light, similar to 2700K
• Can customize the beam angle from 35 degree flood to 60 degree wide flood with the use of a beam expander optics
• Filters and optics snap into place under the glass ​
• Clear tempered, shock resistance glass with high tolerance for thermal expansion and stress

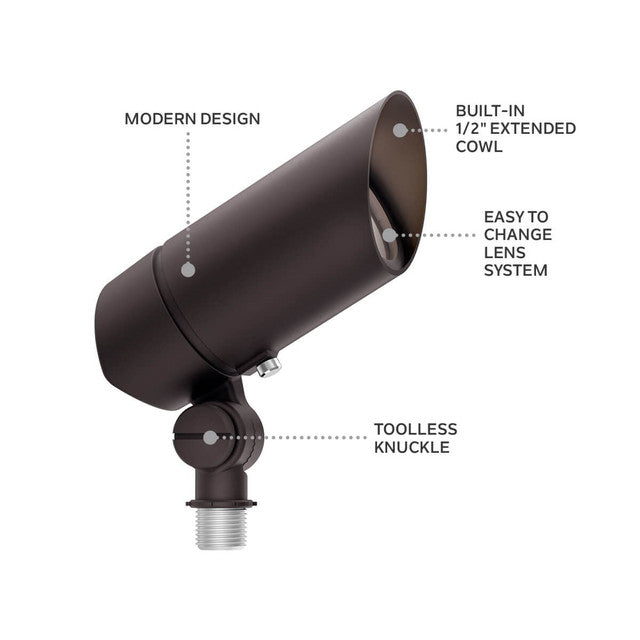

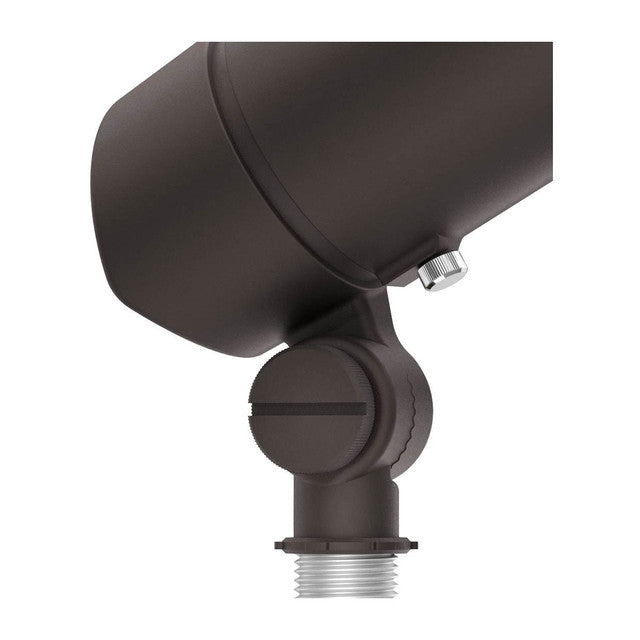

• Toolless knuckle adjustment allows you to adjust the angle and position of the landscape light easily
• Built-in 1/2 inch extended cowl reduces glare and guides light to where you want it
• Designed with a 9-15V operating range, so you can add more fixtures to a wire run

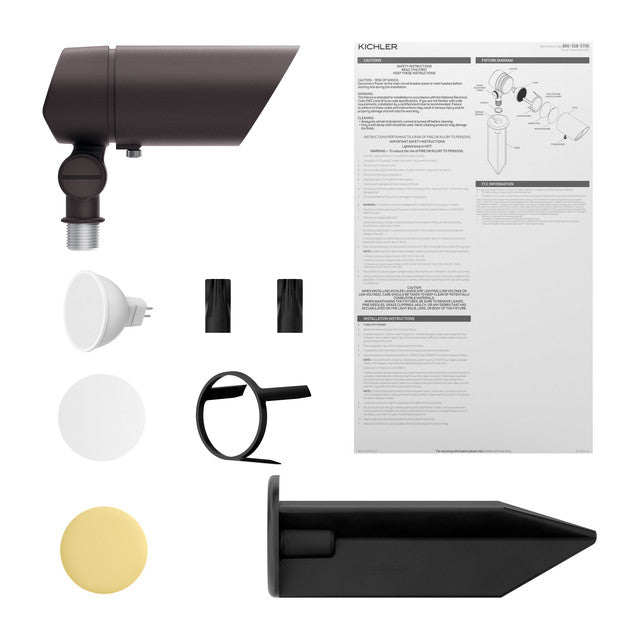

• What's in the box: light fixture, 8 inch slotted in-ground stake, 2 gel-filled wire nuts, warming CCT lens beam expander lens, 330 lumen 35 deg 3000K MR16 LED lamp and lens pressure fit holder

Specifications

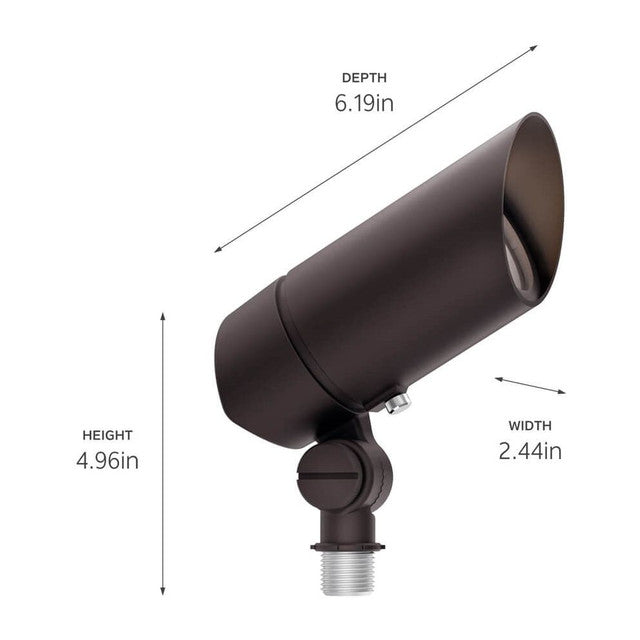

• Length: 6.19"
• Height: 4.96"
• Width: 2.44"
• Input Voltage: 9V-15V
• Bulb Type: 12V MR16 Bi-Pin
• Included Bulb: MR16, 35 Degree Flood, 4W, 3000K, 330 Lumen Warming lens
• Max Wattage: 10W
• Volt Amps (VA): 5.7
• Lead Wire Length: 48"
• Location Rating: CSA UL Wet Location
• Body / Housing: Cast Aluminum
• Finish: Architectural Bronze
• UPC: 783927011617
