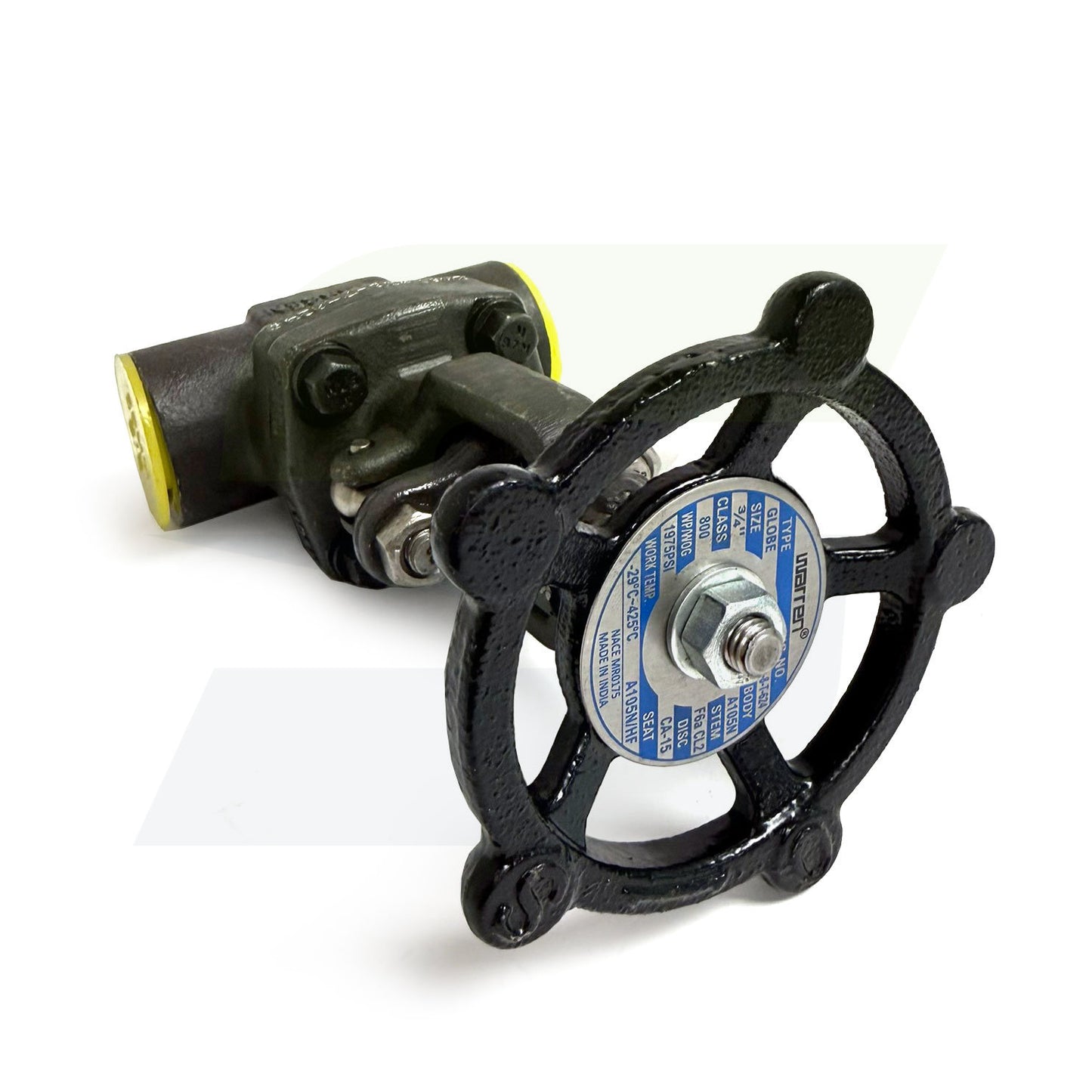

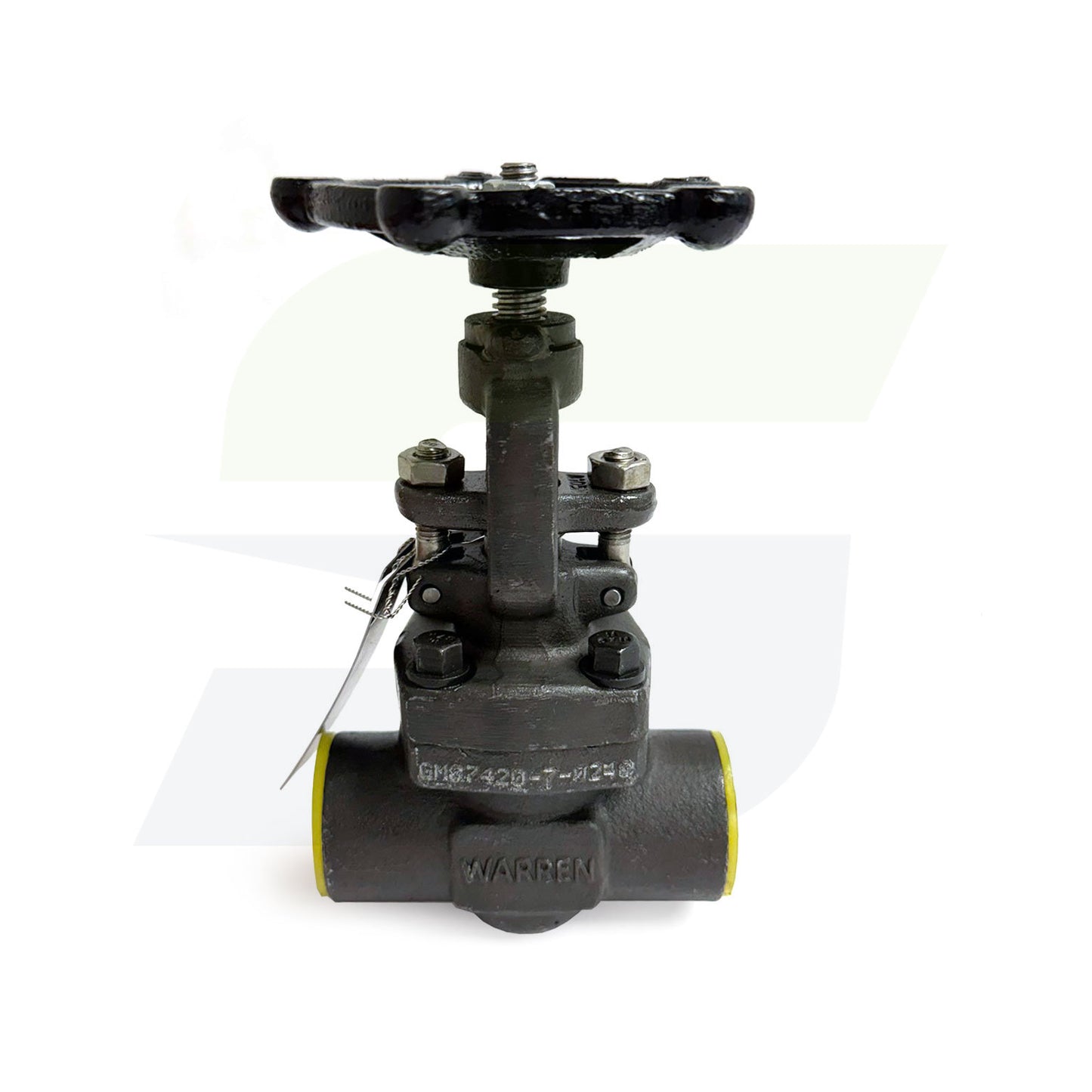

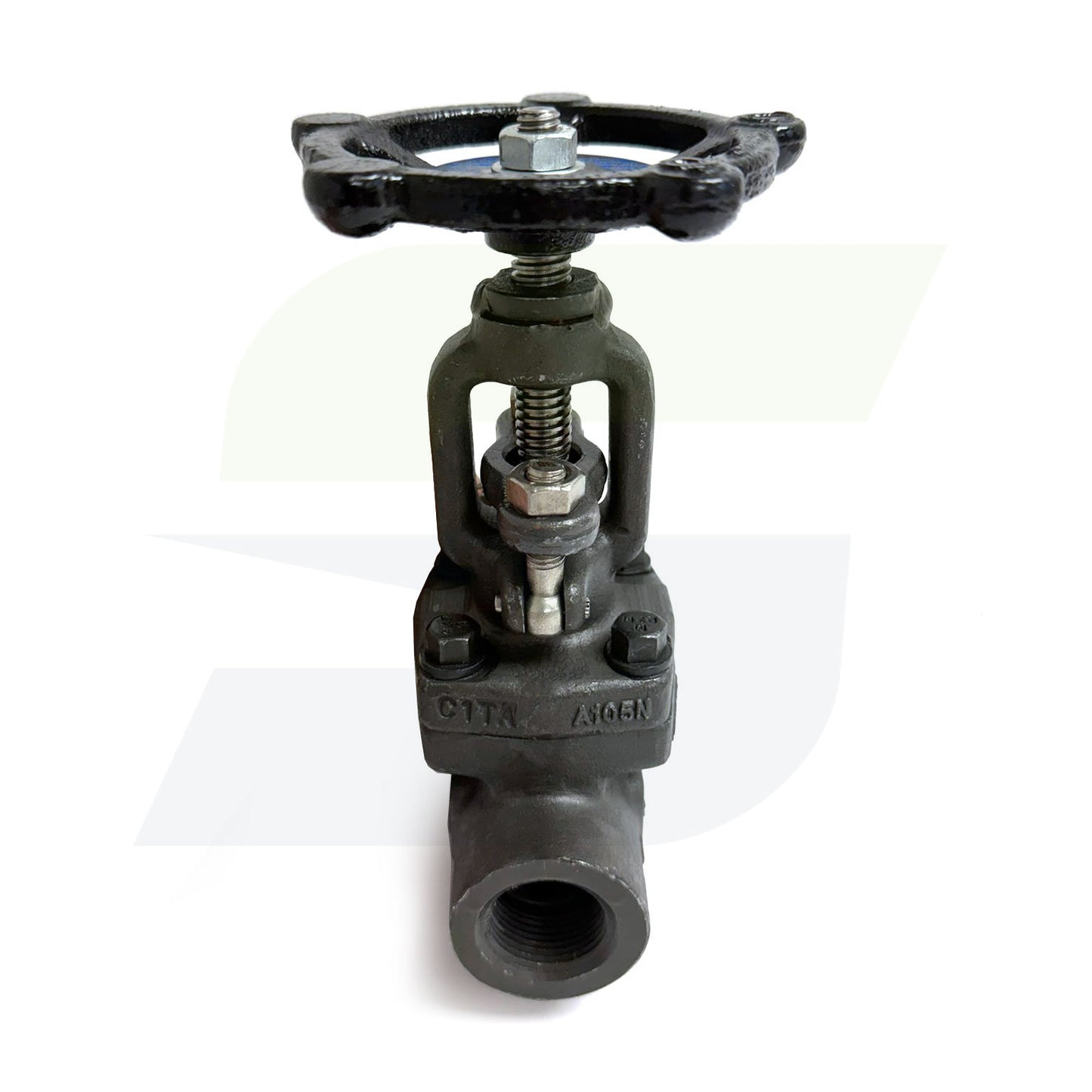

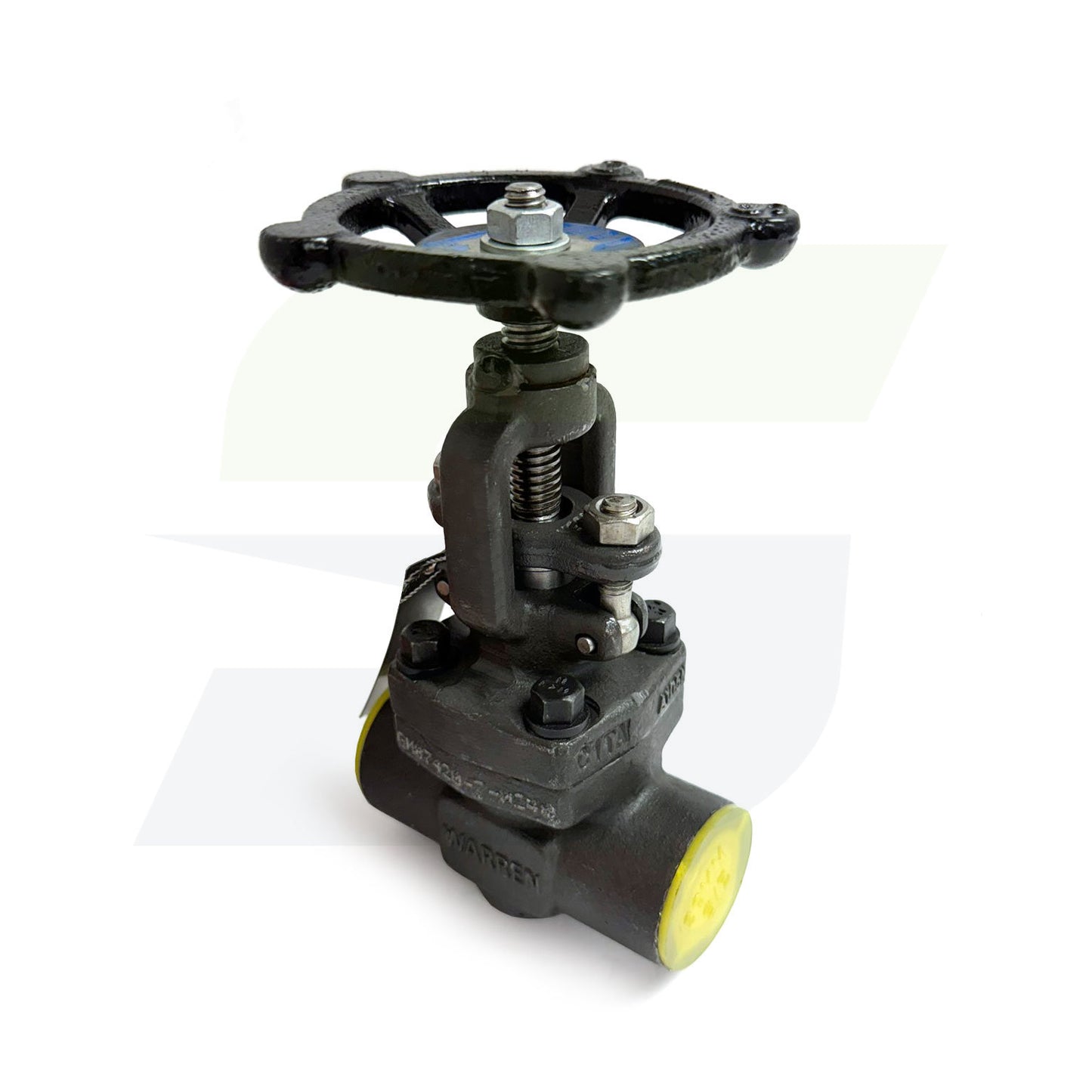

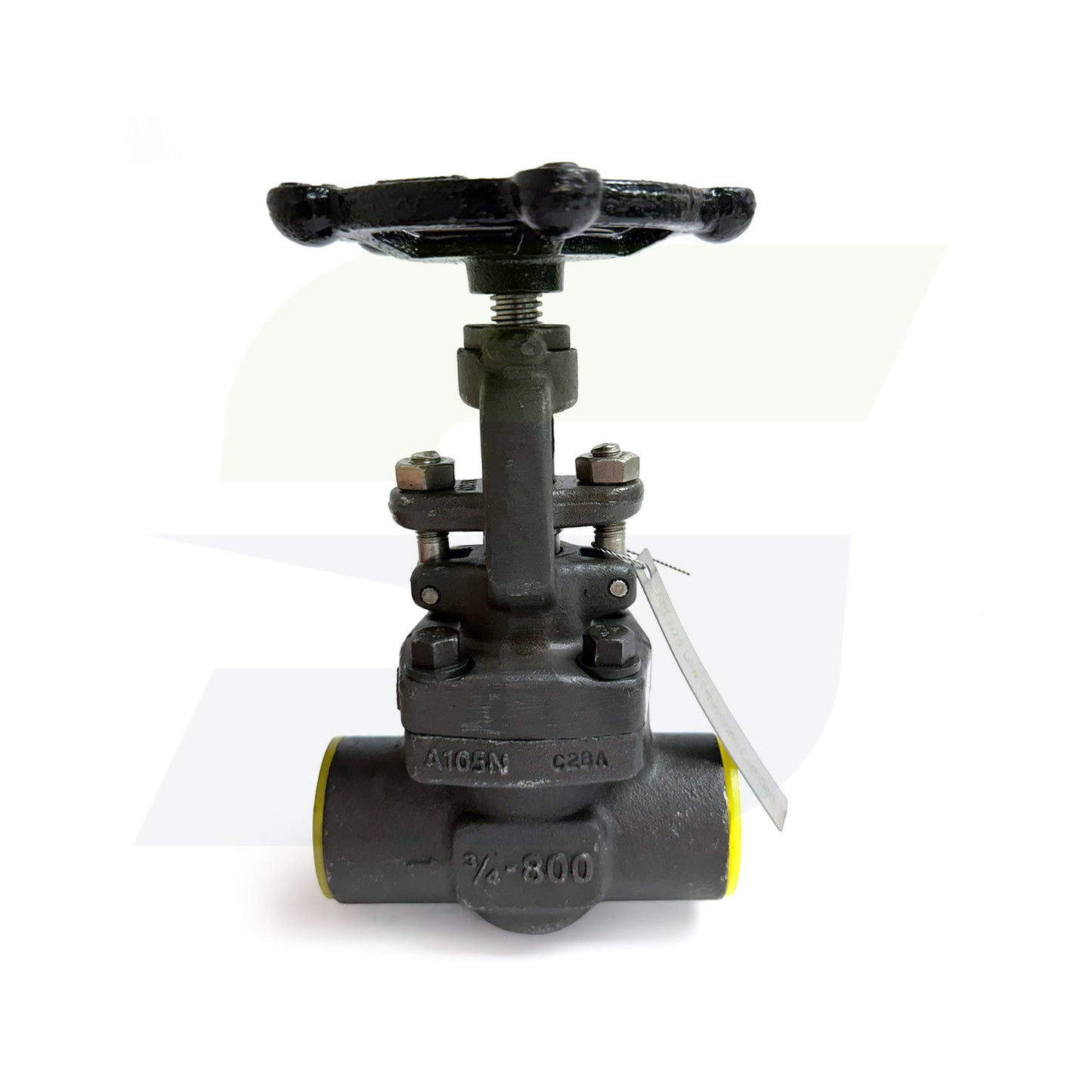

Warren Valve .5V852B-8THG - 1/2" Class 800 Forged Steel Globe Valve

The Warren Valve .5V852B-8THG 1/2" Class 800 Globe Valve is a forged carbon steel flow control valve designed for high-pressure industrial and mechanical piping systems. As part of Warren’s 852 Series forged globe valve platform, it features a bolted bonnet and OS&Y (outside screw and yoke) rising stem design for dependable sealing, visible valve position, and long service life. Threaded or welded forged globe valves in this class are commonly built using ASTM A105N forged carbon steel bodies with graphite sealing components and stainless trim to support severe service and emissions-sensitive environments. These valves are widely used in oil & gas, process piping, steam, and high-pressure utility systems where precise throttling and reliable shutoff are required.

Features

• Manufacturer: Warren Valve
• Part Number: .5V852B-8THG
• Series: 852 Series Forged Globe Valve
• Valve Type: Forged Steel Globe Valve
• Size: 1/2" nominal
• Pressure Rating: Class 800
• Body Material: Forged carbon steel (commonly ASTM A105N)
• Trim Material: Typically 410 stainless steel trim (series standard)
• Connection Type: Threaded NPT (figure THG family)
• Stem Design: OS&Y rising stem for durability and position indication
• Bonnet Design: Bolted bonnet for sealing reliability and serviceability
• Sealing Materials: Graphite packing and gasket for low fugitive emissions
• Standards / Compliance: Commonly aligned with API 602, ASME B16.34, ASME B1.20.1 / B16.11, API 598 (varies by exact configuration)
• Operating Design: Handwheel operated throttling / shutoff valve
• Applications: Industrial process piping, oil & gas, steam service, water service, and high-pressure mechanical systems
