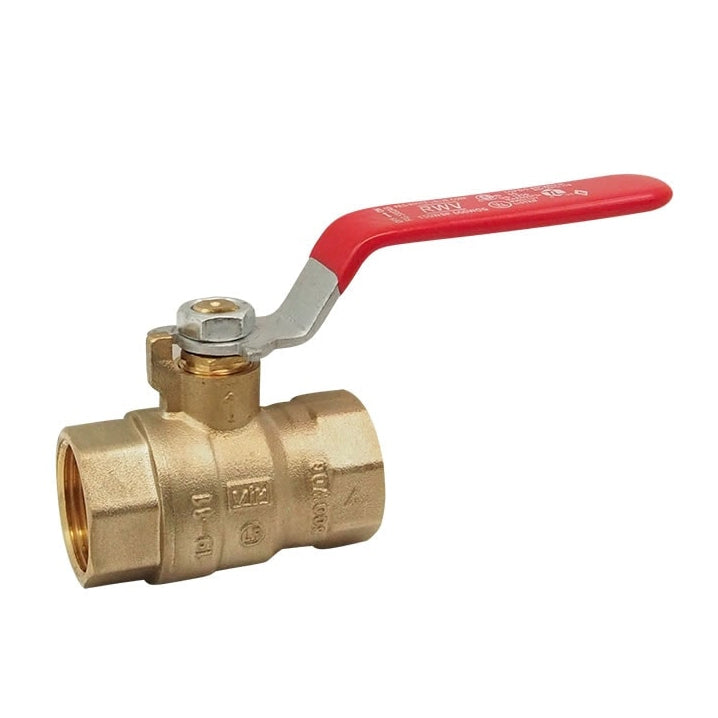

Red-White Valve 5592AB-1 - 1" Lead Free Full Port Brass Ball Valve, FNPT x FNPT

The Red-White Valve 5592AB-1 is a high-quality lead-free brass full port ball valve designed for dependable shutoff in residential, commercial, and light industrial plumbing systems. Featuring a durable two-piece forged brass body, full port design, chrome-plated brass ball, and adjustable packing nut, this valve delivers maximum flow with minimal pressure loss while providing long-lasting, leak-free performance. Threaded FNPT connections allow for straightforward installation, and the blowout-proof stem enhances safety and reliability. Certified for potable water applications, the 5592AB series is an excellent choice for water distribution, HVAC, irrigation, and general-purpose plumbing systems.

Features

• Manufacturer: Red-White Valve
• Part Number: 5592AB-1
• 1" lead-free forged brass full port ball valve
• Female NPT x Female NPT threaded connections
• Two-piece body design for strength and serviceability
• Full port construction minimizes pressure loss and maximizes flow
• Chrome-plated brass ball for smooth operation and corrosion resistance
• Virgin PTFE seats provide reliable sealing and long service life
• Blowout-proof stem enhances safety during operation
• Adjustable packing nut allows for easy maintenance
• Quarter-turn lever handle for quick on/off operation
• Suitable for potable water, HVAC, irrigation, and general plumbing applications
• Certified to NSF/ANSI/CAN 61 & 372 and compliant with California AB1953 lead-free requirements

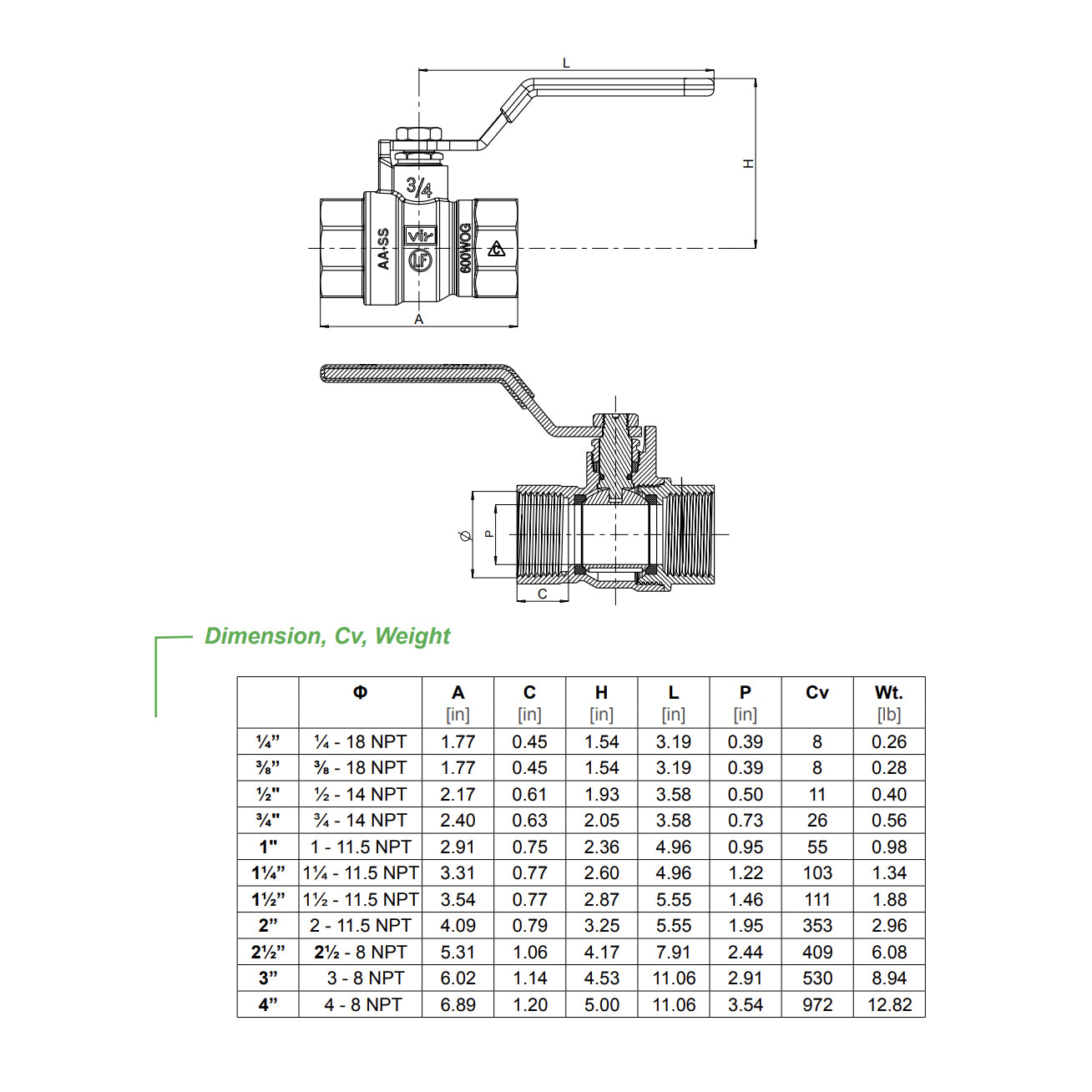

Specifications

• Valve Size: 1"
• Connection Type: FNPT x FNPT
• Body Material: Lead-free forged brass
• Port Style: Full port
• Pressure Rating: 600 PSI WOG / 150 PSI WSP
• Temperature Range: 15°F to 366°F (600 PSI to 160°F; 150 PSI max at 366°F)
• Ball Material: Chrome-plated lead-free brass
• Seat Material: Virgin PTFE
• Stem: Blowout-proof lead-free brass
• Standards: MSS-SP-110
• Certifications: NSF/ANSI/CAN 61, NSF/ANSI 372, CSA, UL (1/4"–2"), California AB1953
