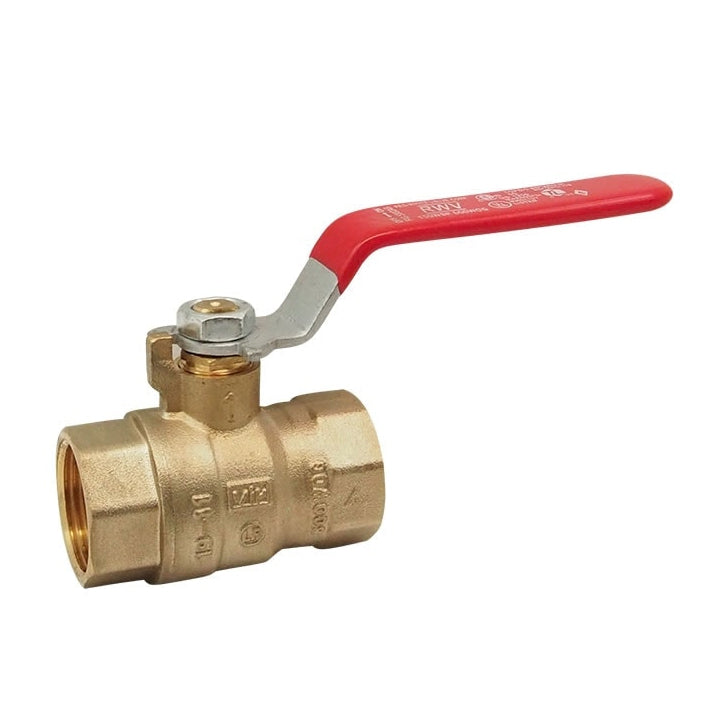

Red-White Valve 5592AB-1-1/2 - 1-1/2" Lead Free Full Port Brass Ball Valve, FNPT x FNPT

The Red-White Valve 5592AB-1-1/2 is a lead-free full port brass ball valve built for dependable shutoff in potable water, HVAC, irrigation, compressed air, and general plumbing systems. Its rugged two-piece forged brass body, full port design, and chrome-plated brass ball provide maximum flow with minimal pressure loss, while virgin PTFE seats and a blowout-proof stem ensure reliable, leak-free performance. Female NPT threaded connections allow for easy installation, making this valve an ideal choice for demanding residential, commercial, and light industrial applications.

Features

• Manufacturer: Red-White Valve
• Part Number: 5592AB-1-1/2
• 1-1/2" lead-free forged brass full port ball valve
• Female NPT x Female NPT threaded connections
• Two-piece body construction for strength and durability
• Full port design maximizes flow while minimizing pressure loss
• Chrome-plated lead-free brass ball for smooth operation and corrosion resistance
• Virgin PTFE seats provide dependable, long-lasting sealing
• Blowout-proof stem enhances safety and reliability
• Adjustable packing nut allows for easy maintenance
• Quarter-turn steel lever handle for quick on/off operation
• Suitable for potable water, HVAC, irrigation, compressed air, oil, gas, and general plumbing applications
• Certified to NSF/ANSI/CAN 61 & 372 and compliant with California AB1953 lead-free requirements

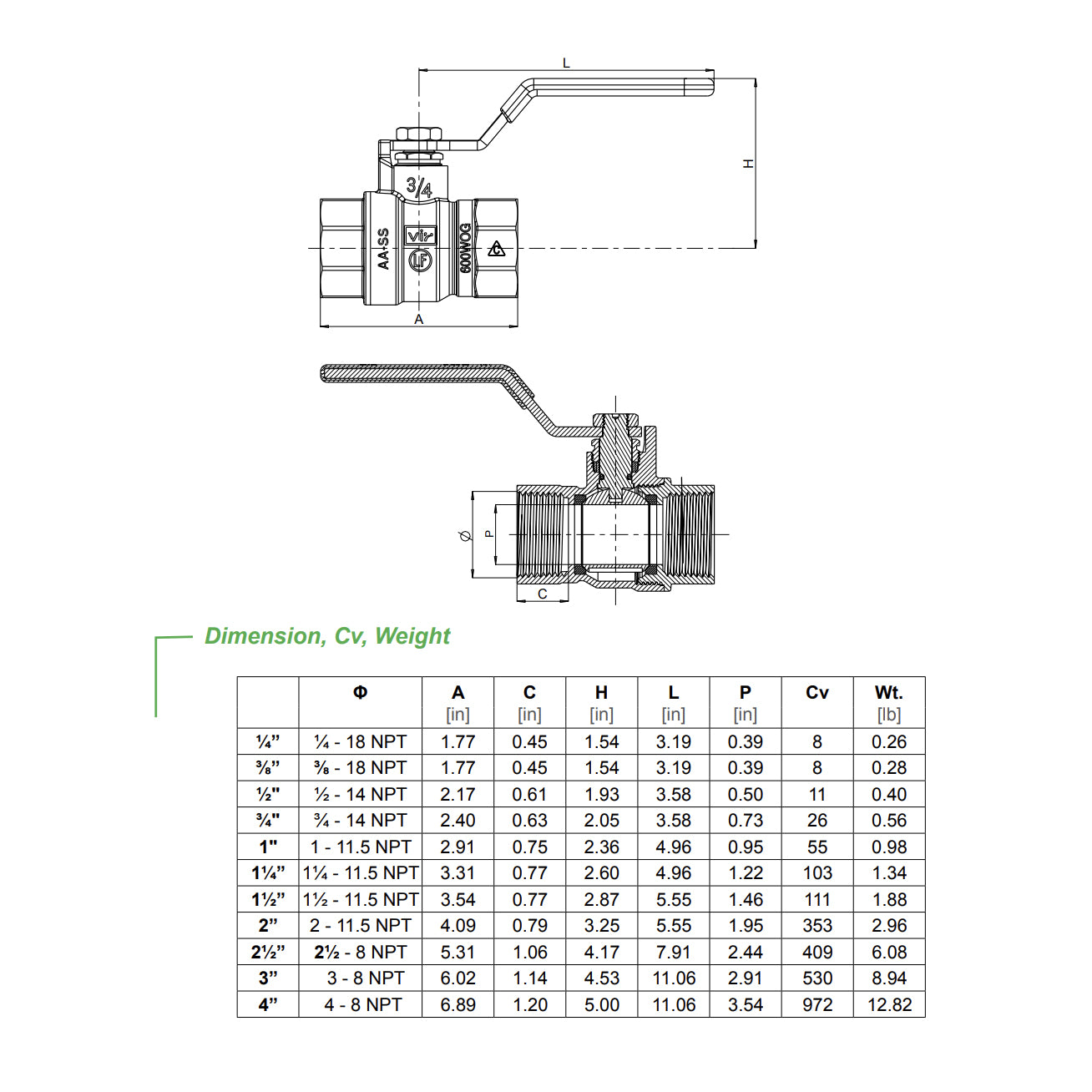

Specifications

• Valve Size: 1-1/2"
• Connection Type: FNPT x FNPT
• Body Material: Lead-free forged brass
• Port Style: Full port
• Pressure Rating: 600 PSI WOG / 150 PSI WSP
• Temperature Range: 15°F to 366°F (600 PSI to 160°F; 150 PSI maximum at 366°F)
• Ball Material: Chrome-plated lead-free brass
• Seat Material: Virgin PTFE
• Stem: Blowout-proof lead-free brass
• Cv: 111
• Weight: 1.88 lbs.
• Standard: MSS-SP-110
• Certifications: NSF/ANSI/CAN 61, NSF/ANSI 372, CSA, UL (1/4"–2")
