ESPLXD - 50-200 Station Modular 2-Wire Decoder Controller

Only 1 left
SKU: ESPLXD
Regular price $1,365.14

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Programming Guide

Troubleshooting Guide

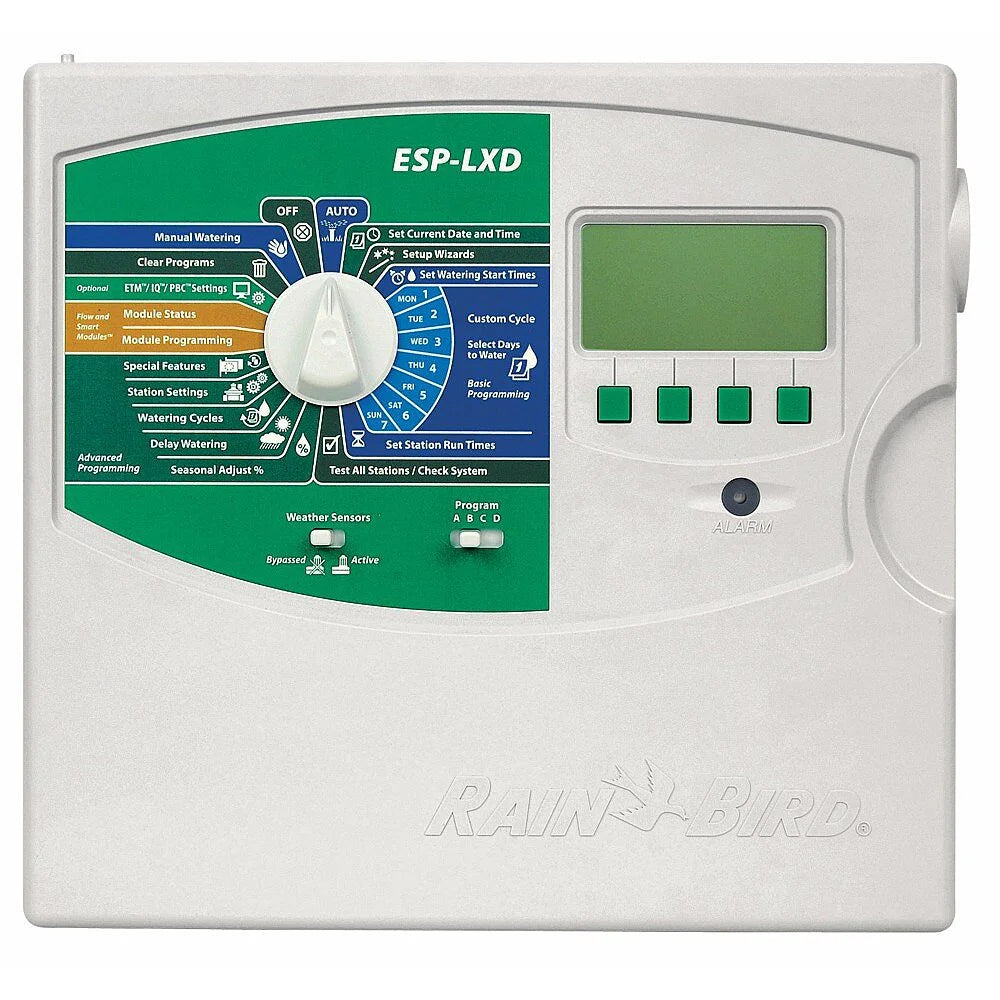

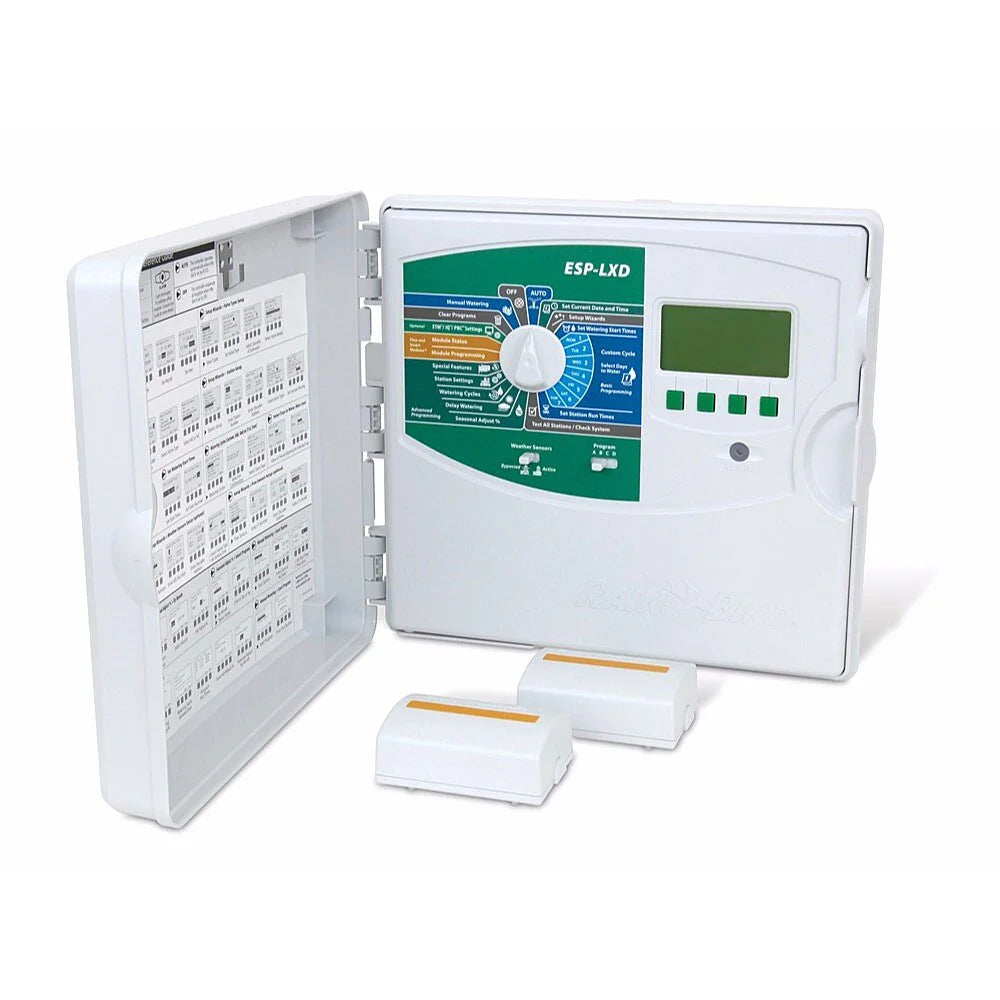

Rain Bird ESP-LXD - 50 Station 2-Wire Decoder Controller - Expandable to 200 Stations

The result of 40 years of expertise and thousands of installed units, the ESP-LXD is a modern, reliable, two-wire decoder controller. With a large display, simple-to-use dial, English/Spanish language support, and extra simple programming, the ESP-LXD dramatically cuts installation and troubleshooting time for even up to the most extensive operations.

Features

  • Two-wire run lengths up to 2.5 miles (4km)

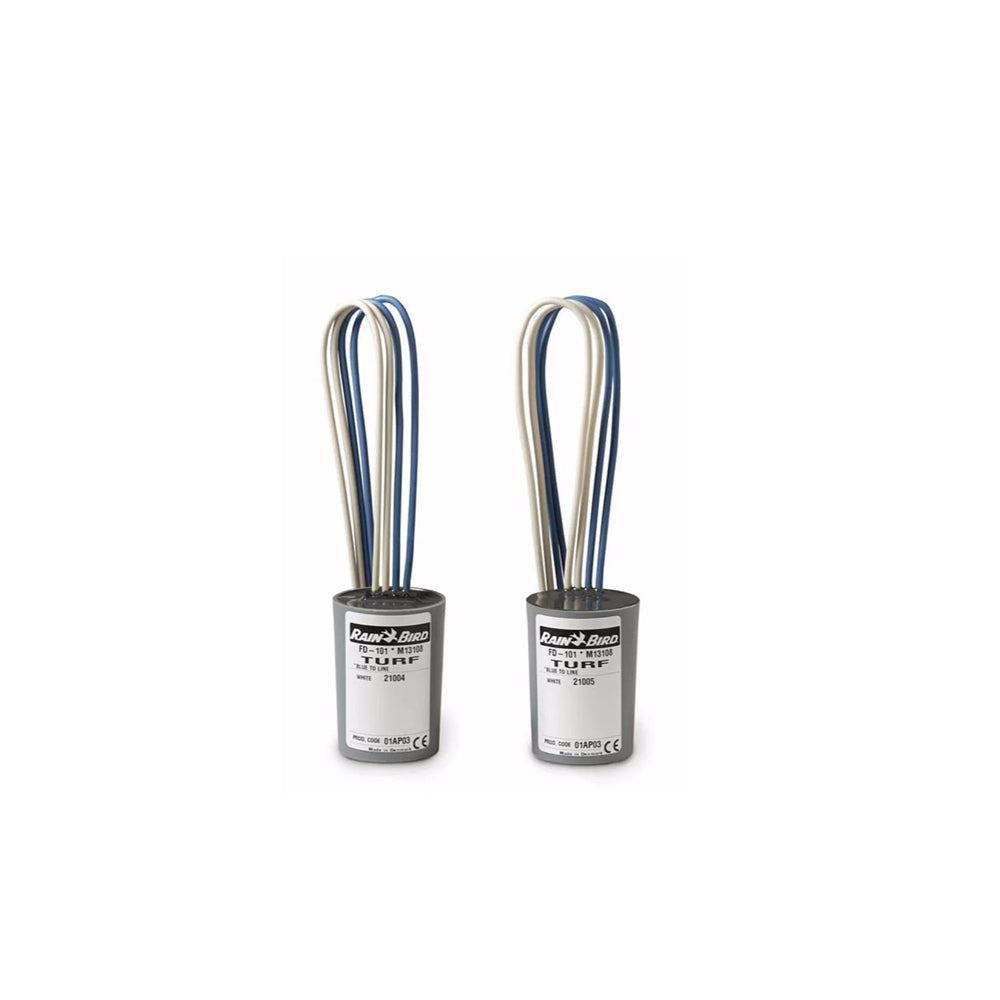

  • Two-wire decoder-based irrigation reduces wire and simplifies troubleshooting
  • Four independent programs with capability to overlap
  • Control well, boost, fertigation, and other pumps
  • Supports up to 5 master valves, 5 flow sensors, 4 weather sensors and a variety of upgrades
  • Same easy-to-use programming interface as other ESP series controllers
  • 6 user-selectable languages including English, Spanish, French, Italian, German & Portuguese
  • Up to 96-hours of continuous runtime
  • Up to 8 simultaneous stations

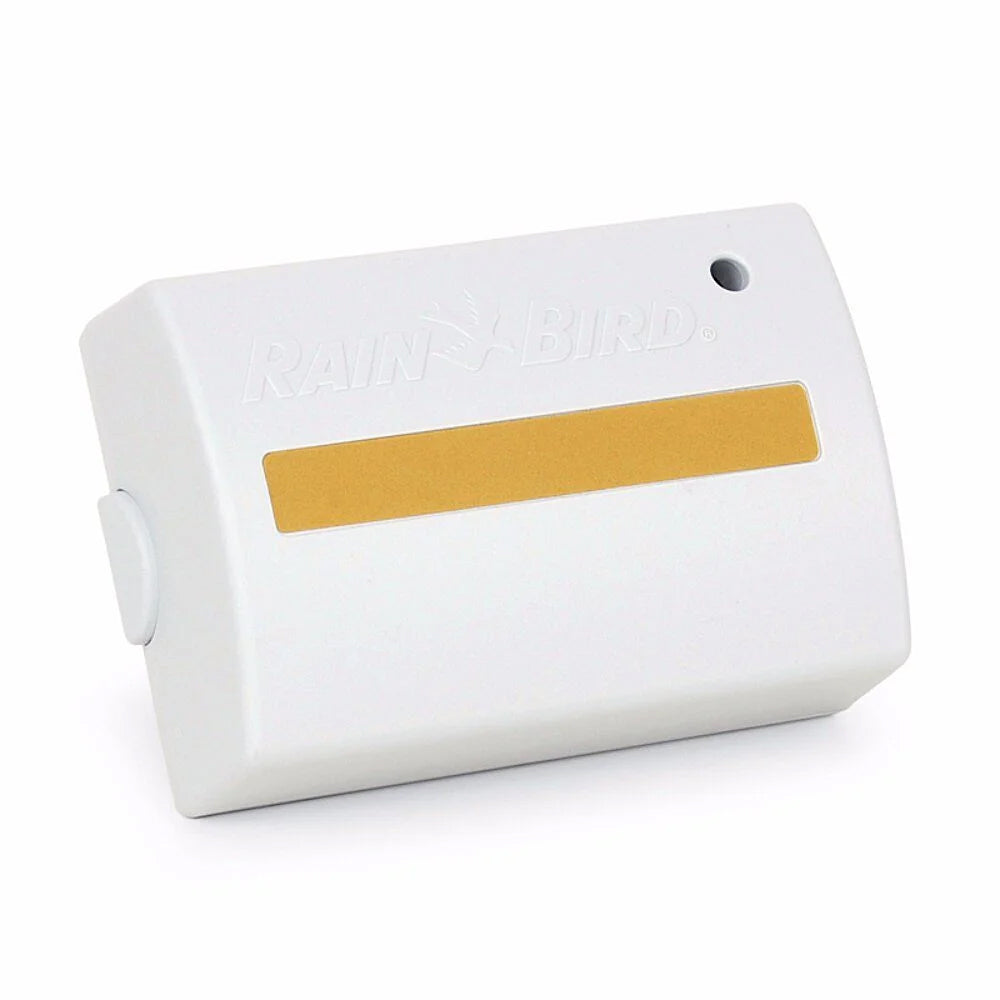

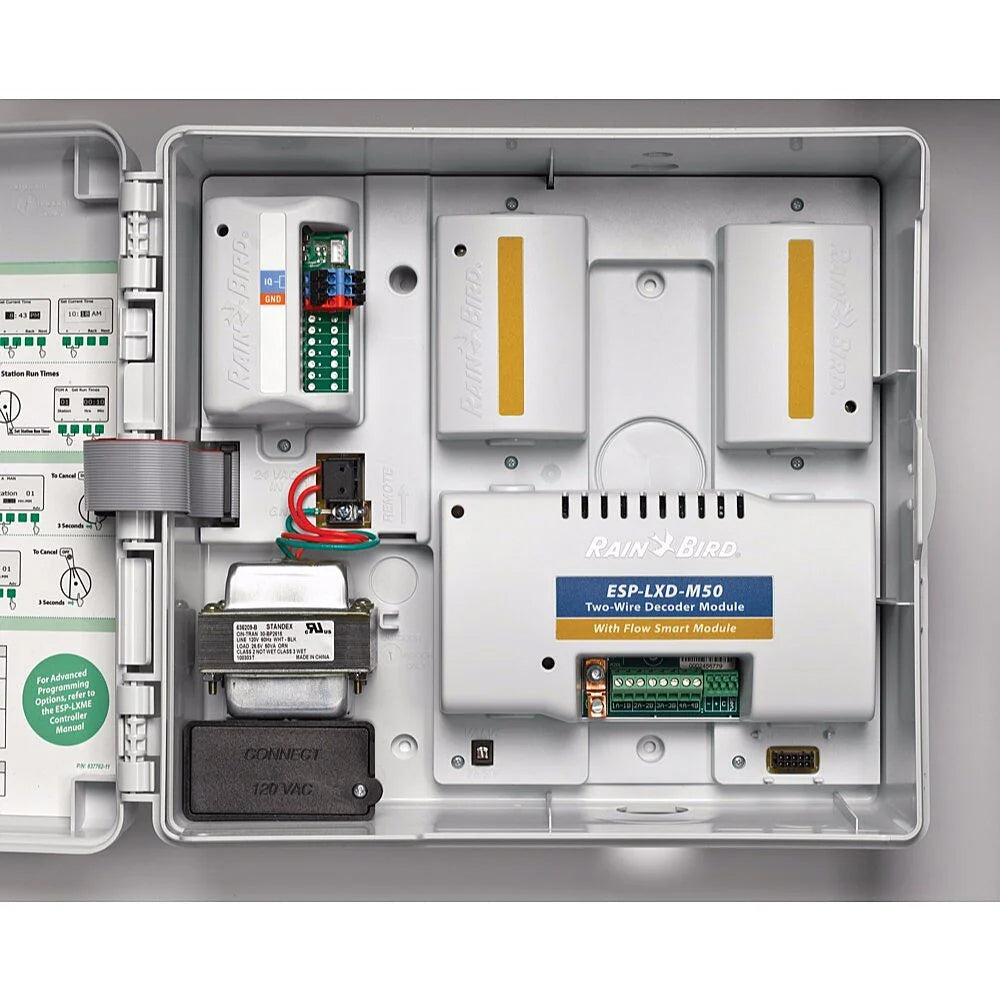

  • 50 station two-wire decoder controller standard, expandable to 200 stations with optional 75-station expansion module
  • Upgradeable to remote access with ClimateMinder
  • UV-resistant, outdoor-rated plasting locking wall-mountable case
  • Built-in flow management software
  • Rain Bird residential valves (CP,DV and JTV series) are not compatible with ESP-LXD decoders. Use Rain Bird commercial valves (PGA, PEB, GB, EFB-CP and BPE series)

Specifications

  • Station timing: up to 96 hours of continuous runtime
  • Program level and global Monthly Seasonal Adjust: 0% to 300%
  • 4 independent programs (ABCD); ABC programs stack, ABCD overlap
  • 8 start times per program
  • Manual station, program, test program
  • Input required: 120 VAC ± 10%, 60Hz
  • Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
  • Multi-valve station capacity: up to 2 solenoid valves per station; simultaneous operation of up to eight solenoids and/or master valves
  • Dimensions: 14.32" W x 12.69" H x 5.50" D




IEZR800050
