5" x 8" ZMAX Galvanized Protecting Shield Plate Nail Stopper
Regular price
$6.49
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Simpson Strong Tie 5" x 8" ZMAX Galvanized Protecting Shield Plate Nail Stopper
PSPN58Z and PSPN516Z protecting shield plate fastener stoppers meet IRC, IBC and the International Plumbing Code. PSPN516Z meets the code plumbing protection requirements as well as having additional fasteners if the designer chooses to use it as a track splice strap.
Features

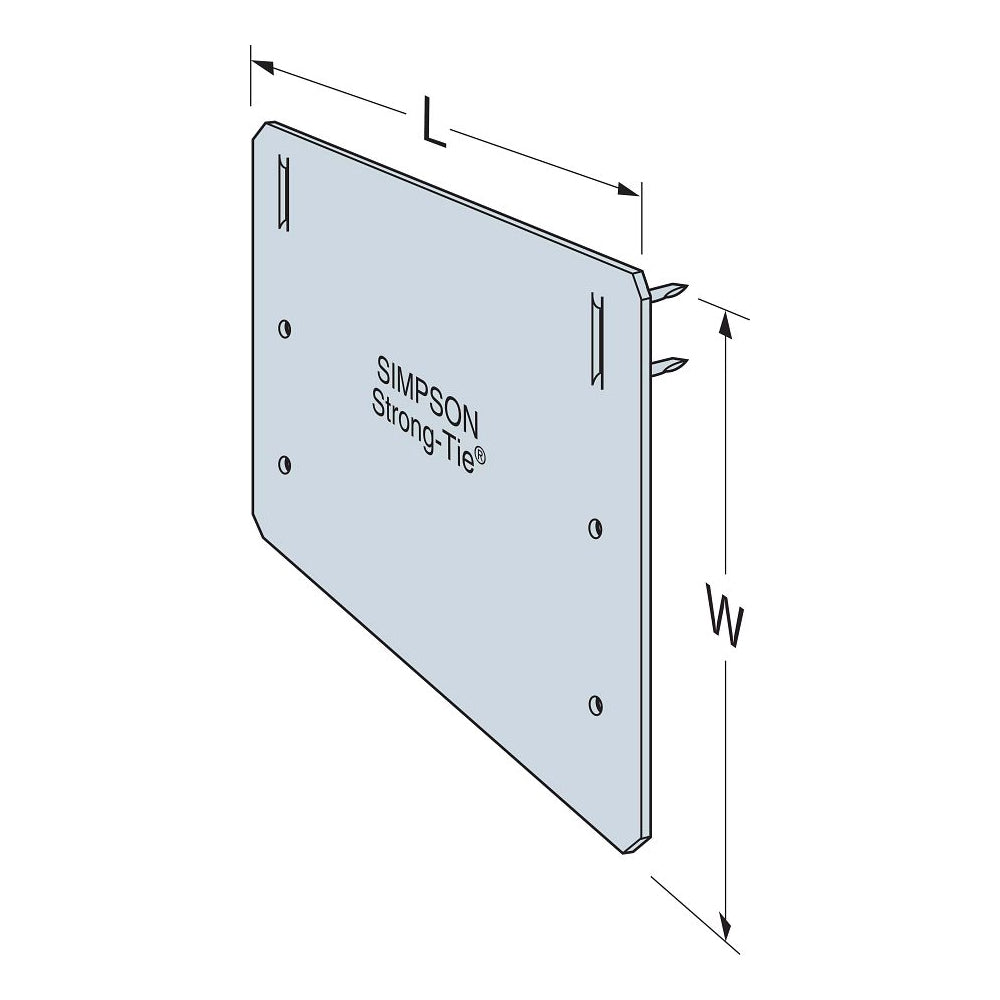

- Thickness: 54 mil (16 ga.)
- Width: 5"
- Length: 8"
- Finish: ZMAX coating

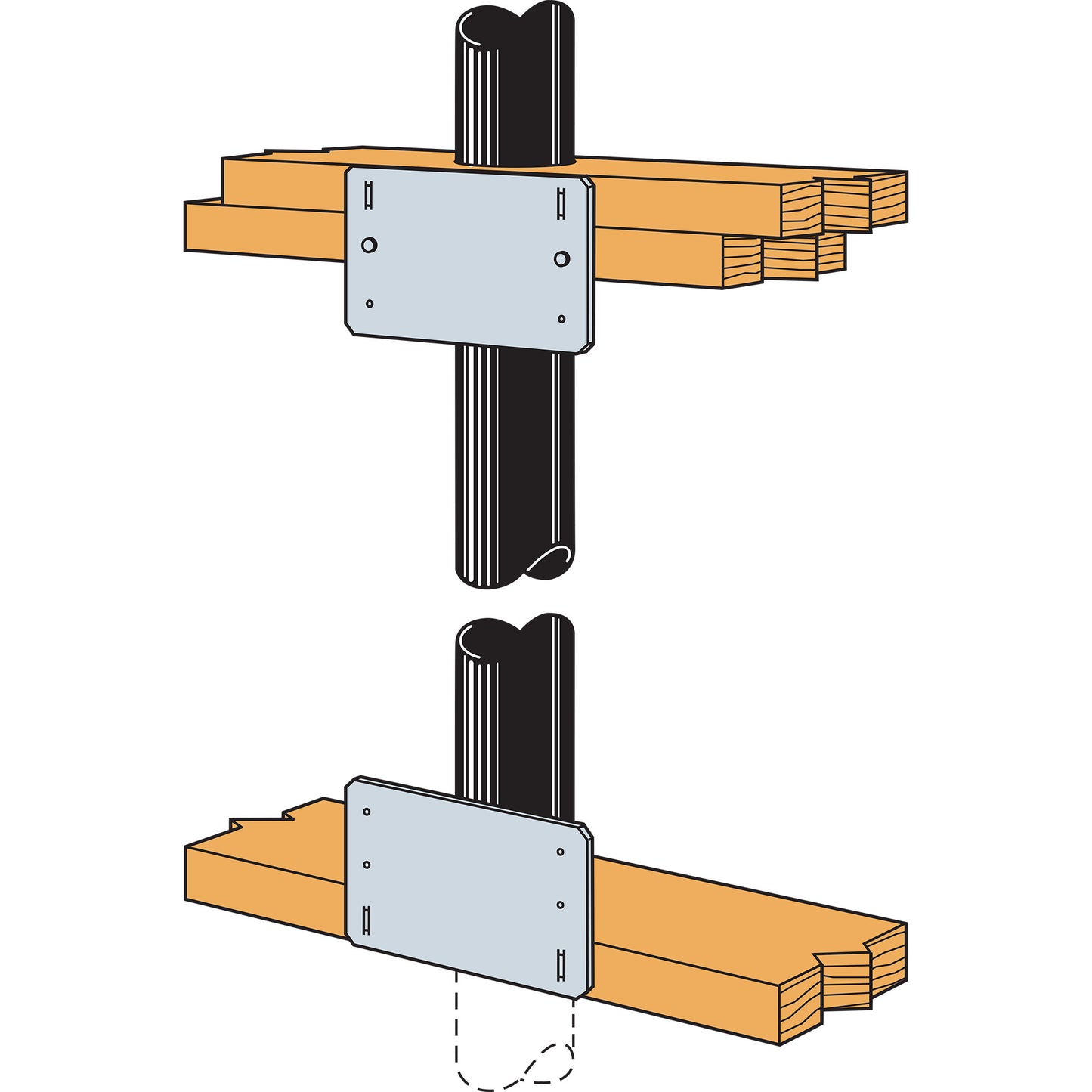

- Installation:
- Flatten prongs with hammer as needed
- Use #10 screws
- #10 self-tapping screws may be used to attach PSPNZ to CFS framing with quantity determined by designer
- Codes: PSPN58Z at top plates and bottom plate, International Plumbing Code — 2015/2018 305.6
