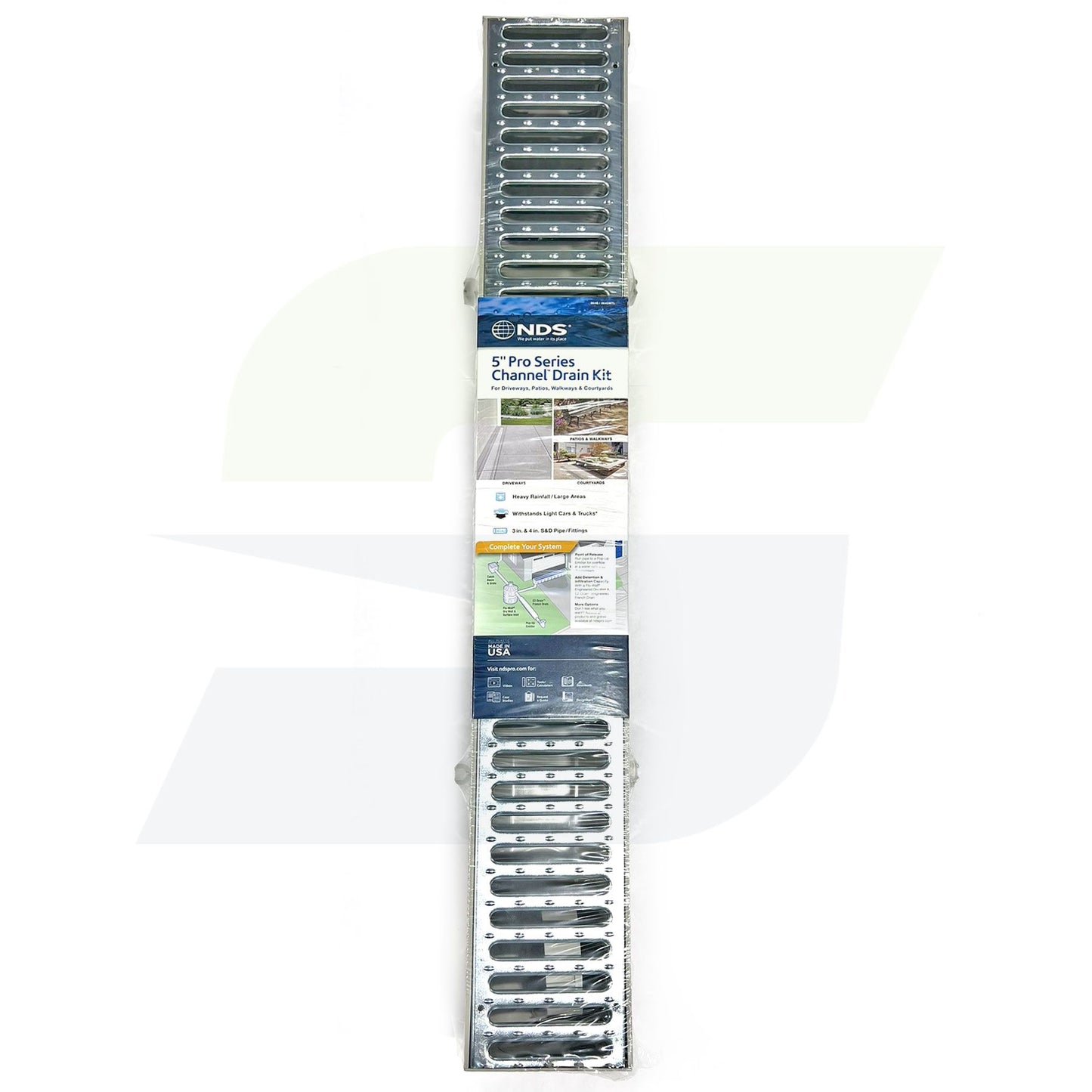

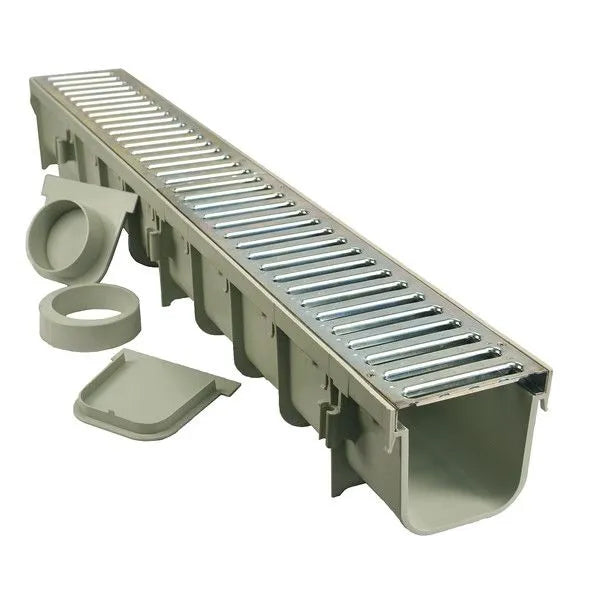

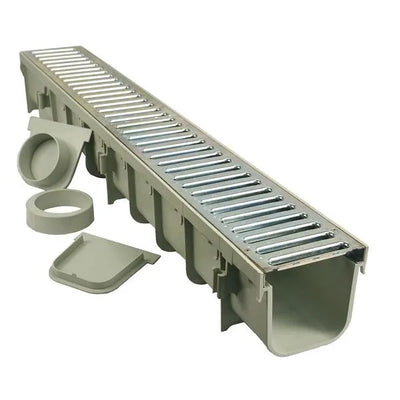

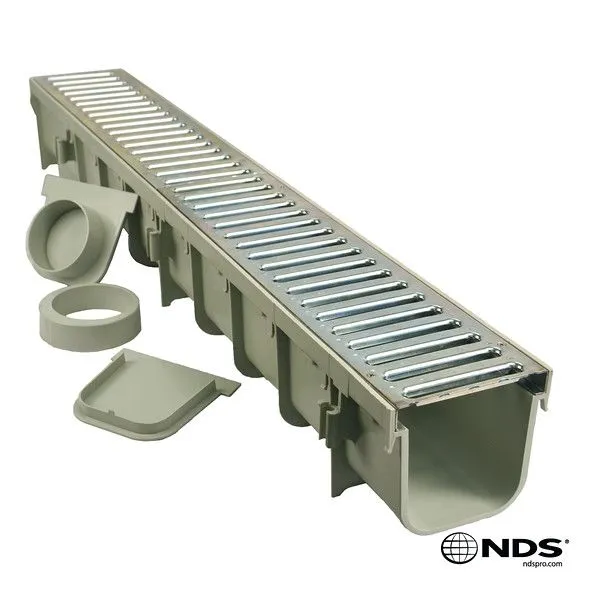

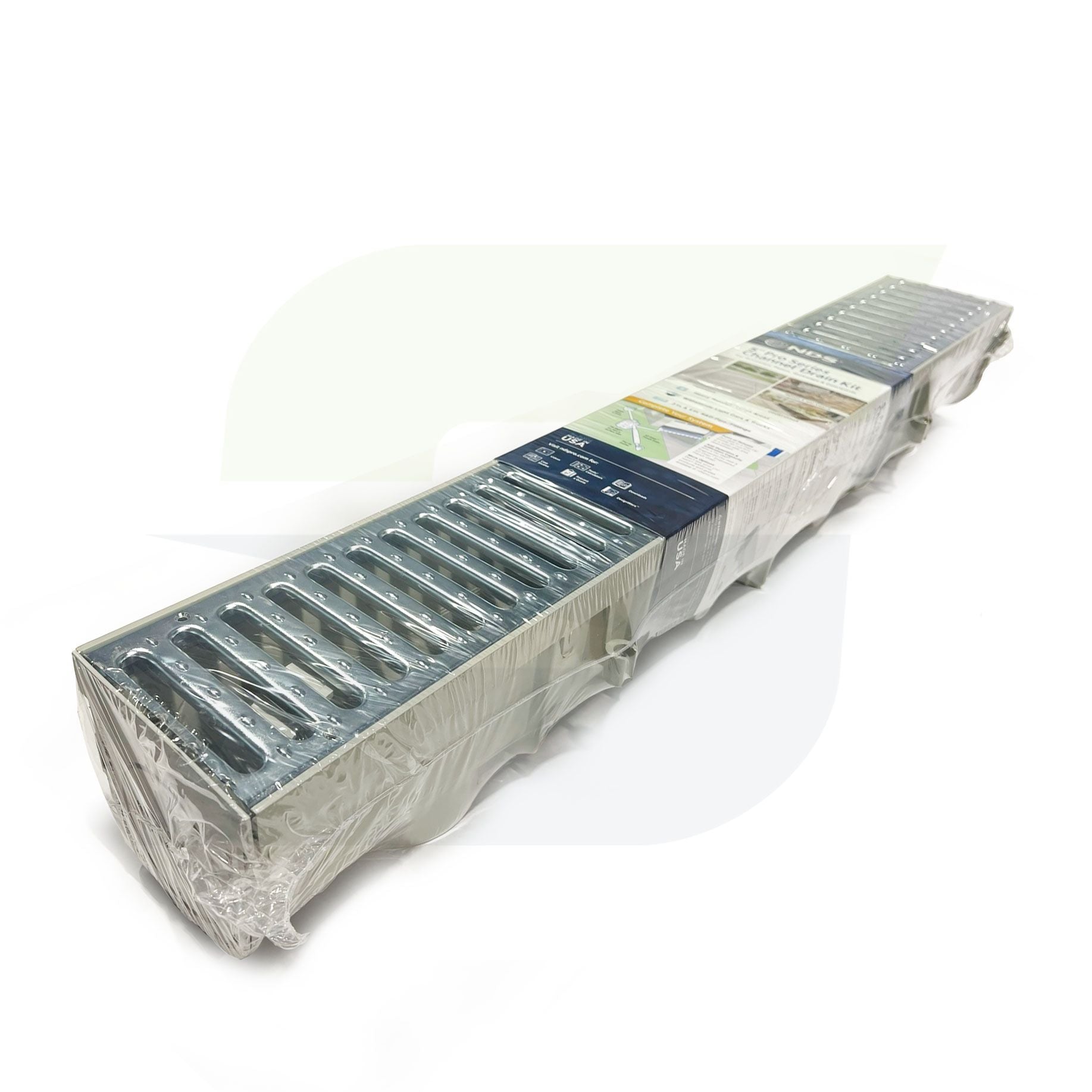

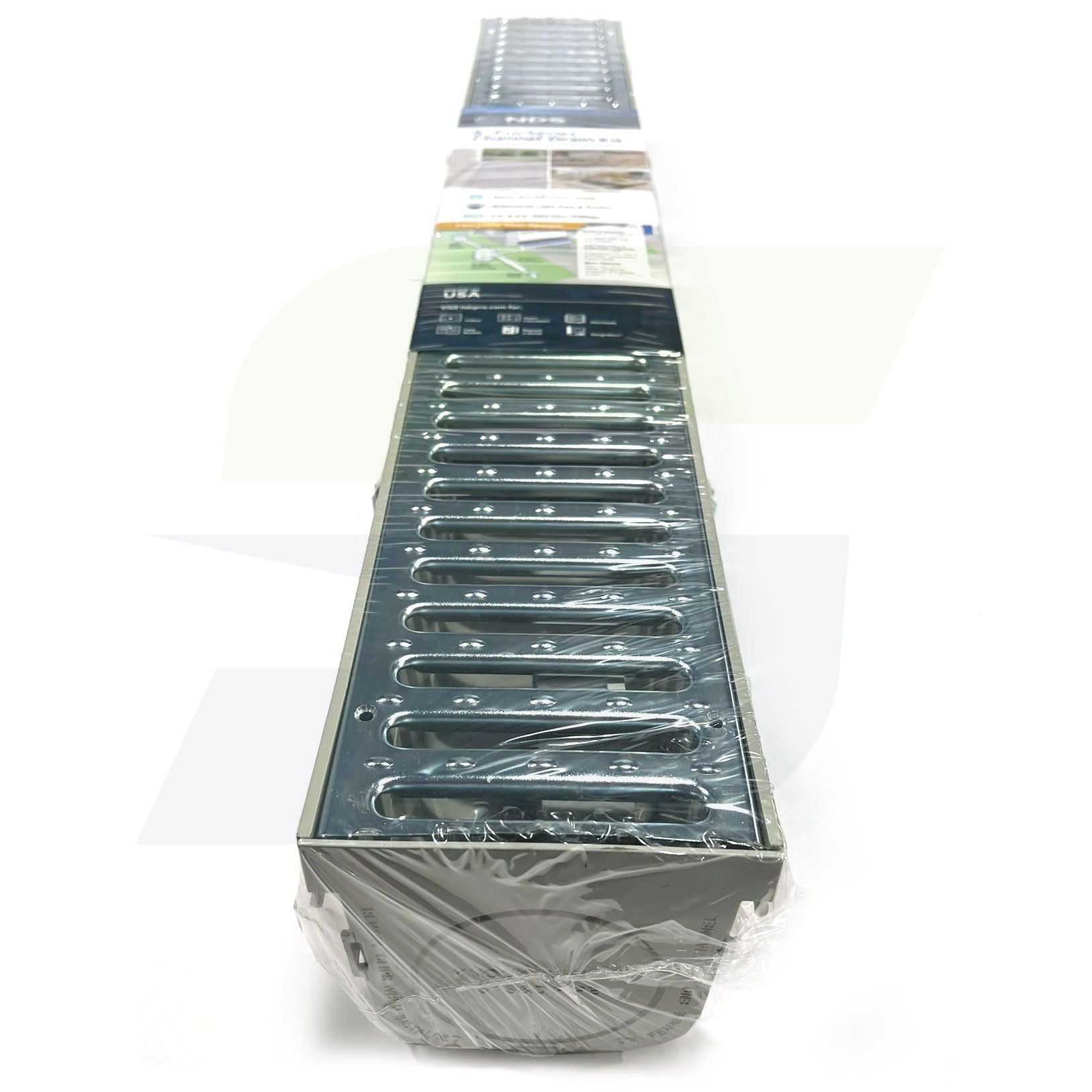

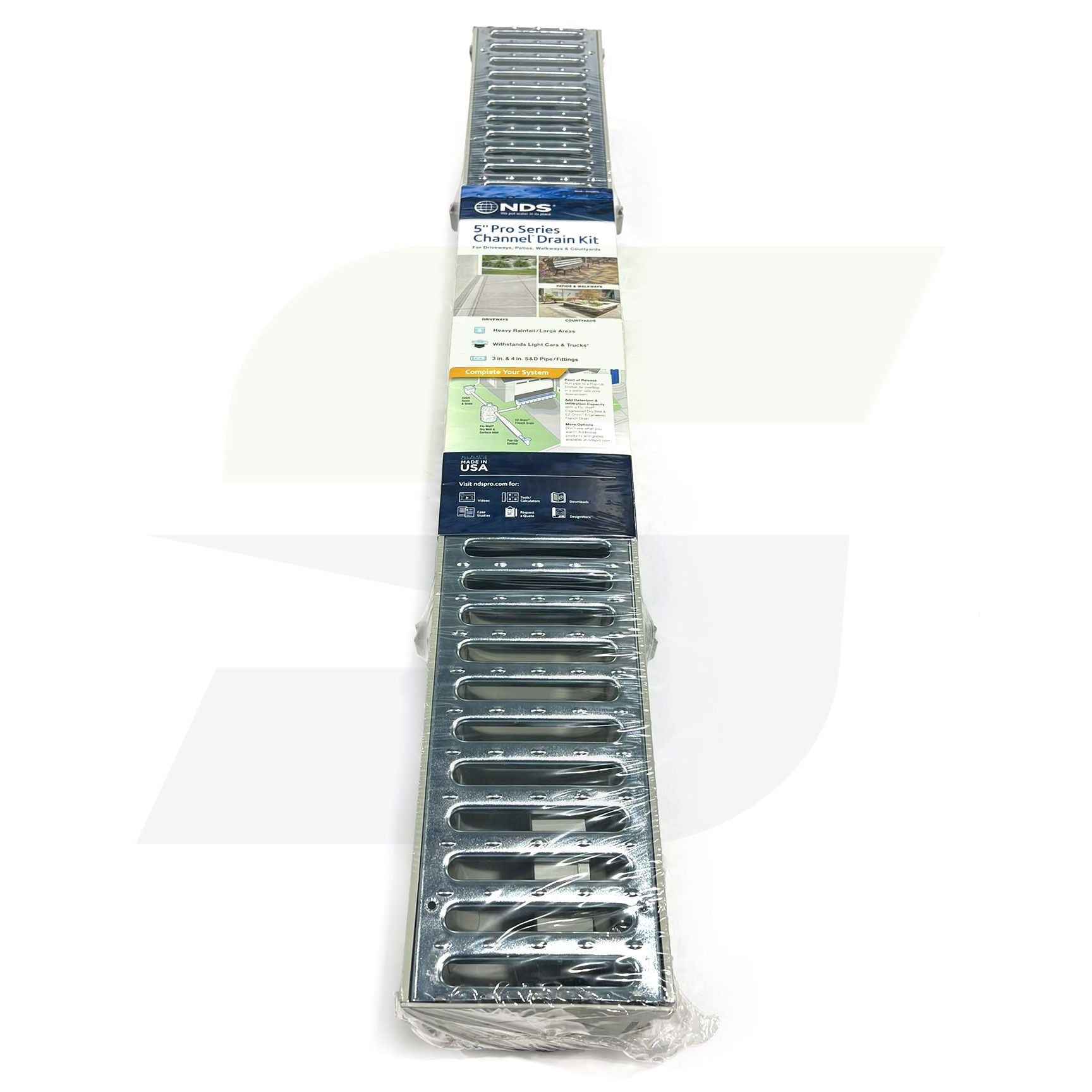

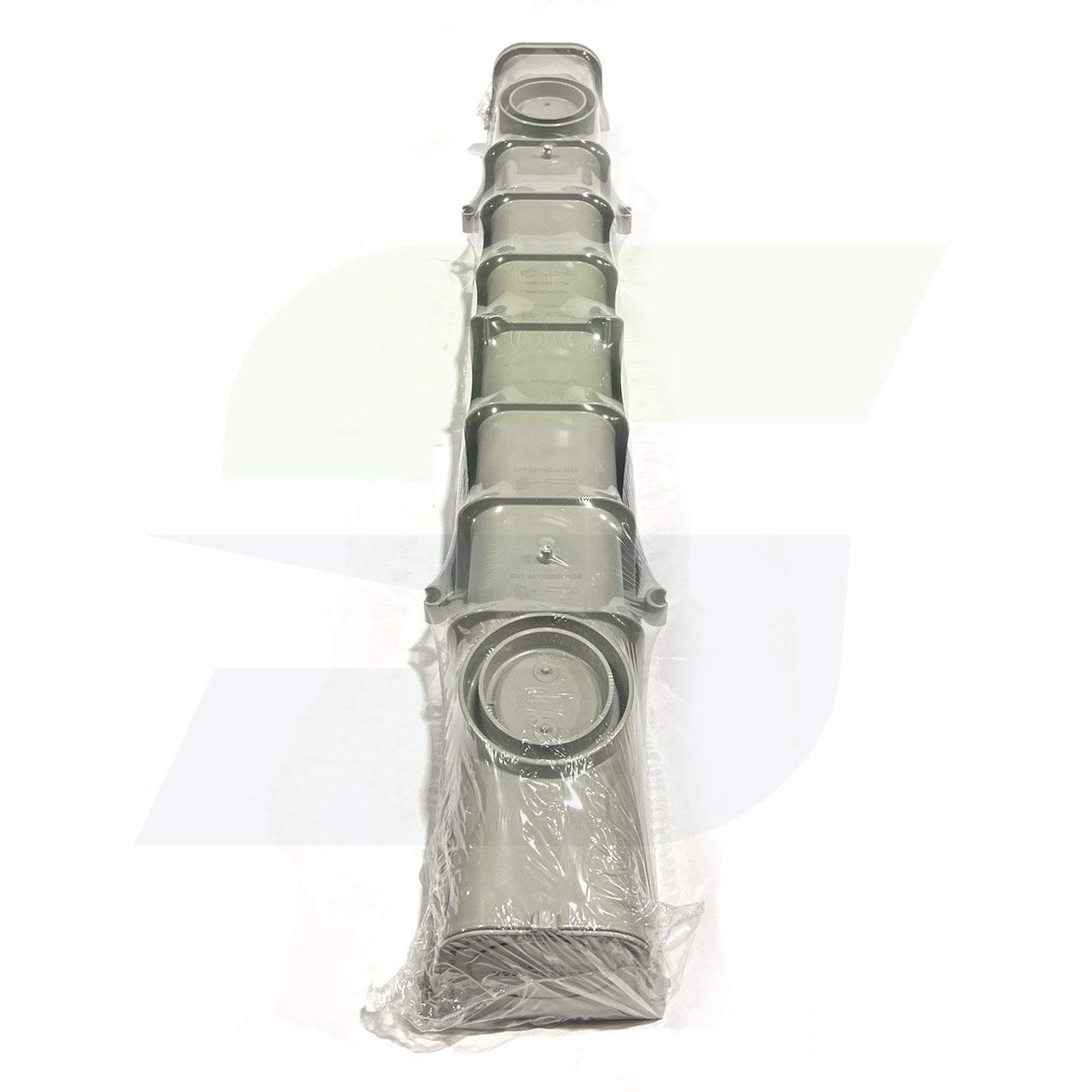

NDS 864GMTL - 5" Pro Series Channel Drain Kit with Metal Grate

Durable. High-flow. Easy to install.

The NDS 864GMTL Pro Series 5" Drain Kit is a high-performance surface drainage solution built for residential and commercial use. It’s designed to manage high water flow with long-lasting materials and includes everything you need for fast installation in driveways, patios, garages, and more.

Need multiple kits for a longer run? Simply snap together additional channels and grates to create a continuous drainage solution. Have questions about compatibility or installation? Reach out—our team is ready to help you design the ideal drainage system for your space.

Kit Includes:

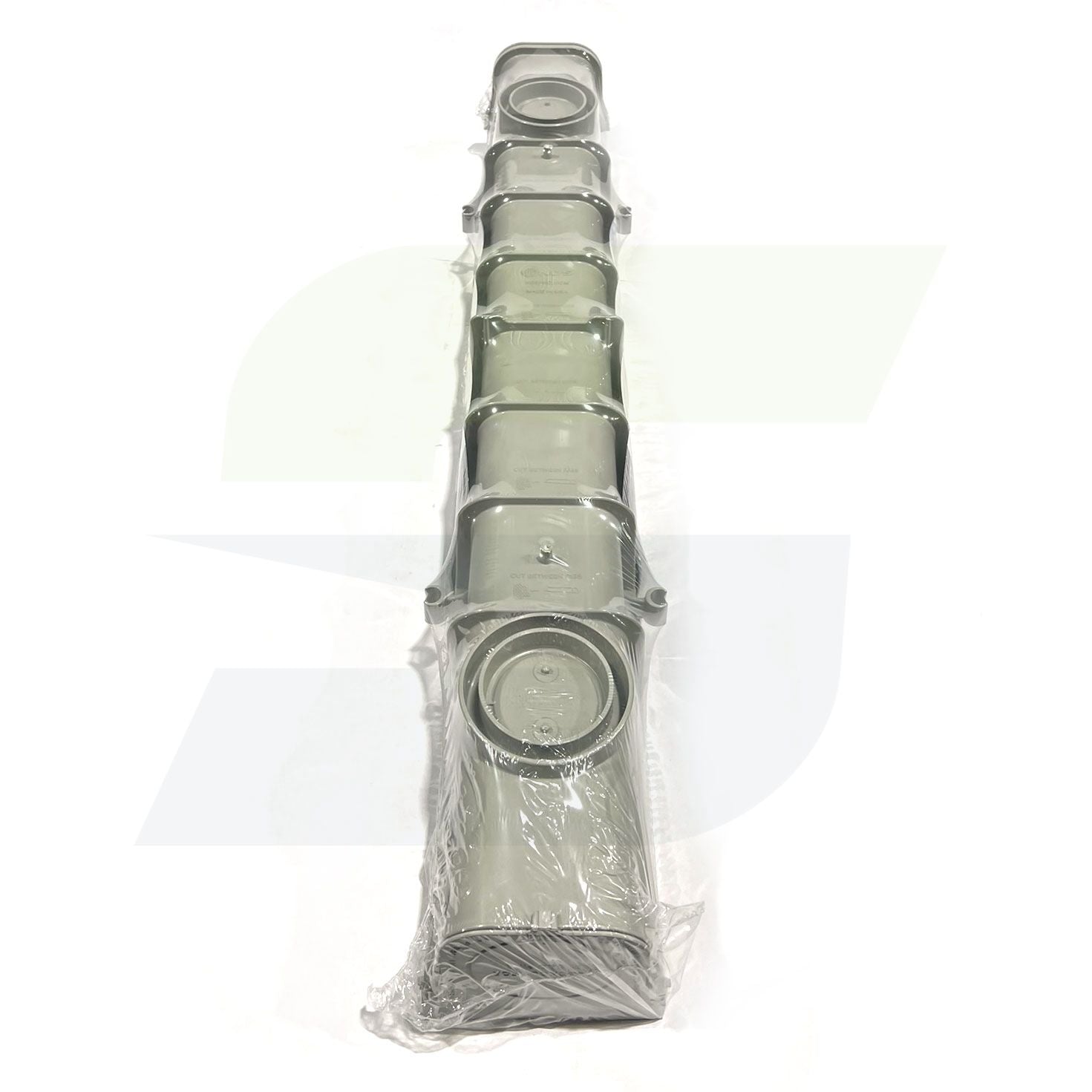

• (1) 39-3/8" Pro Series Channel (#800 – Polyolefin)
• (2) Galvanized Steel ADA-Compliant Grates
• (1) End Outlet (#813) – fits 3" hub or 4" spigot drain pipe
• (1) End Cap (#812)
• (8) Stainless Steel Screws (#829 – 4 per grate)
• Integrated rebar tie clips for secure anchoring with #4 rebar

Specifications:

• Channel width: 5"
• Grate opening: 0.45" x 4"
• Open surface area: 19.32 in² per linear foot
• Flow capacity:
  • 1" head: 83.58 GPM/ft
  • 0.5" head: 59.10 GPM/ft
• Weight: 7.7 lbs
• Color: Light gray (channel), galvanized steel (grates)
• UV inhibitors: Yes
• ADA compliant: Yes

Features:

• High flow rate for stormwater and runoff
• Heavy-duty galvanized grates support pedestrian and light vehicle traffic
• ADA-compliant design for safe access
• Compatible with both 3" and 4" drain pipes
• Quick install with built-in tie clips and pre-drilled screw holes
