Specification Sheet

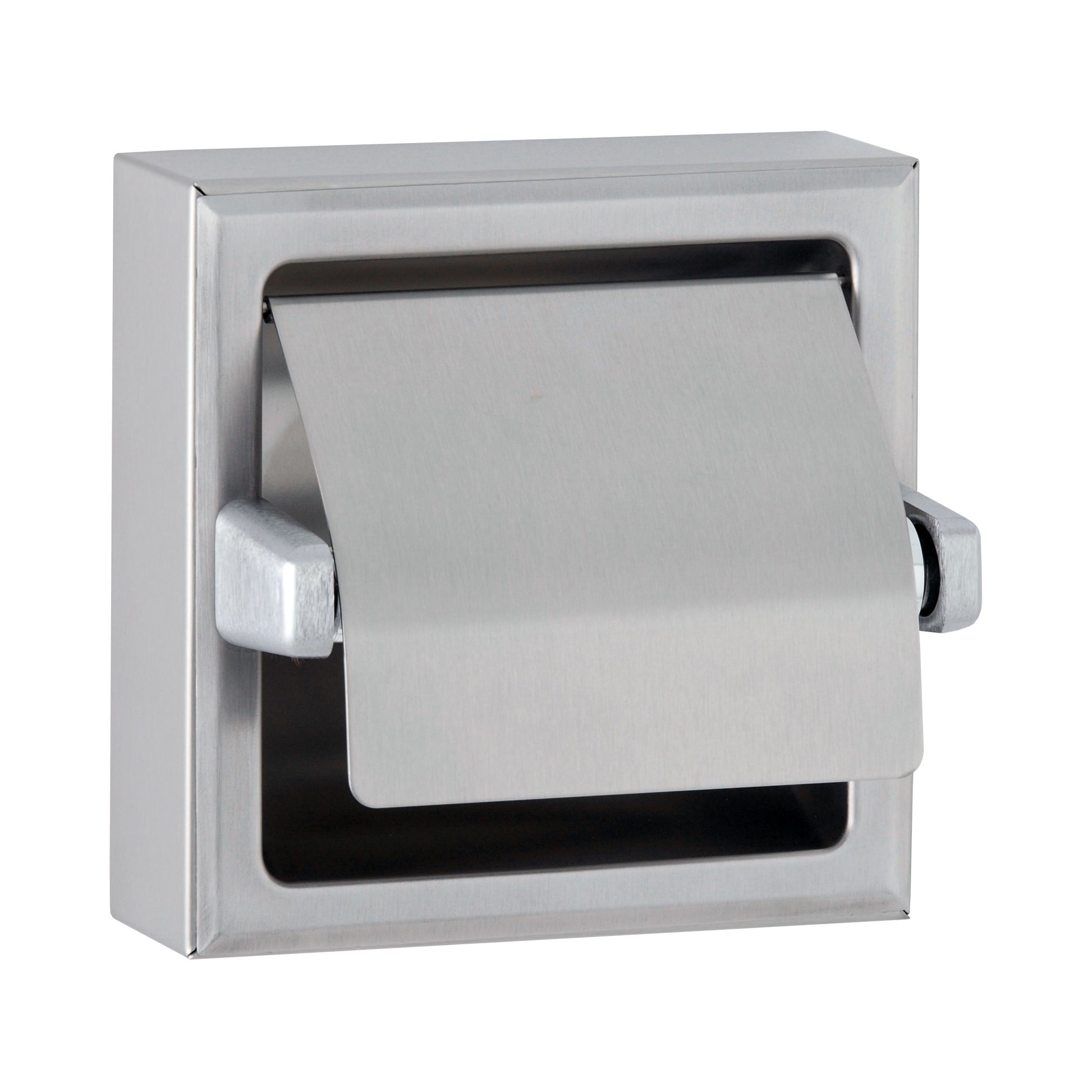

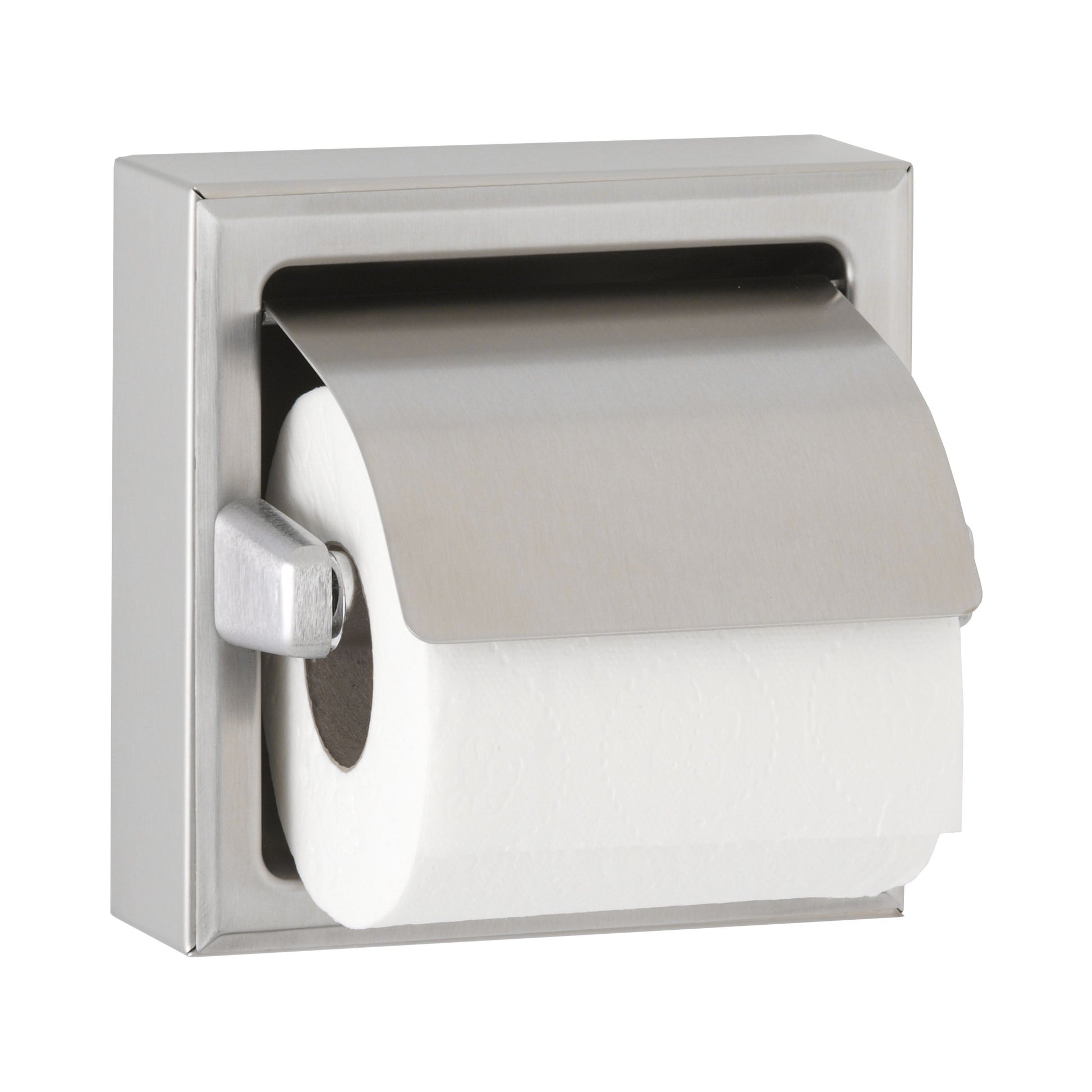

5 1/8" Surface-Mounted Toilet Tissue Dispenser With Hood, Satin

Features:

• Satin finish stainless steel. Hood protects paper.
• Chrome- plated plastic spindle holds rolls up to 5 1/8" (130mm) diameter (1500 sheets).
• Unit 6 3/16" W, 6 3/16" H (155 x 155mm); hood projects 4 3/4" (120mm) from wall with full roll in place.

Materials:

• Shell and Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. Drawn, one-piece, seamless construction with two countersunk mounting screw holes.
• Skirt — 18-8, Type-304, 22-gauge (0.8mm) stainless steel. All-welded construction.
• Support Posts (2) — Heavy-duty cast zamak with chrome-plated finish.
• Hood — 18-8, Type-304, 18-gauge (1.2mm) stainless steel. Hood hinged to shell.
• Spindle — Chrome-plated plastic equipped with heavy-duty internal spring.
• Designer's Note: Theft-resistant toilet tissue spindle, which is removable only with special key provided, are available as an optional accessory - part no. 283-604.

Installation:

• Mount unit on wall or toilet partition with two sheet-metal screws, furnished by manufacturer, at points indicated by an S.
• For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nut, and washers.
• For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.
• For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished.
• For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" (3mm) toggle bolts or expansion bolts.
