Zoeller 49-0005 - Water Ridd'r III Cast Iron Submersible Sump Pump - 1/4 HP w/ 10 Foot Cord

Only 6 left
SKU: 49-0005
Regular price $179.00

Free Shipping on all orders over $79.99!

Most orders ship same day. Delivery in 2-3 business days!

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Model 49 Catalog Page

Installation Instructions

Technical Data Sheet

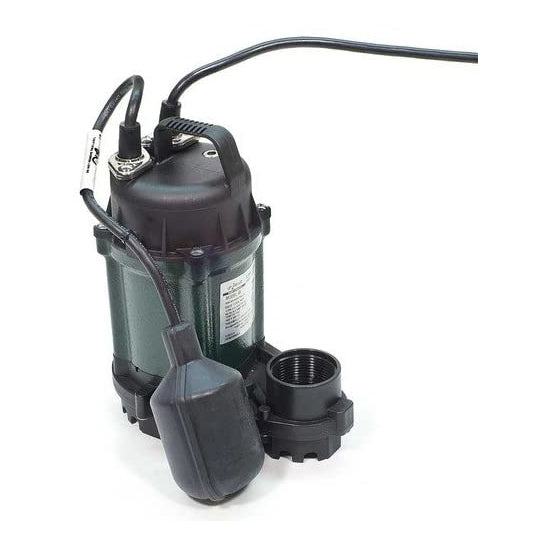

Zoeller 49-0005 - Model 49 Water Ridd'r III Cast Iron Submersible Sump Pump - 1/4 HP w/ 10 Foot Cord

This compact, robust pump fits into smaller sump basins. The factory set float switch is set to maximize pump range while ensuring no float hang-ups. The sturdy pump base keeps larger debris from clogging the pump and prevents the pump from moving around the pit.

Features

  • Oil-filled, hermetically-sealed motor with automatic reset thermal overload protection
  • Rugged, cast iron motor housing with corrosion-resistant, baked-on enamel finish
  • Efficient heat sink for heat dissipation
  • Glass-filled polypropylene base and pump housing with no screen
  • Reliable tethered float switch
  • Carbon and ceramic rotary seal
  • Watertight, neoprene seal between motor and cover
  • Stainless steel screws and hardware
  • 100% factory tested after assembly
  • 1 year limited warranty

Specifications

  • Motor: 1/4 HP
  • Voltage: 115 V
  • Phase: 1 Ph
  • Hertz: 60 Hz
  • RPM: 3450 RPM
  • Type: Permanent split capacitor
  • Insulation: Class B
  • Amps: 4.0 Amps
  • Operation: Automatic
  • Auto On / Off Points: 11-1/4" / 4-1/8" (28.6 cm / 10.5 cm)
  • Discharge Size: 1-1/2" NPT
  • Solids Handling: 3/8" (9.5 mm) spherical solids
  • Cord Length: 10' (3 m) standard
  • Cord Type: UL listed, 3-wire cord and plug
  • Max Head: 18' (5.5 m)
  • Max Flow Rate: 32 GPM (121 LPM)
  • Max Operating Temperature: 104 Degrees F
  • Cooling: Oil filled
  • Motor Protection: Auto reset thermal overload
  • Cap: Engineered plastic
  • Motor Housing: Cast iron
  • Pump Housing: Engineered plastic
  • Base: Engineered plastic
  • Upper Bearing: Ball bearing
  • Lower Bearing: Ball bearing
  • Mechanical Seals: Carbon and ceramic
  • Impeller Type: Non-clogging vortex
  • Impeller: Engineered plastic
  • Hardware: Stainless steel
  • Gasket: NBR

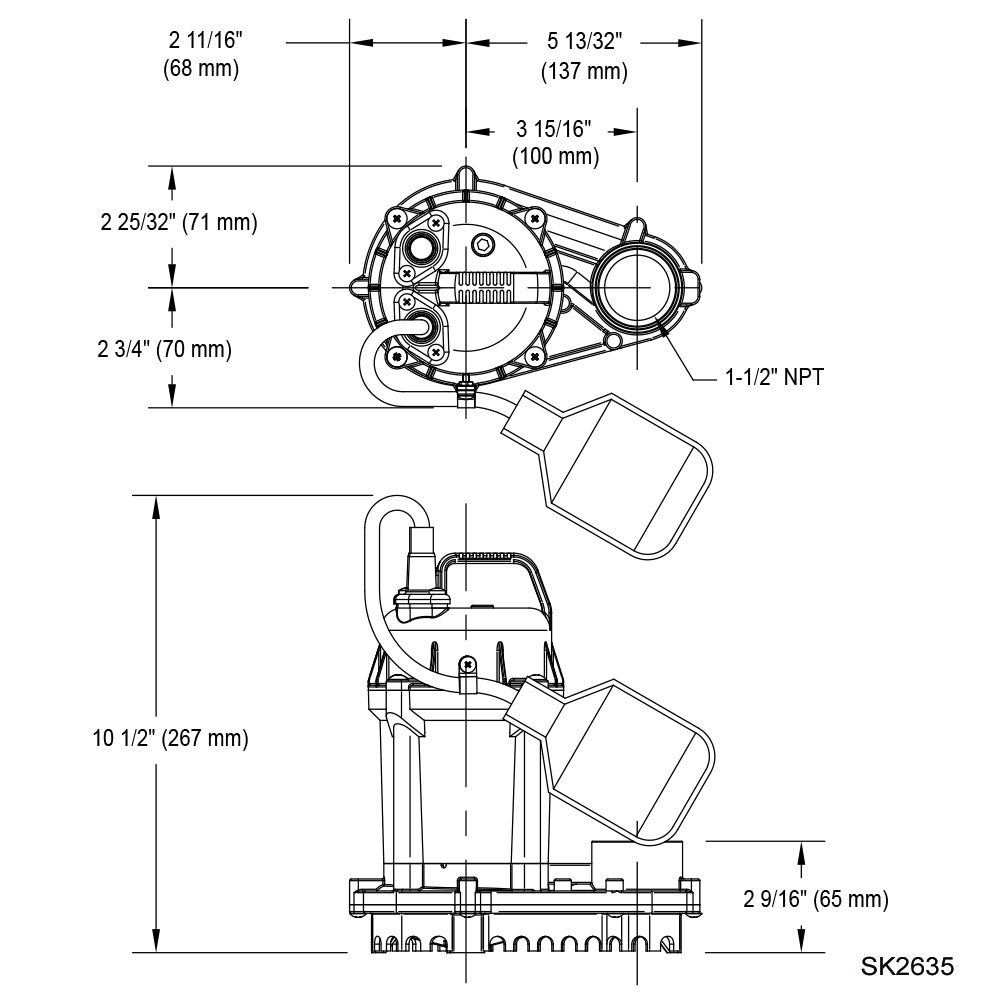

  • Maximum width: 8-3/32″ (21 cm)
  • Maximum height: 10-1/2″ (26.7 cm)
  • Weight: 11 lbs (5 Kg)
  • Fits 12″ (30 cm) diameter pits




PEZSK20120
