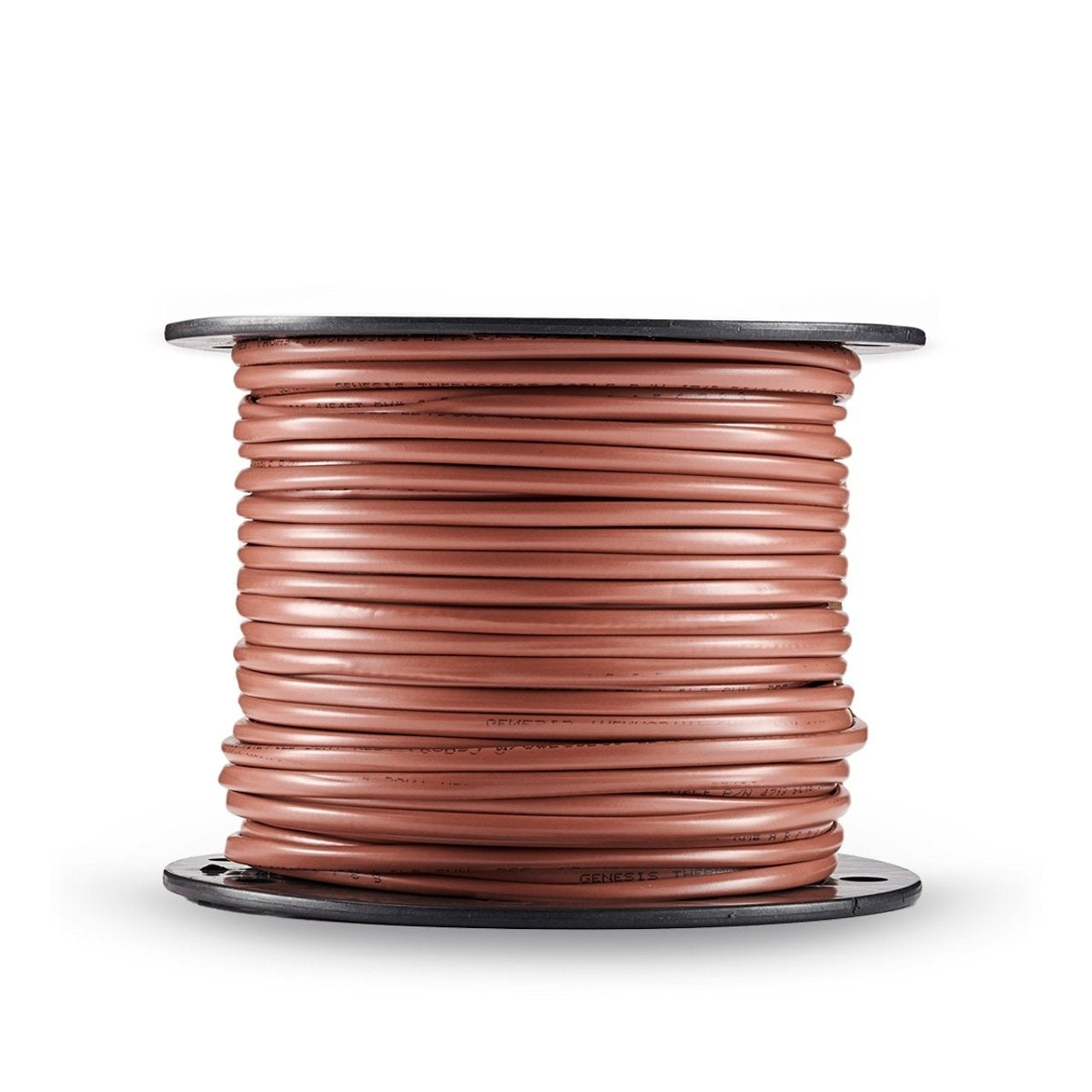

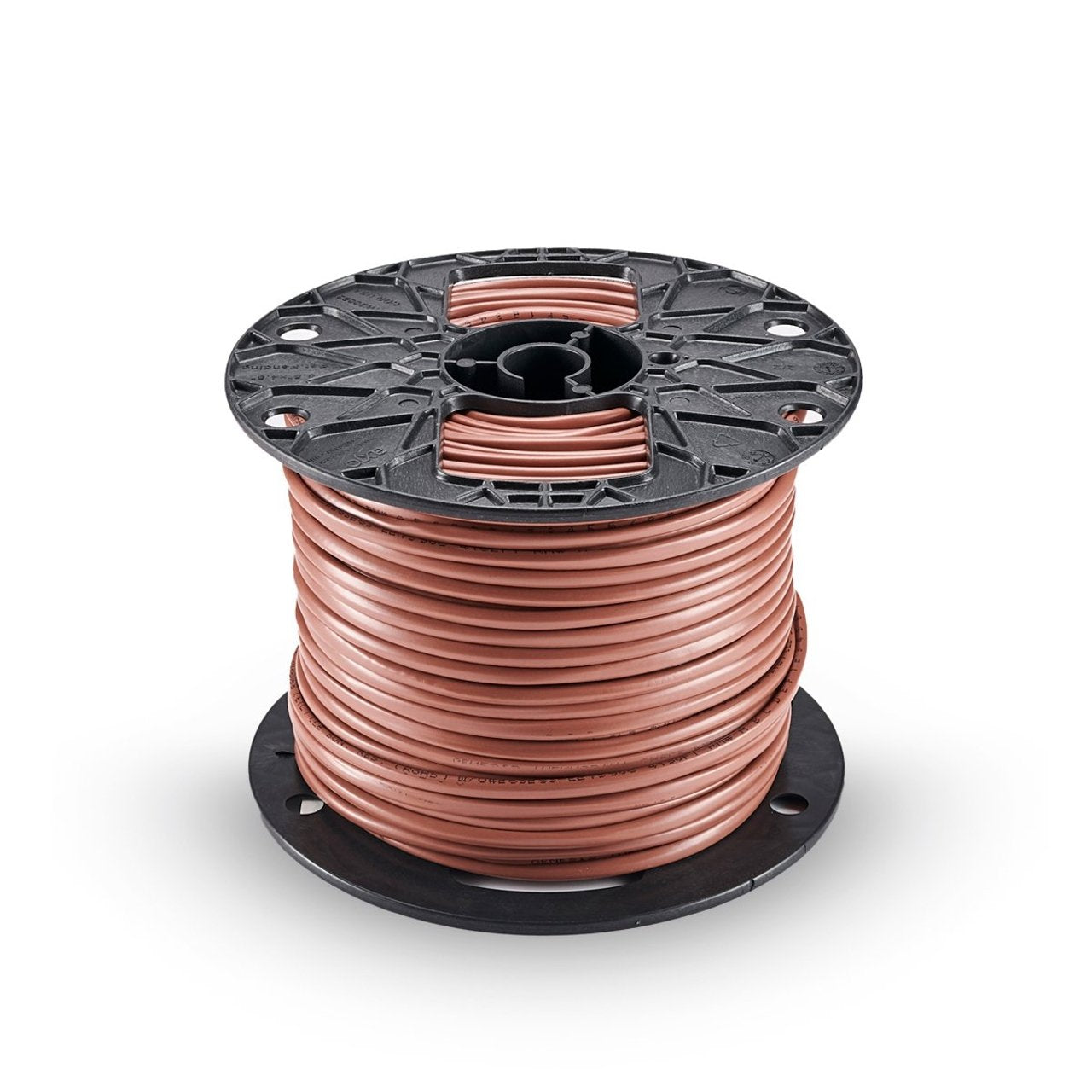

47120307 - 18/4 CL2 Genesis Thermostat Cable - 250 Ft Reel
Regular price
$64.00
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Specification SheetHoneywell Resideo 47120307 - 18/4 CL2 Genesis Thermostat Cable - 250 Ft Reel

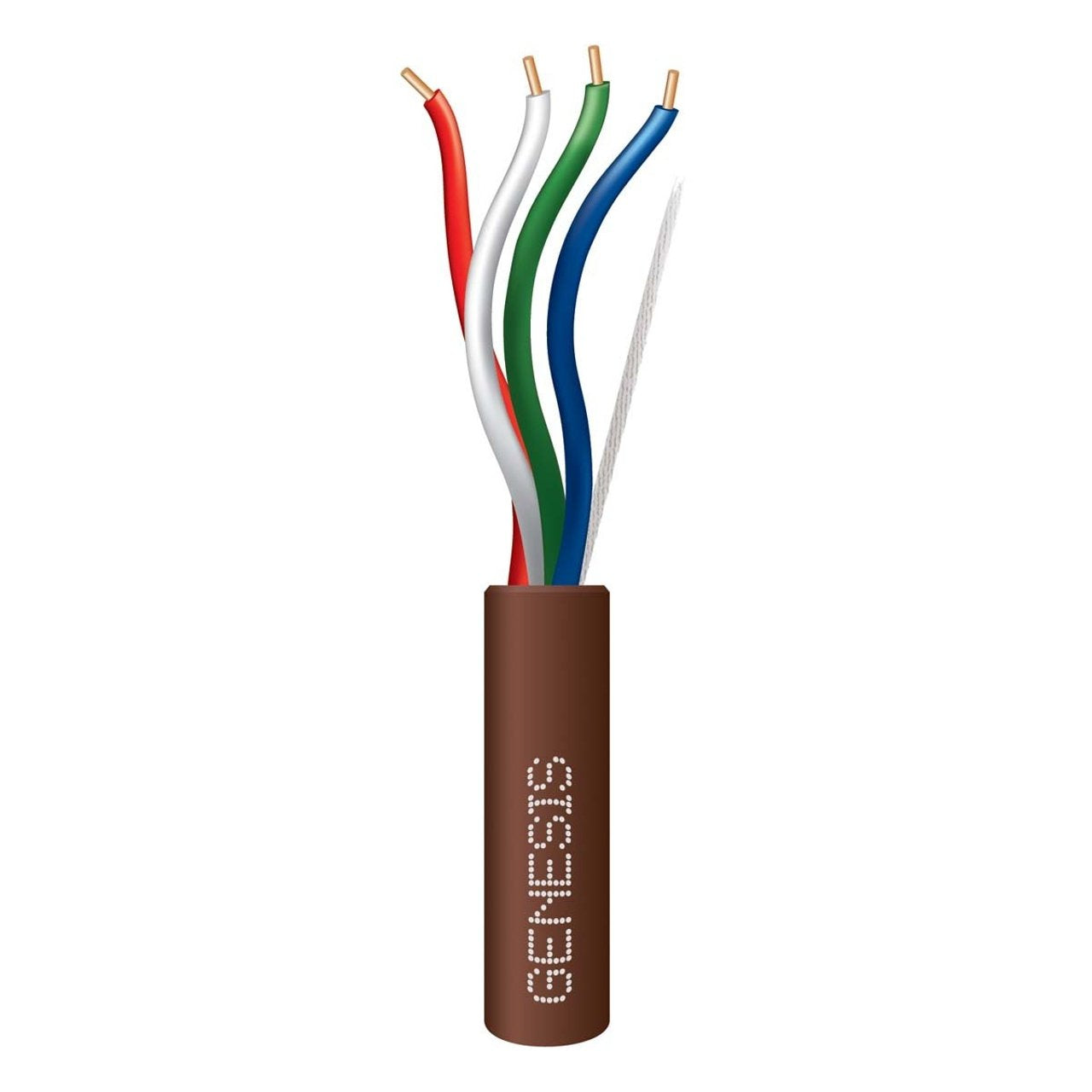

This Genesis cable features 4 solid 18 AWG copper conductors and a general purpose rating. Choose this cable for a dependable thermostat wiring solution.
Features
- Cable Rating: General Purpose
- Cable Listing: CL2, Sunlight Resistant
- Wire Gauge (AWG): 18
- Solid or Stranded: Solid
- Number of Strands: 1
- Conductor Material: Bare Copper
- Number of Conductors: 4
- Conductor Insulation Material: Polypropylene
- Insulation Colors: Red, White, Green, Blue
- Shielding: No
- Rip Cord: Yes
- Jacket Material: PVC
- Nominal Outer Diameter: 0.157"
- Rated Voltage (Max): 150 Volts
- DC Resistance (Max): 6.52 Ohms / 1000 ft. at 20 Degrees C
- Capacitance (Nominal): 22.8 pF / ft.
- Impedance (Nominal): 67 Ohms
- Velocity of Propagation: 67%
HKZ2300004
