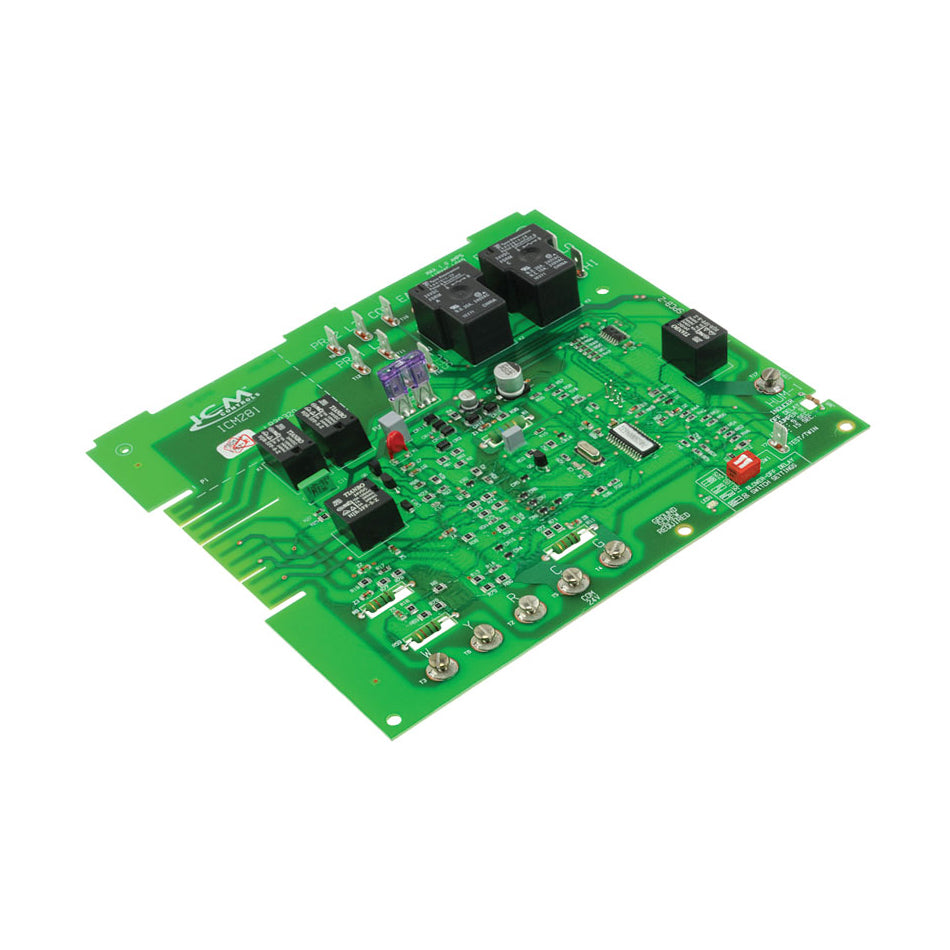

ICM Controls ICM281 - Carrier Replacement Furnace Control Board
The ICM Controls ICM281 is a microprocessor-based replacement control board for compatible Carrier/BDP fixed-speed furnaces. It manages the gas valve, ignitor, blower motor and inducer, along with humidifier and electronic air cleaner operation. Designed for compatible 80+ and 90+ furnaces, it features gas shutoff upon ignition failure, reverse polarity protection and secondary brownout protection. Diagnostic LEDs help simplify troubleshooting, while twinning compatibility supports operation with another ICM281 board.
Features
- Replacement control board for compatible Carrier/BDP fixed-speed furnaces
- Replaces Carrier CES0110020, CES0110048 and CES0110057-xx series boards
- Microprocessor-based control of furnace operation
- Controls gas valve, ignitor, blower motor and inducer
- Supports humidifier and electronic air cleaner operation
- Selectable configuration for compatible 80+ and 90+ furnaces
- Provides 100% gas shutoff in the event of ignition failure
- Reverse polarity protection
- Secondary brownout voltage protection
- Heating and cooling fan control through a standard thermostat
- Diagnostic LEDs assist with troubleshooting
- Twinning compatible with another ICM281 board
- Line voltage range: 98-132 VAC, 60 Hz
