4" Cast Carbon Steel Flanged Swing Check Valve - 150# - Raised Face
No reviews
In stock
Regular price
$689.00
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

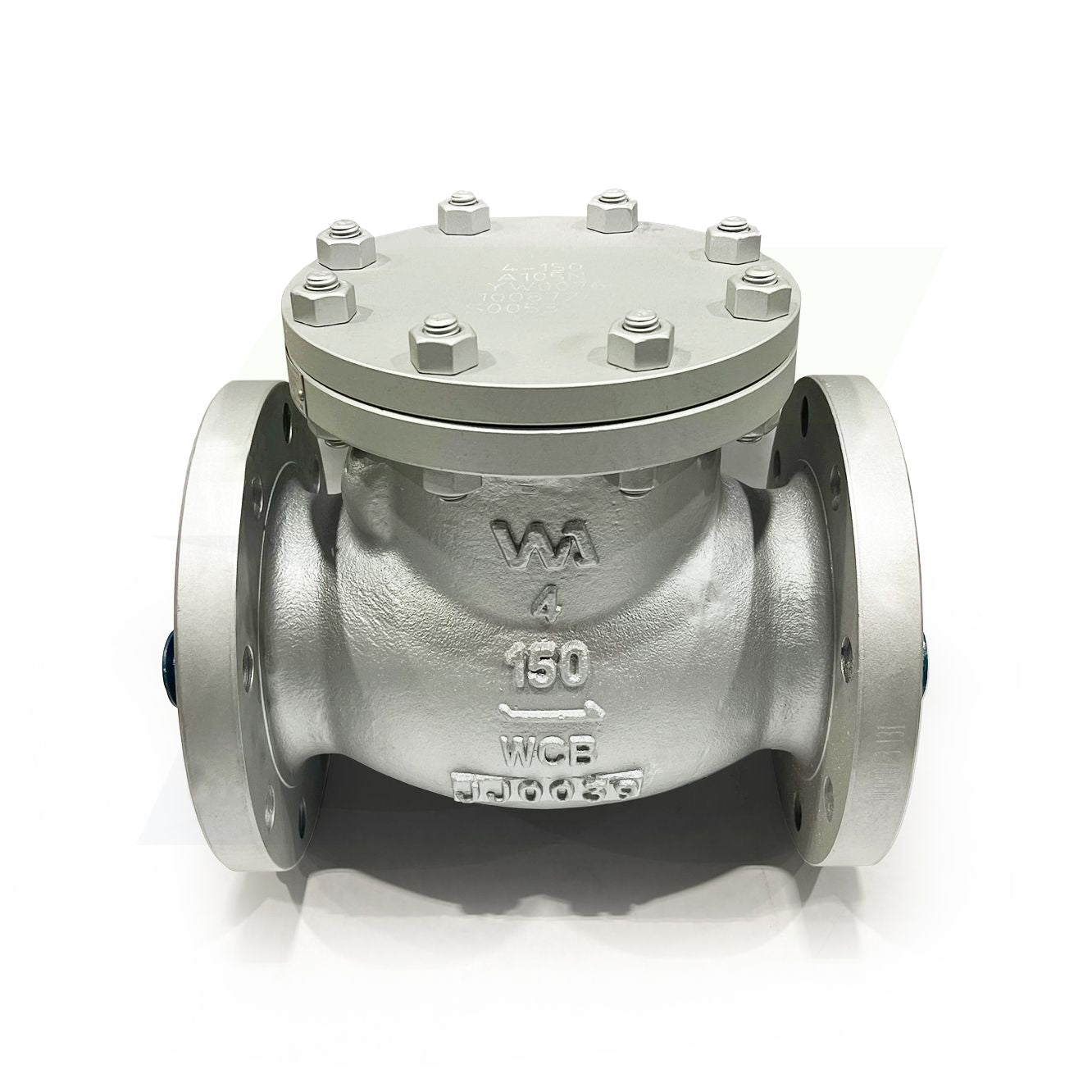

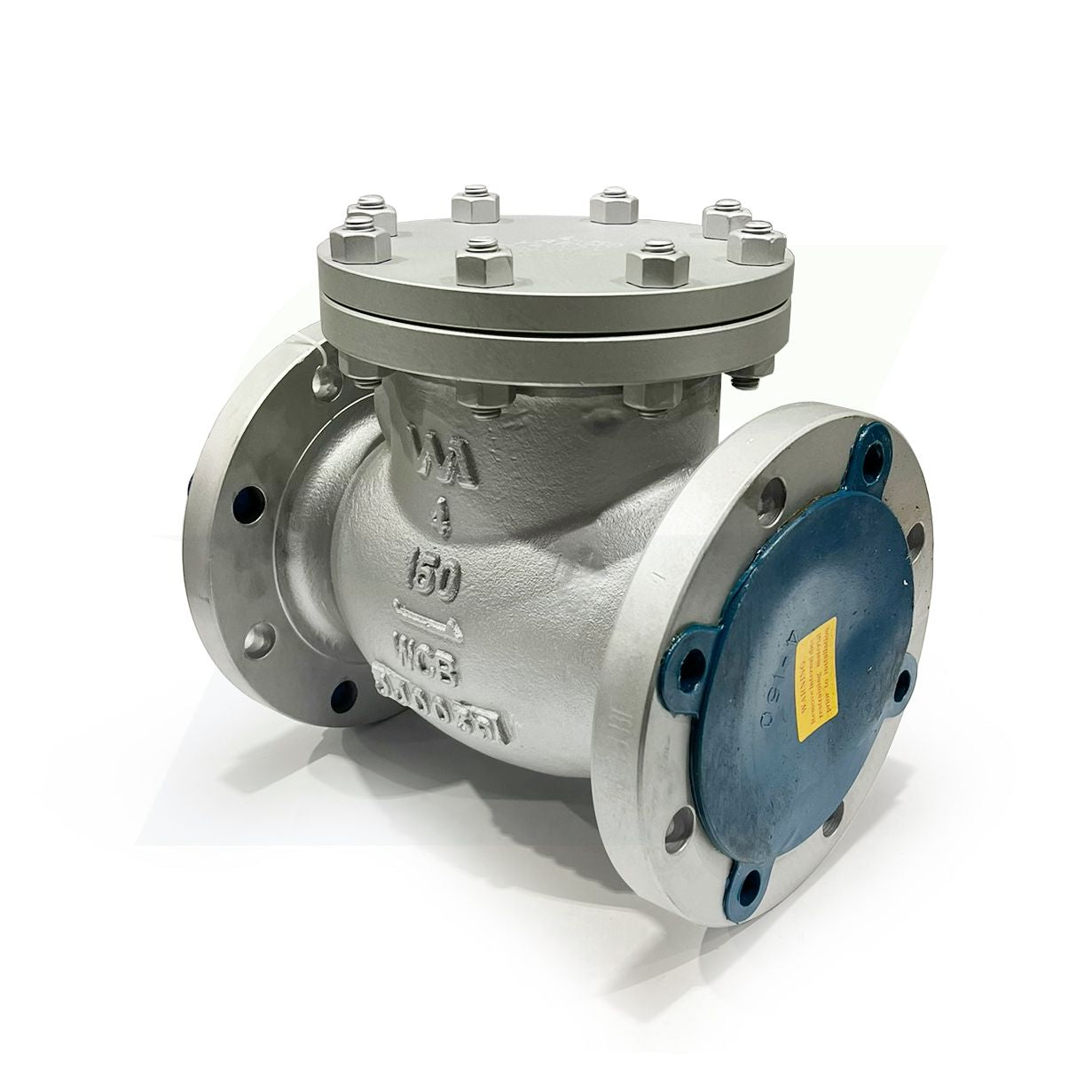

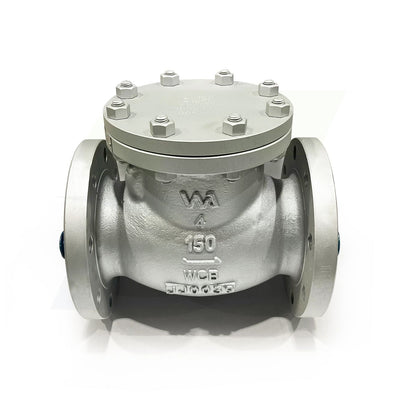

Warren Valve 4V3155C-8R0G – 4" Cast Carbon Steel Flanged Swing Check Valve – 150# – Raised Face
The Warren Valve 4V3155C-8R0G is a 4" cast carbon steel flanged swing check valve engineered to stop reverse flow in commercial and industrial piping systems. Its swing-type disc opens with forward flow and closes automatically when flow stops, protecting pumps, compressors, and downstream equipment from backflow damage.
Built to 150 lb class standards with a durable cast carbon steel body, this valve is suited for use with water, oil, gas, and other compatible media. Raised face flanged connections provide a secure, gasketed seal and easy installation into standard ANSI flange systems, making it a reliable choice for mechanical, process, and general service applications.
Features
- Manufacturer: Warren Valve
- Part Number: 4V3155C-8R0G
- Product Type: Swing check valve
- Size: 4"
- Pressure Class: 150 lb (150#)
- Body Material: Cast carbon steel
- End Connections: Flanged x flanged
- Flange Face: Raised face (RF)
- Design: Bolted cover with swing-type disc
- Function: Prevents reverse flow and protects downstream equipment
- Applications: Water, oil, gas, and general industrial service
DCSV000020
