Home » View All Irrigation » View All Irrigation » Valve Boxes » NDS » 312PBCBR - 10" Round Pro-Spec Series Purple Box with Bolt-Down Cover
NDS

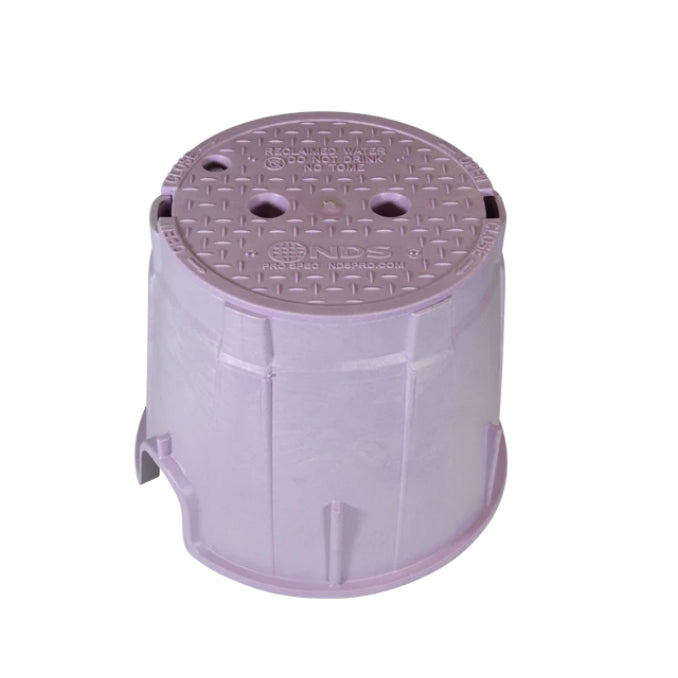

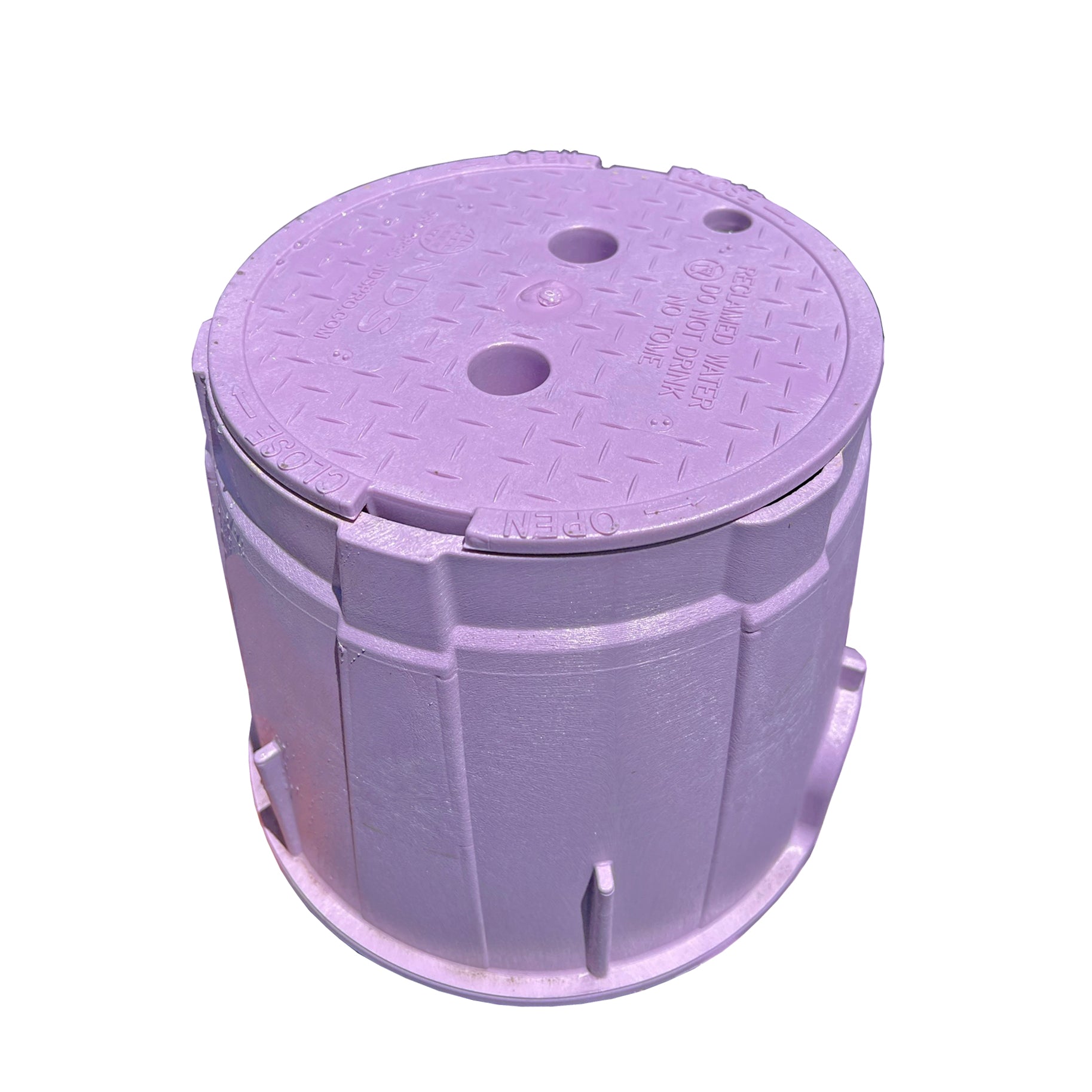

312PBCBR - 10" Round Pro-Spec Series Purple Box with Bolt-Down Cover

In stock
SKU: 312PBCBR
$46.60

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification Sheet

NDS 312PBCBR - 10" Round Pro-Spec Series Purple Box with Bolt-Down Cover

Features

  • Series: Pro-Spec Series
  • Box Material: HDPE
  • Cover Material: HDPE
  • Box Weight: 2.99 lbs
  • Lid Weight: 1.21 lbs
  • Total Weight: 4.20 lbs
  • Load rating: Pedestrian & lawn care equipment
  • Box includes 3/8"-16 brass nut
  • Made in USA
  • Made from 100% recycled materials

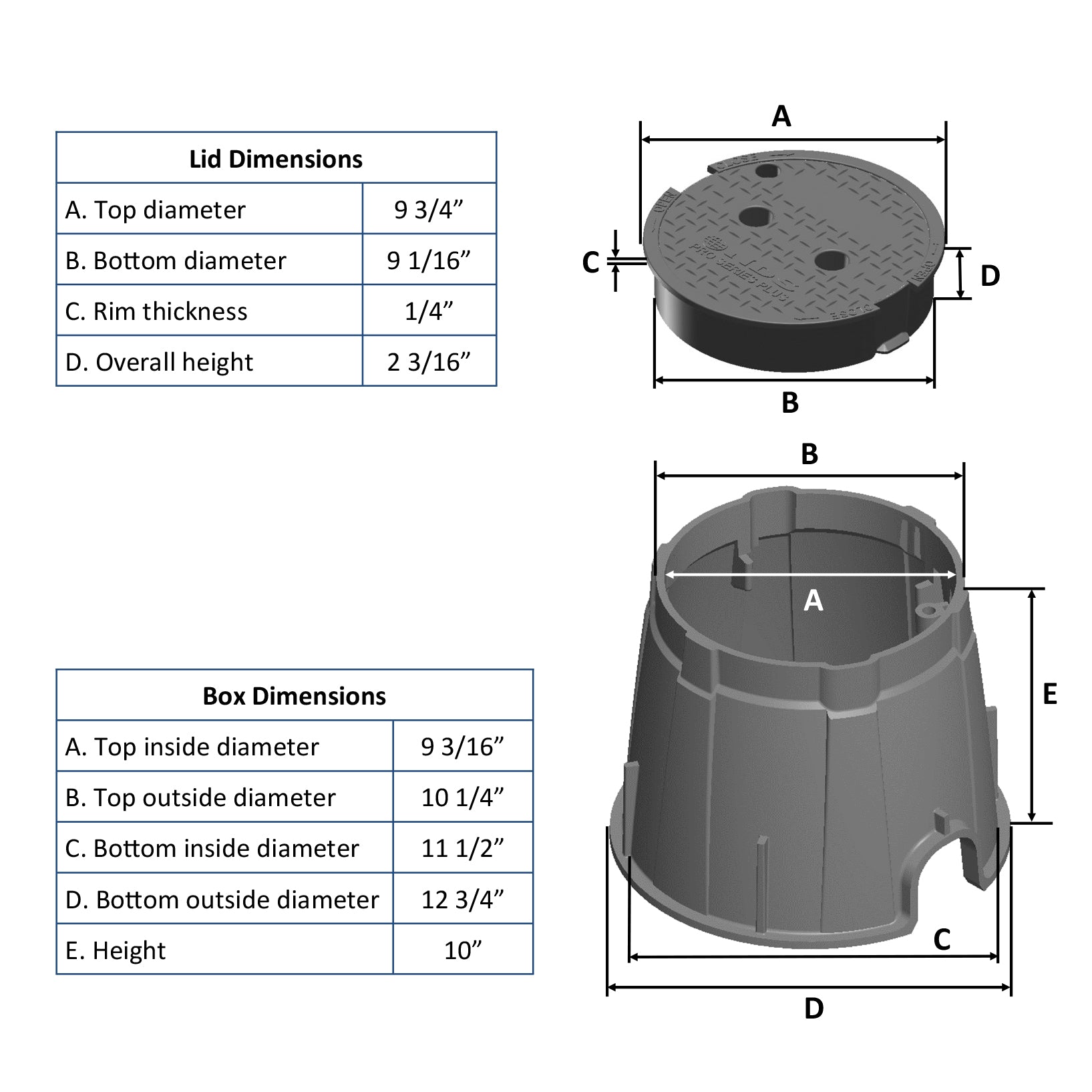

Dimensions

  • Lid Top Diameter: 9-3/4"
  • Lid Bottom Diameter: 9-1/16"
  • Lid Rim Thickness: 1/4"
  • Lid Overall Height: 2-3/16"
  • Box Top Inside Diameter: 9-3/16"
  • Box Top Outside Diameter: 10-1/4"
  • Box Bottom Inside Diameter: 11-1/2"
  • Box Bottom Outside Diameter: 12-3/4"
  • Box Height: 10"
