STB35 - 3" Plain Beveled End Combo Nipple Unplated Steel
No reviews
In stock
Regular price
$25.00
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

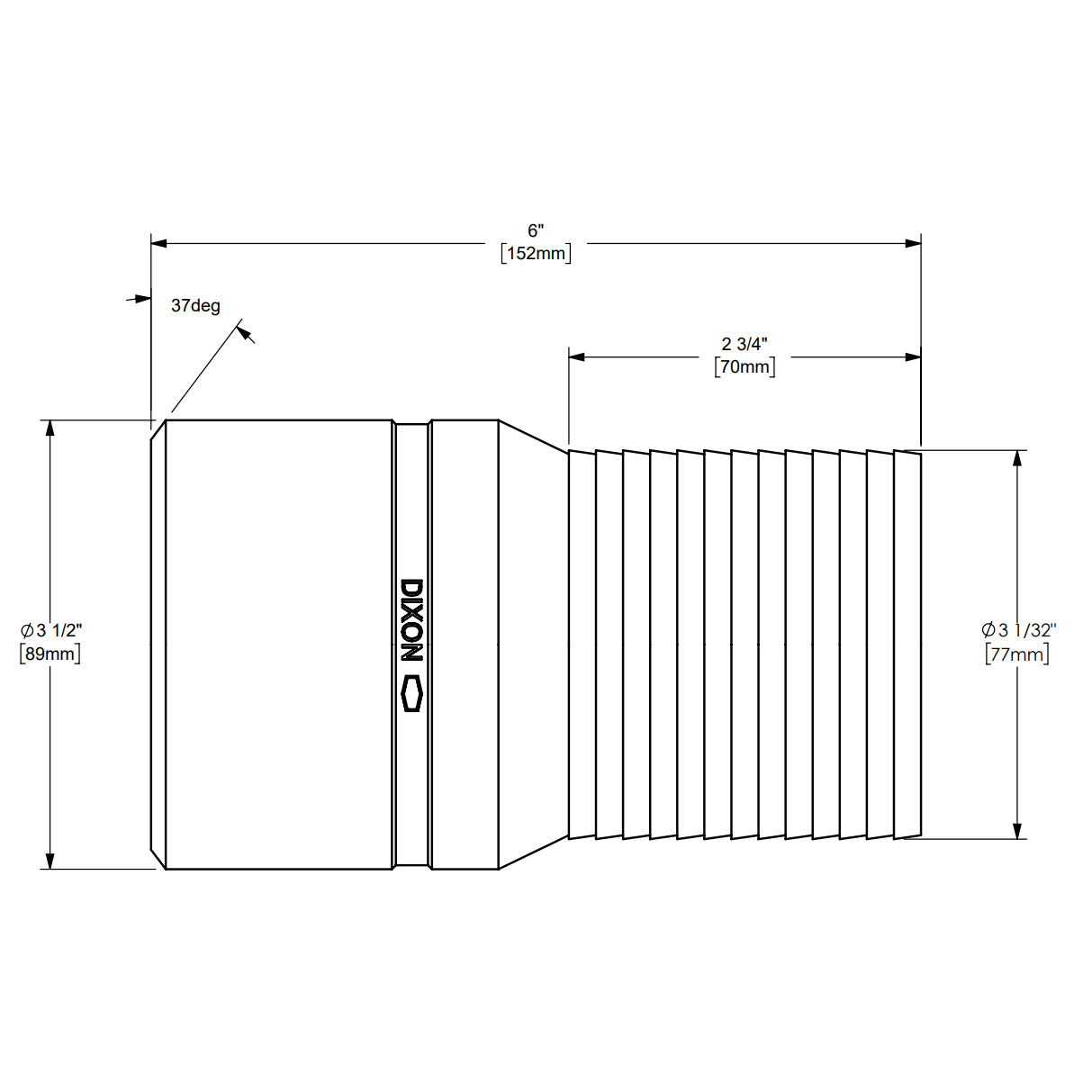

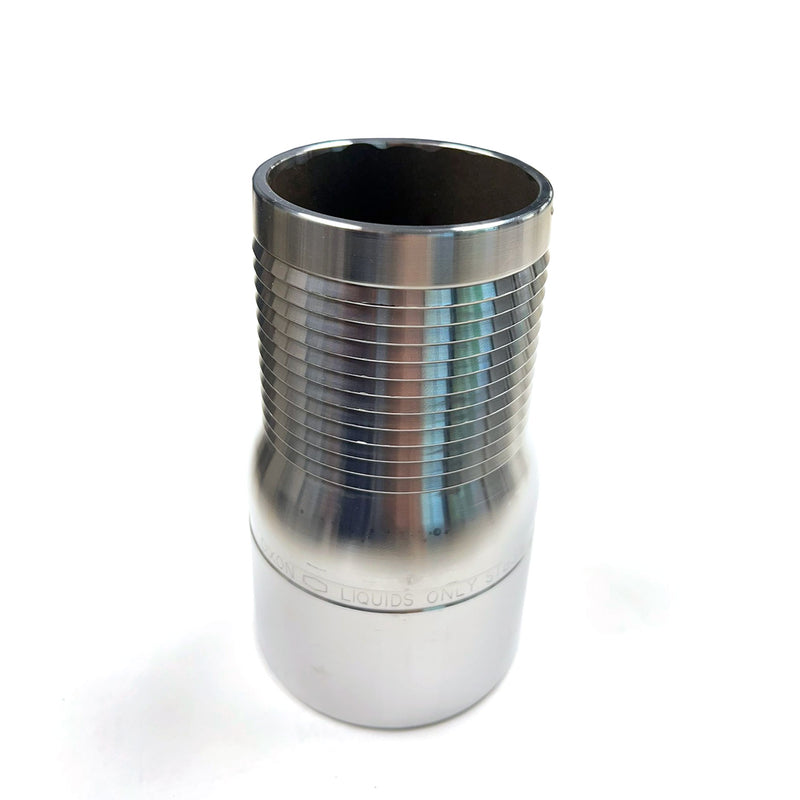

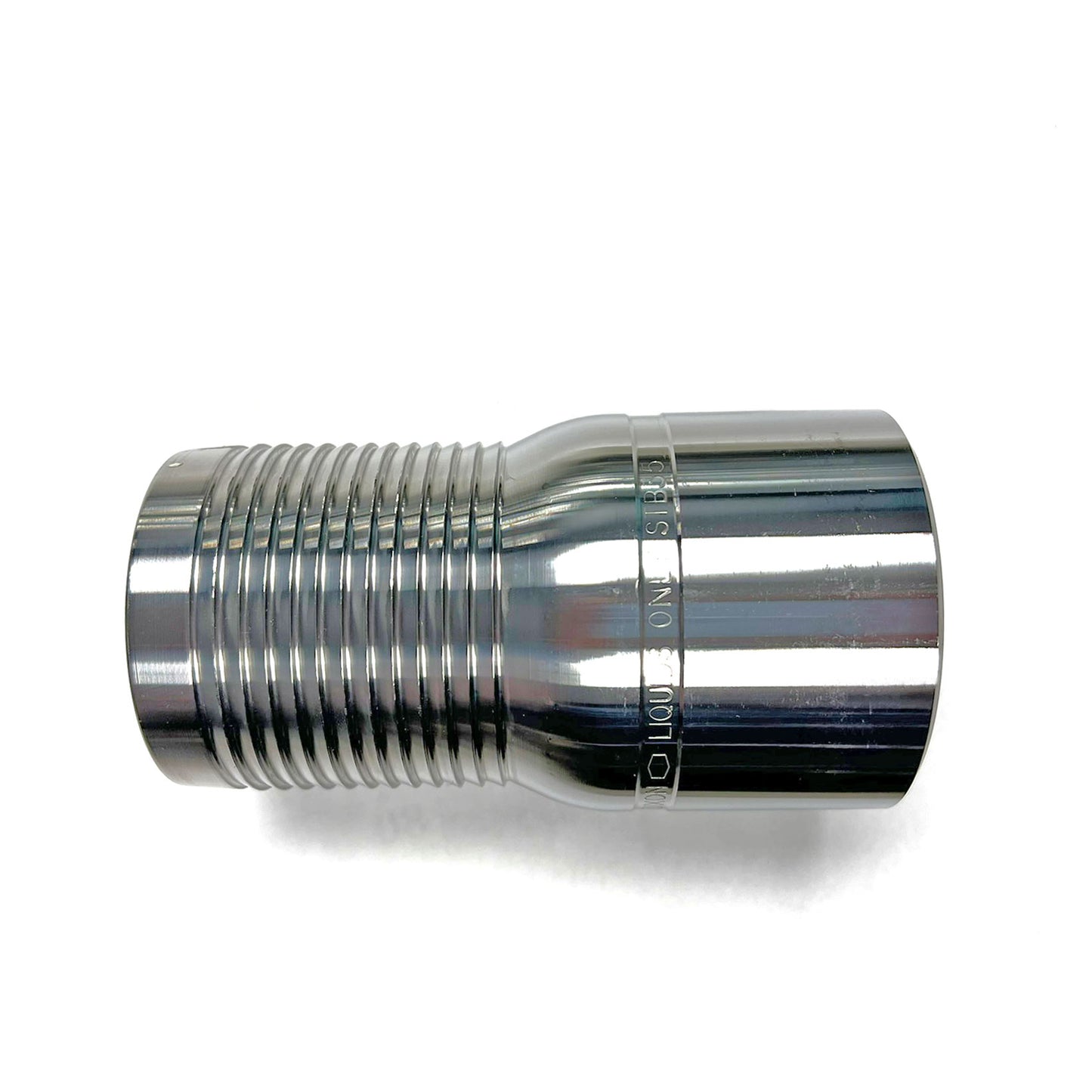

Dixon Valve STB35 - 3" Plain Beveled End Combo Nipple Unplated Steel
Recommended for low-pressure discharge and suction service for compatible liquids
Features
- The working pressure may vary with the construction of the hose, the type of clamping system used and the application. Consult Dixon for recommendations.
- In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
- Not for compressible products such as air or nitrogen
- King Combination Nipples are not recommended for steam.
- Weight: 2.65 lb
- Size: 3" (76 mm)
- Material: Unplated Steel
- Pipe OD: 75.0 mm
DZZSB10182
