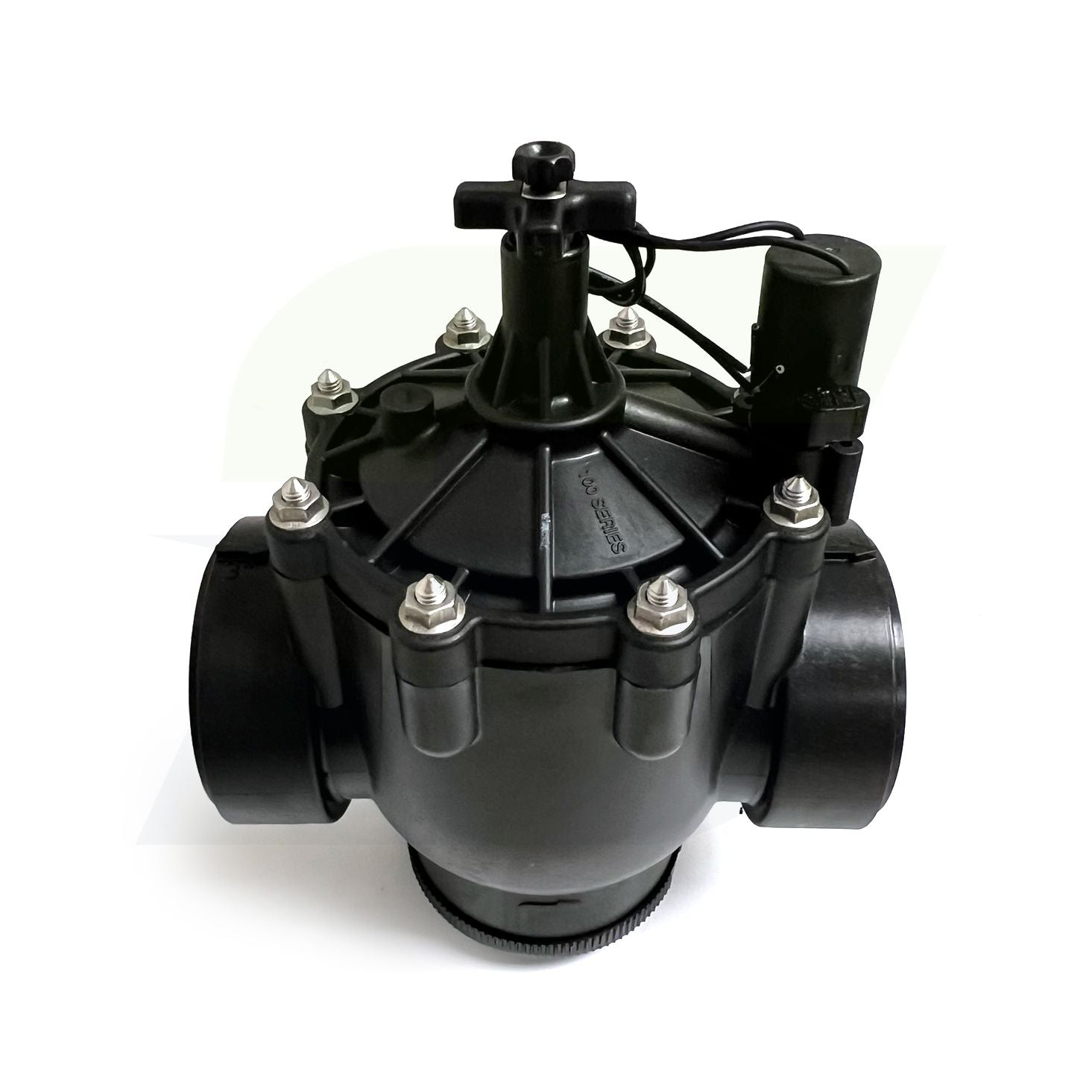

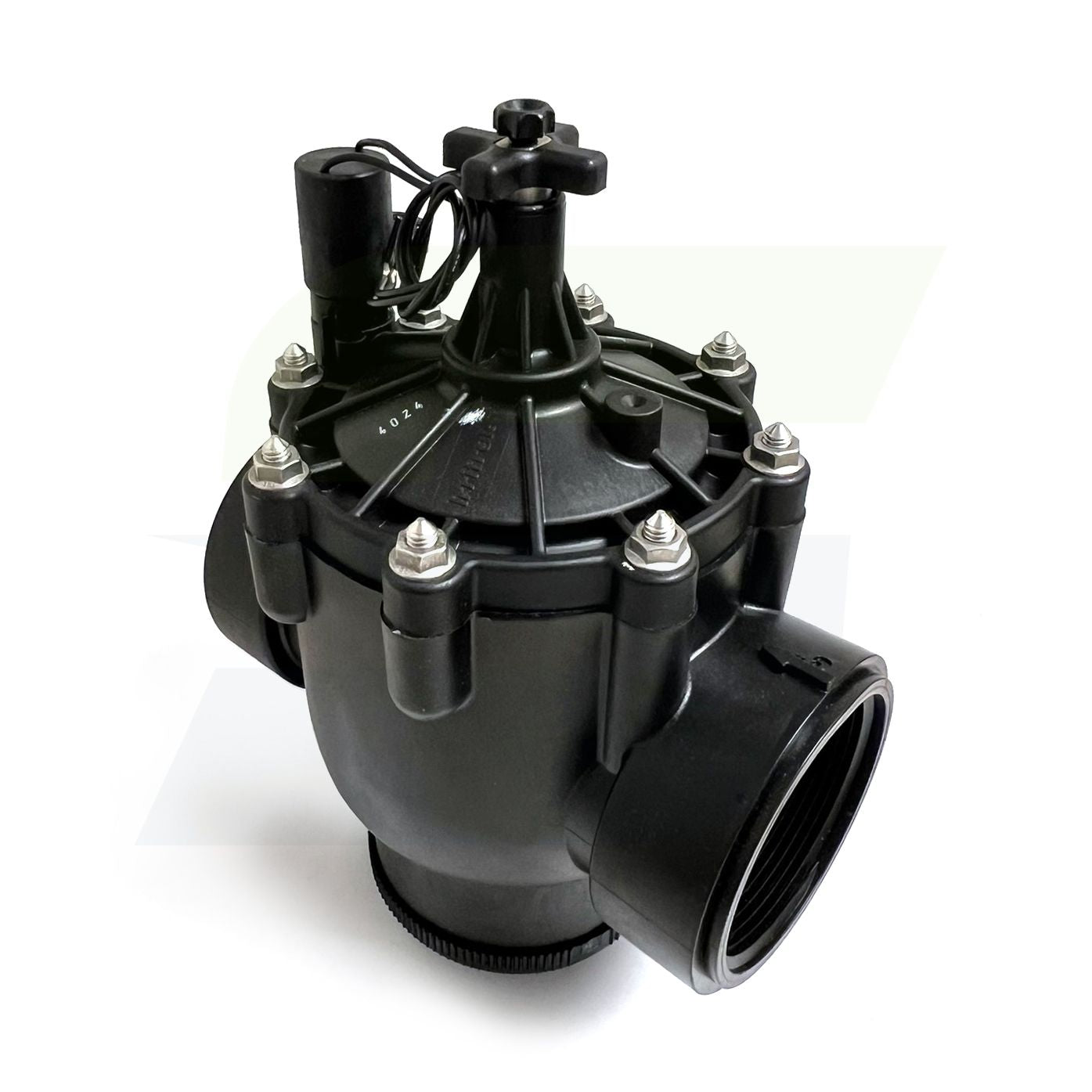

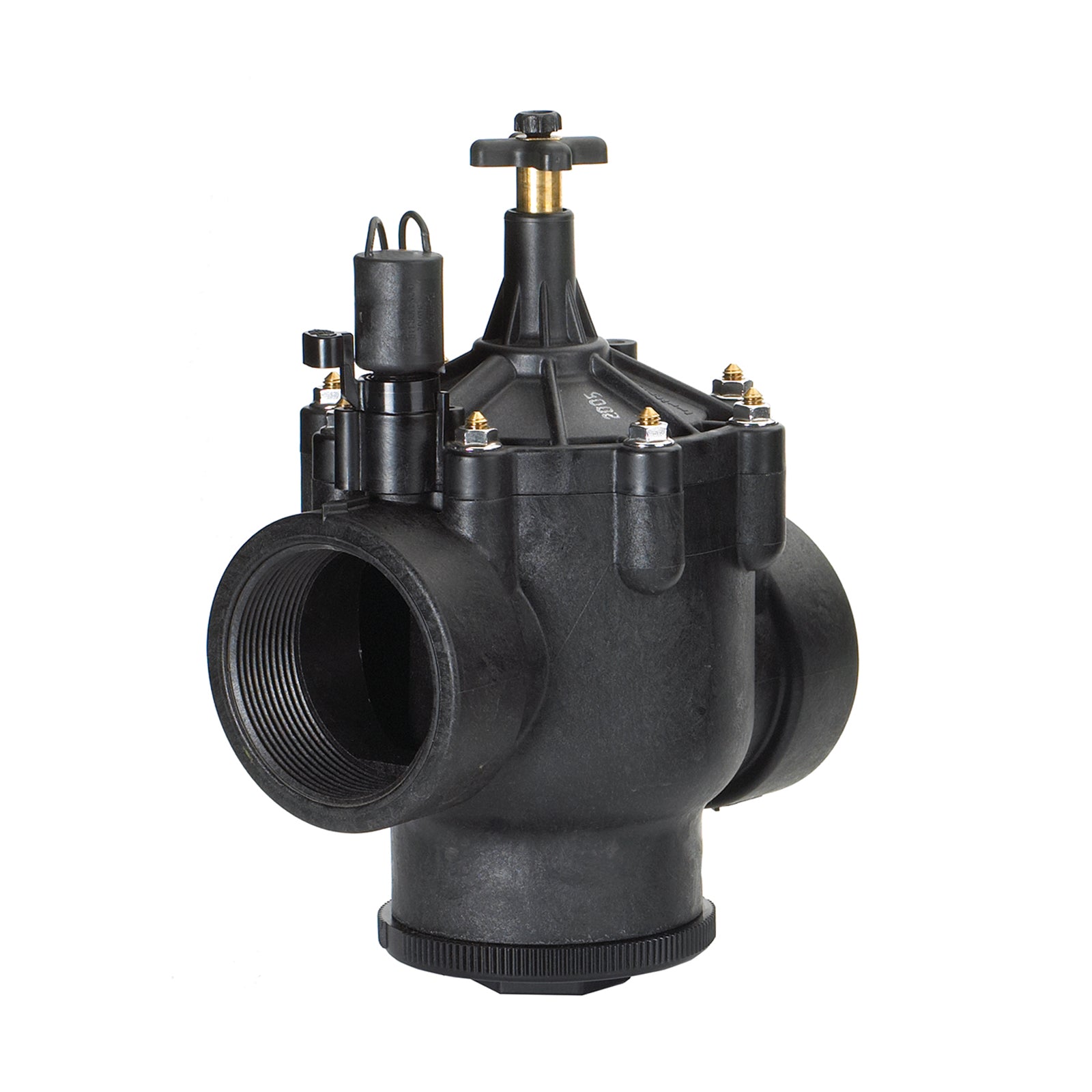

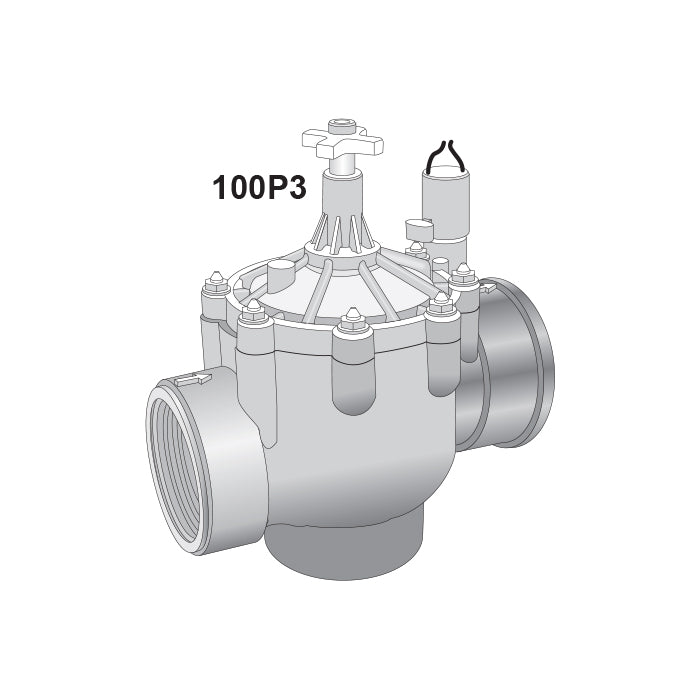

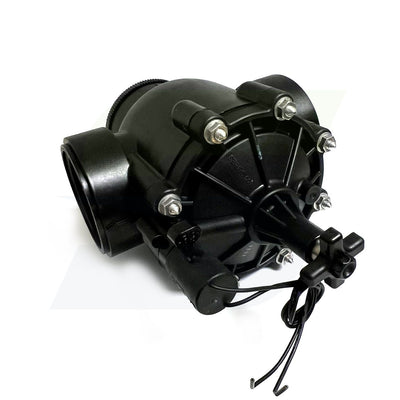

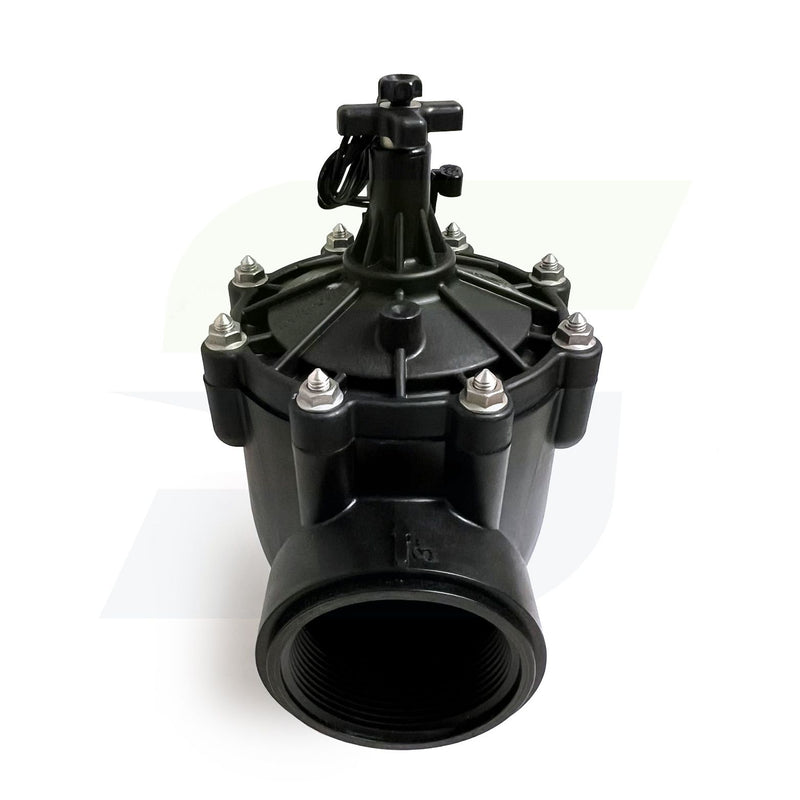

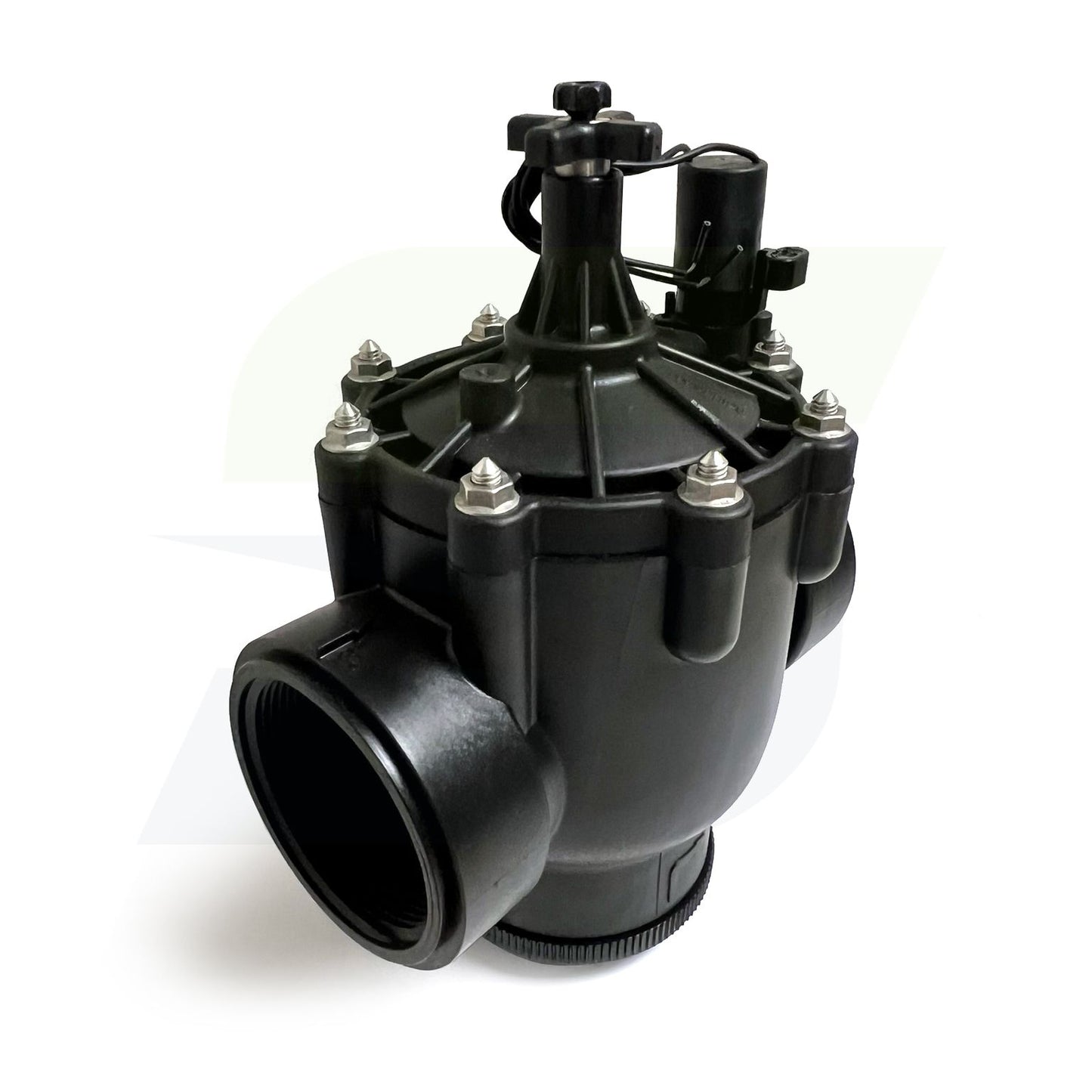

100P3 - 3" Internal Bleed, Flow Control, 100 Series
Couldn't load pickup availability
Free Shipping on all orders over $79.99!
Most orders ship same day. Delivery in 2-3 business days!
Call Us! Have questions or want to order by phone? (800) 468 5997
Irritrol 100 Series Installation Instructions
The Irritrol 100 Series (Century PLUS) is an excellent example of a good valve getting better. Tracing its origin to the highly popular Century Series, the 100 Series delivers reliable performance with a host of enhanced features. Offered in a globe/angle configuration with sizes ranging from one to three inches, the 100 Series features a pressure range of 20-220 psi, optional modular pressure regulation, stainless steel metering, internal and external bleed, a nylon-reinforced EPDM double-beaded diaphragm and an anti-contamination design for dirty water applications (available on all 102 Models).
Features:
- 150-mesh external control water filter and three-way solenoid - Provides non-continuous metering for recycled water applications
- 220 psi pressure rating - Prevents water hammer and system damage in high-pressure installations
- Accepts OmniReg modular pressure regulator - Ensures consistent performance
- Tough, glass-reinforced nylon, stainless steel and brass construction - Withstands high temperatures and system surges under pressure for long-term reliability
- Control water filter - Allows easy external service
- Externally removable self-cleaning metering system - Ensures consistent performance in recycled-water applications

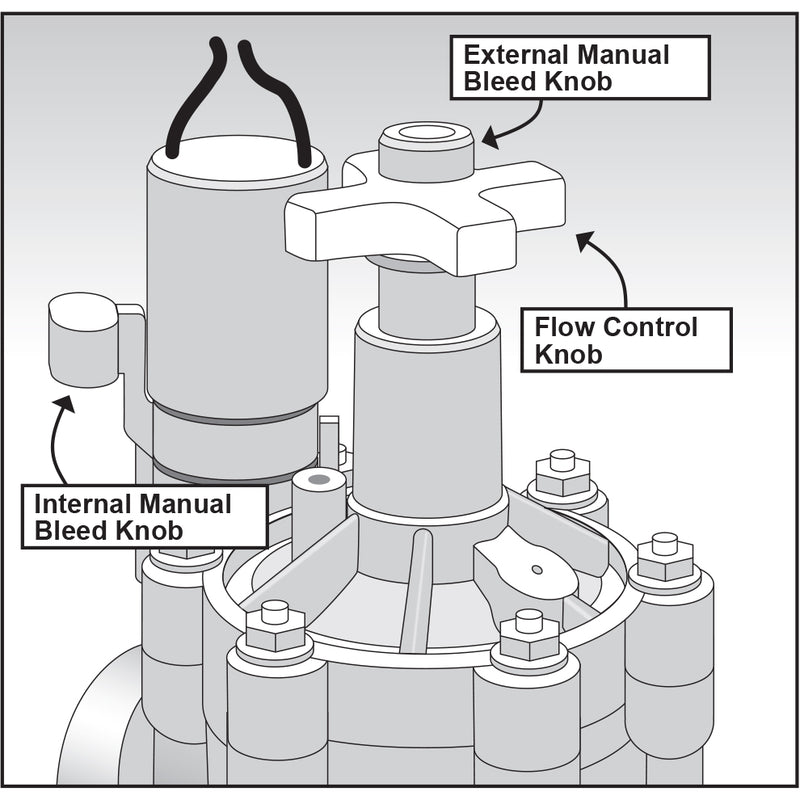

- Internal and external bleed (flush mode) - Allows for manual operation
- Selectable normally open or normally closed mode (factory set at normally closed) - Provides flexibility (102 only)
- 5-year warranty
Specifications:
- Flow Range: 5-300 GPM
- Holding Current: .2 amp (102 models: .24 amp)
- Holding Volt-Amp: 24 V ac-4.8 VA
- Inrush Current: .4 amp (102 models: .48 amp)
- Inrush Volt-Amp: 24 V ac-9.6 VA
- Solenoid: 24 V ac
Dimensions:
- Height: 10 3/4"
- Width: 6 1/8"
- Depth: 8 1/4"
