61-103652-01 -Expansion Valve Kit - TXV - 3 Ton
Regular price
$129.24
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

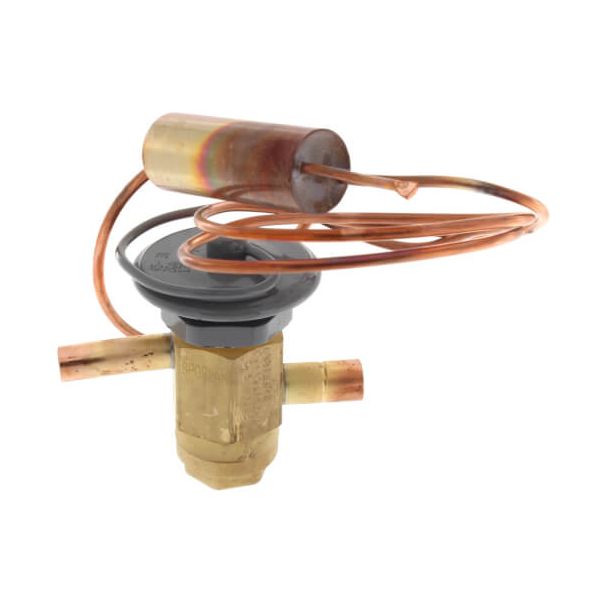

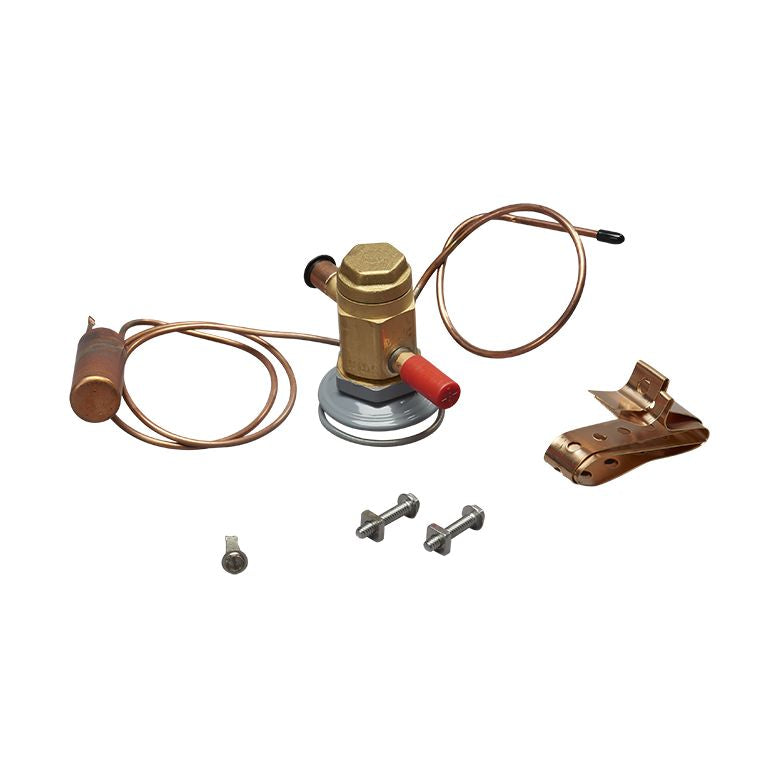

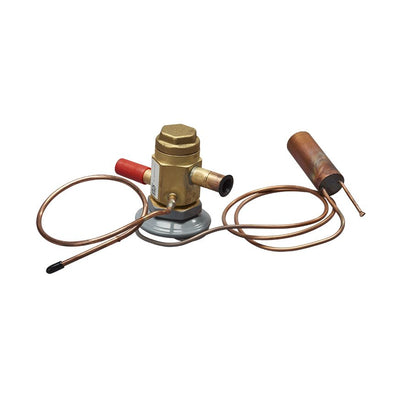

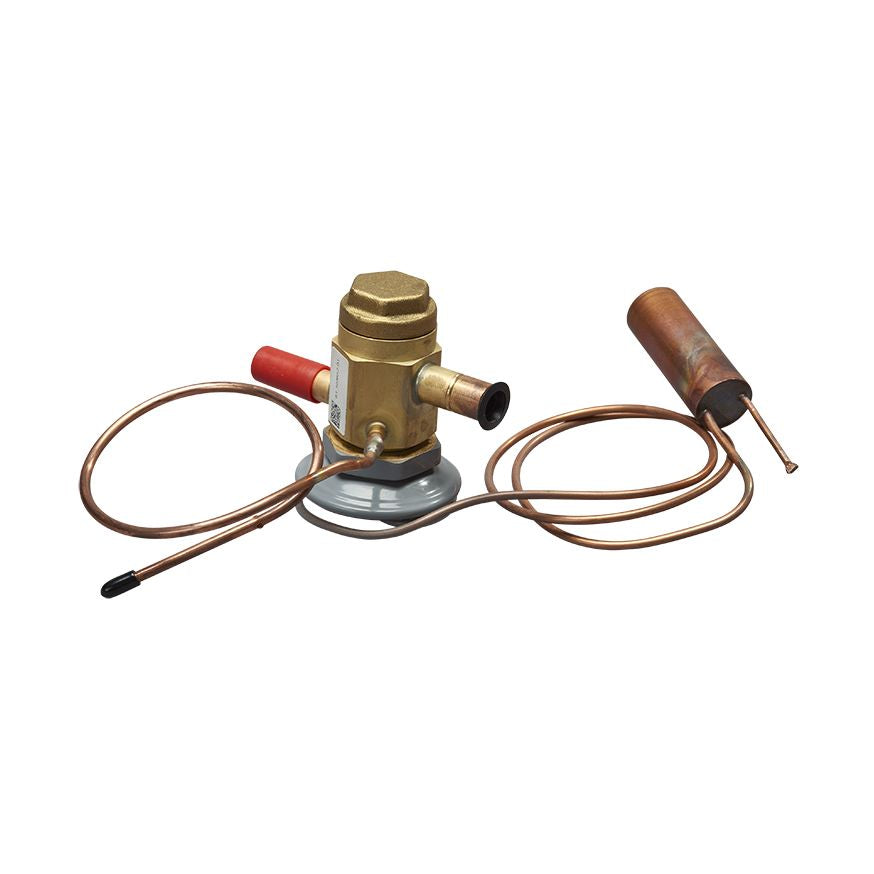

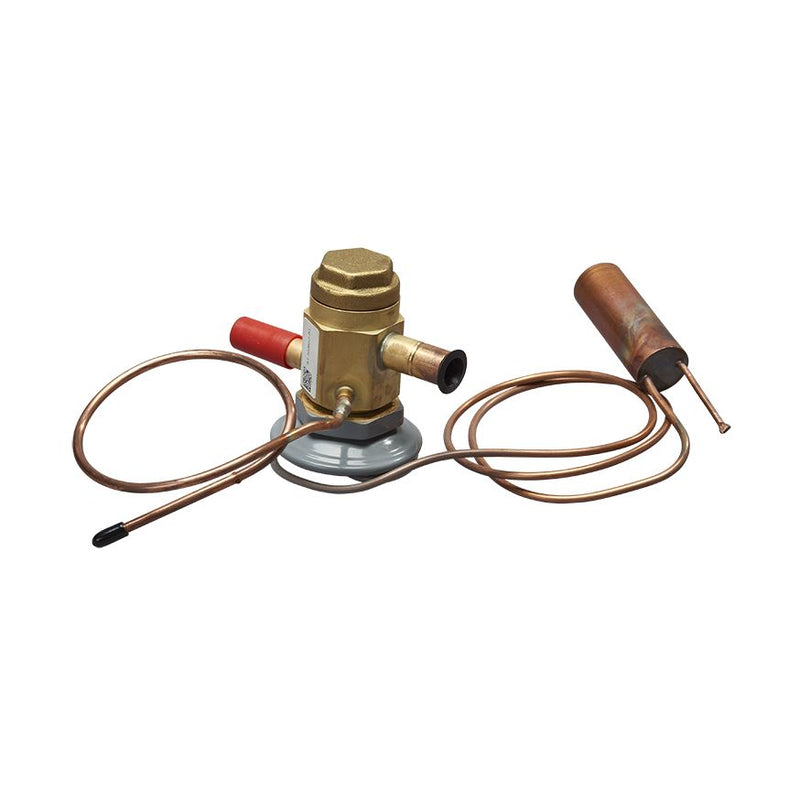

Rheem 61-103652-01 -Expansion Valve Kit - TXV - 3 Ton
The expansion valve removes pressure from the liquid refrigerant to allow expansion or change of state from a liquid to a vapor in the evaporator. Use these external equalizer thermostatic expansion valves to counterbalance any pressure drop through the evaporator.
Features
- Adjustable superheat
- Used by many OEMs in residential HVAC applications
Technical Data
- Nominal Capacity Reference Only (Tons): 3
- Check Valve: Yes
- Refrigerant: R-410A
- Bi-Flow Metering?: No
- Bleed Capacity (%): 0
- Inlet Size (in.): 3/8
- Inlet Fitting Type: Sweat
- Outlet Size (in.): 3/8
- Outlet Fitting Type: Sweat
- Element Cap Tube Length (in.): 30
- External Equalizer Connection (in.): 1/8 Sweat O.D.
- Equalizer Tube Length (in.): 12
Where Used
- RCFL-AU3617CC
- RCFL-AU3621CC
- RCFL-AU3821CC
- RCFL-AU3824CC
- RCFL-HM3617CC
- RCFL-HM3621CC
- RCFL-HM3821CC
- RCFL-HM3824CC
- RCFL-HU3617CU
- RCFL-HU3617TU
- RCFL-HU3621CU
- RCFL-HU3621TU
- RCFL-HU3821CU
- RCFL-HU3821TU
- RCFL-HU3824CU
- RCFL-HU3824TU
- RCFM-HM3617CC
- RCFM-HM3621CC
- RCFM-HU3617CU
- RCFM-HU3621CU
- RCSL-HM3821CU
- RCSL-HU3617CU
- RCSL-HU3617TU
- RCSL-HU3621CU
- RCSL-HU3621TU
- RCSL-HU3821CU
- RCSL-HU3821TU
- RCSL-HU3824TU
- RCSM-HU3621CU
- RHAL
- RHBL
Replaces
- 61-102993-06
- 61-102993-06
- 61-102993-01
HUZ2012615
