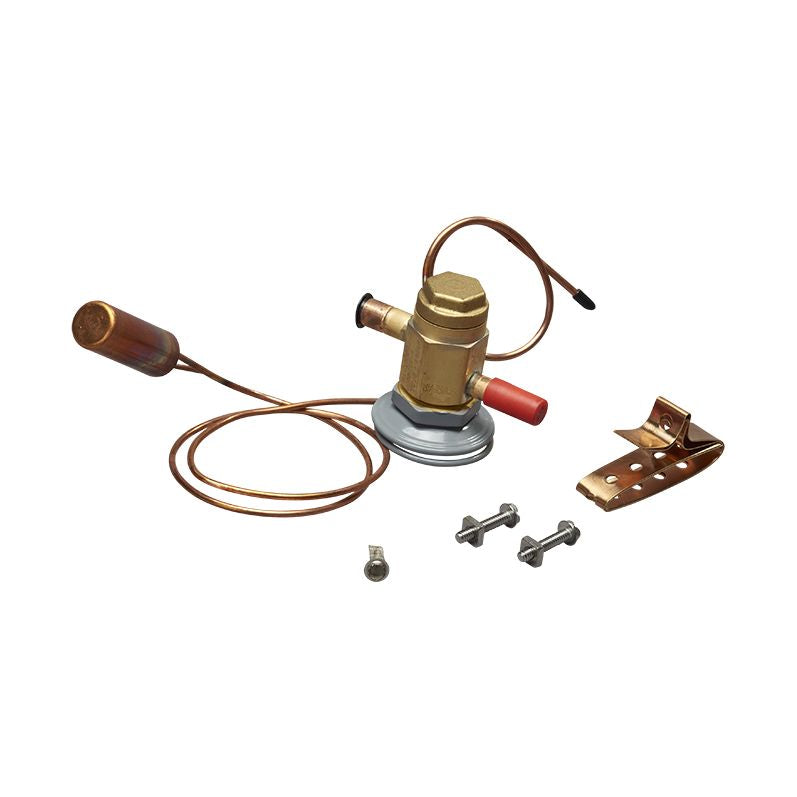

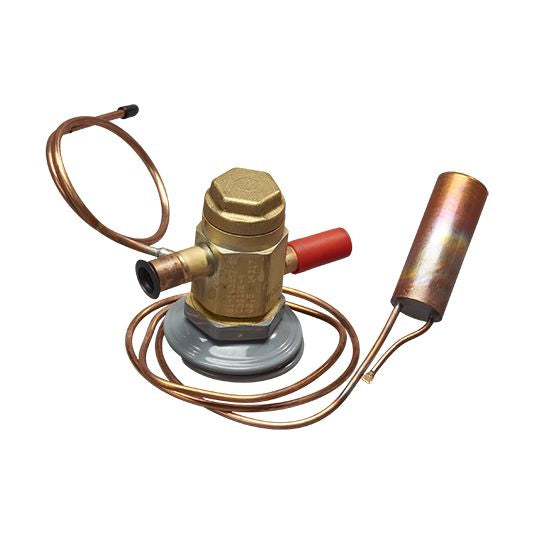

Rheem 61-103652-02 - Expansion Valve Kit - TXV - 4 Ton
The expansion valve removes pressure from the liquid refrigerant to allow expansion or change of state from a liquid to a vapor in the evaporator. Use these external equalizer thermostatic expansion valves to counterbalance any pressure drop through the evaporator.
Features
- Adjustable superheat
- Used by many OEMs in residential HVAC applications
Technical Data
- Nominal Capacity Reference Only (Tons): 4
- Check Valve: Yes
- Refrigerant: R-410A
- Bi-Flow Metering?: No
- Bleed Capacity (%): 0
- Inlet Size (in.): 3/8
- Inlet Fitting Type: Sweat
- Outlet Size (in.): 3/8
- Outlet Fitting Type: Sweat
- Element Cap Tube Length (in.): 30
- External Equalizer Connection (in.): 1/8 Sweat O.D.
- Equalizer Tube Length (in.): 12
Where Used
- RCFL-AU4821CC
- RCFL-AU4824CC
- RCFL-HM4821CC
- RCFL-HM4824CC
- RCFL-HU4821CU
- RCFL-HU4821TU
- RCFL-HU4824CU
- RCFL-HU4824TU
- RCFM-HM4821CC
- RCFM-HM4824CC
- RCFM-HU4821CU
- RCFM-HU4824CU
- RCSL-HU4821CU
- RCSL-HU4821TU
- RCSL-HU4824CU
- RCSL-HU4824TU
- RCSM-HM4824CU
- RCSM-HU4824CU
Replaces
- 61-104564-02
- 61-102993-02
- 61-102993-02
