0009118 - 3/4 In Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

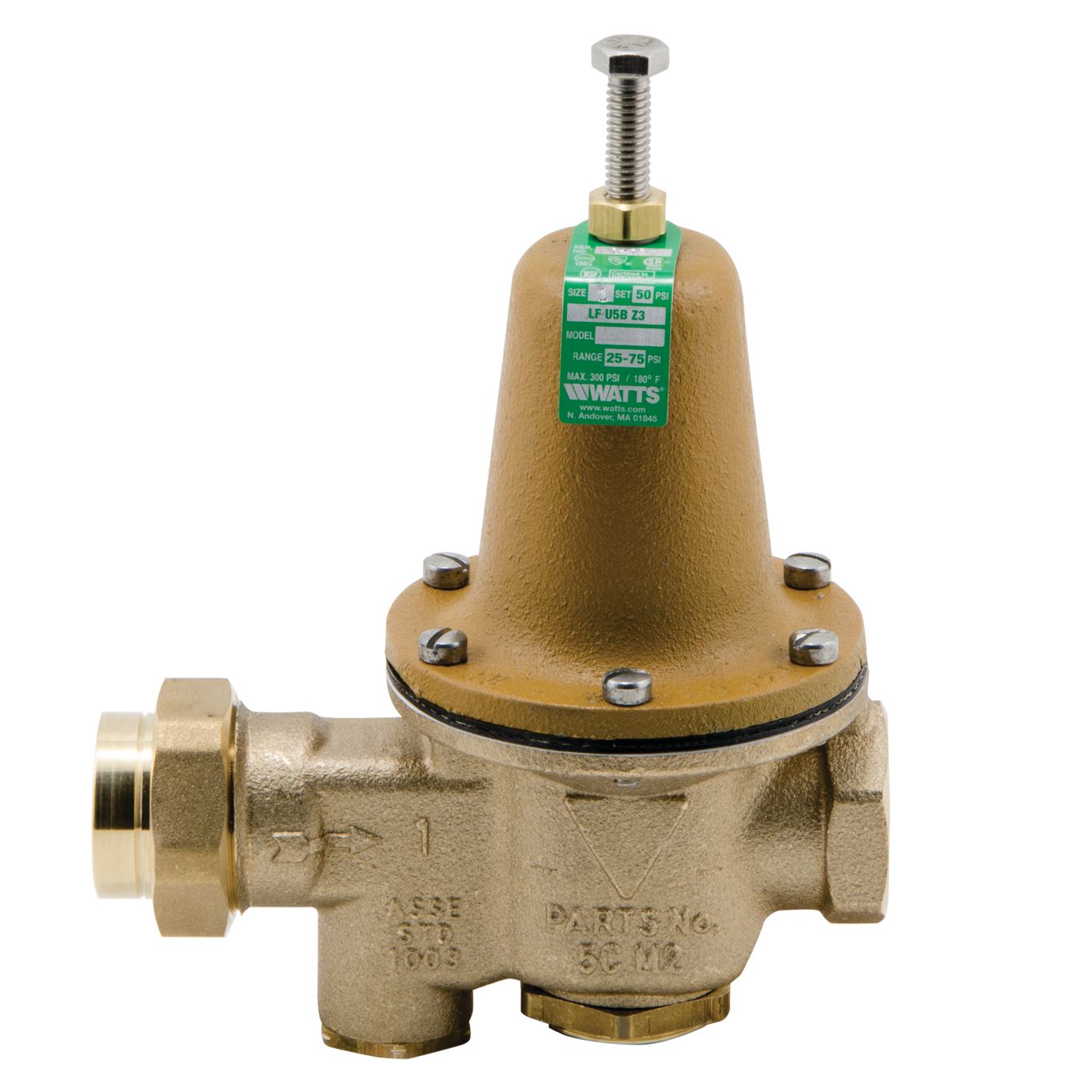

3/4 In Lead Free Water Pressure Reducing Valve, Npt Female Union X Npt Female
This 3/4 inch high performance water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free cast copper silicon alloy body, 3/4 inch NPT threaded female union inlet x NPT female outlet, replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Features
- Integral stainless steel strainer removable for cleaning
- Sealed spring cage with stainless steel cage screws
- Serviceable in line without special tools
- High temperature resistant reinforced diaphragm for hot water
PVZ1T02480
