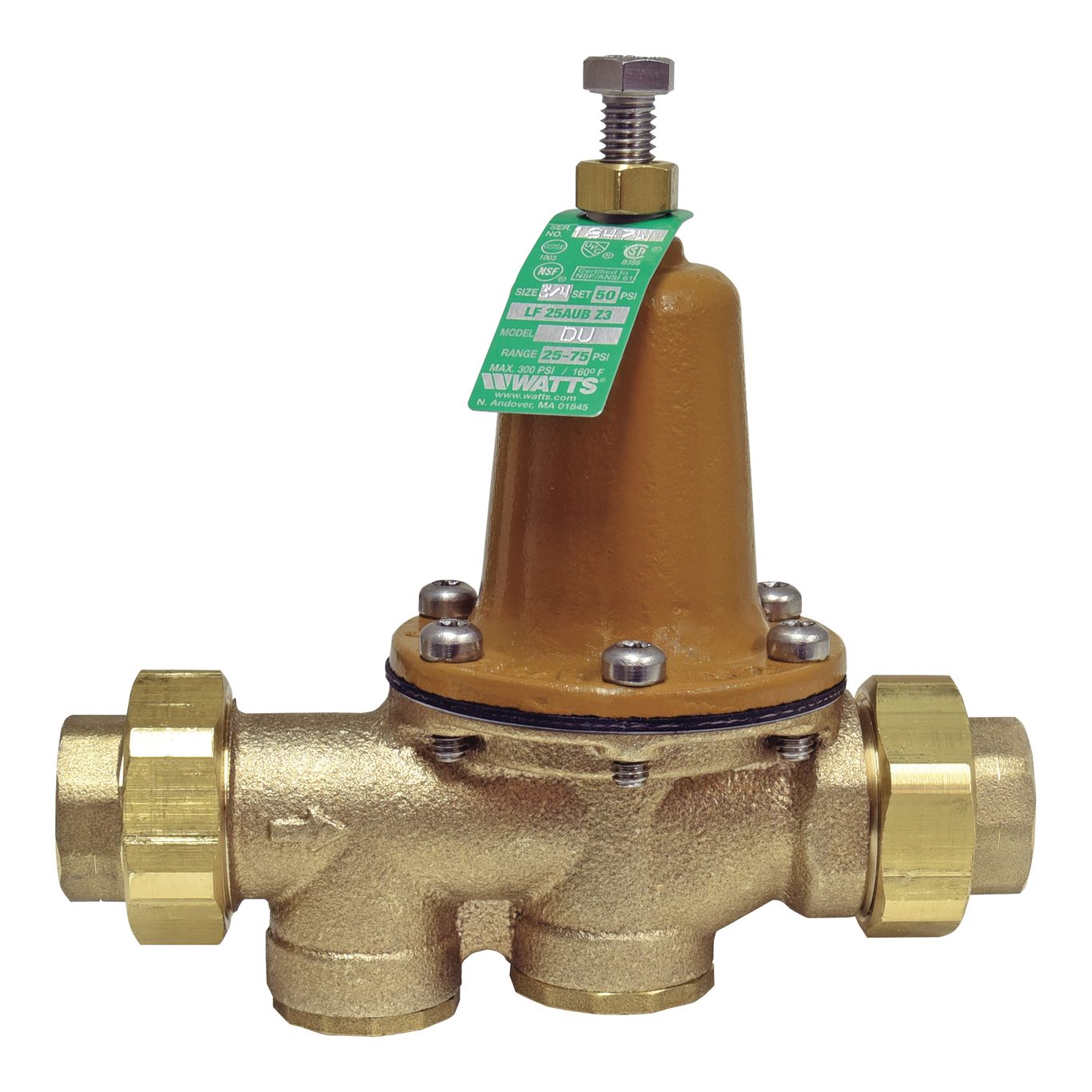

0009258 - 3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Npt Female, Polymer Seat, Adjustable 25-75 psi
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
3/4 In Lead Free Water Pressure Reducing Valve, Double Union, Npt Female, Polymer Seat, Adjustable 25-75 psi
This 3/4 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
Features
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Sealed spring cage with stainless steel cage screws
- Bypass feature controls thermal expansion pressure
PVZ1S05026
