075-DV - 3/4" DV Sprinkler Valve, Female x Female

In stock
SKU: 75DV
Regular price $20.89

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

DV Brochure

DV Specification Sheet

DV Instructions

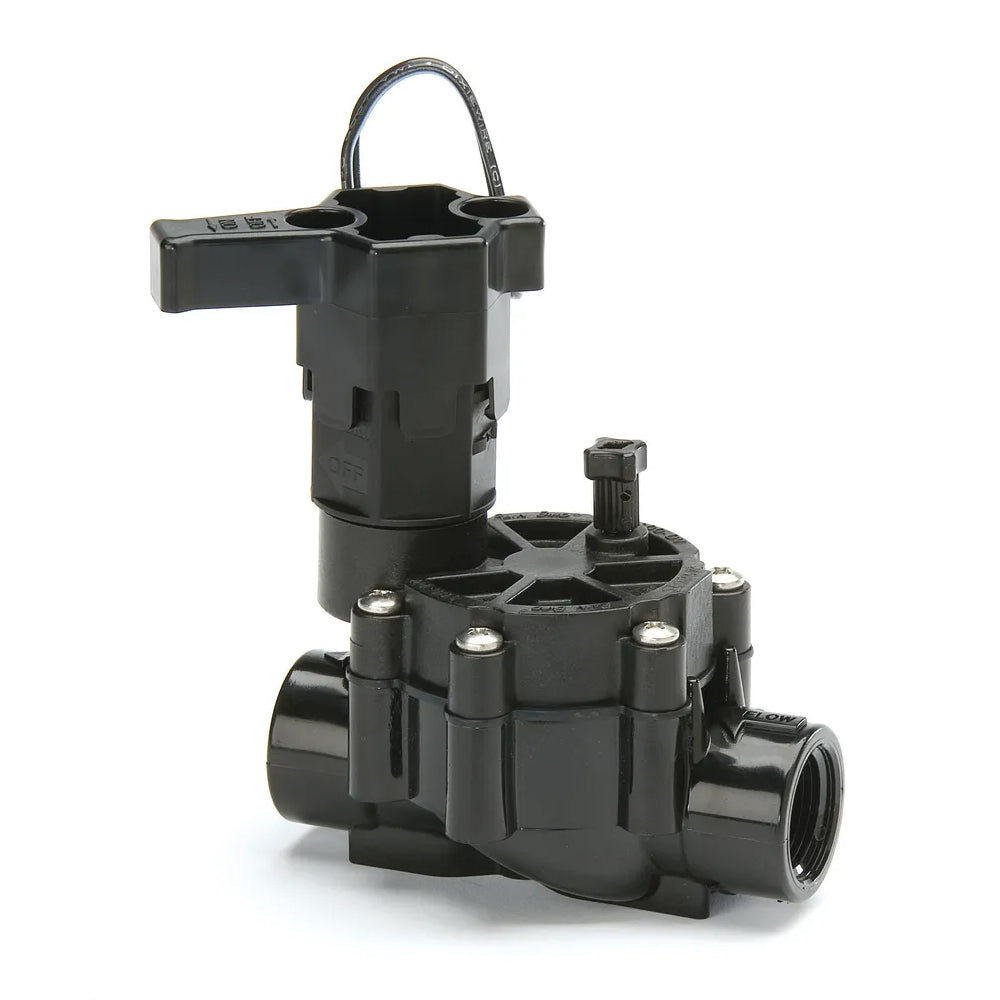

Rain Bird 075-DV - 3/4" DV Sprinkler Valve, Female x Female

Diaphragm valve – the industry leader for over 25 years

The Rain Bird DV/DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.

Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required. All Rain Bird residential valves work with any standard sprinkler timer.

Features

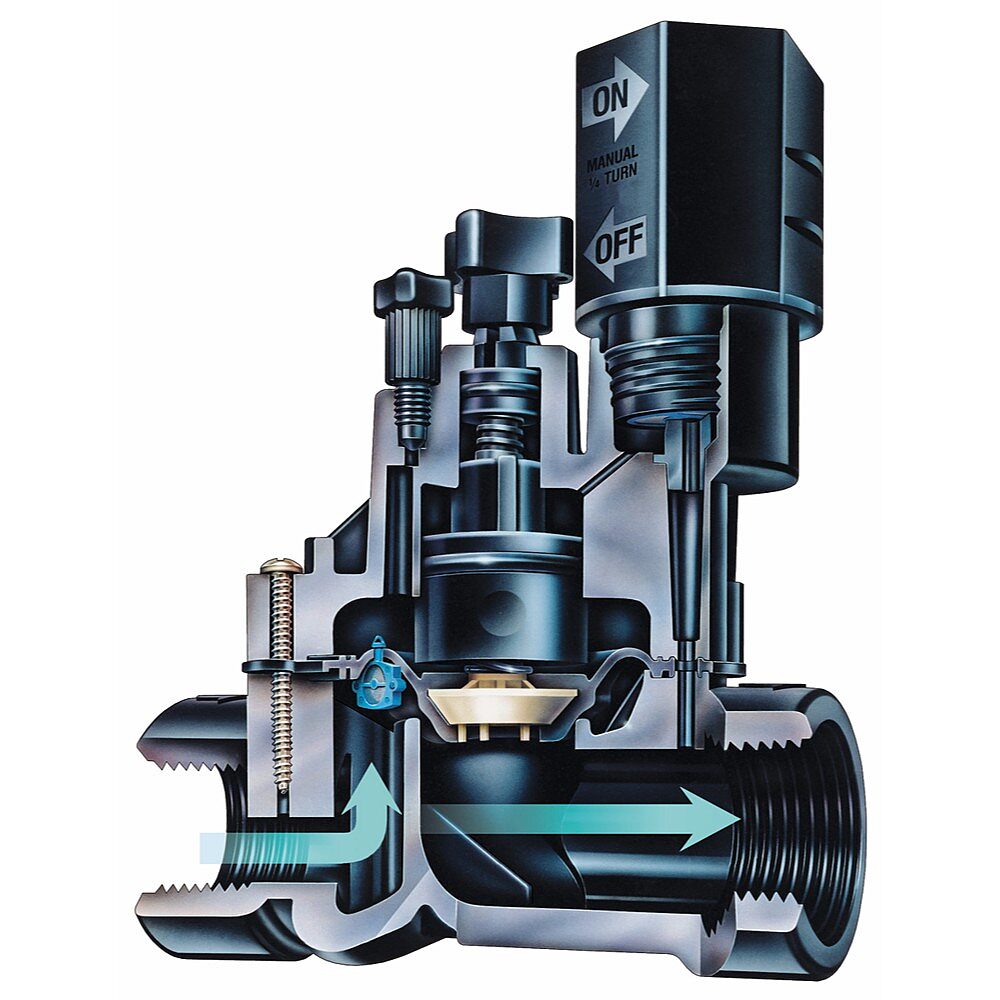

  • Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
  • Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • External bleed to manually flush the system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
  • Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
  • *Not recommended for use with two-wire control systems

Specifications

  • Valve Size: 3/4"
  • Valve Type: Inline
  • Material: Plastic
  • Inlet / Outlet Configuration: NPT Female x NPT Female
  • Operating Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • Flow Range: 0.2 to 22 gpm, for flows below 3 gpm or any Xerigation application, use a 200 mesh filter installed upstream
  • Water temperature: Up to 110 degrees F
  • Electrical: 24 VAC 50/60Hz solenoid power requirement
  • Height: 4-1/2" (14.2 cm)
  • Length: 4-3/8" (11.1 cm)
  • Width: 3-1/3" (8.4 cm)

Related Video: How Do Sprinkler Valves Work?

Related Video: Fixing a Sprinkler Leak Using the Bleed Screw

Related Video: Installing a Rain Bird Sprinkler Valve
