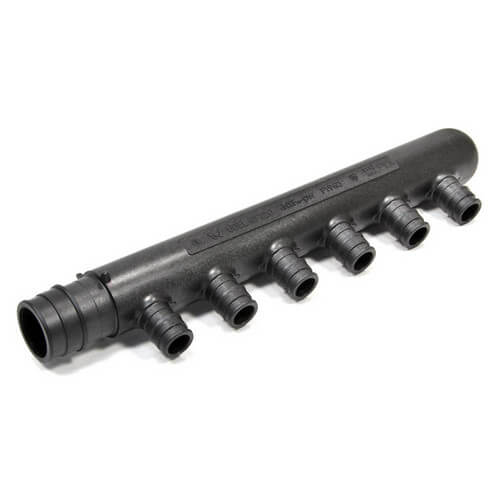

EP Branch Multi-port Tee features 3/4" or 1" ProPEX inlet with 1/2" ProPEX branch outlets. The Multi-port Tee is made of EP, which is proven in demanding hot-water applications.
Note: ProPEX Tool is required. ProPEX Rings sold separately.
Engineered Polymer (EP) Branch Multi-port Tee is used in hot and cold domestic potable water distribution systems. The EP Branch Multi-port Tee is available with ¾" or 1" ProPEX® inlets and ½" ProPEX outlets.
Material: UDEL GF120
Maximum Temperature (no pressure): 320°F
Maximum Working Temperature/Pressure: 210°F (99°C) at 150 psi
Maximum Multi-port Tee Flow for ¾" Inlet: 13.2 gpm at 12 fps, 8.8 gpm at 8 fps
Maximum Multi-port Tee Flow for 1" Inlet: 21.8 gpm at 12 fps, 14.5 gpm at 8 fps
Installation: Any product designed to mount 1" copper pipe (for the 3/4" EP Branch Multi-port Tee) or 1 1/4" copper pipe (for the 1" EP Branch Multi-port Tee) may be used as a mounting bracket. For more information, refer to the Uponor Professional Plumbing Installation Guide.
Standards; CAN/CSA B137.5; ASTM F877; ASTM F1960
Codes: IPC; UPC; NSPC; NPC of Canada
Listings: ANSI/NSF 14- and 61-certified; ICC ESR 1099
Related applications: PEX-a Plumbing Systems
