Bobrick 687 - 2" x 2" Surface-Mounted Door Bumper

Out of stock
SKU: 687
Regular price $69.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification Sheet

2x2 Surface-Mounted Door Bumper

Features:

  • Bright-polished stainless steel.
  • Flange is 2" x 2" (50 x 50mm).
  • Black nylon post with black neoprene bumper.
  • Projects 2 1/8" (55mm) from wall.

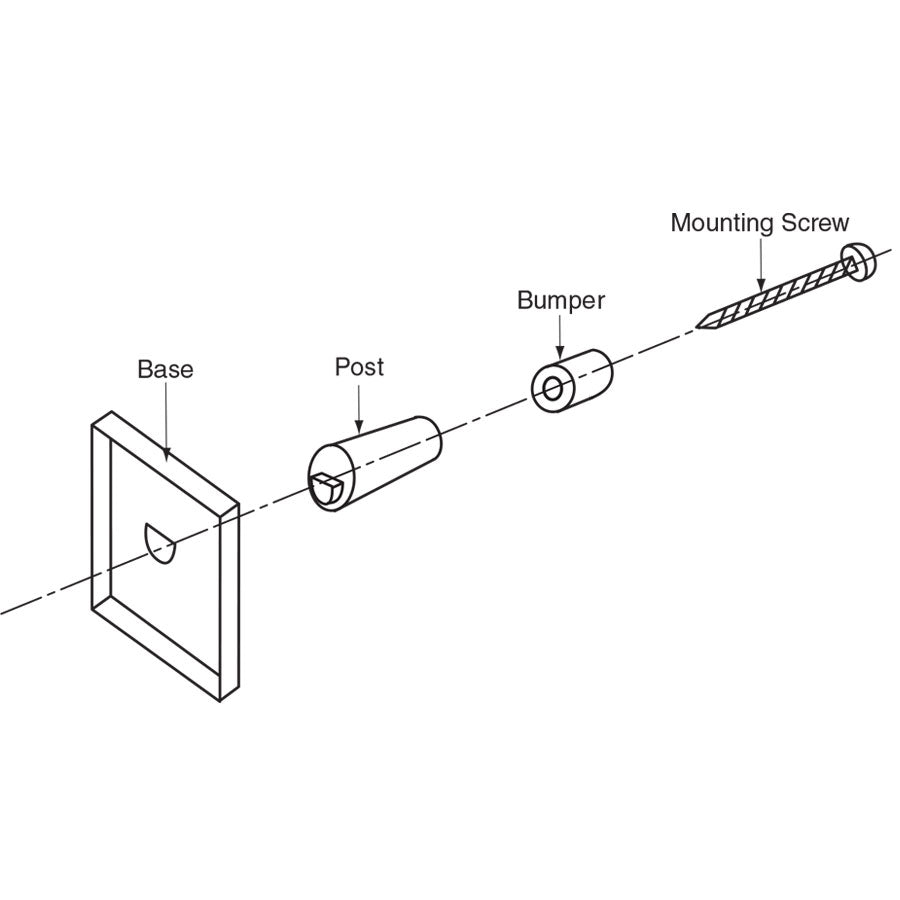

Materials:

  • Post — Black nylon.
  • Bumper — Black neoprene.
  • Base — 18-8, type-304, 22-gauge (0.8mm) stainless steel.

Installation:

  • Mount unit on wall with sheet-metal screw furnished by manufacturer at point indicated by an S.
    • Position Door Bumper in desired location.
    • Use Base (687-4) as a template to locate hole for mounting screw.
    • For mounting on wood or particle board. 1'' (25mm) minimum thickness, drill #26 x 1/2'' (3.7 x 12.7mm).
    • Install Bumper with one #10 x 2-1/2'' (64mm) sheet-metal screw furnished by manufacturer.

Specification:

  • Surface-mounted door bumper shall have base constructed of type-304 stainless steel with bright polished finish. Unit shall be equipped with black neoprene bumper.
