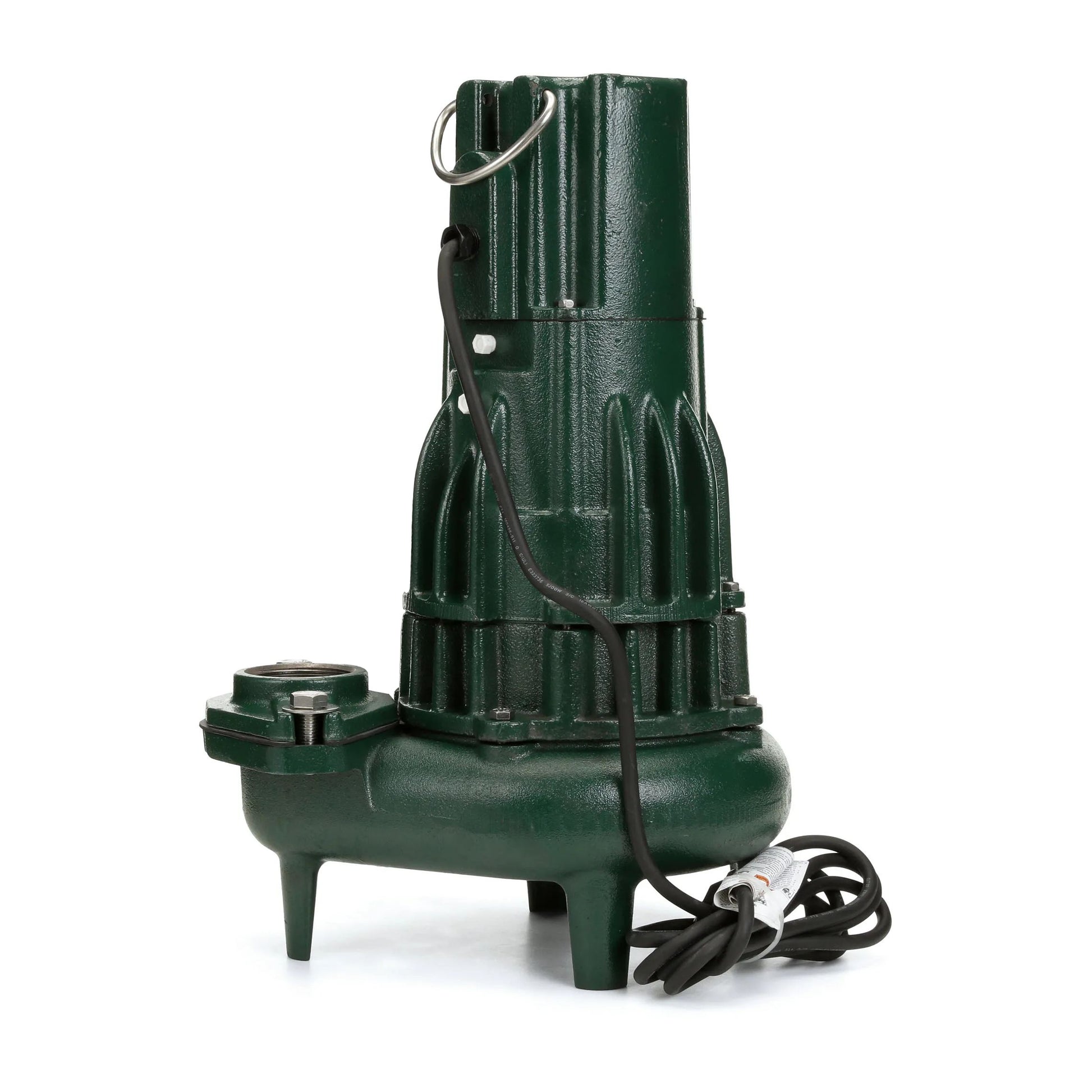

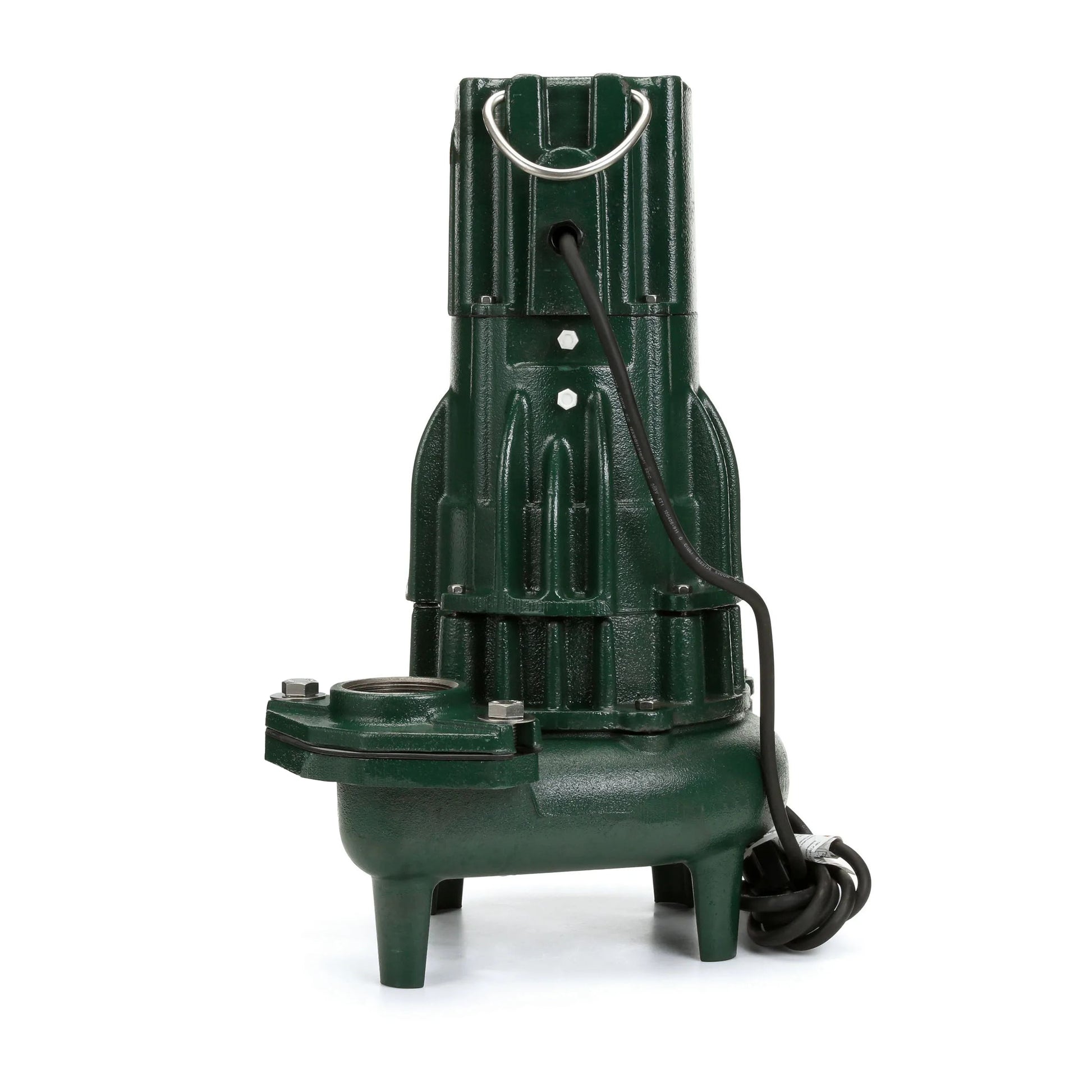

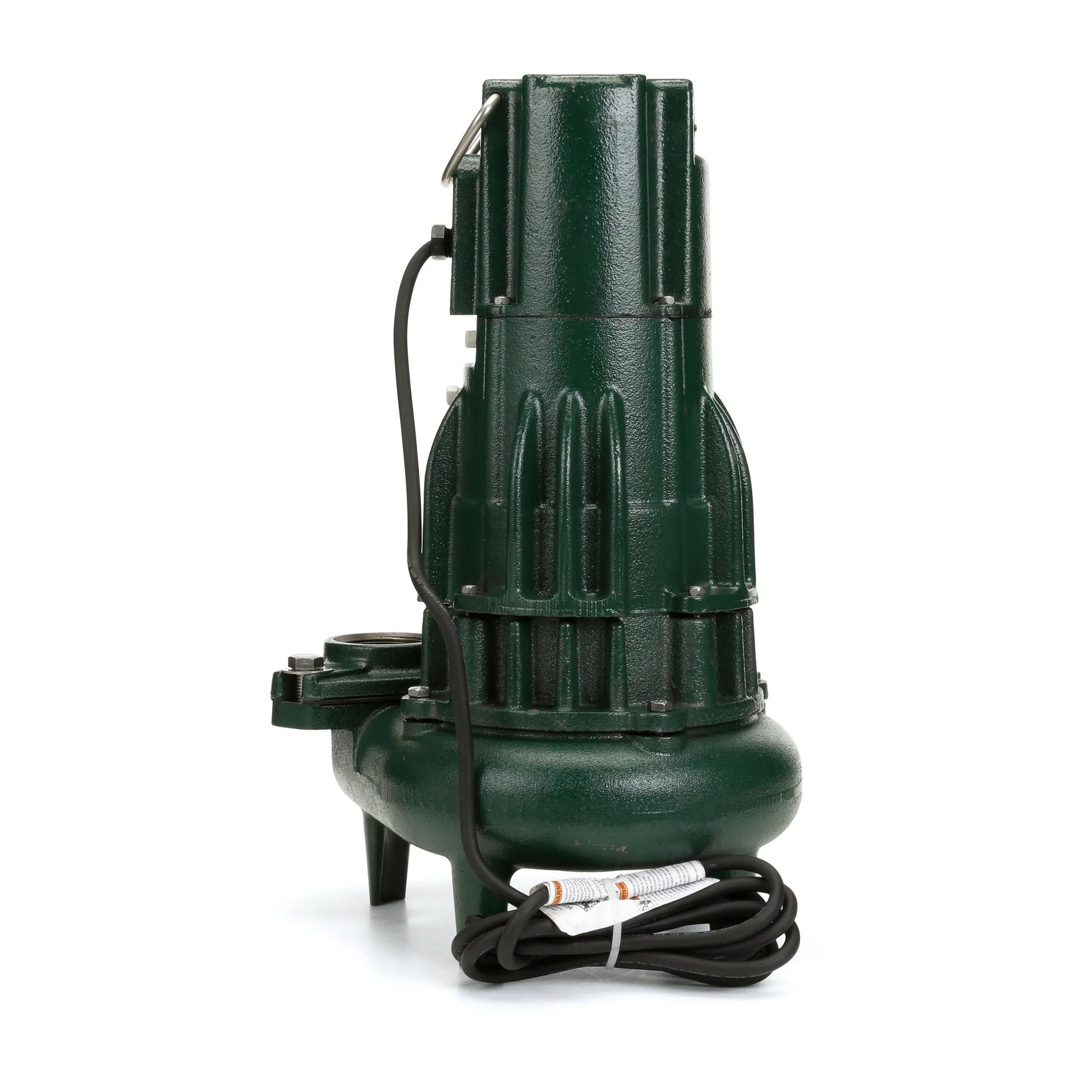

Zoeller 284-0004 - E284 Series Non-Automatic Cast Iron Sewage Pump, 230V, 1 HP

Only 9 left
SKU: 284-0004
Regular price $1,128.00

Free Shipping on all orders over $79.99!

Most orders ship same day. Delivery in 2-3 business days!

Call Us! Have questions or want to order by phone? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Zoeller 280 Instructions

Zoeller 280 Specification Sheet

Zoeller 284-0004 - E284 Series Non-Automatic Cast Iron Sewage Pump, 230V, 1 HP

Zoeller 280 Series Sewage Pump Features

  • Durable, cast iron constructed switch case, motor and pump housing, base and impeller
  • No sheet metal parts to rust or corrode
  • All cast iron class 30 30000# tensile strength
  • Stainless steel screws, bolts, float rod, handle, guard and arm and seal assembly
  • Shaft seal - Carbon and ceramic rotary face seal, with stainless steel wetted parts
  • SAE 1117 carbon steel motor shaft (single seal models)
  • Upper and lower ball bearing running in bath of oil
  • Maximum temperature for sewage or dewatering: 130 degrees F
  • Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor (1 Ph and auto 3 Ph)
  • All models available in 2" or 3" discharge
  • All models pass 2" (50 mm) spherical solids.
  • Automatic units available with float-operated, submersible mechanical switch**
  • Corrosion-resistant, powder coated epoxy finish
  • On point: 15-1/4" (38.7 cm)
  • Off point: 5-1/4" (13 cm)
  • Major width: 13-9/16" (34.4 cm) (single seal pumps)
  • Major height: 19-9/16" (49.7 cm) (single seal pumps)
  • Automatic or non-automatic with single seal
  • Non-automatic with double seals
  • 1 or 3 Ph motors available
  • See selection chart for specifications or specific models

Model 284 Specific Features

  • Motor: 1 HP
  • Voltage: 230 V
  • Protects motor from leaks
  • Improved bearing lubrication
  • Helps eliminate seal and bearing damage from dry runs
  • 416 stainless steel motor shaft
  • Major width: 13-9/16" (34.4 cm)
  • Major height: 20-11/16" (52.5 cm)

Related Video: Zoeller Vortex Impeller Advantage
