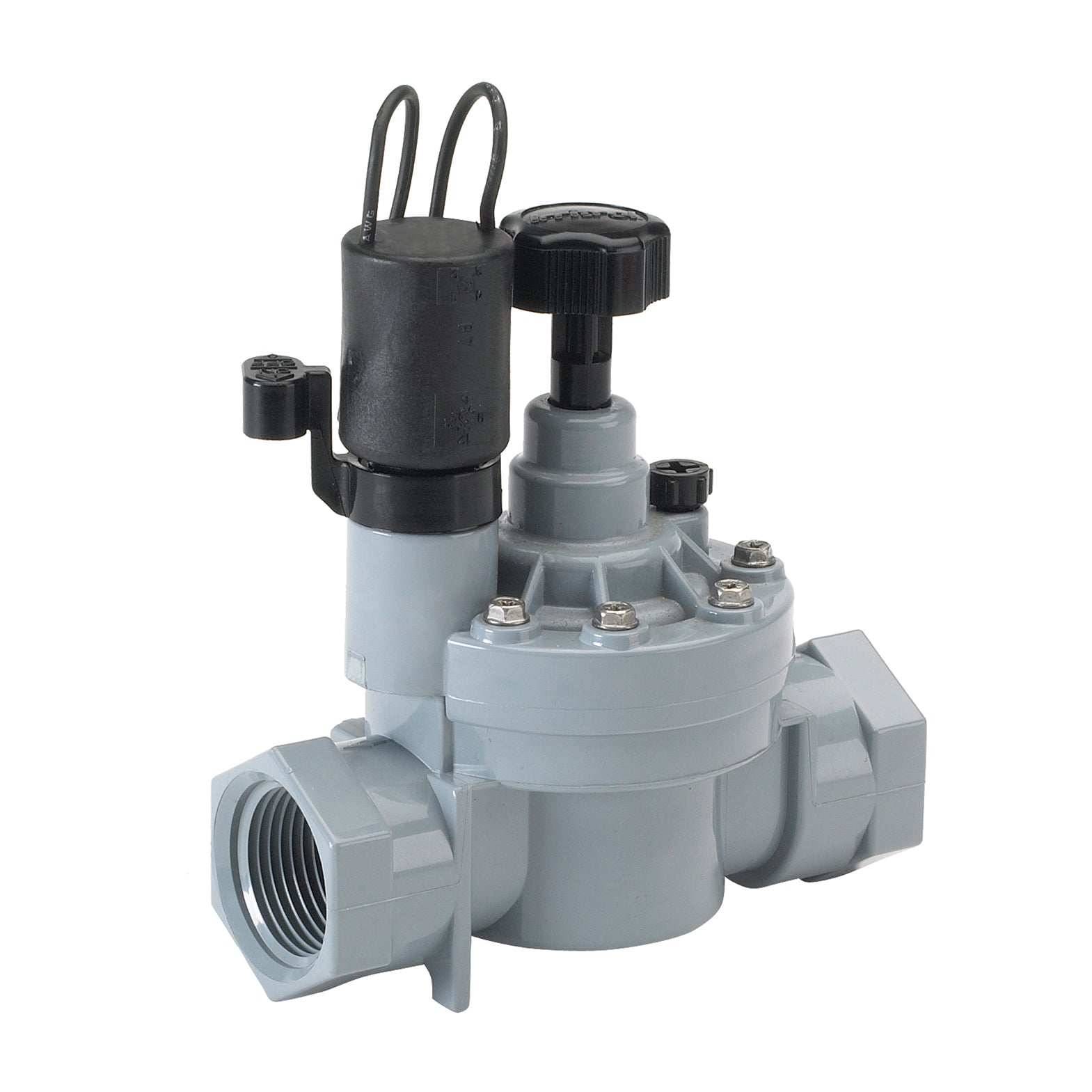

2500TF - 1" NPT Threaded Connection Irrigation Valve with Flow Control
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
2500 Series BrochureIrritrol 2500TF - 1" NPT Threaded Connection Irrigation Valve with Flow Control
The Irritrol 2500 Series is a classic example of making a great valve even better. Irritrol has taken its proven 205 Series of valves to the next level by adding a full menu of features including a patented "floating metering system" for consistent performance in dirty water applications and a rugged, double-beaded diaphragm for long-term performance with no leakage. The 2500’s manual internal bleed enables the valve to be opened without filling the valve box with water. And servicing is made easy and efficient with captured screws.
Features:
- Buna-N valve seat seal
- Debris tolerant design
- Flow control allows precise adjustment and manual shutoff
- Self-aligning bonnet with captured hex/Phillips screws permits fast and easy servicing without removal from the system
- Full stainless-steel metering system allows for consistent valve operation
- Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction for long-term reliability
- High-flow, low friction loss design combined with low-flow capability - can handle a wide range of applications
- Internal and external bleed (flush mode) allows for manual operation
- Patented "floating metering system" - allows this valve to easily handle dirty water
- Rugged, double-beaded SANTOPRENE diaphragm ensures a leak-proof seal
- 5-Year Manufacturer Warranty
Specifications:
- Flow range: .25-30 GPM
- Pressure range: 10-150 psi
- Solenoid: 24 V ac
- Inrush volt-amp: 24 V ac-9.6 VA
- Inrush current: .4 amp
- Holding volt-amp: 24 V ac-4.8 VA
- Holding current: .2 amp
Related Video: Irritrol 2500 Series Valve Overview
IEZV100635
