Tekmar 013 - 24 V (ac) Transformer, 96 VA, with Mounting Box

Only 1 left
SKU: 13
Regular price $112.88

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Tekmar 013 Submittal

Tekmar 013 Installation & Operation Manual

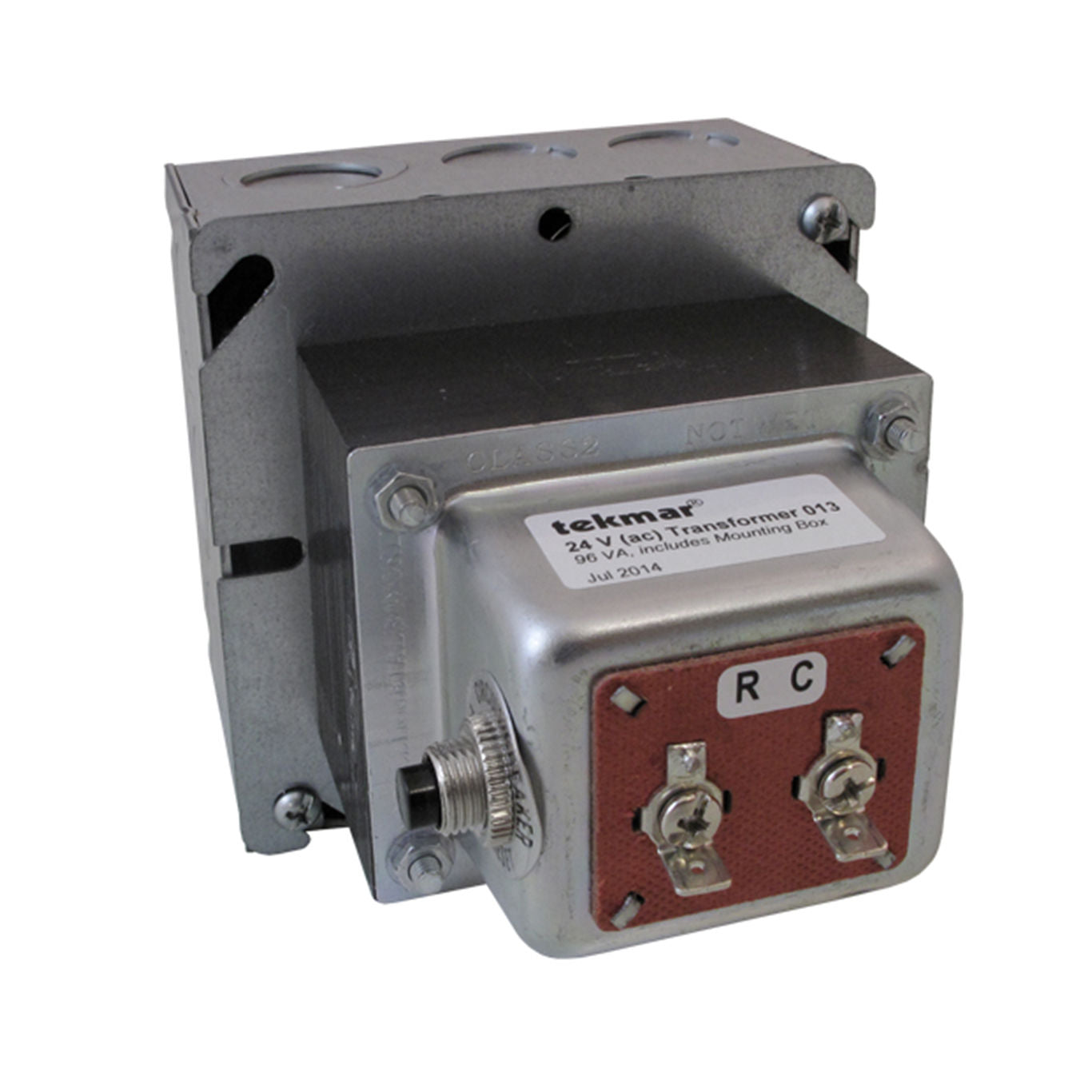

Tekmar 13 - 24 V (ac) Transformer, 96 VA, with Mounting Box

The 24 V (ac) Transformer 013 has a 115 V (ac) primary and a 24 V (ac) secondary with a capacity of 96 VA. A resettable circuit breaker protects the transformer from overloading. A 4 x 4 inch electrical junction box is included for mounting.

Features

  • Includes 4 inch x 4 inch electrical box
  • NEC/CEC Class 2 circuits
  • 96 VA
  • Resettable circuit breaker

Specifications

  • Agency Approvals: Transformer UL C US, Electrical Box - CSA and UL
  • Ambient Conditions: Indoor use only, 32 to 122 degrees F (0 to 50 degrees C)
  • Circuit Breaker: 4A

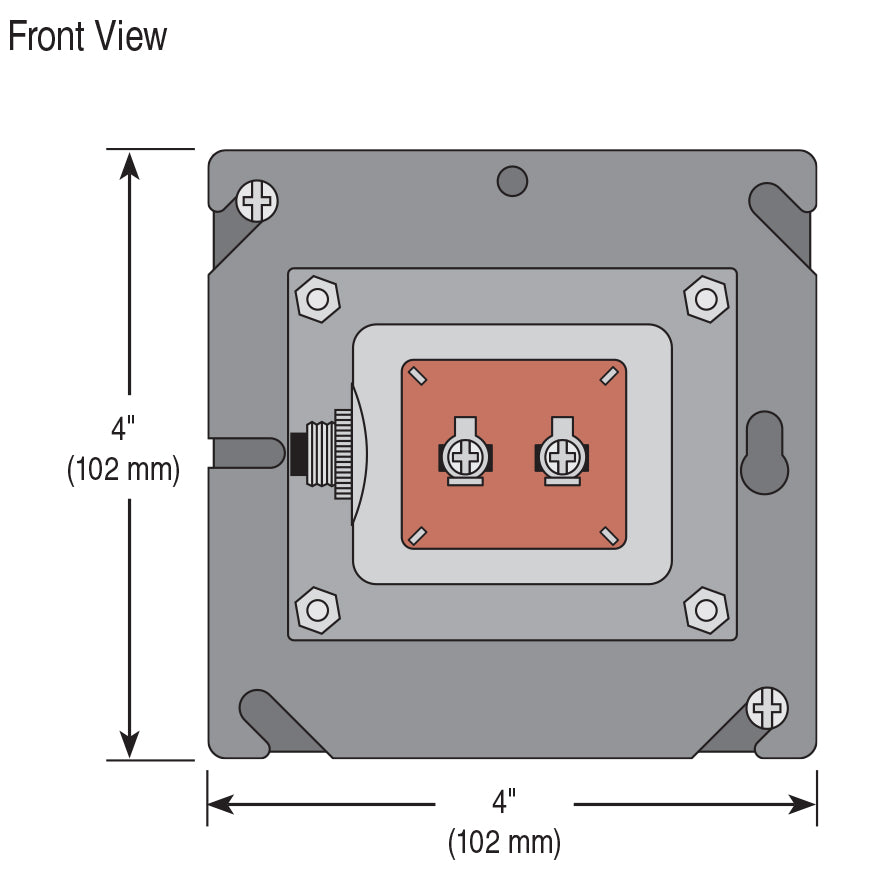

  • Dimensions: 4" L x 4" W x 5-7/8" H (102 x 102 x 150 mm)
  • Input Power Supply: 115 V (ac) plus / minus 10 percent, 60 Hz
  • Output Power Available: 22 to 30 V (ac), 60 Hz, 96 VA, Class 2
