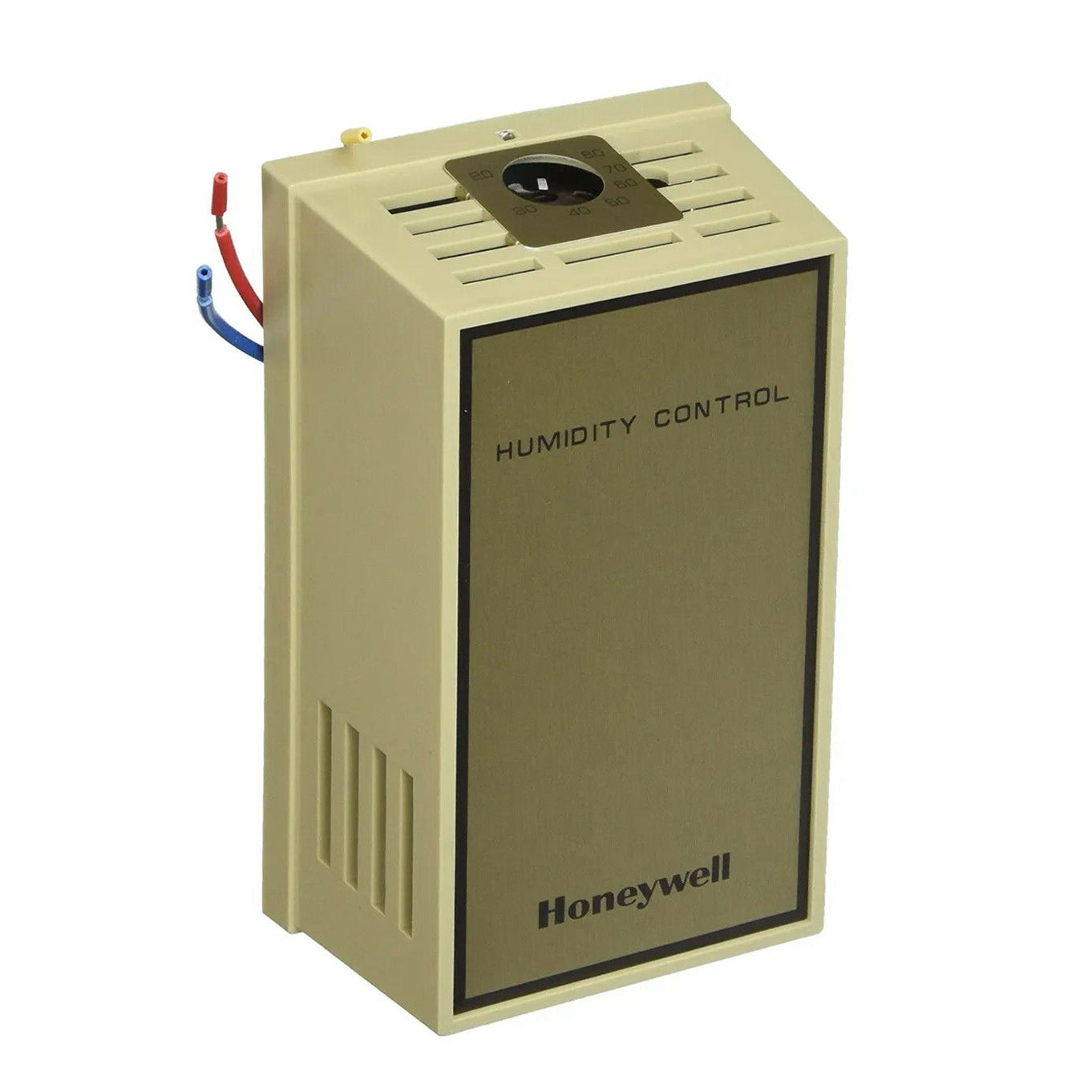

Honeywell H600A1014 - 24/120/240 Vac Wall Mount Humidistat
Regular price
$206.01
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Honeywell H600A Installation Instructions
Honeywell H600A Specification Sheet
Overview:
Mechanical humidity controllers provide automatic control of humidifiers and dehumidifiers or ventilators in central heating and air conditioning systems. The H600A controls either a humidifier or dehumidifier, in response to relative humidity changes in the space. Used with air conditioning systems, the H600A controls mildew.
Features:
- The H600A has SPDT switching to operate humidification equipment on RH fall or dehumidification equipment on RH rise.
- The sensing element is a moisture sensitive nylon ribbon wound around three bobbins to give four element control. This construction enables the controller to respond to small changes in relative humidity over a wide ambient temperature range.
- Switches line or low voltage loads up to the maximum rating of the dustproof snap-acting switch.
- Attractive contemporary cover styling.

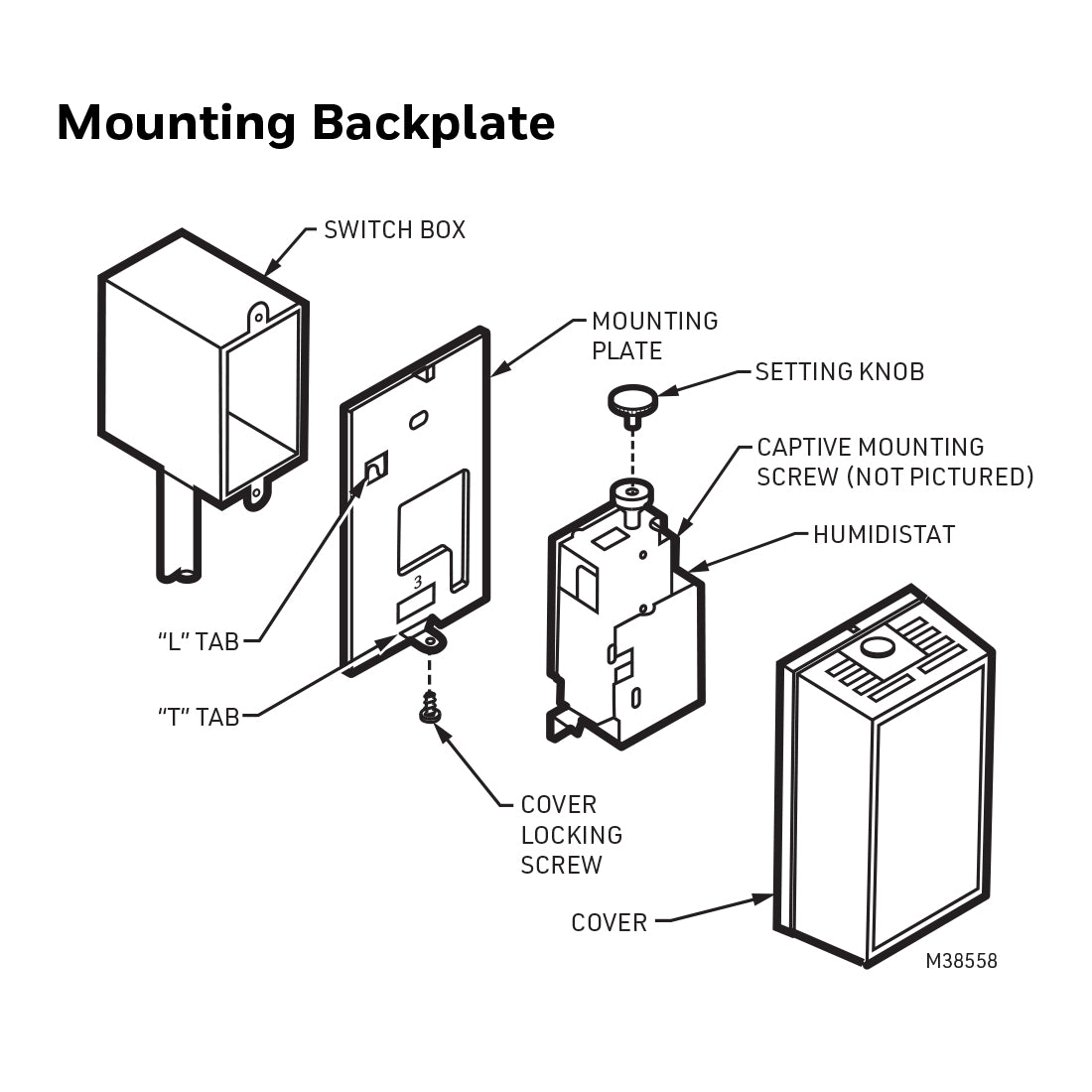

- Mounts vertically on standard junction box.
- Removable setting knob prevents tampering.

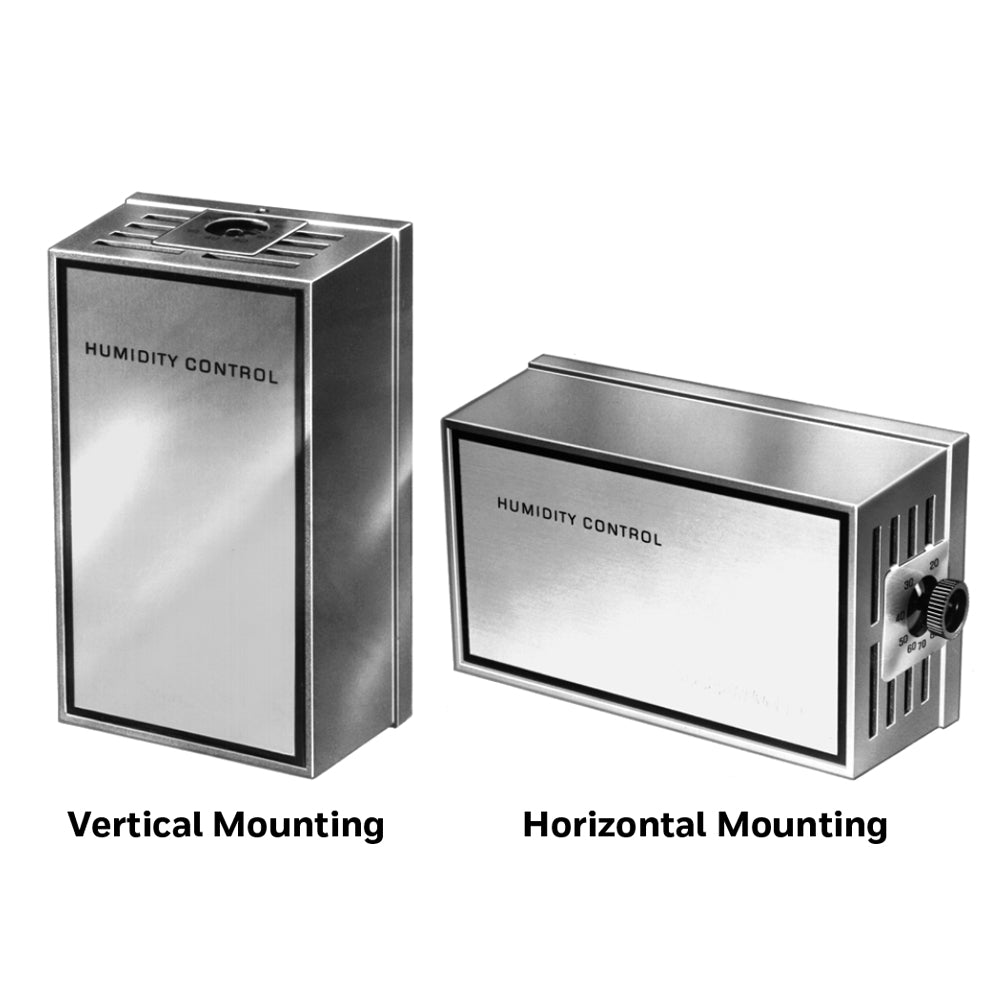

- Select models include alternate horizontal faceplate.
- Plastic locking cover; setting knob also acts as cover removal tool.
Specifications:

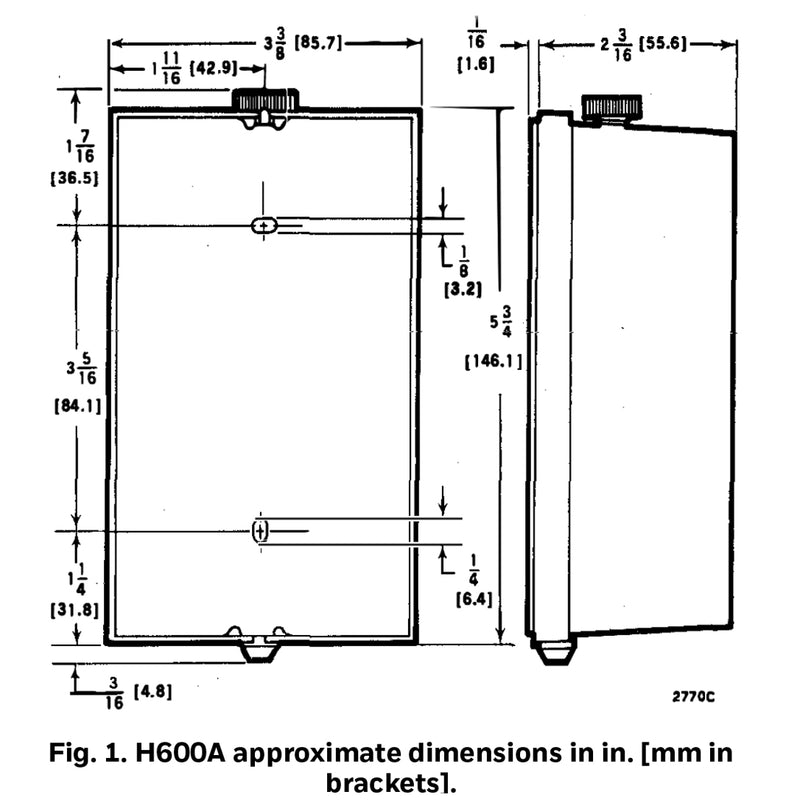

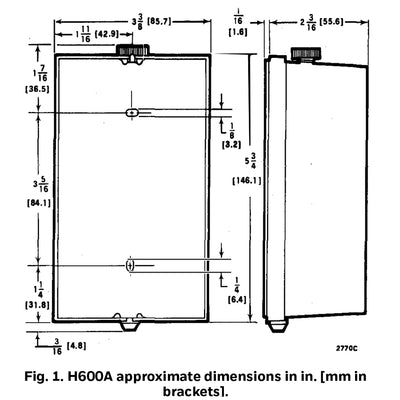

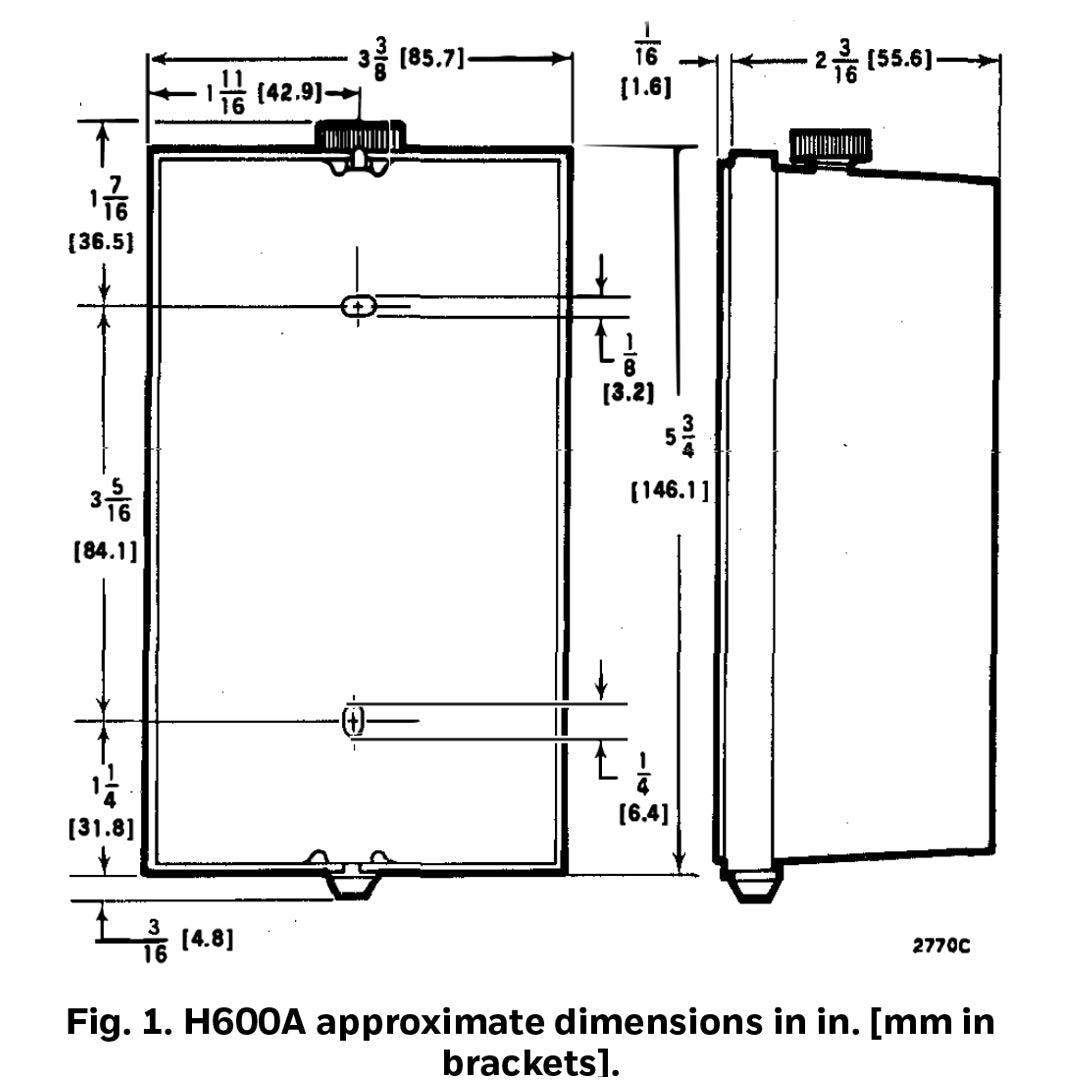

- Dimensions(in): 6 3/16 in. high x 3 3/8 in. wide x 2 1/4 in. deep
- Dimensions(mm): 157 mm high x 86 mm wide x 57 mm deep
- Temperature Range(F): 50 F to 125 F
- Temperature Range(C): 10 C to 52 C
- Mounting: Wall mount
- Electrical Ratings:
- Humidifier Contacts--120 Vac, Full Load: 4.4A; 120 Vac, Locked Rotor: 26.4A; 120 Vac; Resistive: 12A; 240 Vac, Full Load: 2.2A; 240 Vac, Locked Rotor: 13.2A; 240 Vac, Resistive: 6A. Dehumidifier Contacts--120 Vac, Full Load: 7.5A; 120 Vac, Locked Rotor: 3
- Tradeline Value: Tradeline
- Operating Humidity Range(% RH): 20 to 80% RH
- Voltage: 120 Vac,24 Vac,240 Vac
- Color: Gray
- Differential: 5% RH
