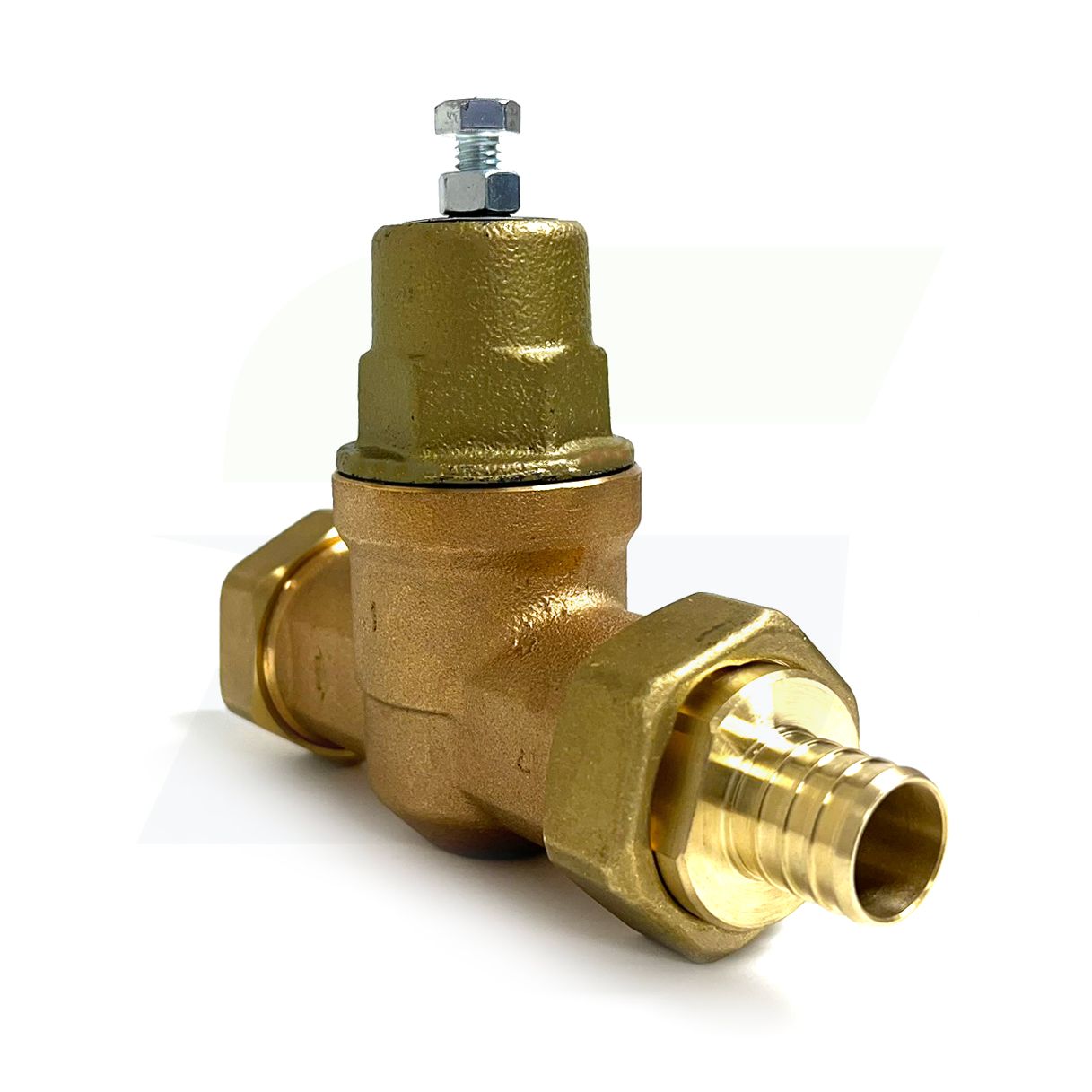

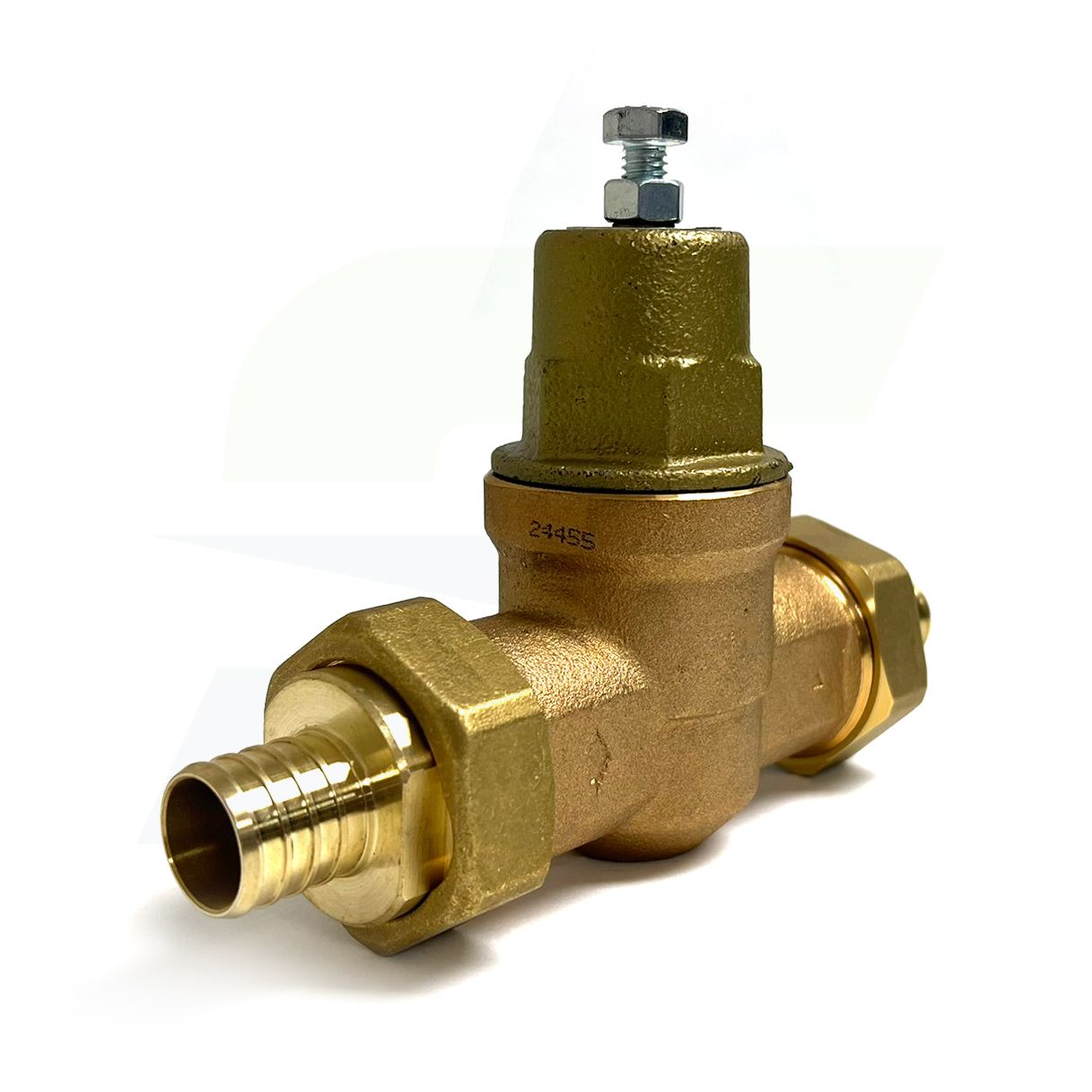

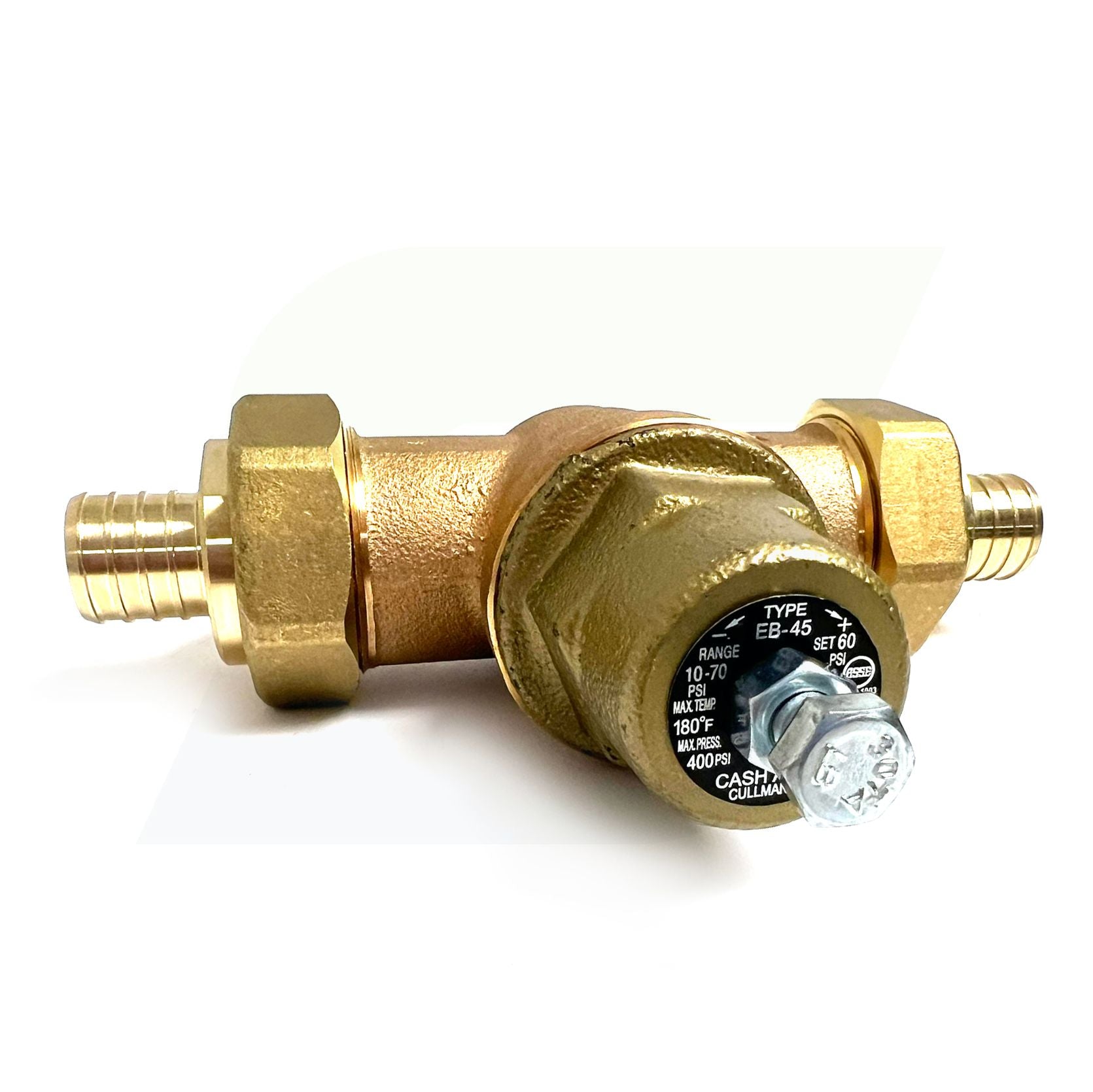

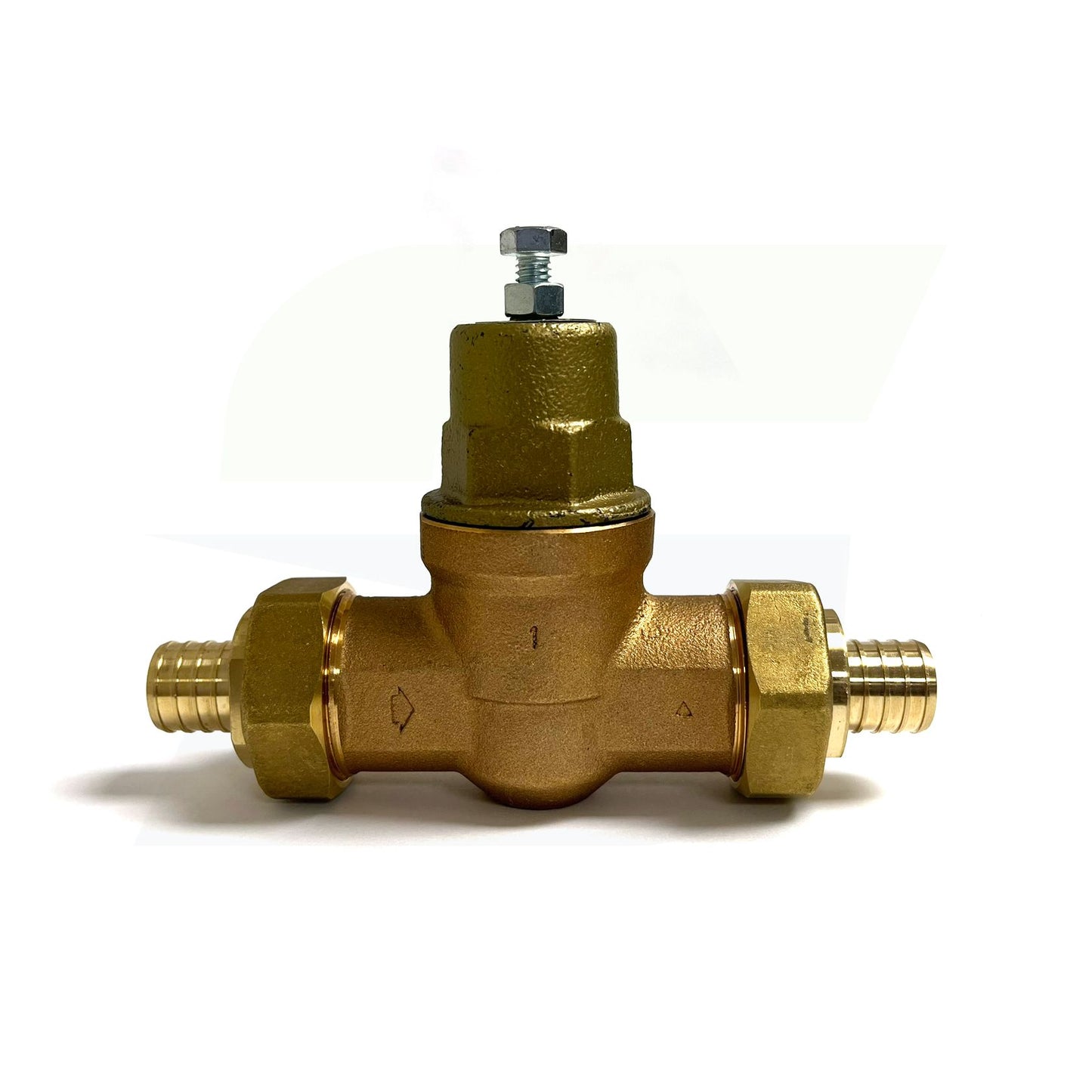

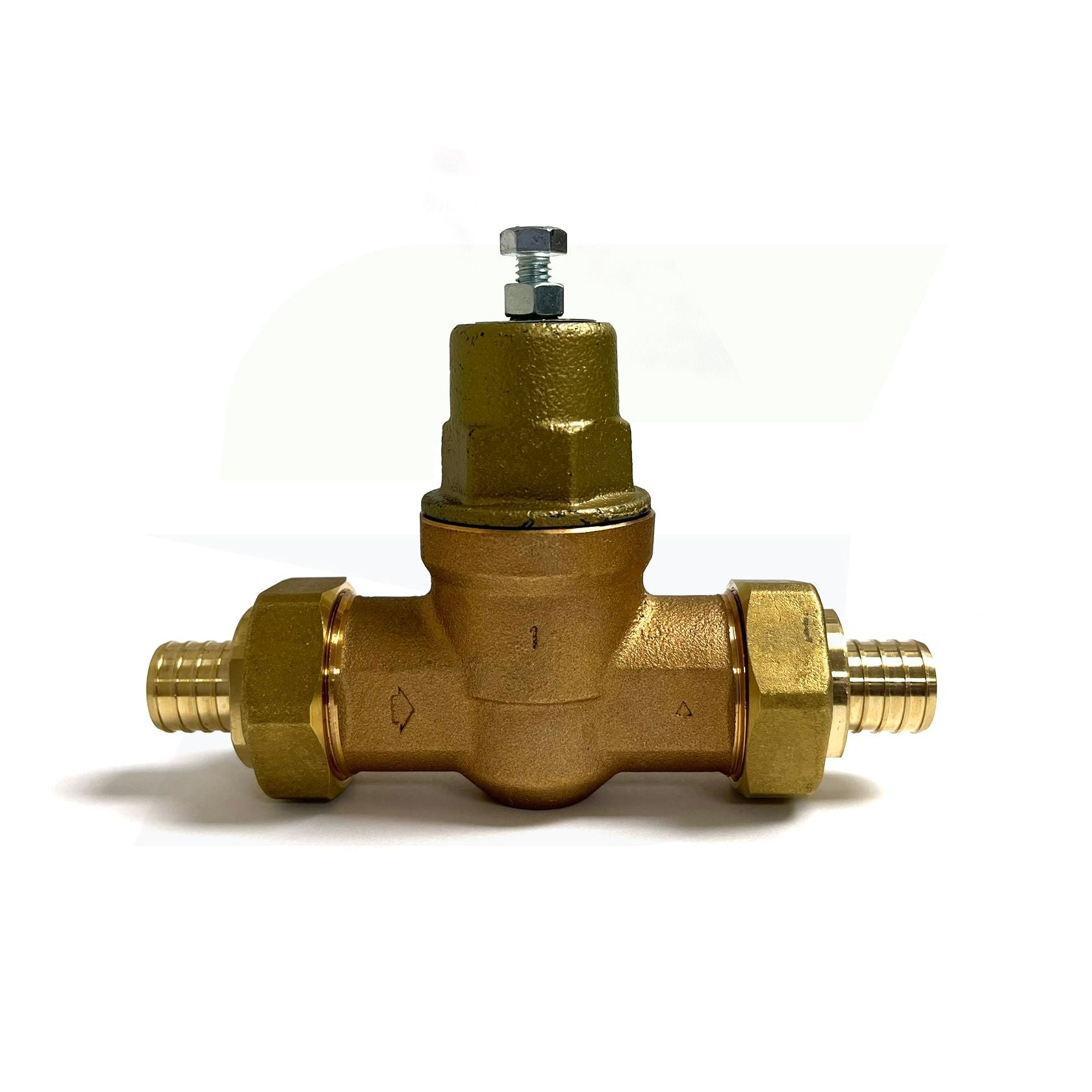

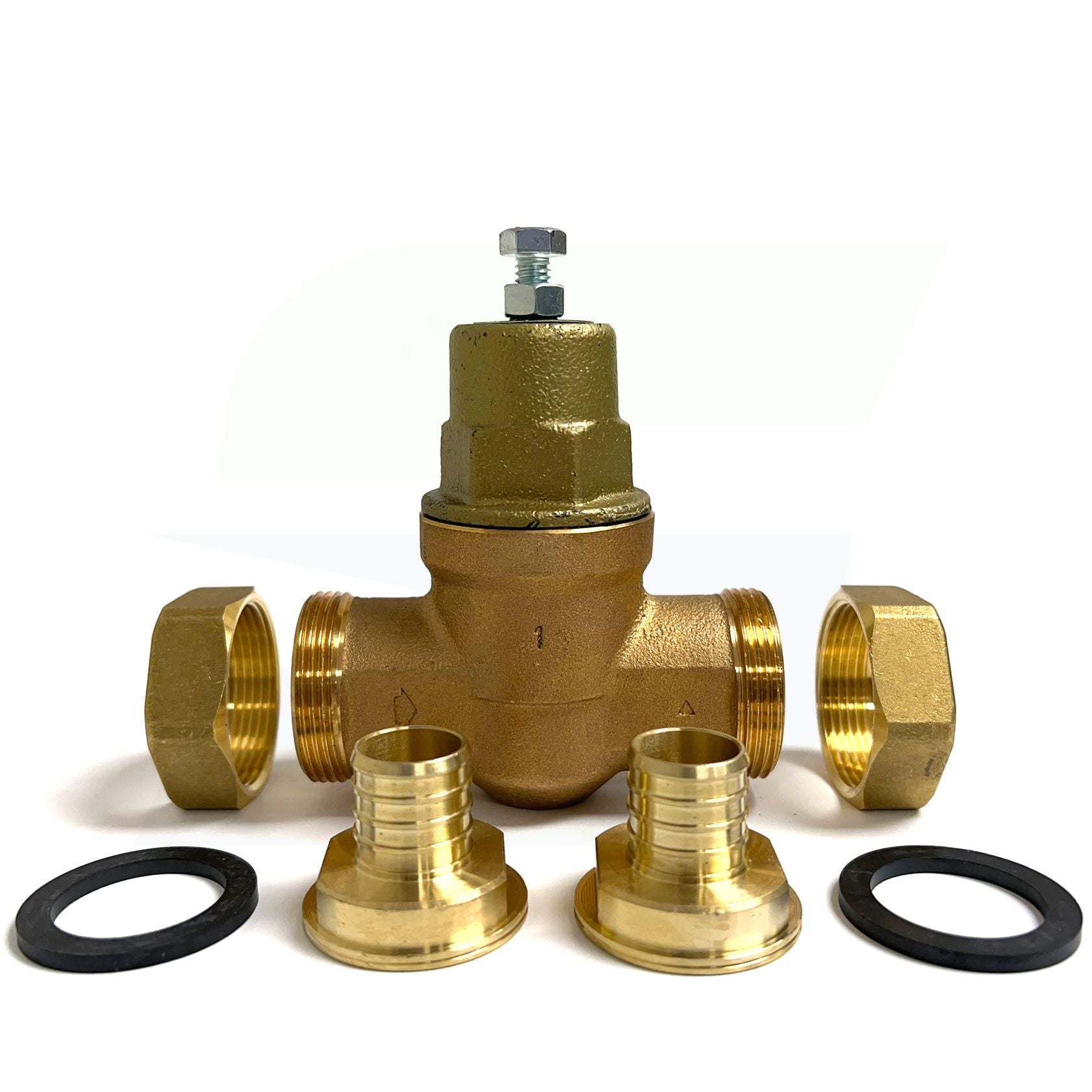

Cash Acme 23944-0060 - 1" EB45 Double Union PEX Barb Pressure Reducing Valve
The lead-free EB45 water pressure regulator features a half cartridge design that offers the performance of a high-end, cartridge-based valve and the price of a traditional regulator. The valve construction is similar to a traditional regulator in that it retains a separate spring chamber and adjusting screw, but offers the simplicity and maintenance benefits of a cartridge-based valve. The EB45 pressure regulator valve comes factory set at 45 psi but may be adjusted between 10-70 psi and includes an integrated back-check feature in case the pressure in the system exceeds the incoming pressure.
Specifications
- Maximum Inlet Pressure: 400 psi
- Temperature Range: 33 to 180 degrees F
- Service: Water
- Outlet Pressure Range: 10 to 70 psi
- Body: Lead Free Brass
- Spring Chamber: Iron
- Adjusting Spring: Steel (Zinc plated)
- Diaphragm: Reinforced EPDM
- Body Seat: Polysulfone
- Seat Disc: EPDM
- Piston: Stainless Steel / Brass
- Strainer Screen: Stainless Steel
- O-Ring: EPDM
- Connection Size: 1"
- Connection Style: Barb
