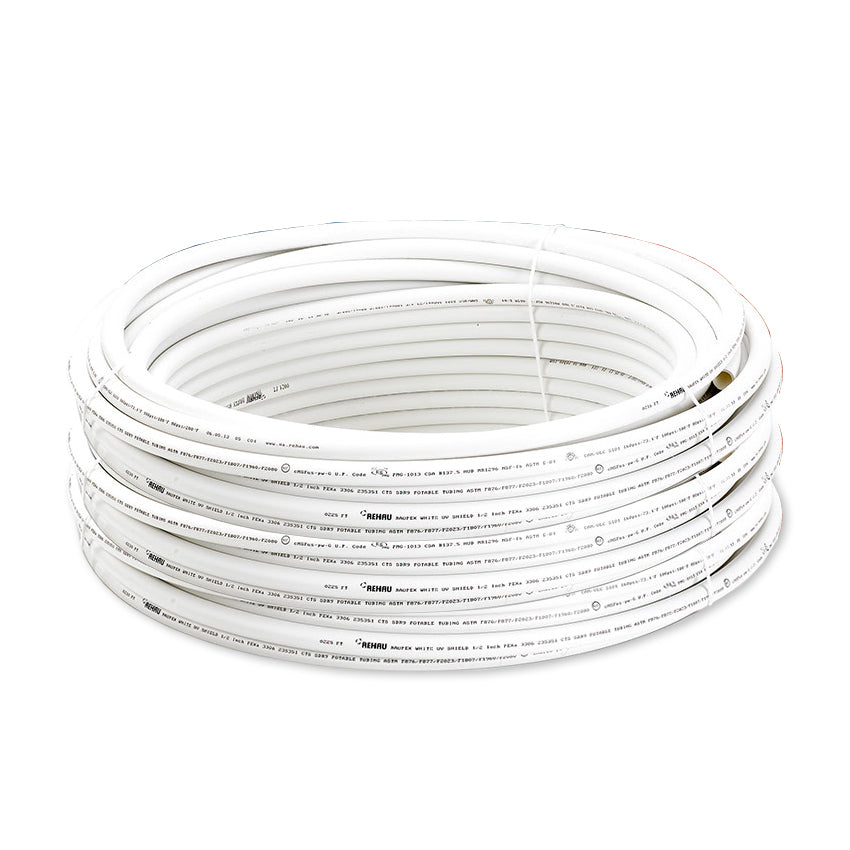

REHA 235371 313 300FT 3/4 NON 3/4 in. RAUPEX White UV Shield Pipe, 300 ft coil (91.4 m) RAUPEX UV shield pipe is manufactured using REHAU’s high-pressure peroxide method for crosslinked polyethylene (PEXa). RAUPEX UV shield pipe has a co-extruded PE shield that protects the pipe against ultraviolet light (sunlight) for one year. All RAUPEX UV shield pipe meets or exceeds the requirements of ASTM F876, CSA B137.5 and PPI TR-3 and is certified to NSF Standards 14/61. RAUPEX UV shield pipe is manufactured in the USA by REHAU in a plant using a quality management system that is certified to ISO 9001. RAUPEX UV Shield pipe is specifically designed for use with the EVERLOC+ compression-sleeve system certified to ASTM F877. See Technical Bulletin 261 for other compatible PEX fitting systems. RAUPEX White UV Shield pipes in the sizes below are listed for use in residential fire sprinkler systems in accordance with UL 1821. RAUPEX Red and Blue UV Shield pipes are not certified for fire sprinkler systems. RAUPEX pipes may not be used for fire sprinkler applications other than those defined in NFPA 13D or IRC P2904 Features / Benefits RAUPEX Crosslinked Polyethylene (PEXa) Pipe is Manufactured Using REHAUs High Pressure Peroxide Extrusion Method that Typically Yields the Highest, Most Consistent Level of Crosslinking RAUPEX is a Durable, Flexible Pipe with Enhanced Temperature and Pressure Capabilities as Well as Long Term Strength Lead-Free Made in USA UV Shield Pipe Rehau Capacity 0.0189 Gallon per Foot Outer Diameter 0.875 Inch

PREH123284
