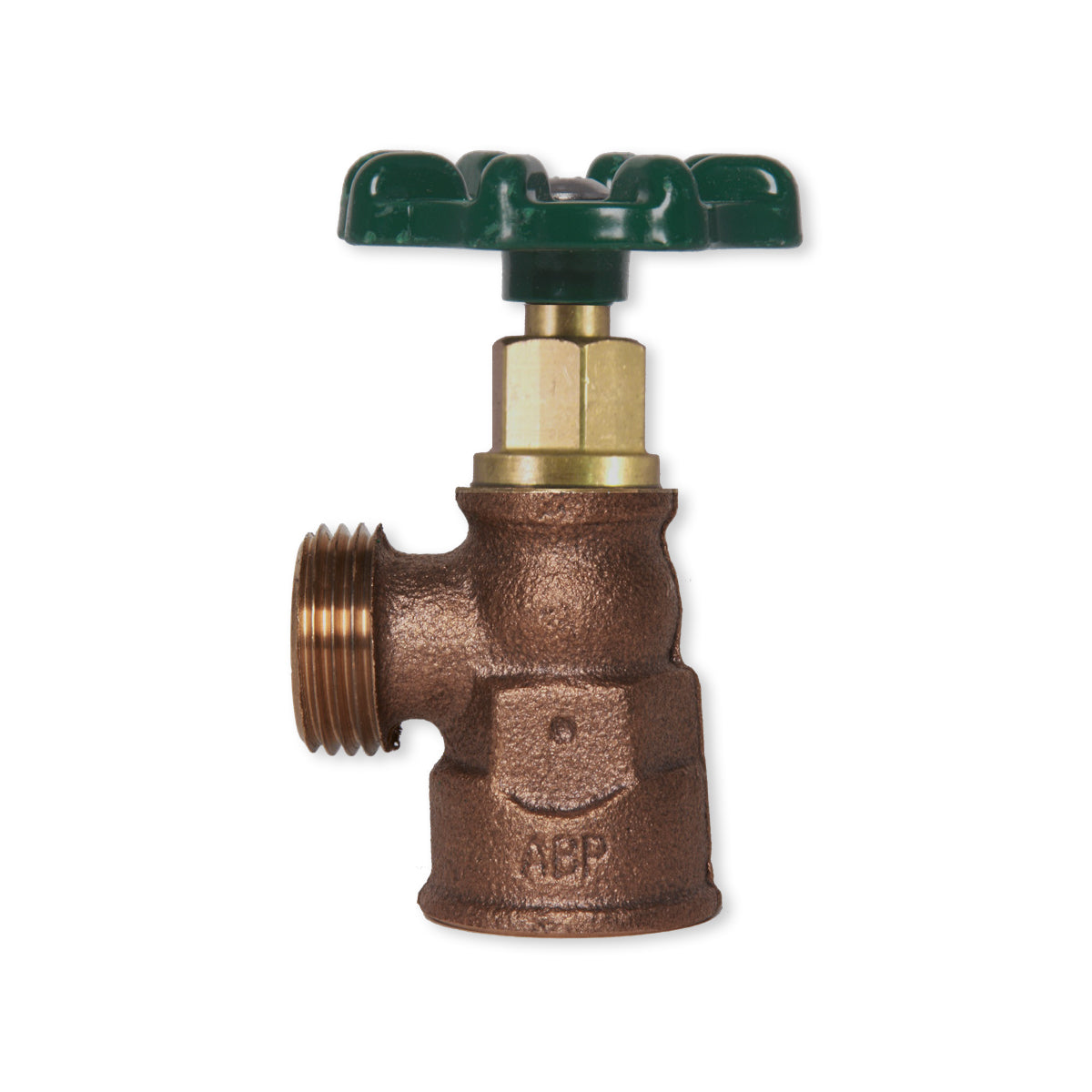

220LF - Lead Free Boiler Drain Valve - 3/4" FIP x 3/4" Hose Thread
Couldn't load pickup availability
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997

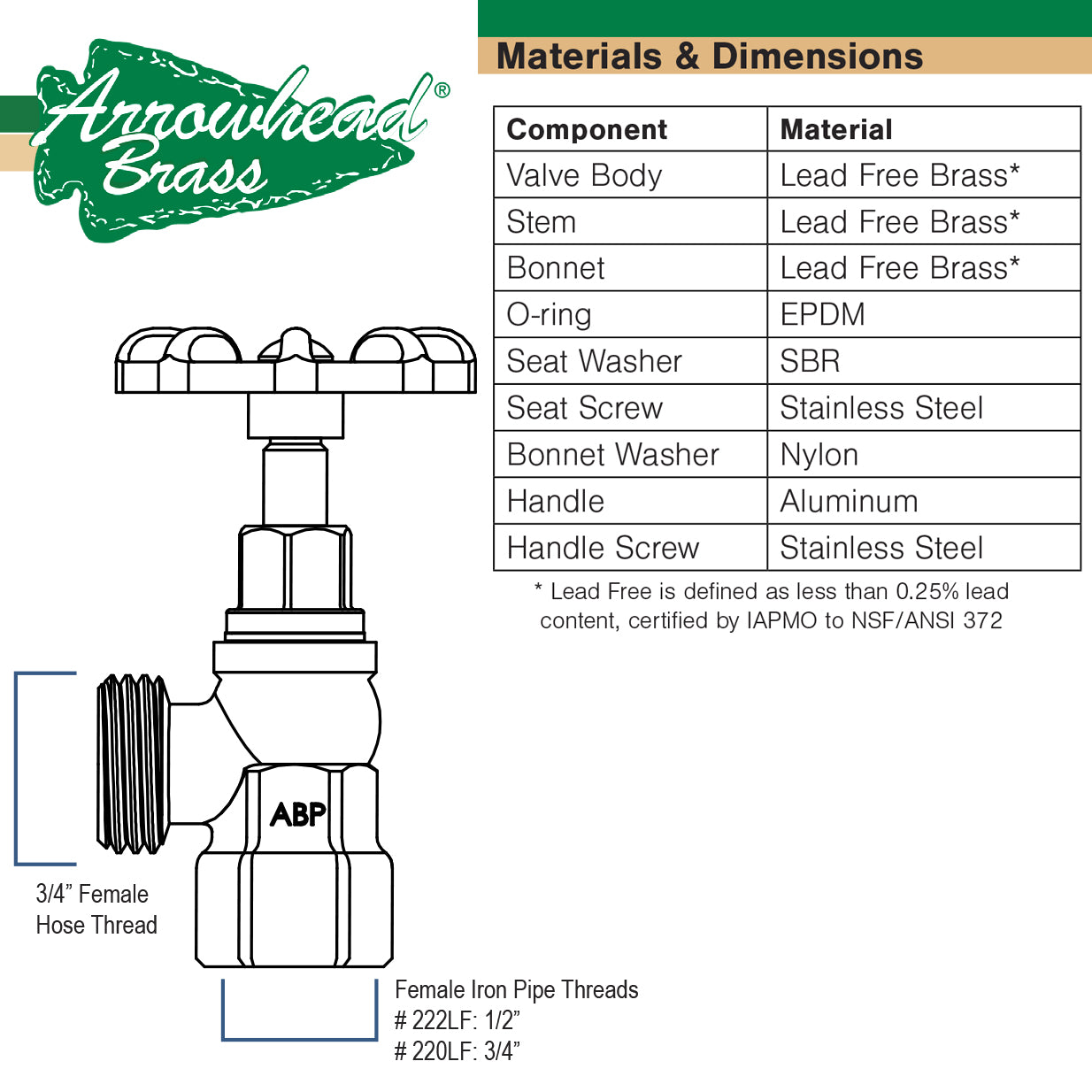

Specification SheetArrowhead Brass 220LF - Lead Free Boiler Drain Valve - 3/4" FIP x 3/4" Hose Thread
The Arrowhead Brass 220 boiler drain series has a 1/2" Female Iron Pipe (FIP) connection. The 220 includes Arrowhead Brass’s exclusive O-ring bonnet and stem design (no packaging nut to tighten) and a 3-year limited warranty.
Arrowhead Brass ACSB series Commercial Sillcock Wall Box is made of heavy-duty brass and is designed to house all Arrowhead Commercial Sillcocks. The ACSB features a loose key operated lock to protect and prevent the use of the enclosed Arrowhead Brass 25LF & 35LF series Commercial Sillcock, or the 28LF & 38LF Self-Draining
Commercial Sillcock, with or without the green wheel handle.
Features
- Made from a heavy-duty, lead-free bronze alloy
- Inlet Connection: 3/4" FIP
- Outlet Connection: 3/4" male hose thread
- Arrowhead Brass green wheel handle
- 3-year limited warranty
- Max pressure: 125 PSI
- Max temperature: 180 degrees F
