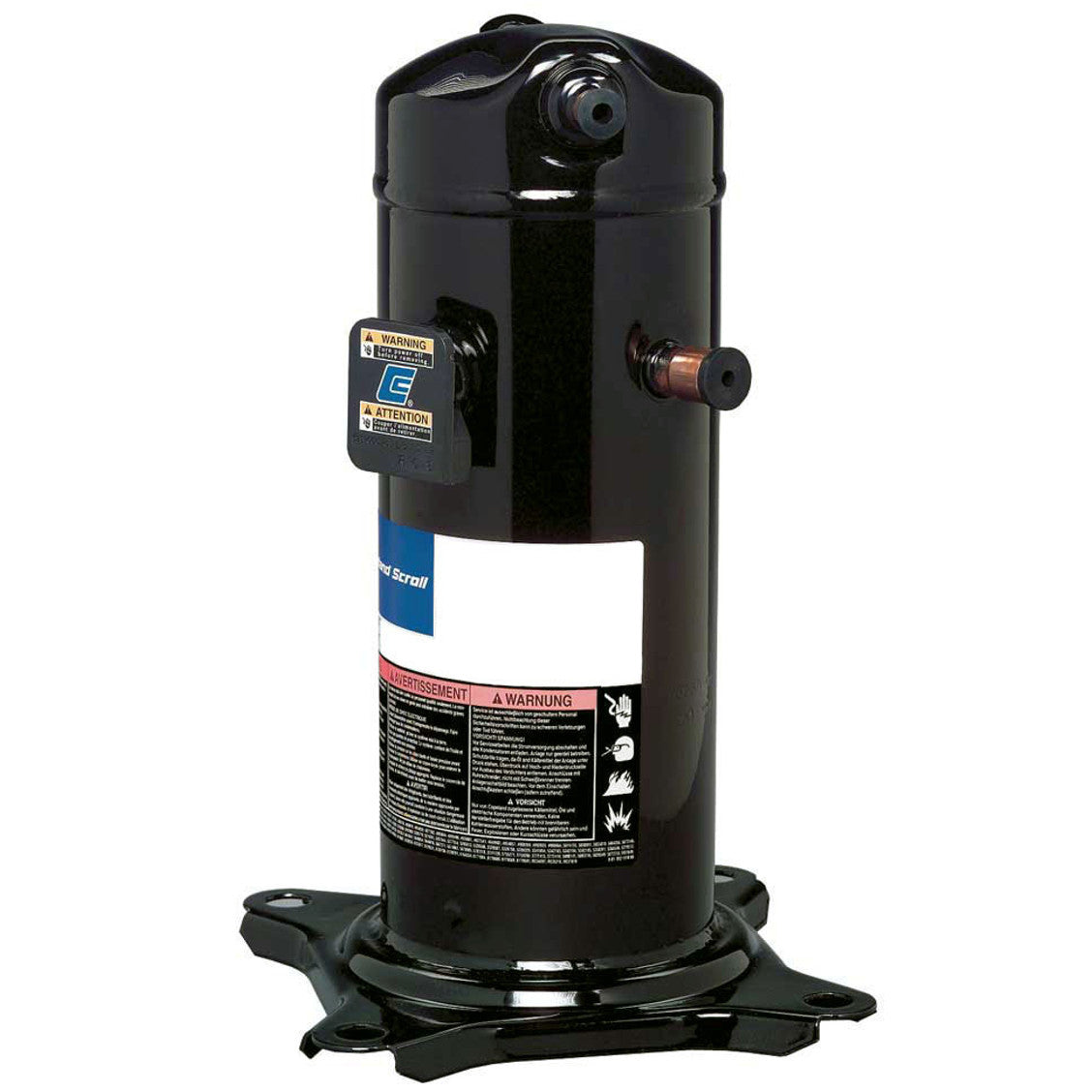

Rheem ZR61K3E-PFV-930 - Copeland Scroll Compressor - R22 - 230V

The Copeland Scroll commercial ZRKC compressor family is designed for superior efficiency and performance. The compressor's light, compact design can offer significant applied cost savings.

Features

• Commercial 3-phase fixed speed compressor
• Low-pressure applications
• High-efficiency motor
• Quiet operation

Technical Data

• Capacity (BTU/HR): 62000
• Type: Scroll
• Refrigerant: R-22
• Input Voltage (V): 208
• Input Voltage (V): 230
• No. of Phases: 1
• Freq. (Hz.): 60
• Run Capacitor (uF/V): 80/370
• Start Kit: SK-A4
• Kick Start: 42-KS1
• Start Relay P/N: 42-25105-01
• Start Capacitor (uF/V): 270-324/330
• Start Capacitor Part Number: 43-17075-07
• Rated Load Current (A): 32.1
• Max. Continuous Current (A): 45.0
• Locked Rotor Current (A): 148.0
• Crankcase Heater Included?: No
• Crankcase Heater Part Number: 44-17402-47
• Soundwrap (Brinmar): 68-25217-10
• Refrigerant Oil: POE (85-32CST)
• Suction Line Location: 2
• Suction Line Height (in.): 11-5/8
• Suction Line Configuration: Stub Out
• Suction Line Size (in.): 7/8
• Discharge Line Location: 3
• Discharge Line Height (in.): 16-1/8
• Discharge Line Configuration: Stub Out
• Discharge Line Size (in.): 1/2
• Overall Compressor Height (in.): 17-3/8
• Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
