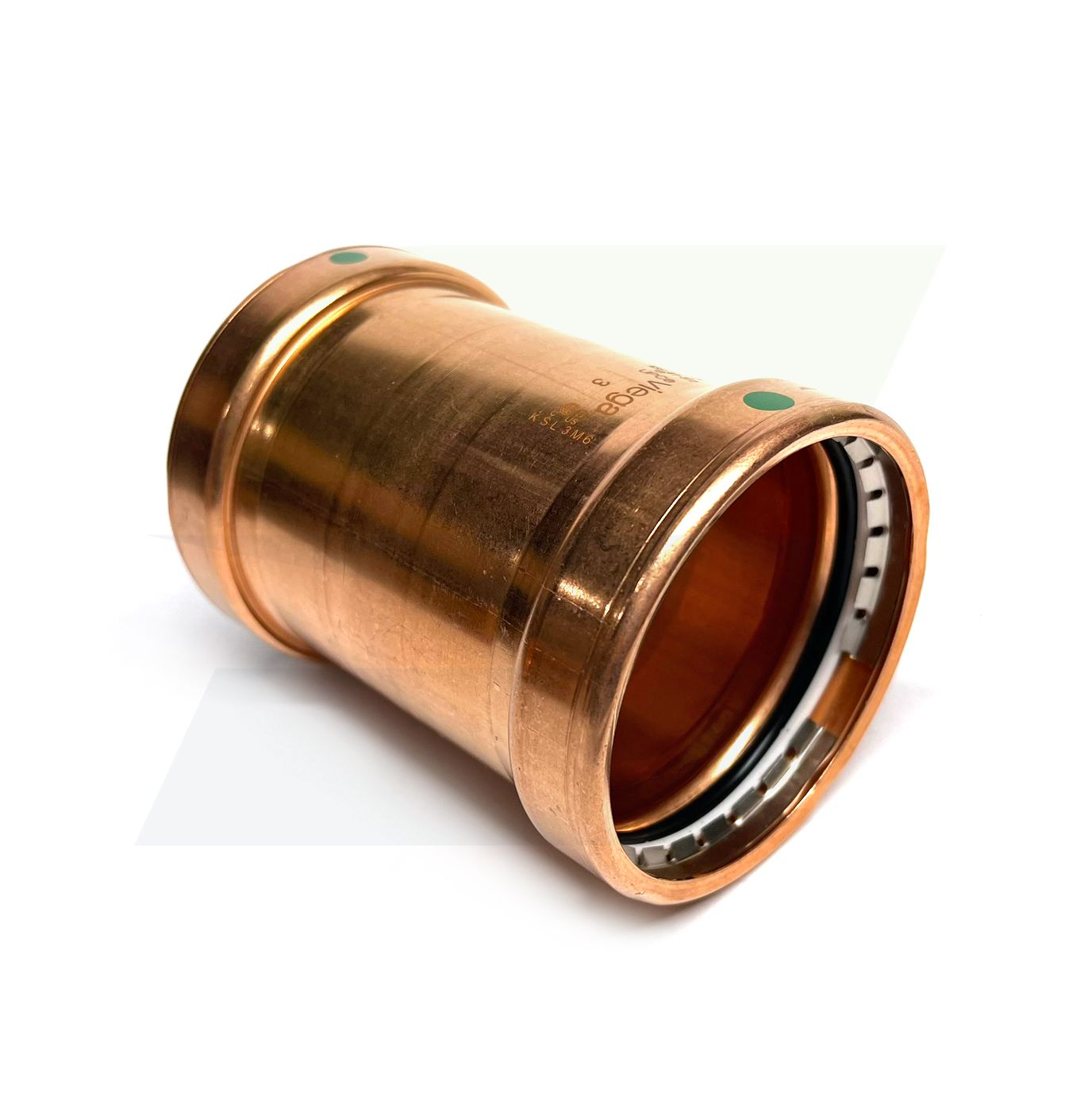

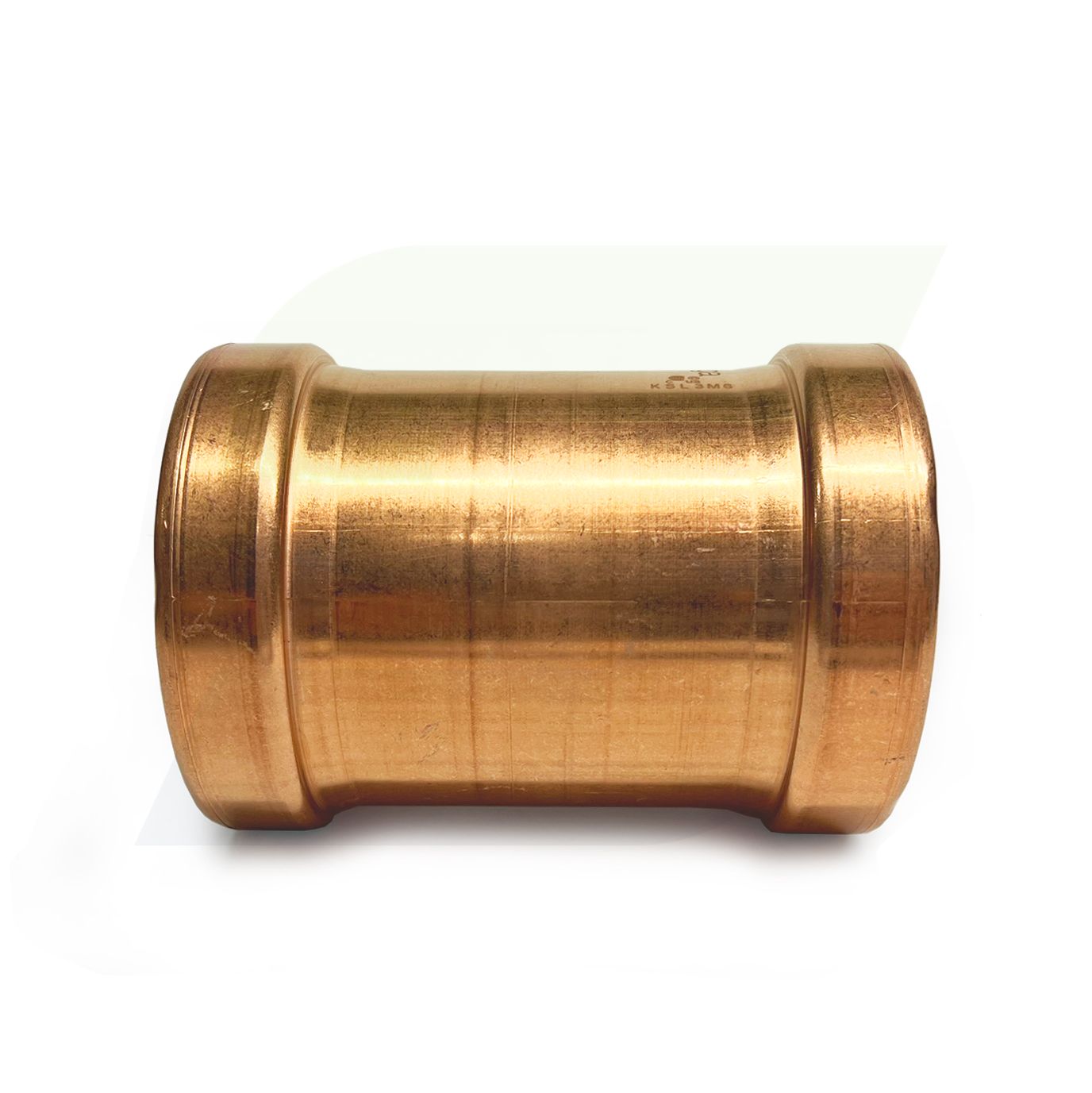

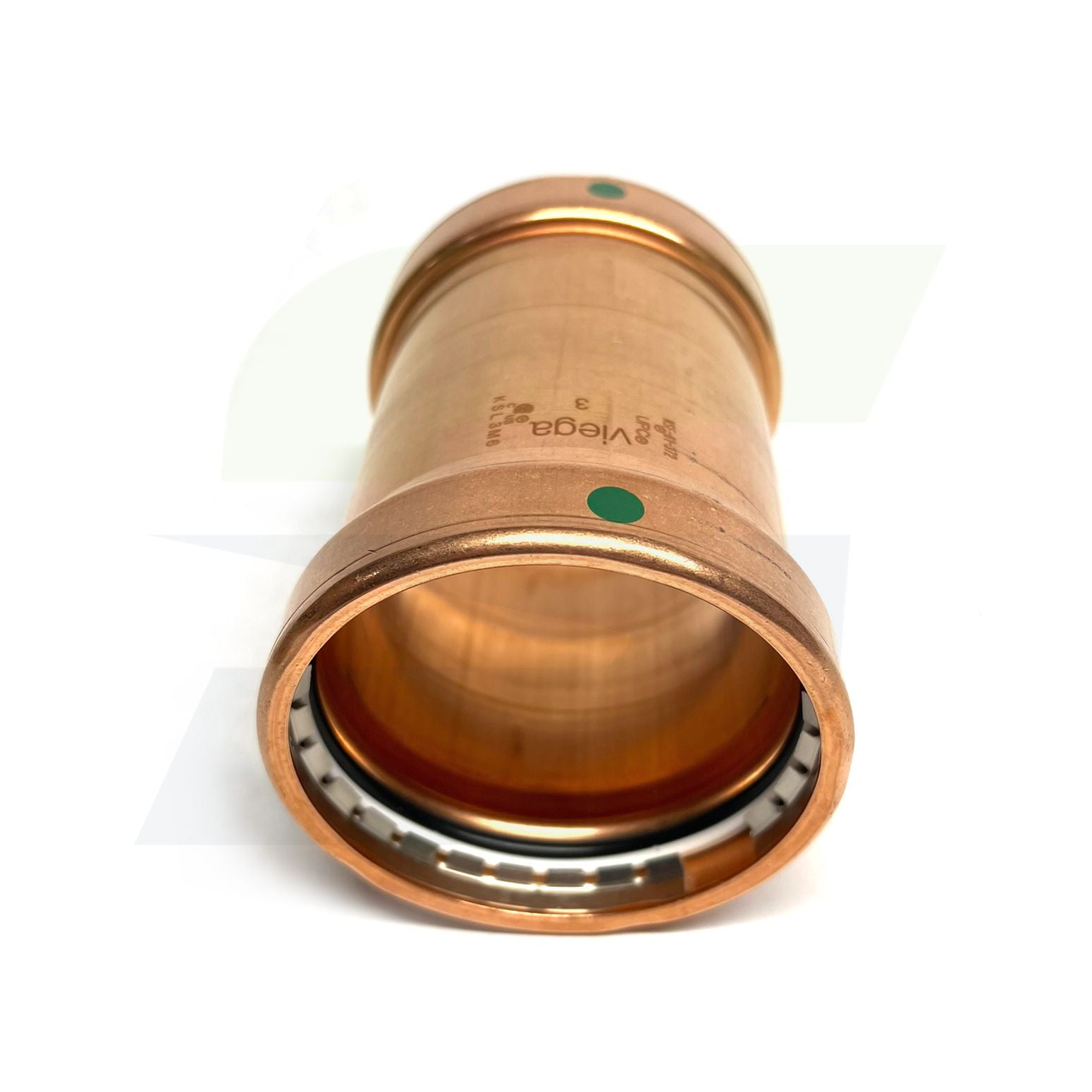

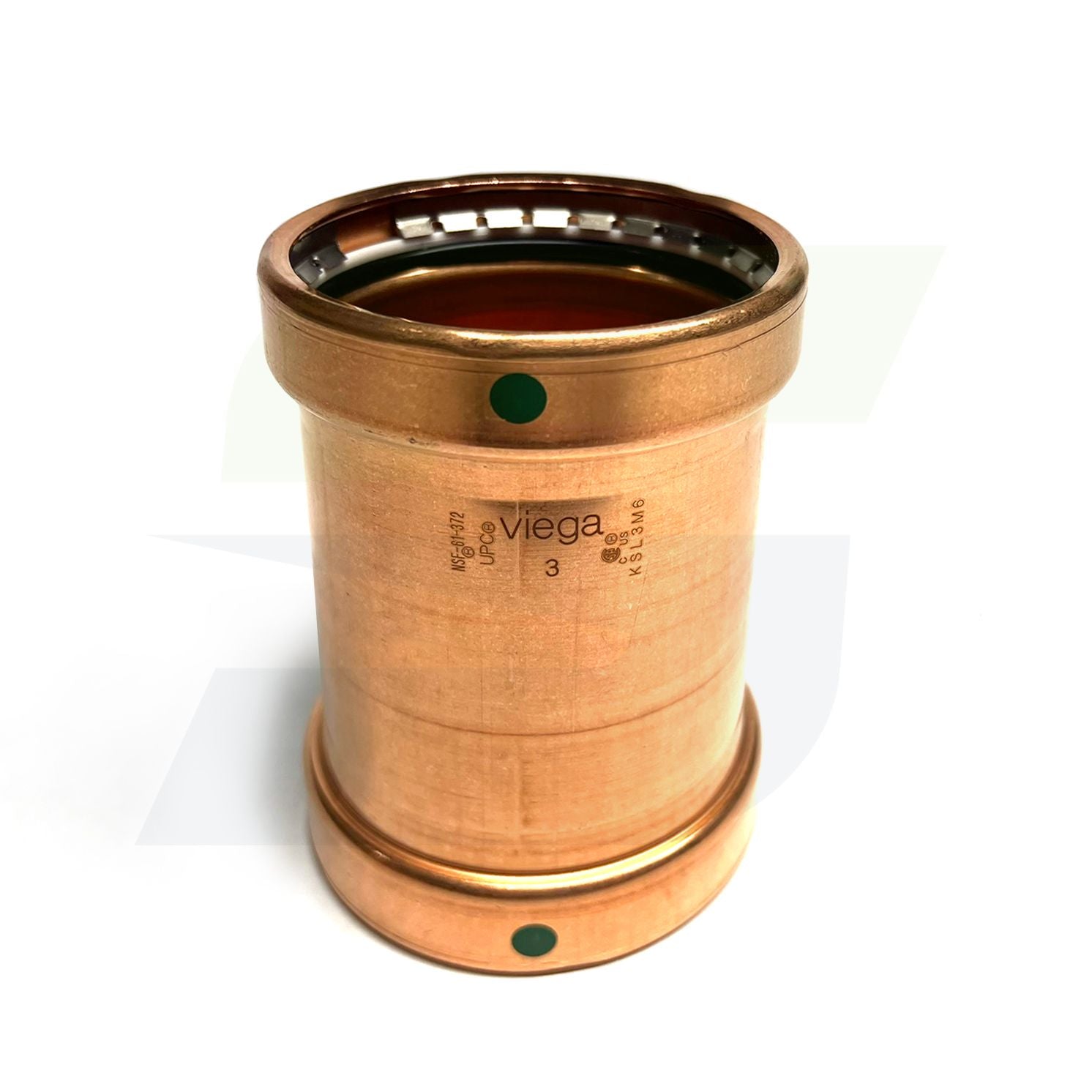

Viega 20748 - 3" ProPress XL-C Copper Coupling - No Stop (Lead Free)

The Viega 20748 is a 3-inch copper coupling designed for use with Viega ProPress XL-C systems. This no-stop coupling allows for full-length insertion of copper tube and is ideal for large-diameter piping in commercial and industrial applications. It features Viega’s patented Smart Connect technology, which helps installers identify unpressed connections during testing. Made from lead-free copper alloy and engineered for flameless press connections, it ensures a reliable, code-compliant seal every time.

Features

• Manufacturer: Viega
• Part Number: 20748
• Material: Copper (Lead Free)
• Connection Type: Press x Press
• Size: 3"
• Design: XL-C Copper Coupling – No Stop
• Pressure Rating: Up to 300 psi
• Temperature Rating: 0 to 250 degrees F
• Standards: NSF 61, NSF 372, ASME B16.51, IAPMO, UL, FM
• Smart Connect feature, flame-free installation, compatible with Viega XL pressing tools
