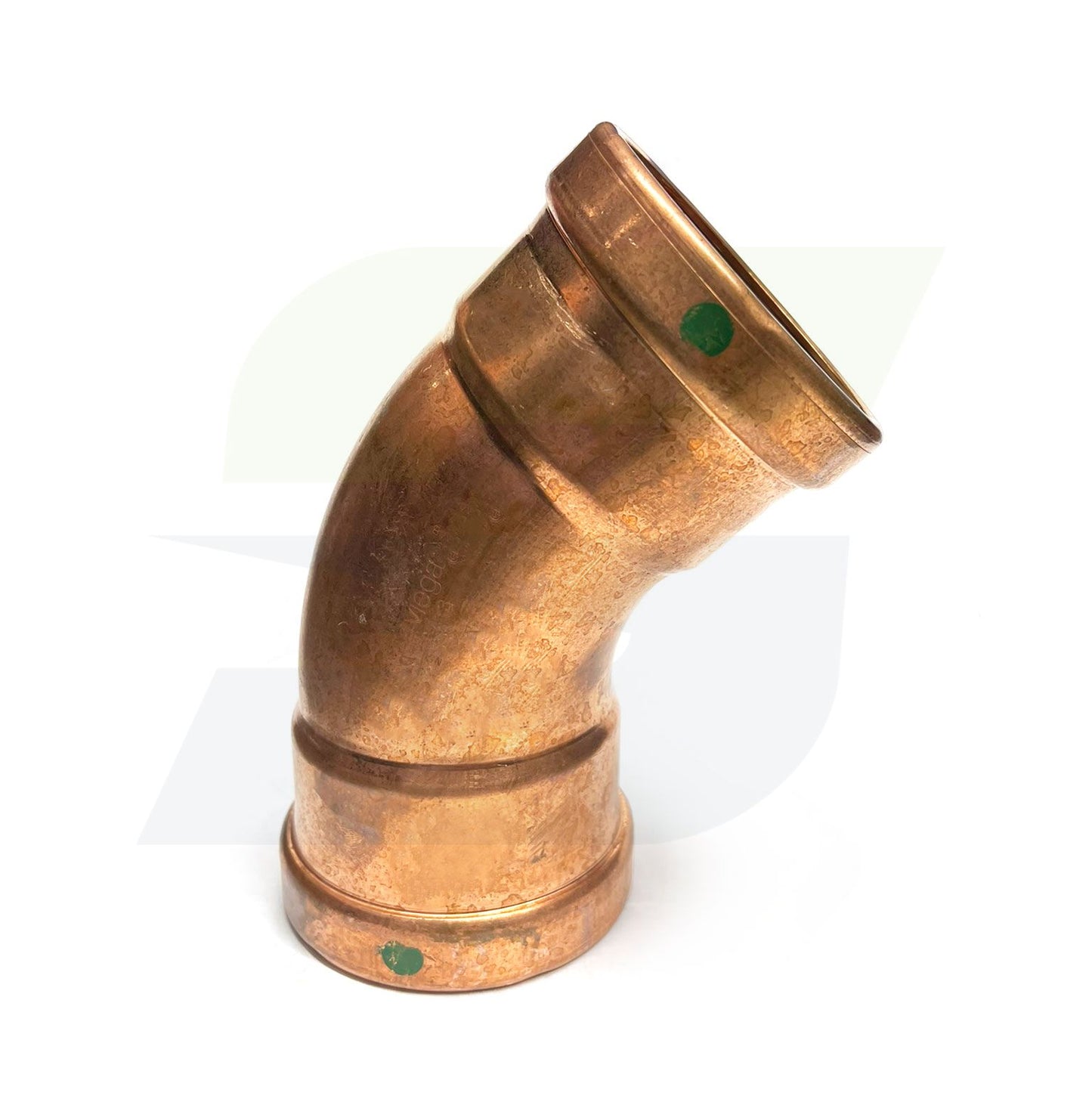

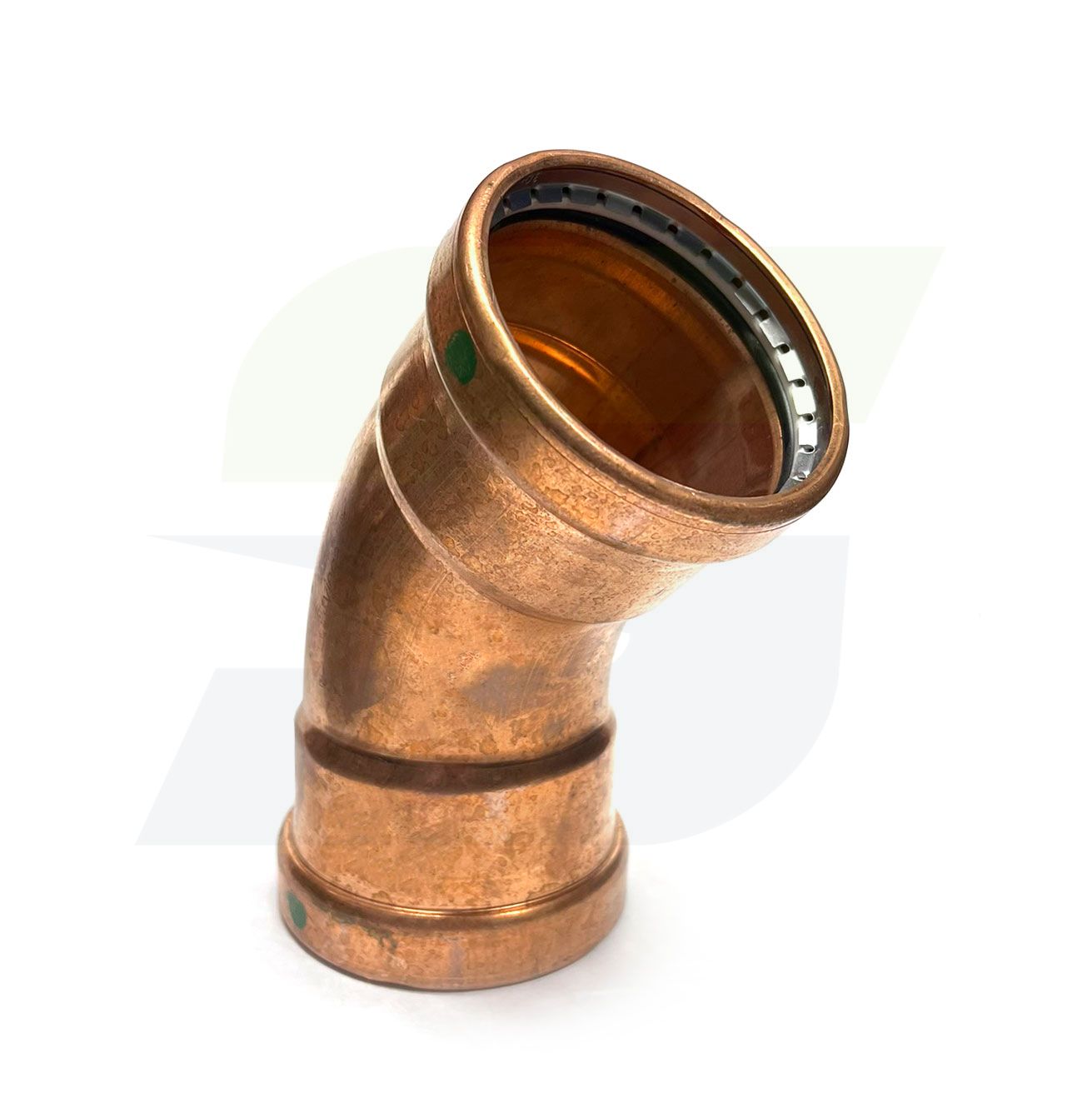

Viega 20658 – ProPress Zero Lead Copper XL-C 45° Elbow, 3" P x P

The Viega 20658 is a 3-inch ProPress XL-C 45-degree elbow designed for joining copper tubing in large-diameter piping systems. Manufactured from zero-lead copper, this fitting ensures long-lasting performance and compliance with potable water standards. The press connection system provides a secure, reliable joint in seconds without the need for soldering or open flame. Its 45-degree design allows for smooth directional changes while maintaining flow efficiency, making it ideal for commercial, industrial, and mechanical applications.

Features

• Manufacturer: Viega
• Part Number: 20658
• Product Type: ProPress XL-C Elbow
• Angle: 45 degrees
• Size: 3 inch
• Connection Type: P x P (Press x Press)
• Material: Zero Lead Copper (meets lead-free requirements)
• Design: XL-C (extra-large diameter fitting) for copper tube systems
• Operating Pressure: Up to 200 psi (when installed with approved ProPress system)
• Operating Temperature: Up to 250 degrees F (with EPDM sealing elements)
• Application: Commercial plumbing, heating, chilled water, and potable water systems
