Installation Instructions

Specification Sheet

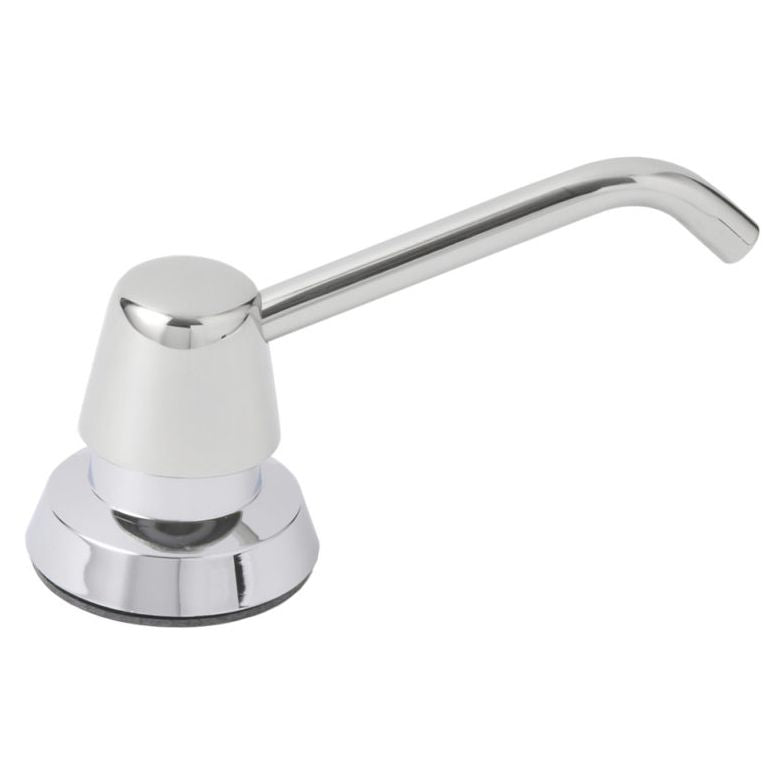

20-fl. oz Manual Soap Dispenser  4", Liquid

Features:

• Corrosion resistant soap dispenser has vandal-resistant locking cover and free-turning spout.
• Body and shank are high-impact-resistant ABS plastic with a shatter-resistant polyethylene container.
• 20-fl. oz. (0.6-L) capacity
• 4" (100mm) spout length
• 1" (25mm) mounting thickness, bright-polished spout.

Materials:

• Piston, Spout, and Top Cover — Type-304 stainless steel with bright polished finish.
• Cover Spacer — Rigid, impact-resistant polyester.
• Escutcheon — Chrome-plated, high-impact-resistant ABS with bright polished finish. Concealed locking mechanism.
• Body and Shank — High-impact-resistant plastic.
• Valve — ABS cylinder. Stainless steel spring. U-packing seal and duckbills.

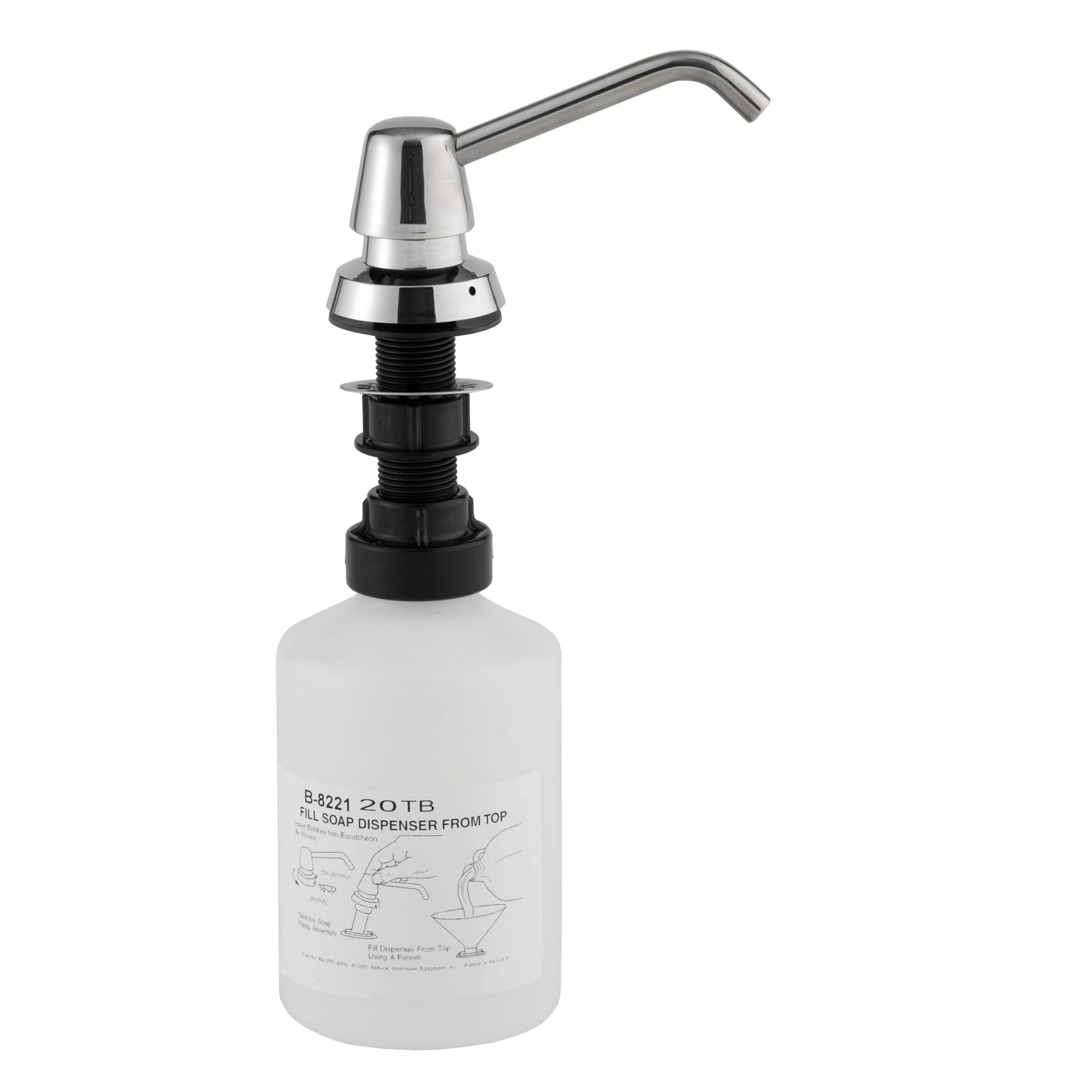

• Container — Translucent, shatter-resistant polyethylene. Capacity: 20-fl oz (0.6-L).

Operation:

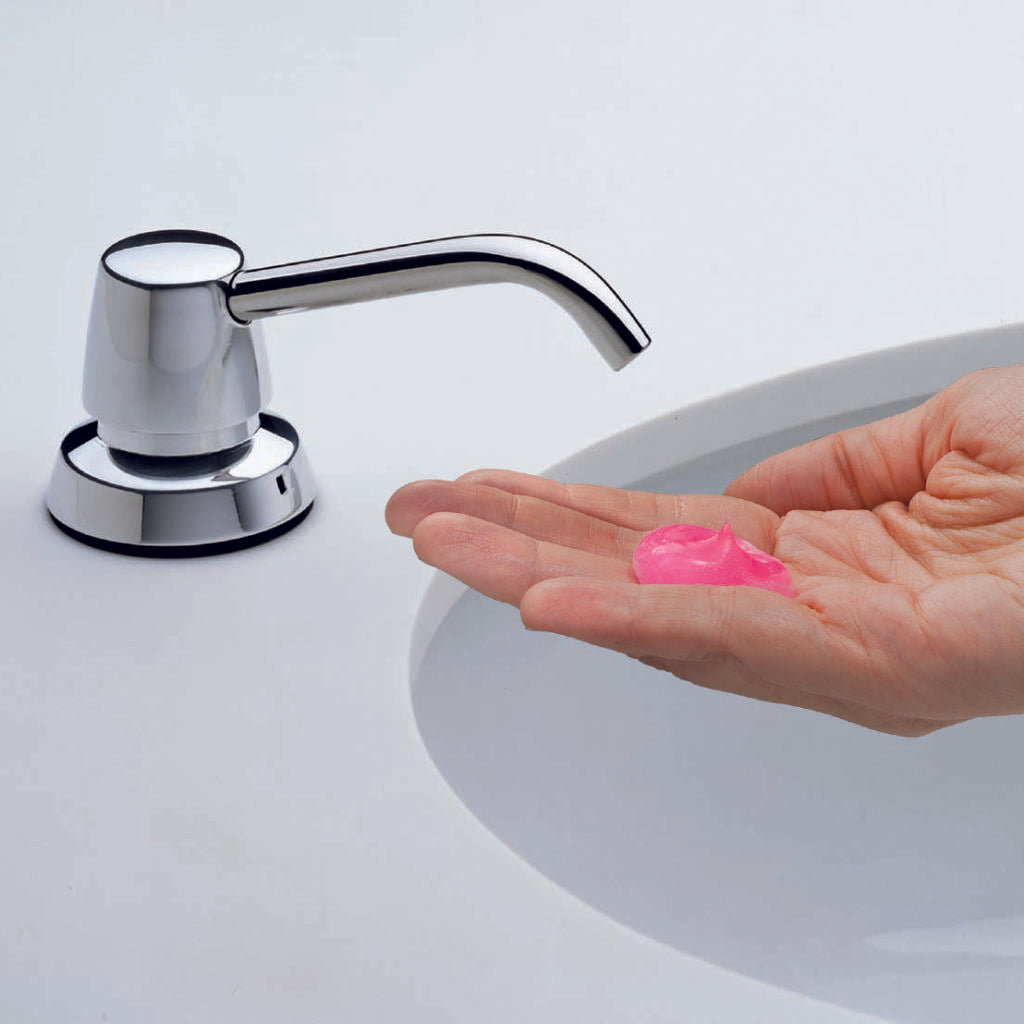

• Press piston down to dispense commercially marketed all purpose hand soaps. Vandal-resistant spout can rotate 360° without damage

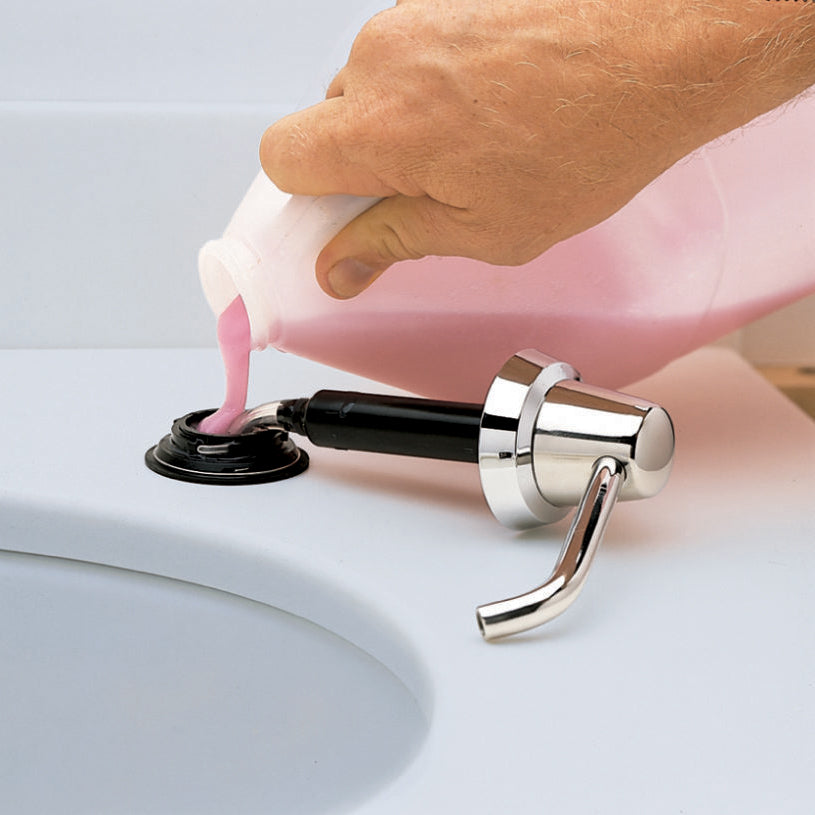

  to unit. Escutcheon locks to body with concealed locking mechanism that is opened with special key provided. To fi ll from top, unlock
  cover and remove piston, spout, and supply-tube assembly. Unit may also be fi lled by removing container from below lavatory.
  Designer's Note: Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose hand soaps including
  liquid and lotion soaps, synthetic detergents, non-iodine based soaps and do not use alcohol based sanitisers.
