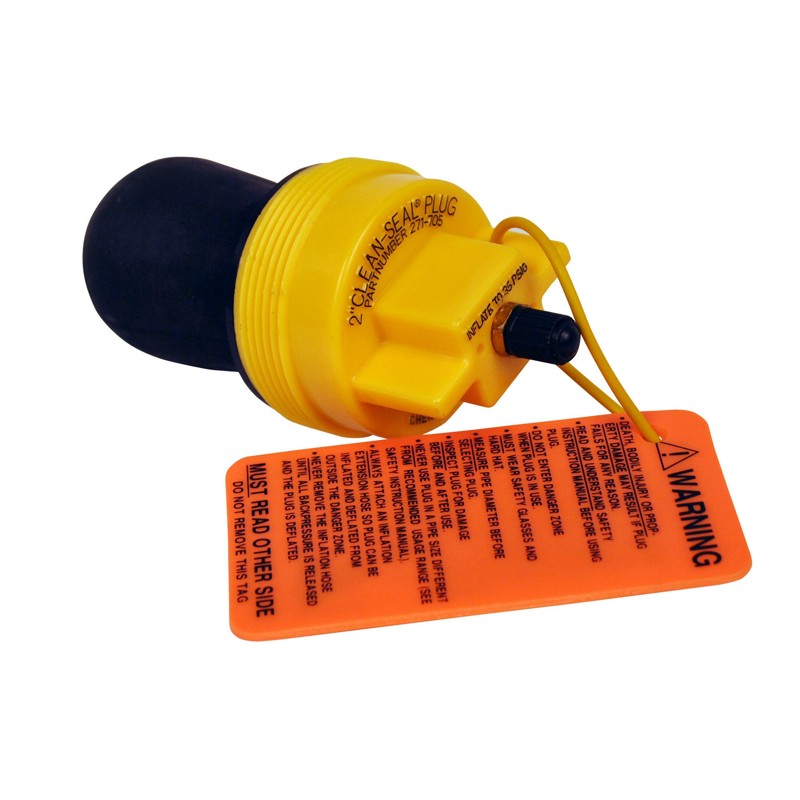

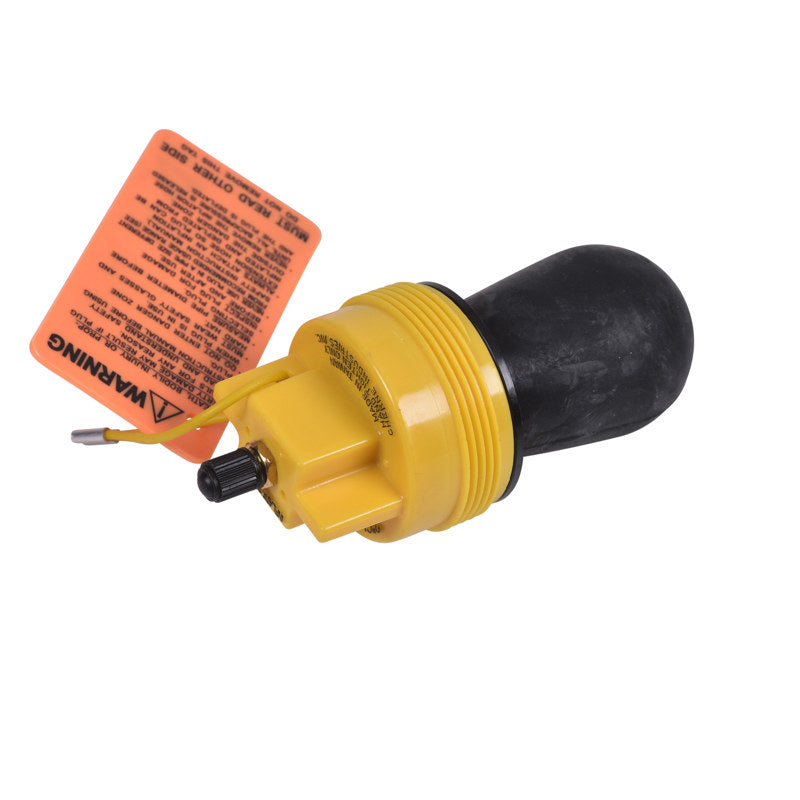

Oatey 271705 - Cherne 2" Clean-Seal Plug

Clean-Seal plugs eliminate test water backsplash when stack testing drain, waste and vent plumbing systems. Simply thread them into a standard test tee, inflate the bladder and run your test. Cherne Industries is a global leader in pipe plug, blocking and testing.

• Clean-Seal Plug holds back up to 13 PSI or 30 ft. of head pressure
• Plug design keeps work area and plumber dry no backsplash
• Seals both plastic and hard to seal cast iron threaded cleanouts
• Easy to install
• Natural rubber body provides a leak-free seal
• High-impact ABS threads for maximum durability
• Removable and field repairable inflation valve fitting
• Inflation Pressure: 35 psi (2,4 bar)
• Deflated Length: 5.81 in. (150 mm)
• Deflated Diameter: 2.38 in. (60 mm)
• Inflation Thread: 1/8 in.
• Nominal Size: 2 in. (50 mm)
• Weight: 0.3 lbs.
• Nominal Min: 2
• Nominal Max: 2
• Brand: Cherne
• Maximum Back Pressure: 13 psi (0,9 bar)/30 ft. (9.1 M)
• Color: Black
• Product Type: Clean-Seal
• Plug Type: Blocking

PAZ1A20830
